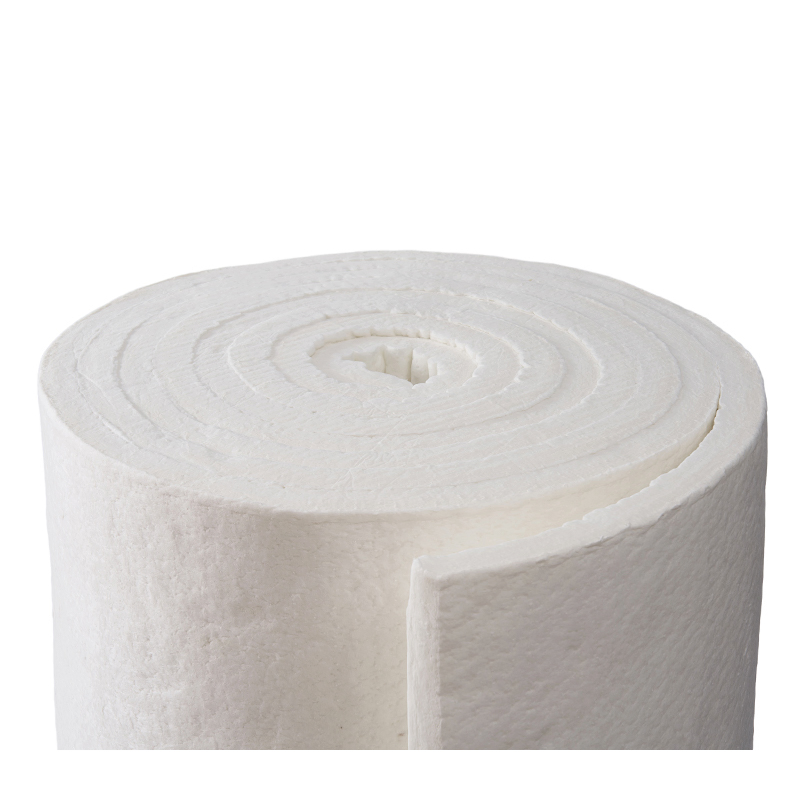

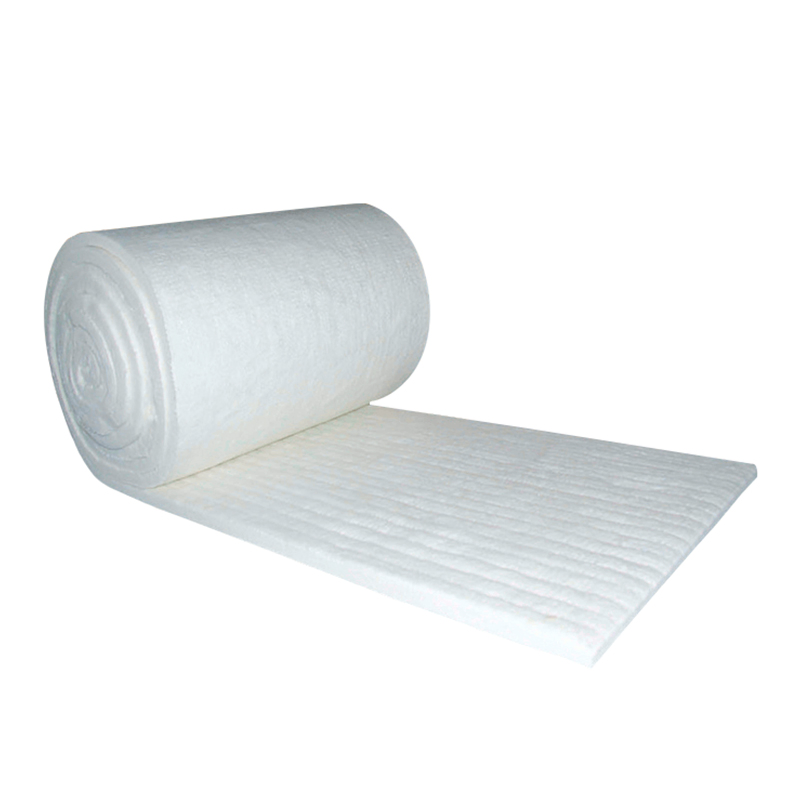

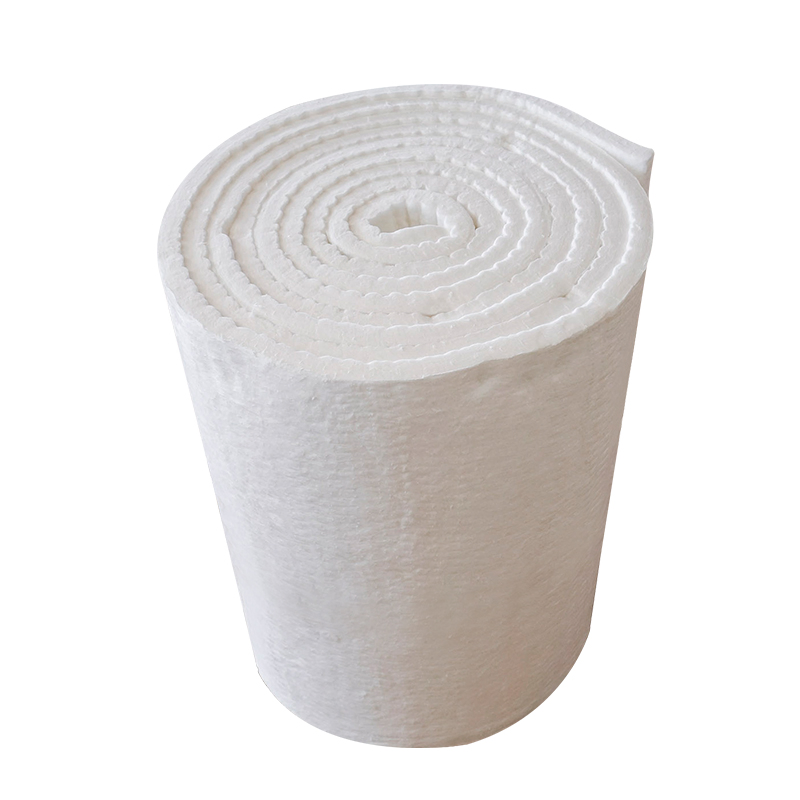

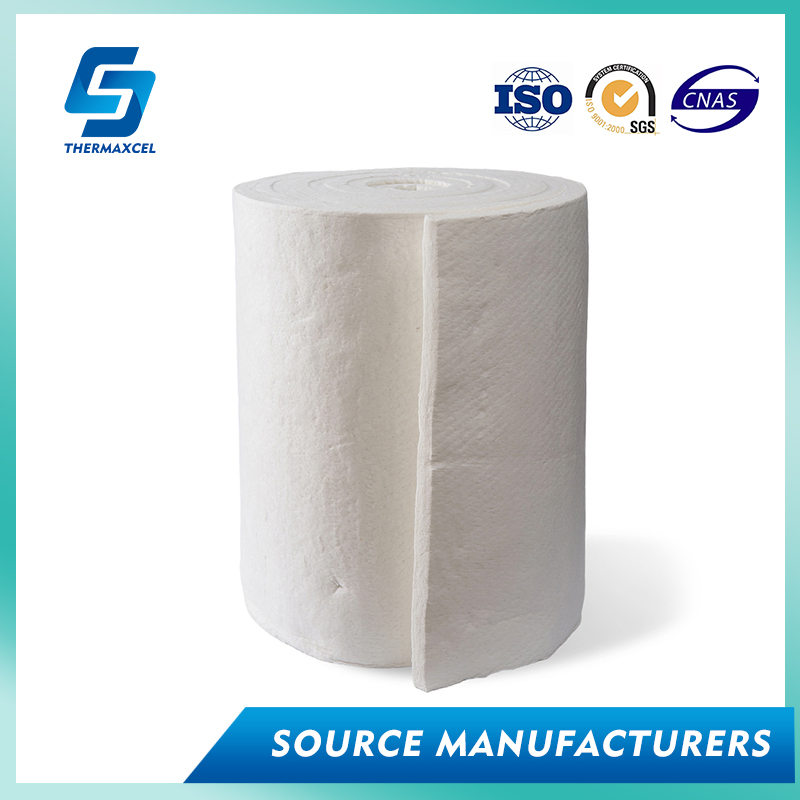

25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
1 / 5
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining
25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining

25mm 1260c Thermal Insulation Material Ceramic Fiber Blanket for Furnace Lining

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
Ceramic Fiber Blanket
Chemical Composition
Al2O3.SiO2
Manufacturing Technique
Spray Silk Rug
Ultimate Strength
0.06 MPa
Classification Temp
1260c
Tensile Strength
0.05(MPa)
Thickness
10-50mm
Density (Kg/M³)
160
Thermal Conductivity
0.09(400c)
Width
610/1220mm

Packaging & Delivery

Package Size
46.00cm * 46.00cm * 62.00cm
Package Gross Weight
30.000kg
Transport Package
Sea-Worthy Wooden Case

Product Description

Ceramic Fiber Blanket

The 25mm Ceramic Fiber Blanket is a high-temperature alumina-silicate insulation material widely used in industrial furnaces, heating equipment, boilers, kiln linings, chimney insulation, and thermal processing systems.

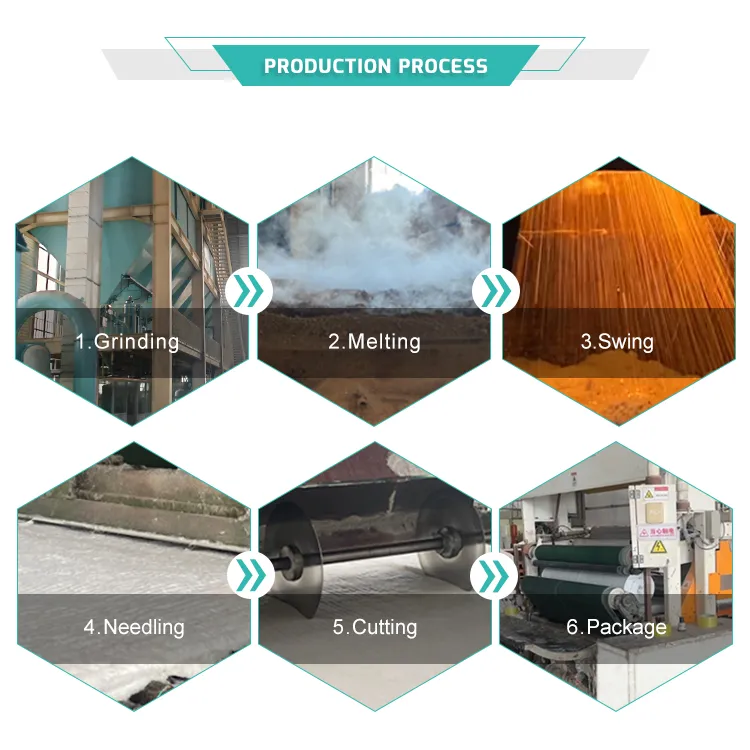

It is manufactured through a continuous needled process, ensuring excellent fiber strength, uniform texture, low thermal conductivity, and superior temperature resistance. The product is available in 1260°C / 1350°C / 1430°C classification grades.

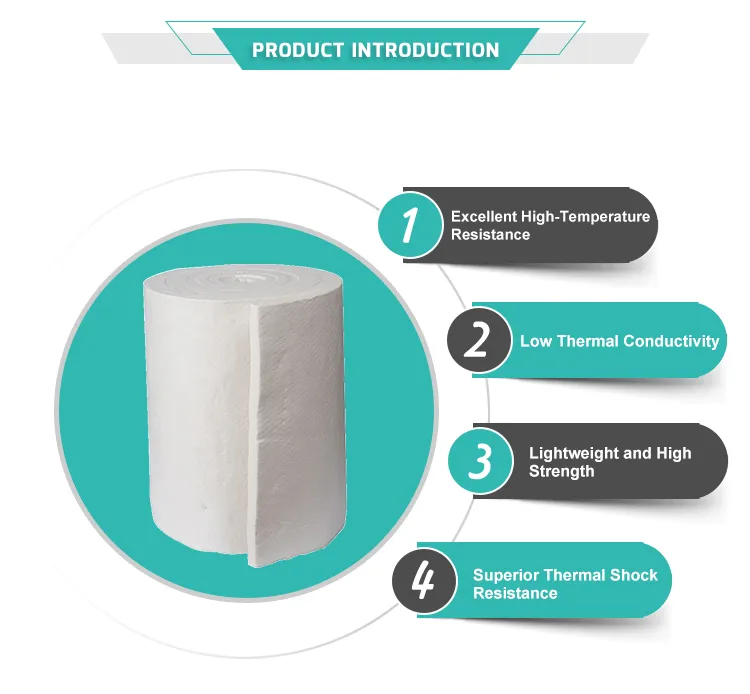

Features

  • High Temperature Performance: Rated for 1260°C-1430°C.
  • Uniform Needling Structure: High tensile strength and minimal shrinkage.
  • Excellent Thermal Insulation: Conductivity as low as 0.035-0.045 W/m·K.
  • Lightweight: Low heat storage for improved heating efficiency.
  • Sound Absorption: Provides both thermal and acoustic insulation.
  • Eco-Friendly: Non-toxic, chemical-resistant, and recyclable.
Insulation Material
Furnace Lining

Applications

Industrial Furnaces & Kilns

  • Furnace lining & back lining
  • Continuous annealing furnaces
  • Heat treatment equipment

Refractory & Construction

  • Expansion joint filling
  • Boiler door insulation
  • Fire protection & sound panels

Technical Properties

Properties ST BLT GC BLT HA BLT HZ BLT PC BLT
Spec. Temp (ºC) 1260 1260 1360 1430 1600
Working Temp (ºC) 1050 1100 1200 1350 1500
Bulk Density (kg/m³) 64-160 64-160 64-160 64-160 96/128
Tensile Strength (MPa) 0.05 0.05 0.06 0.06 0.08
Al2O3 (%) 43 44 51 35 71
ZrO2 (%) - - - 13-15 -

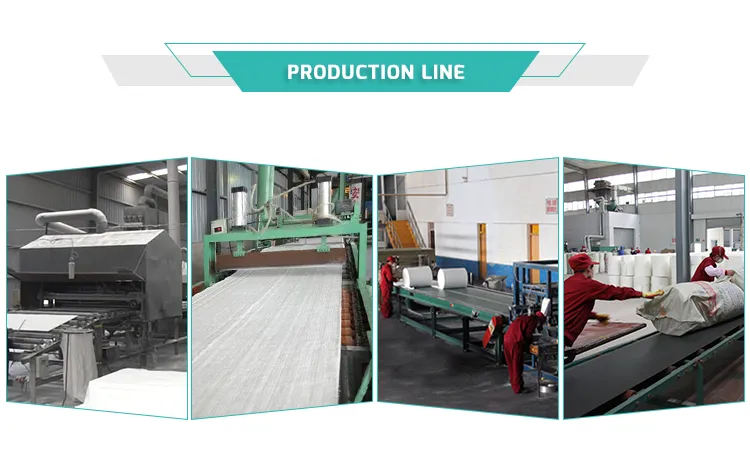

Details 1

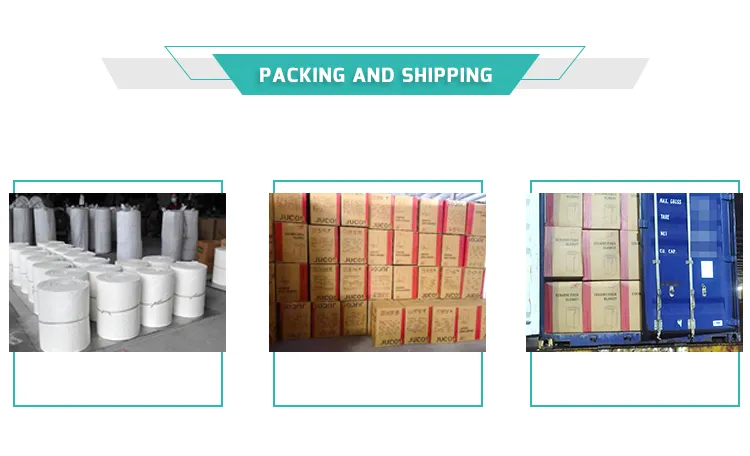

Details 2

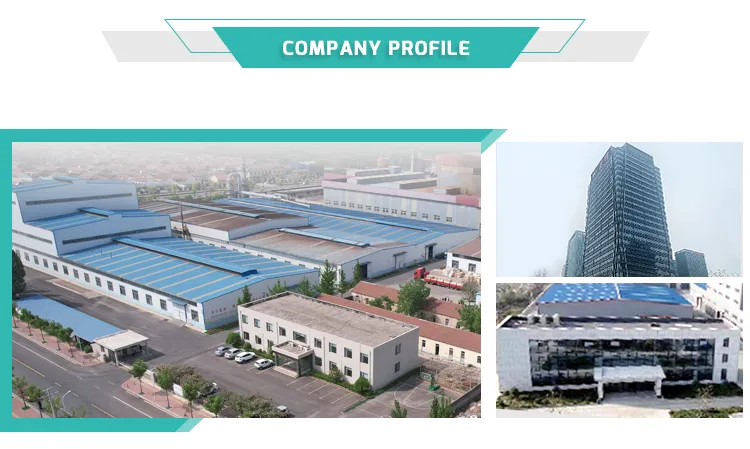

Details 3
Details 4

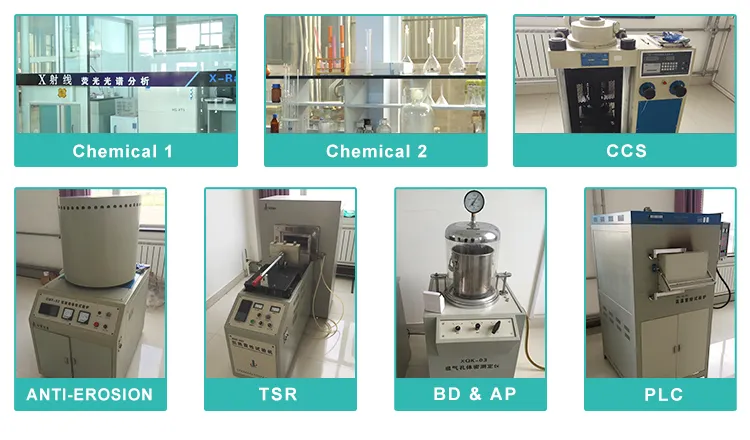

Details 5
Details 6

Frequently Asked Questions

Q1: Is 25mm thickness suitable for furnace lining? Yes - It is commonly used as a hot-face or back-up insulation layer.
Q2: Which density should I choose: 96 or 128 kg/m³? 96 kg/m³ is economical & lightweight, while 128 kg/m³ offers higher strength & improved insulation.
Q3: Can you produce 50mm or custom thickness? Yes - thickness, density, and length can all be customized according to requirements.
Q4: What is the maximum classification temperature? Up to 1430°C depending on the classification grade (ST, GC, HA, or HZ).
Q5: Do you offer other forms of ceramic fiber products? Yes, a complete ceramic fiber product system including modules, boards, and paper is available.
Q6: What are the main chemical components? The main components are Al2O3 and SiO2, with specific grades containing ZrO2 for higher temperature resistance.
