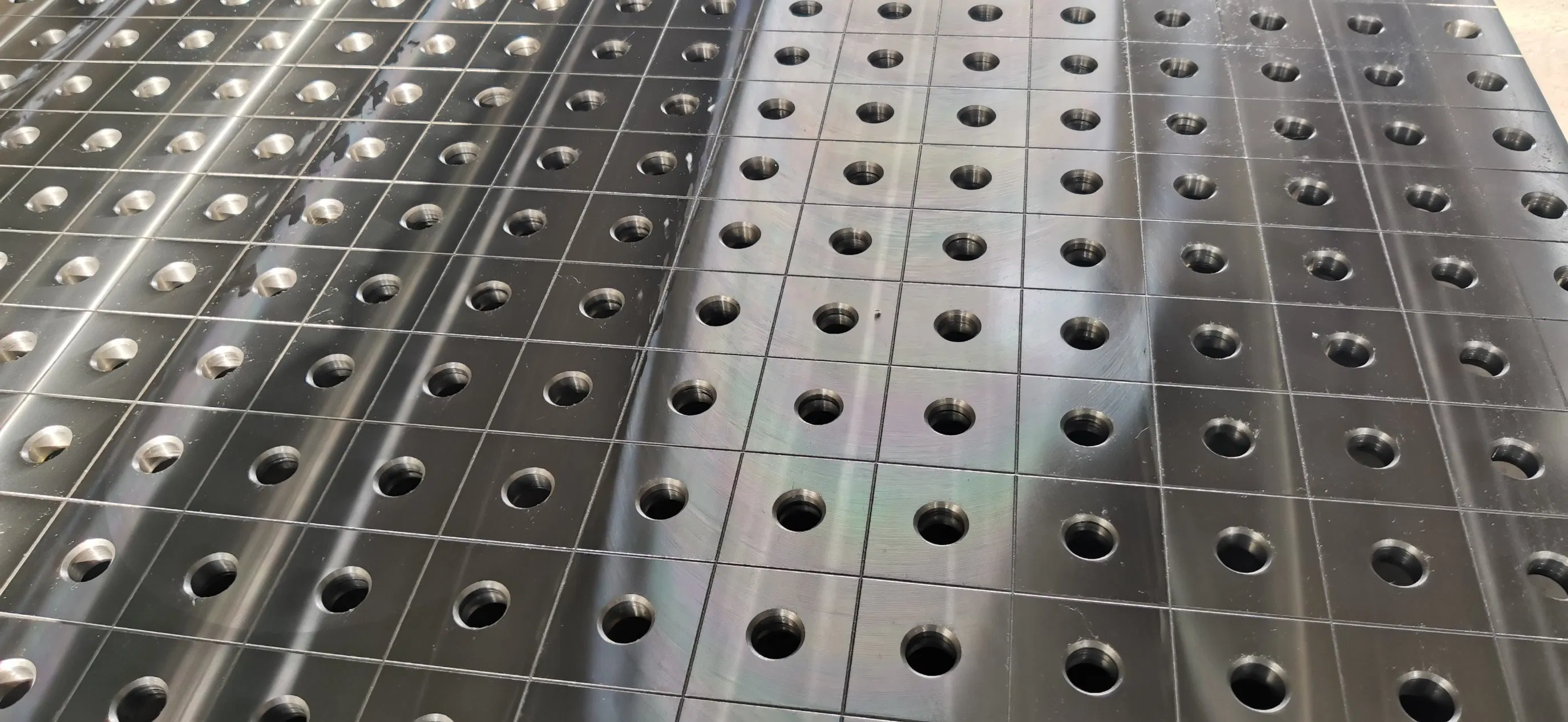

Long - Service 3D Flexible Welding Platform with Low Maintenance Needs

Customization:	Available
Type:	Soldering Station
Structure:	Platform

📋 Basic Specifications

Model NO.

D-28-1000*1000*200

Rotaion Speed

0.3-3rpm

Tilting Angle

0-90°

Voltage

110V/220V

Product Name

3D Welding Table

Surface

Nitrided

Hole Size

28mm/16mm

Material

Steel/Cast Iron

🛠️ Product Description

3D Steel New Metal Welding Workbench with Clamps for Robotic Welding and Soldering Stations

3D welding table /welding platform is a device used in welding processes, mainly for automated and precise welding operations. Equipped with a three-dimensional motion control system, it accommodates workpieces of different shapes and sizes, significantly improving manufacturing efficiency in automotive and aerospace industries.

⚙️ Technical Features

Material: Q355 steel plate or high hardness steel plate welding.
Aperture: φ28.065 -- φ28.149mm.

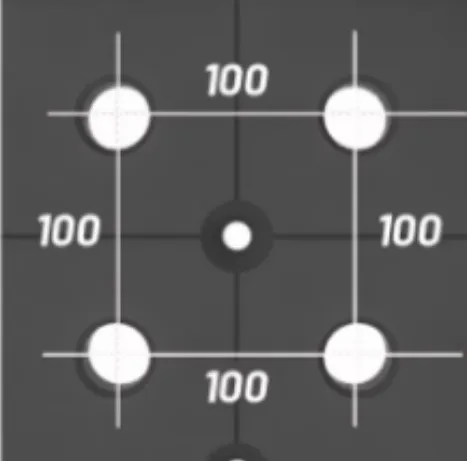

Hole spacing: 100±0.05mm.
Flatness: 0.1/1000mm.
Bearing Capacity: Standard type 2T, Frame type 5T.
Hardness: Material body and nitriding layer HV450-HV630.

💡 How to use a 3D fixture table?

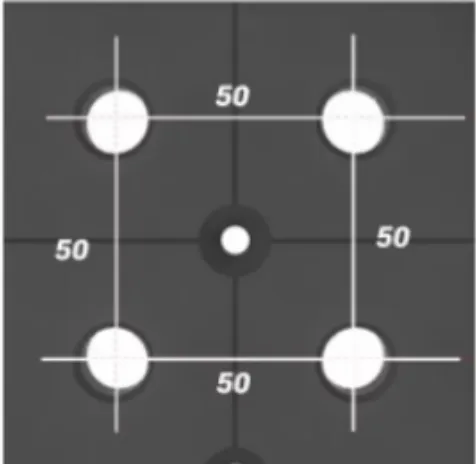

D16 Series

D28 Series

Choose a suitable platform: D16 for sheet metal/small structures; D28 for heavy machinery.

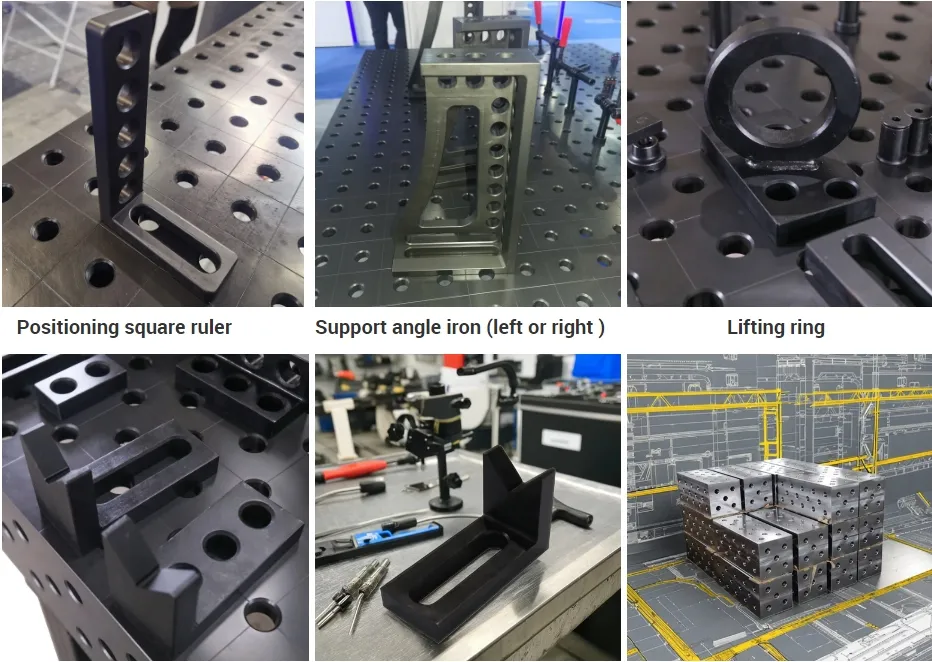

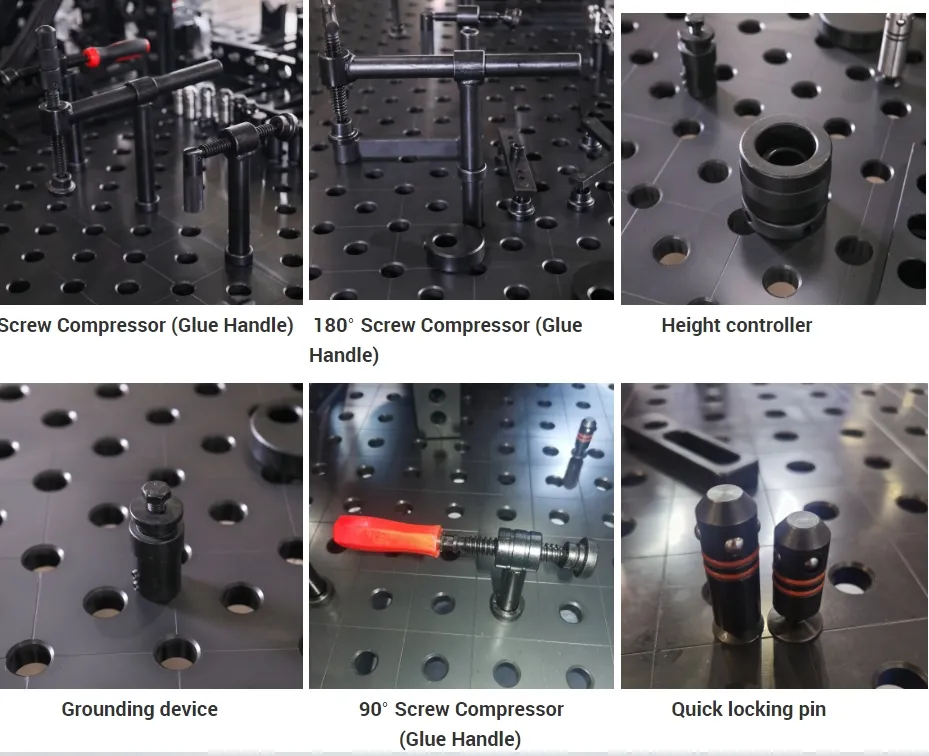

Configure fixtures: Use U-shaped or L-shaped boxes for extension.
Quick assembly: Modular design with standard hole systems for fast positioning via locking pins.

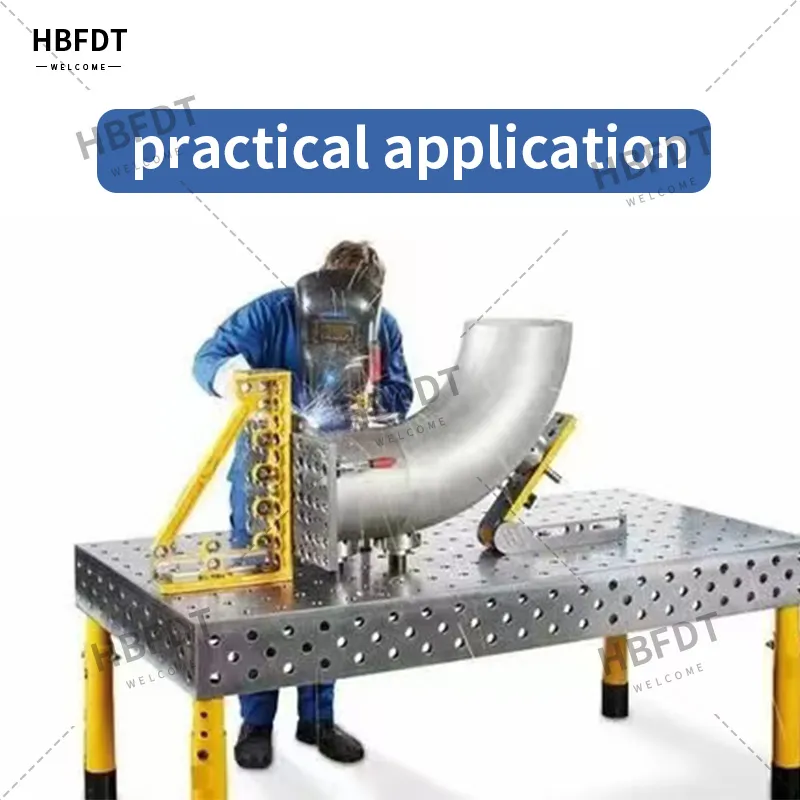

Welding & Assembly: Ensure high precision and stability during operations.

📊 Production Specification

Specification (LxW)mm	Height (mm)	Material	Hole Diameter (mm)
4000mm x 2000mm	200/150/100	Q355/Q235/Cast iron	D28/D16
3000mm x 2000mm	200/150/100	Q355/Q235/Cast iron	D28/D16
2500mm x 1500mm	200/150/100	Q355/Q235/Cast iron	D28/D16
2000mm x 1000mm	200/150/100	Q355/Q235/Cast iron	D28/D16
1000mm x 1000mm	200/150/100	Q355/Q235/Cast iron	D28/D16

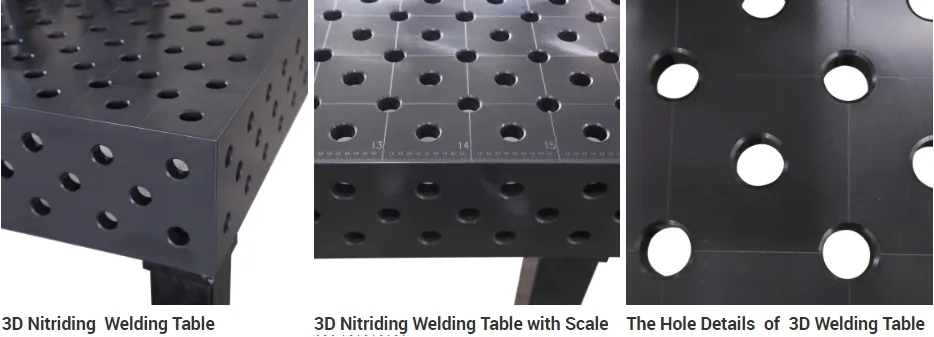

📸 Product Gallery & Details

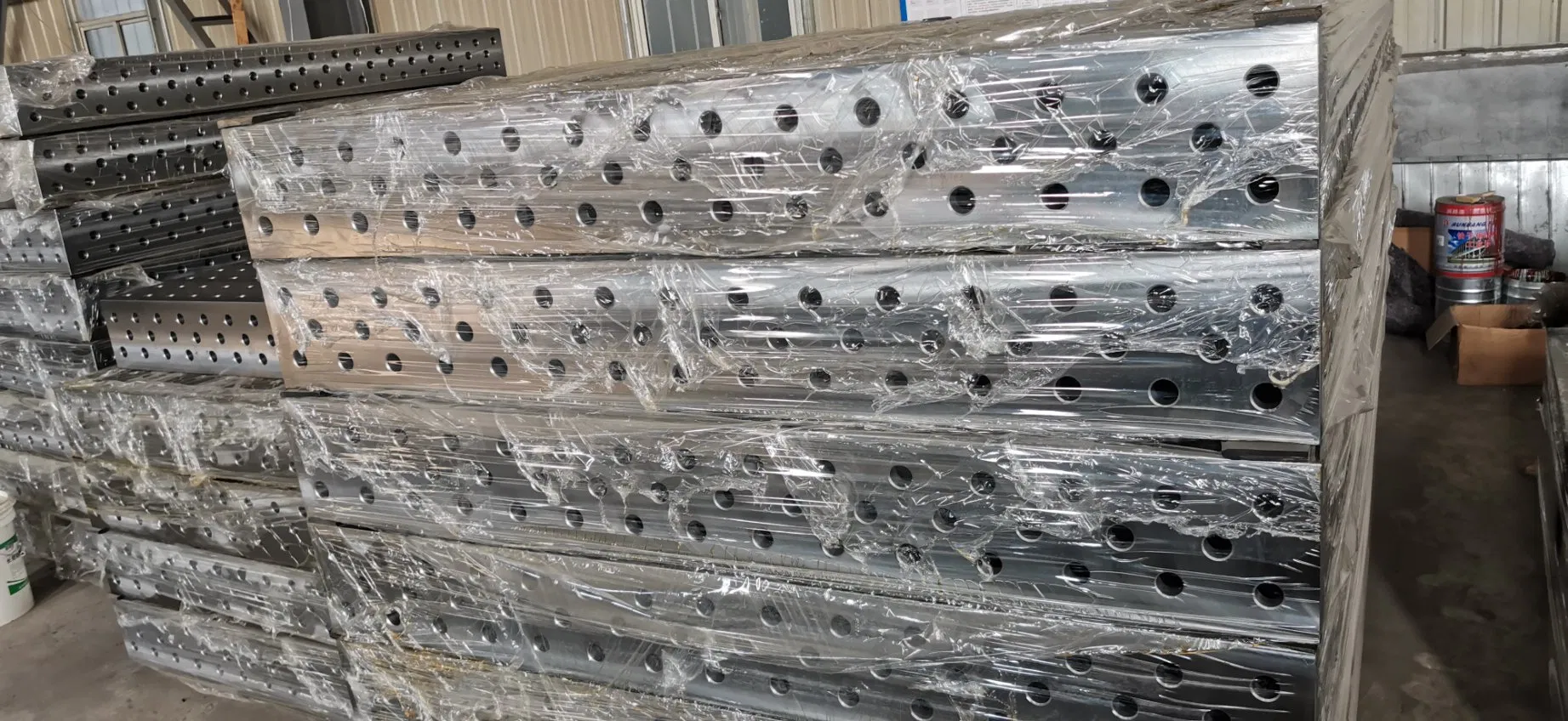

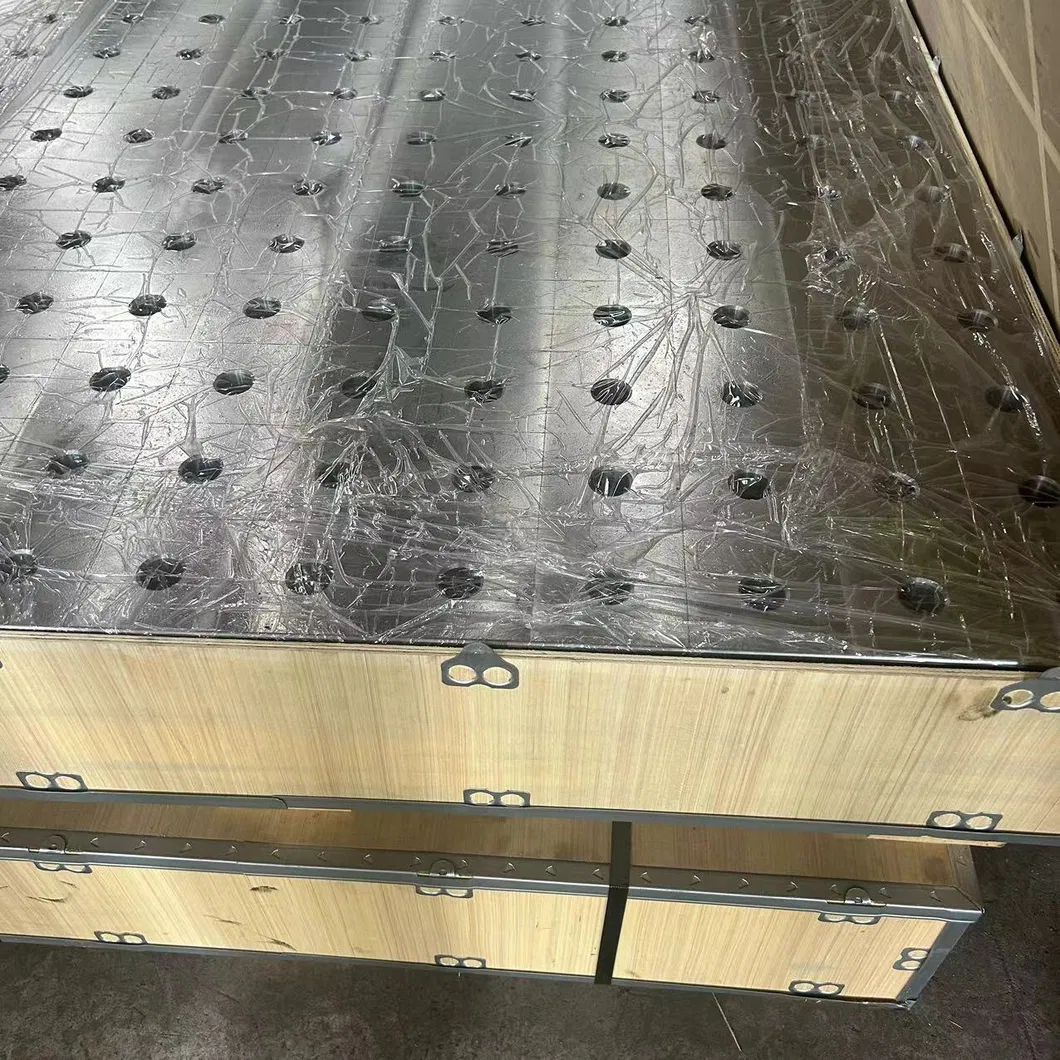

📦 Export Packaging

❓ Frequently Asked Questions

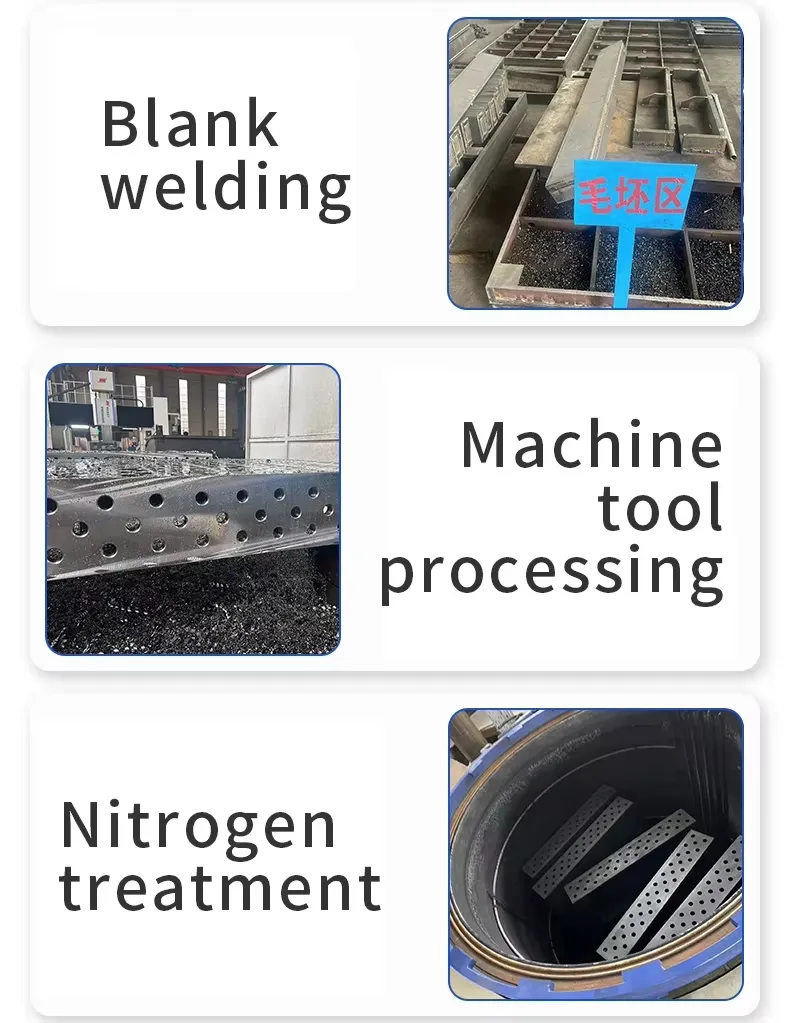

1. What materials are used for the 3D welding tables? The tables are made of high-quality steel (Q355/Q235) or cast iron, and undergo nitriding after aging treatment to ensure they are rust-proof and durable.

2. How is product quality guaranteed? We always provide a pre-production sample before mass production and conduct a final inspection before shipment.

3. What can I purchase from your catalog? We specialize in various Welding Tables, Welding Fixtures, and related clamping accessories.

4. Why choose these modular welding tables over others? With 13 years of design and production experience, our tables feature modular systems with high precision (0.1/1000mm flatness) and specialized R-angle hole processing to increase service life.

5. What delivery and payment terms are accepted? We accept terms like EXW, FOB, CIF, DAP, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in multiple currencies including USD, EUR, and CNY.

6. Are customized sizes available? Yes, we offer customized sizes, scales, and hole patterns (D28/D16) according to your specific project requests.
