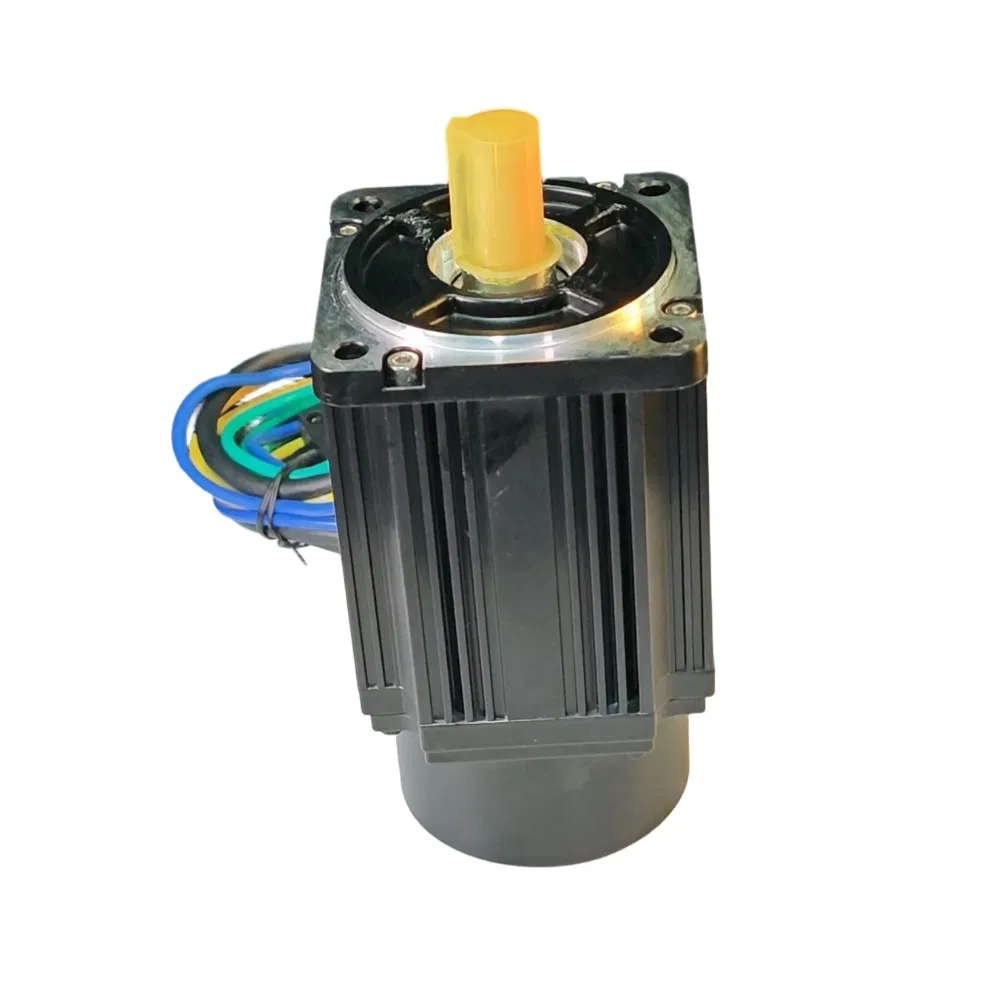

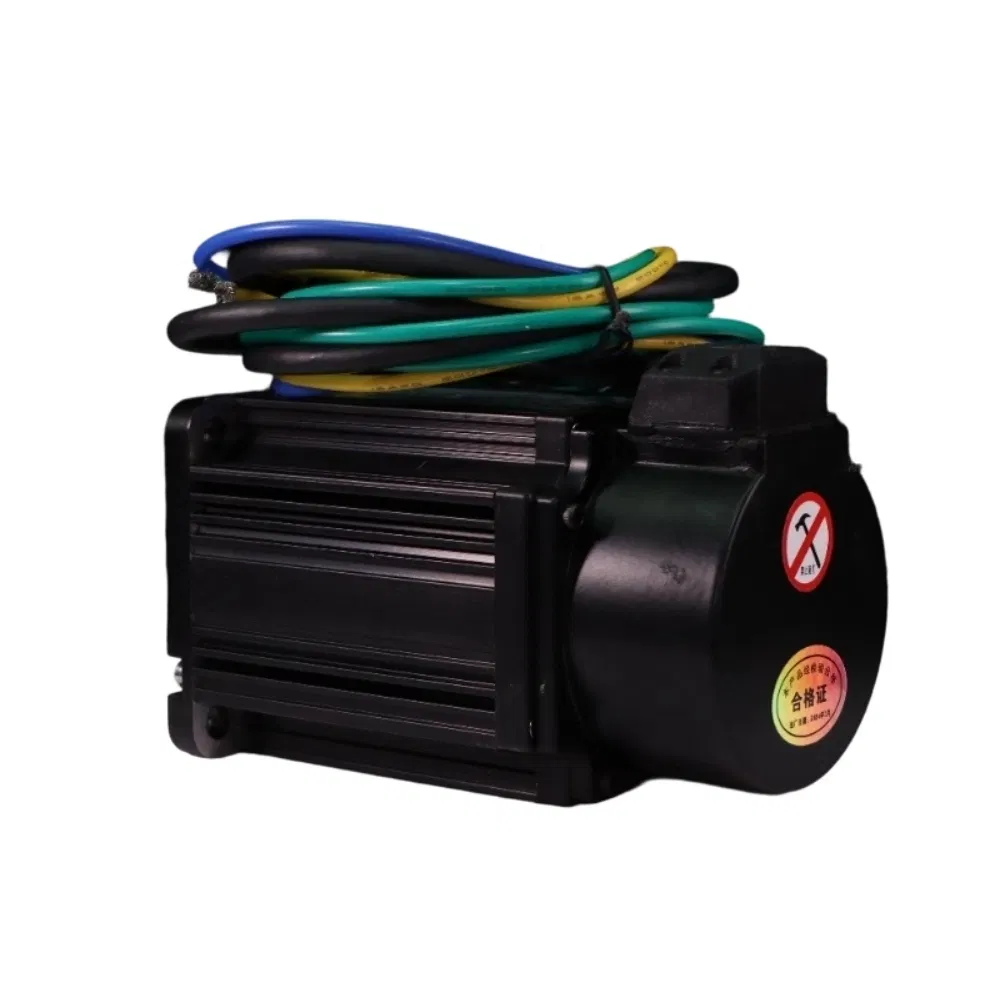

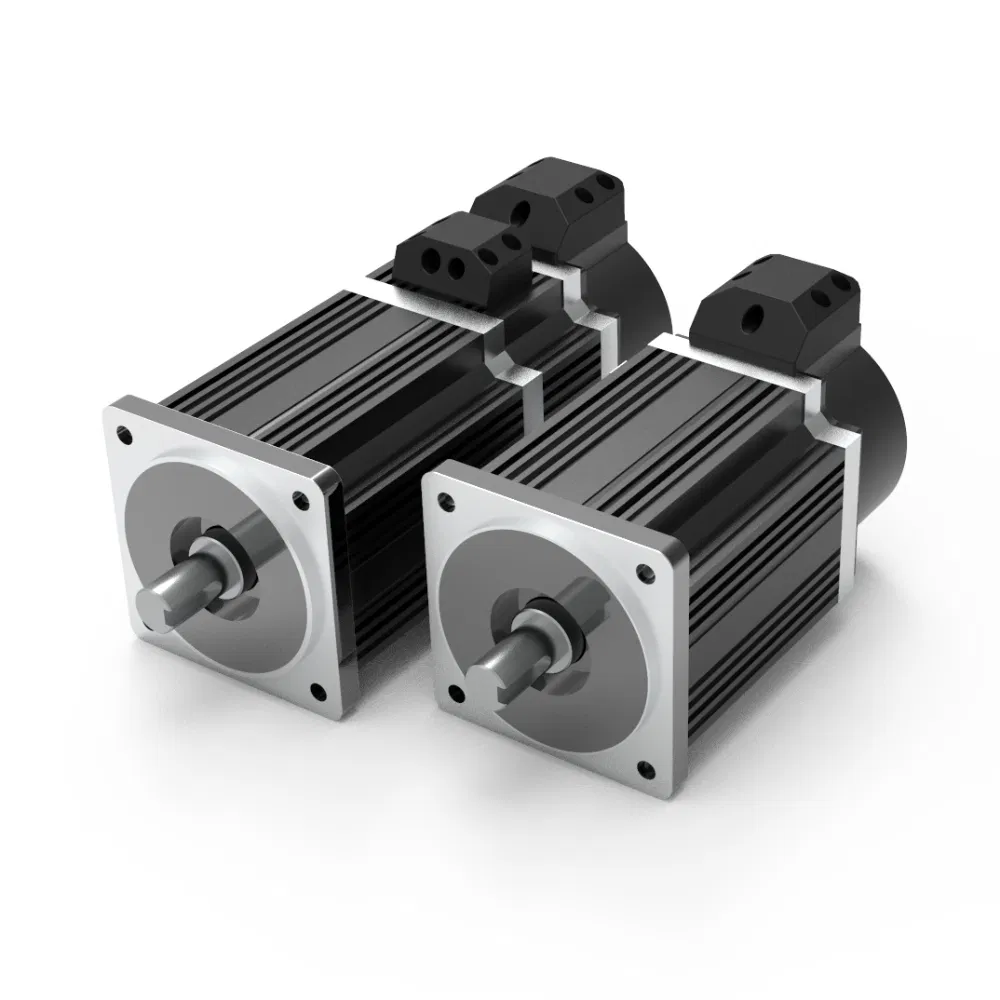

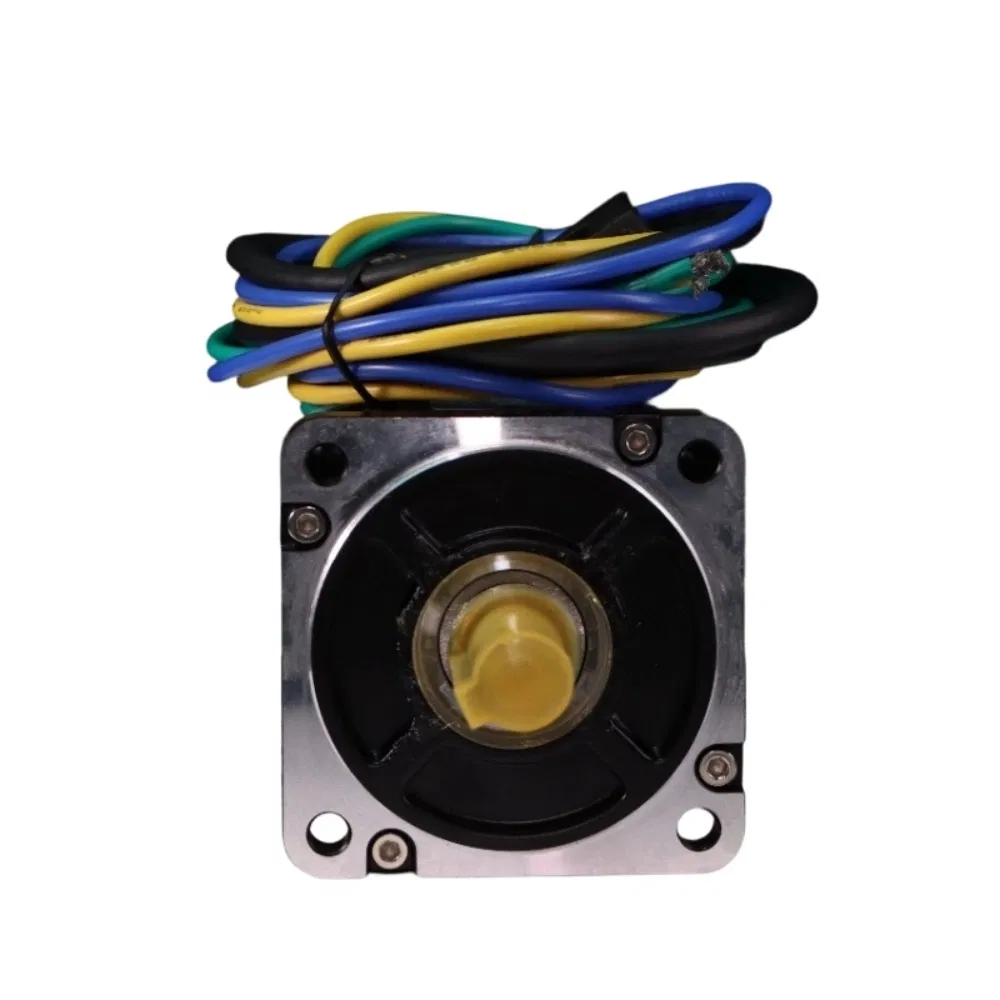

48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization

1 / 5

48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	KY80ACS0407-30	Rated Power	750W
Function	Driving	Rated Voltage	48V/96V
Structure	Brushless	Rated Speed	3000rpm
Protection Grade	IP55	Rated Torque	2.39n·M
Certification	ISO9001, CE	Poles	10

Product Description

48V/96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor

Rated Voltage: DC 12-96V; Rated Power: 50W-15KW
Can reach grade 1 energy efficiency
Fast response speed and high heat conduction efficiency
Multi-slot pole design for small cogging pulsation torque and smooth running
Stator uses H-class enameled wire, resistant to high temperature
Rotor adopts national patented technology for strong stability
Support customization requirements

Technical Specifications

Parameters		Value
Instantaneous Max. Torque		7.17N·m
Feedback Part		Incremental encoder (Standard), Absolute encoder (Optional)
Brake (Optional)	Rated Voltage	24V
	Power	5.76W
	Braking Method	Power Loss Braking
	Static Friction	2N·m
Ambient Temp.		-25 to +50℃
Weight (Without Brake)		2.3kg

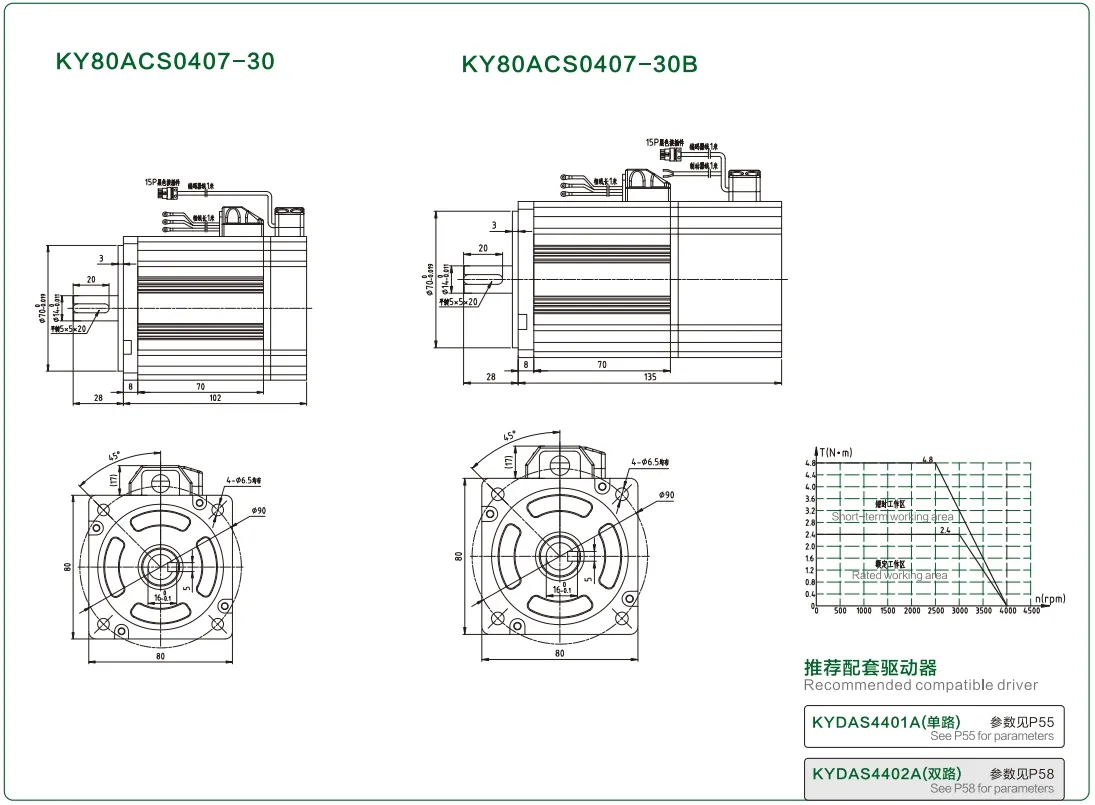

Technical Drawing

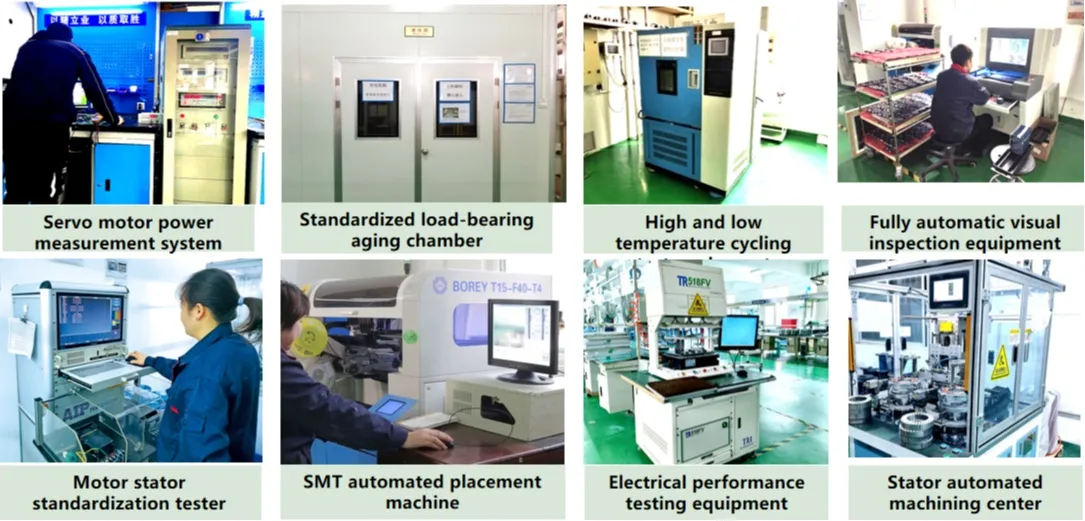

Workshop & Quality Control

Our quality control system follows ISO9001 standards, implementing "four controls": first item control, inspection control, final inspection control, and finished product inspection before shipping. We utilize the "8D" model for problem-solving and PDCA cycles for continuous improvement.

Frequently Asked Questions

Q1: Is there any price discount for bulk purchase?

A: Sure. We offer competitive tiered pricing for bulk purchases. The larger the order quantity, the more favorable the unit price.

Q2: What is the production and delivery cycle?

A: For in-stock products, dispatch is arranged within 3-5 working days. For out-of-stock items, delivery time depends on production cycle and volume.

Q3: How can quality be guaranteed?

A: We strictly implement the ISO quality management system from raw materials to finished products, supported by a professional R&D team.

Q4: Do you support customization?

A: Yes, we provide full support for customized requirements to meet specific application needs.

Q5: What after-sales support do you provide?

A: We offer comprehensive after-sales support and quality assurance to ensure long-term worry-free use of our products.

Q6: What feedback parts are available?

A: We offer Incremental encoders as standard, with Absolute encoders available as an optional choice.
