Aura Mesh Window
Aura Mesh Window
| Model NO. | AE1 |
| Thermal Conductivity | ≤0.021W/M. K (at 25ºC) |
| Maximum Operating Temperature | 1200 ºC |
| Combustibility | Grade a (Completely Non Combustible) |
| Hydropobic | >99% |
| Density | 200 ± 30 Kg/M3 |
| Material | Glass Fiber, Silica |
| Usage | Oil Pipeline, Wall Insulation |
| Package Size | 40.00cm * 50.00cm * 30.00cm |
| Package Gross Weight | 5.000kg |
| Lead Time | 3 days (1-1 Sqm), 7 days (2-10000 Sqm), To be negotiated (>10000 Sqm) |

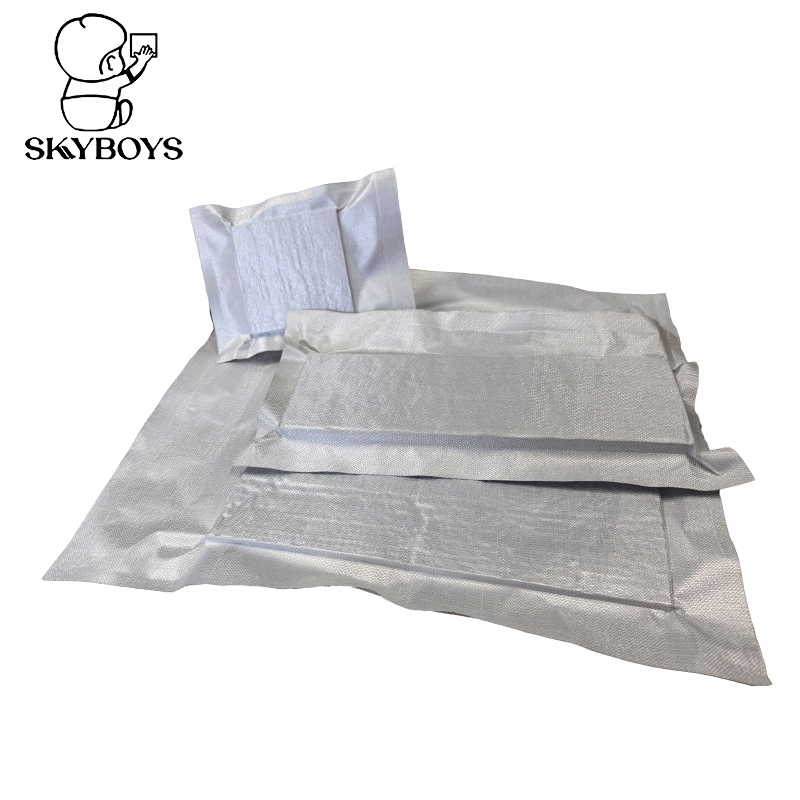

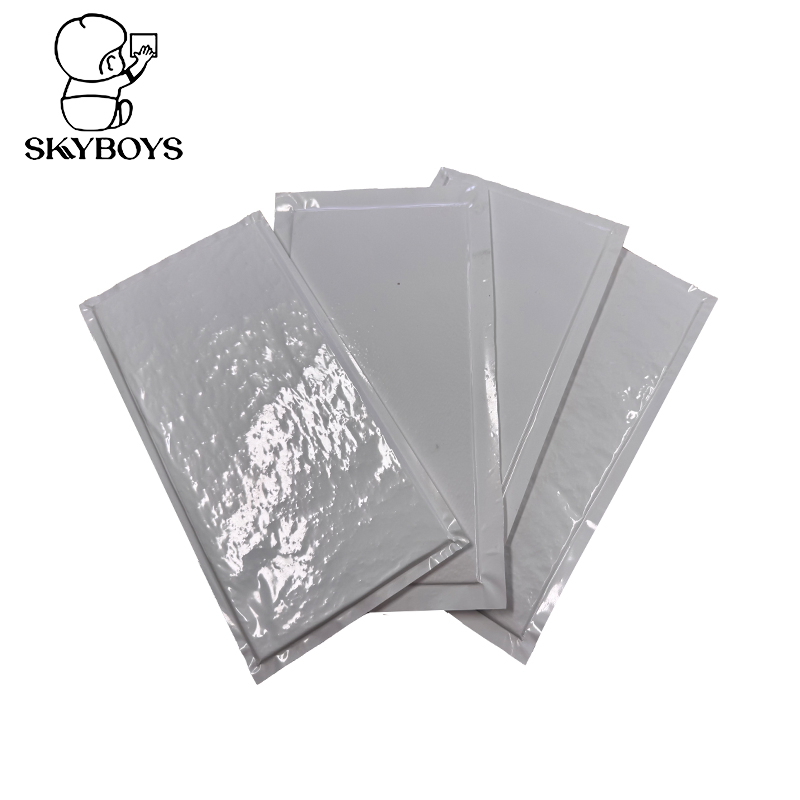

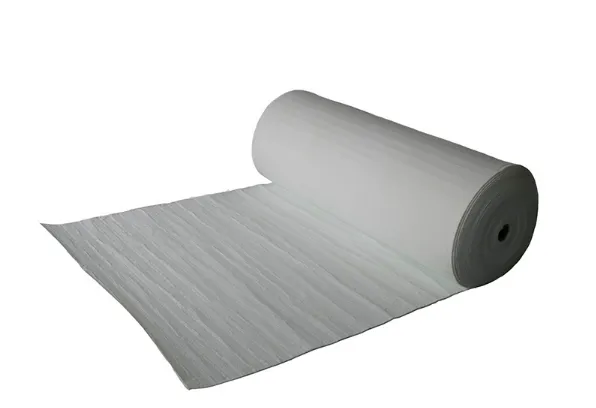

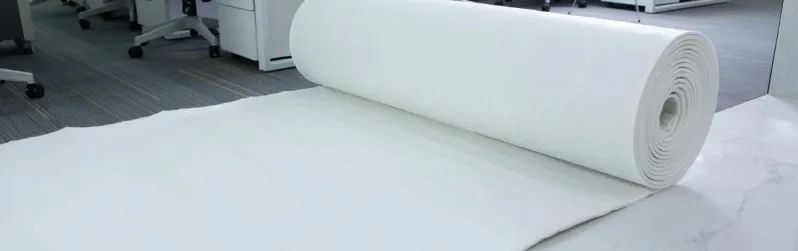

The aerogel composite material is composed of nano aerogel, glass fiber, pre oxidized fiber and other base materials, perfectly combining the aerogel with excellent performance and flexible base materials, maximizing the light weight, heat insulation and other characteristics of aerogel, and endowing gel with flexibility and toughness.
| Width / Thickness | Customizable |
| Colour | White |
| Max Operating Temp | 1200 ºC |
| Thermal Conductivity (25ºC) | ≤ 0.021 W/m.K |
| Thermal Conductivity (300ºC) | ≤ 0.036 W/m.K |
| Compression Rebound Rate | > 90 |
| Hydrophobic Performance | > 99% |

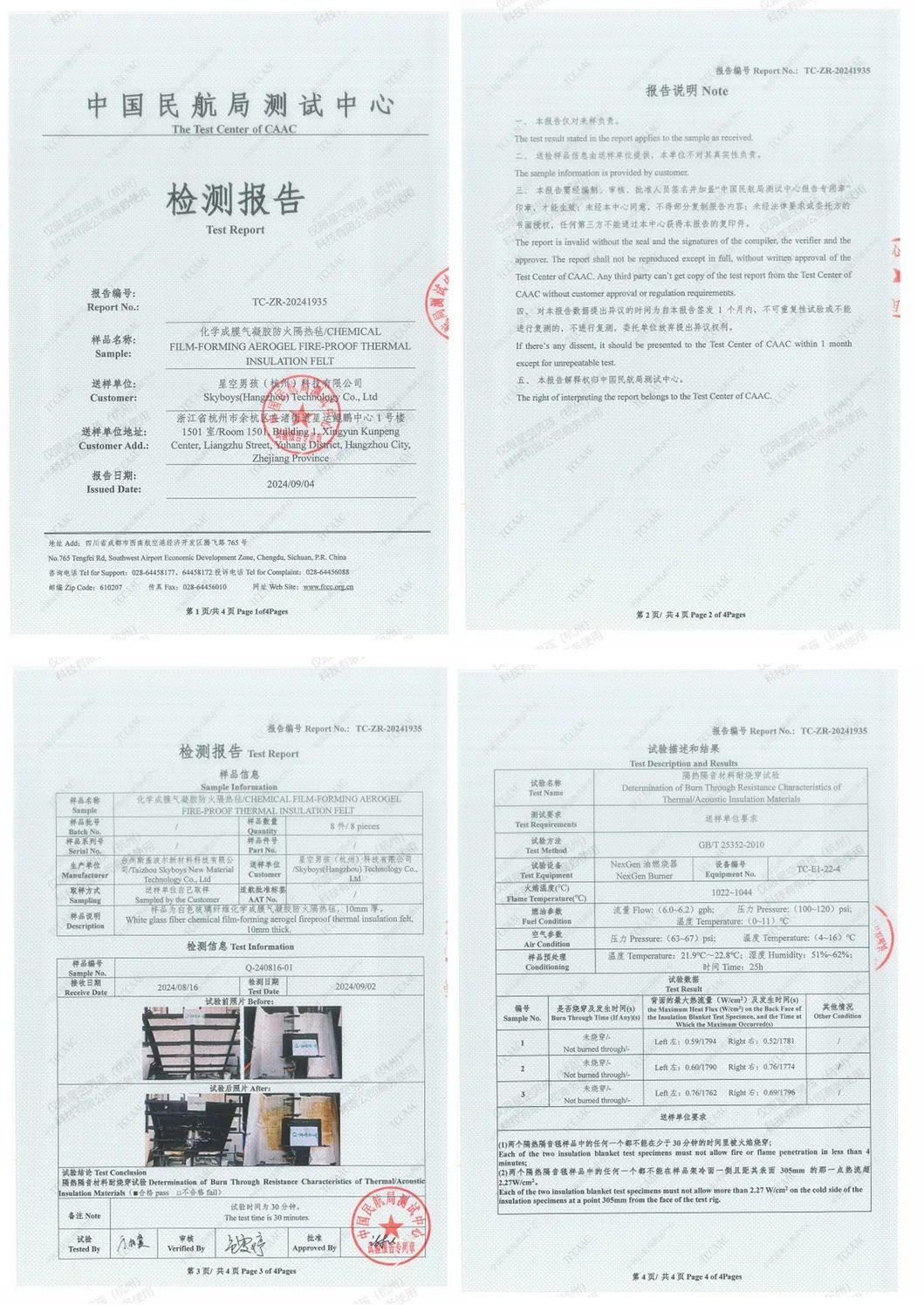

Special Testing Result:

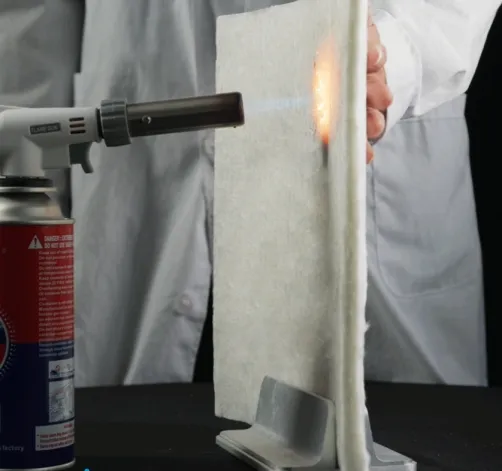

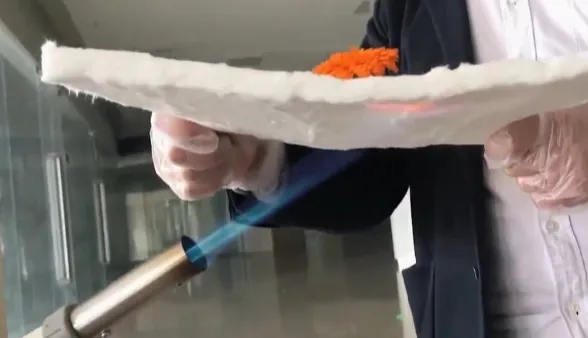

10mm product, tested at 1000 ºC, does not burn through with an open flame for 30 minutes, and has extremely low heat flow on the back.
Its nano porous structure effectively blocks air flow. The thermal conductivity is extremely low, greatly improving equipment thermal efficiency.

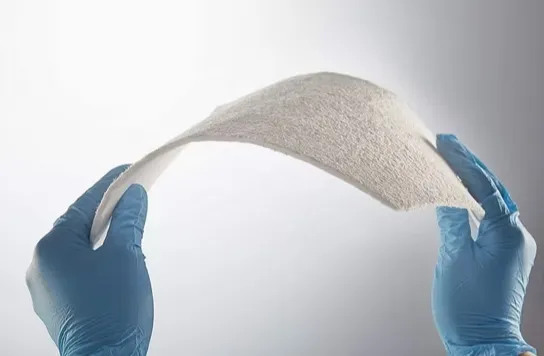

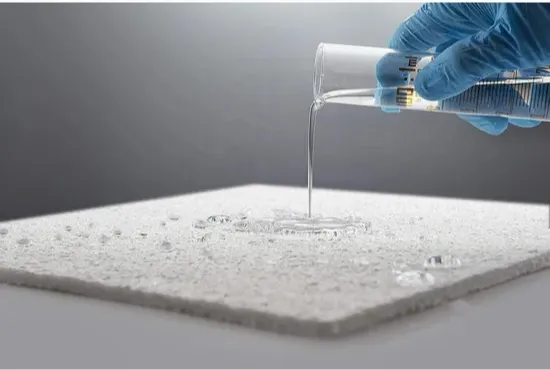

Aerogel felt is hydrophobic and maintains A1 level fire resistance. Its unique 3D network avoids sintering and settlement during long-term high-temp use.
Maintains performance for over 20 years. Shrinkage rate ≤ 1% at 650 ºC with no powdering or melting phenomenon.
Density between 160~240 kg/m³, reducing equipment weight. Free of harmful substances and completely recyclable.
