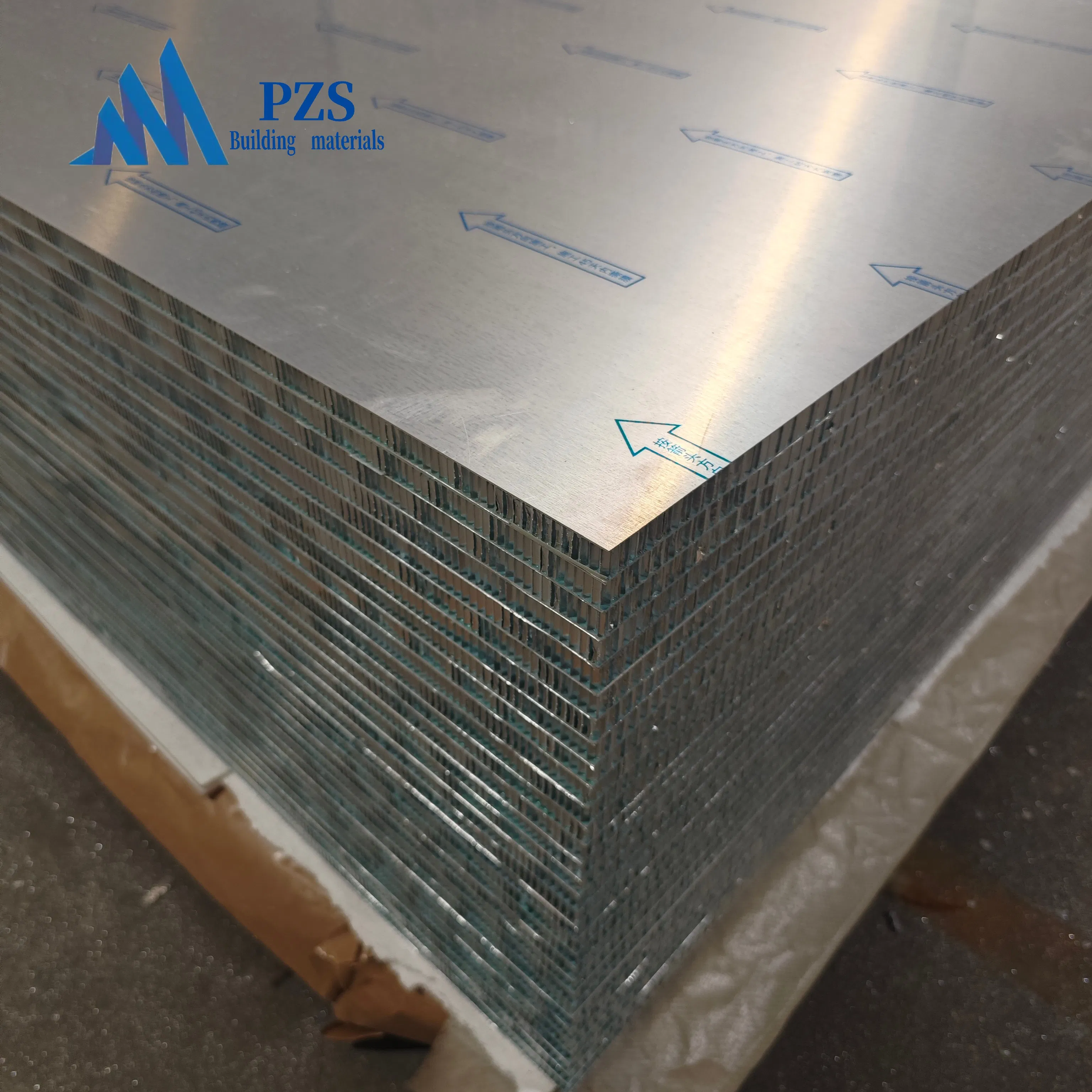

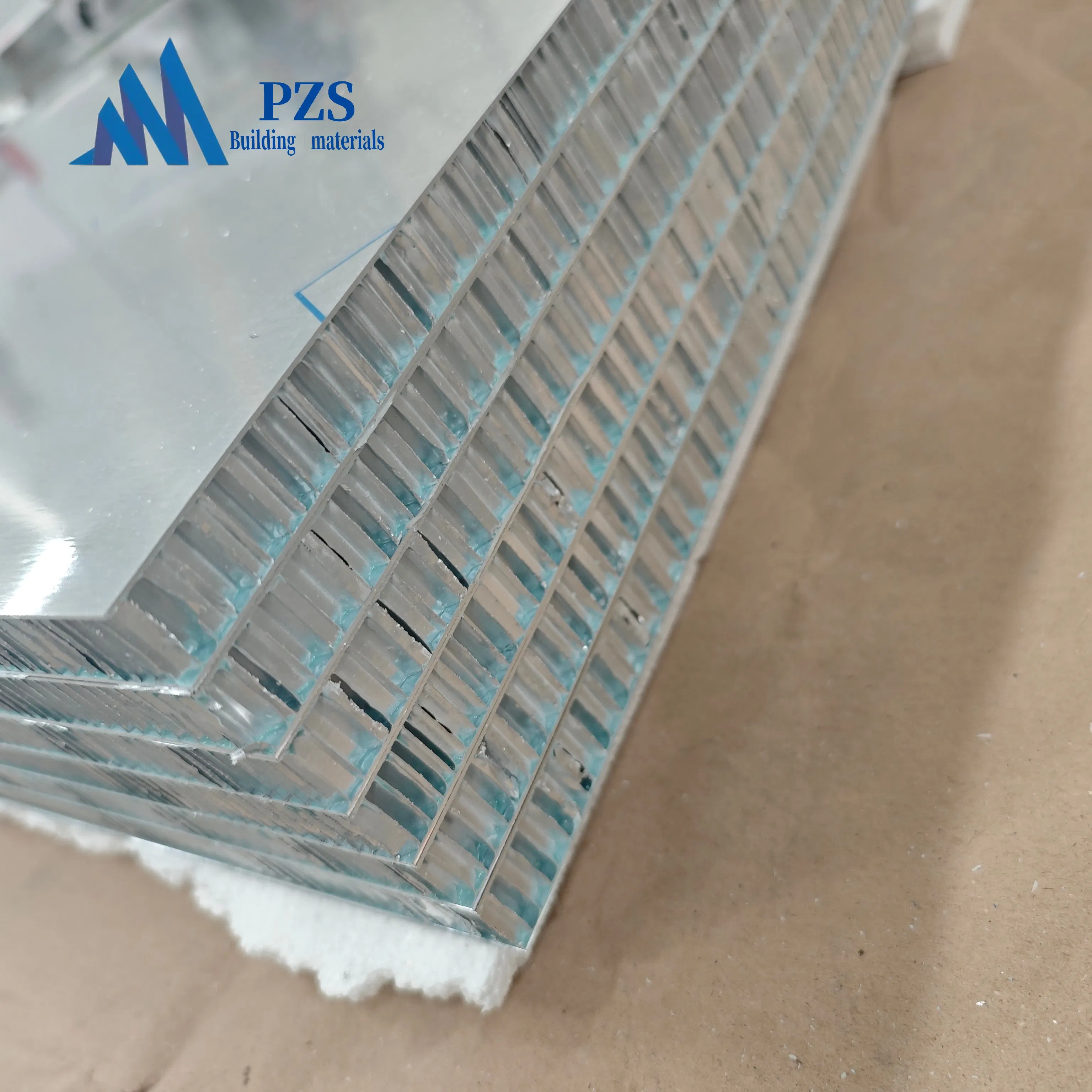

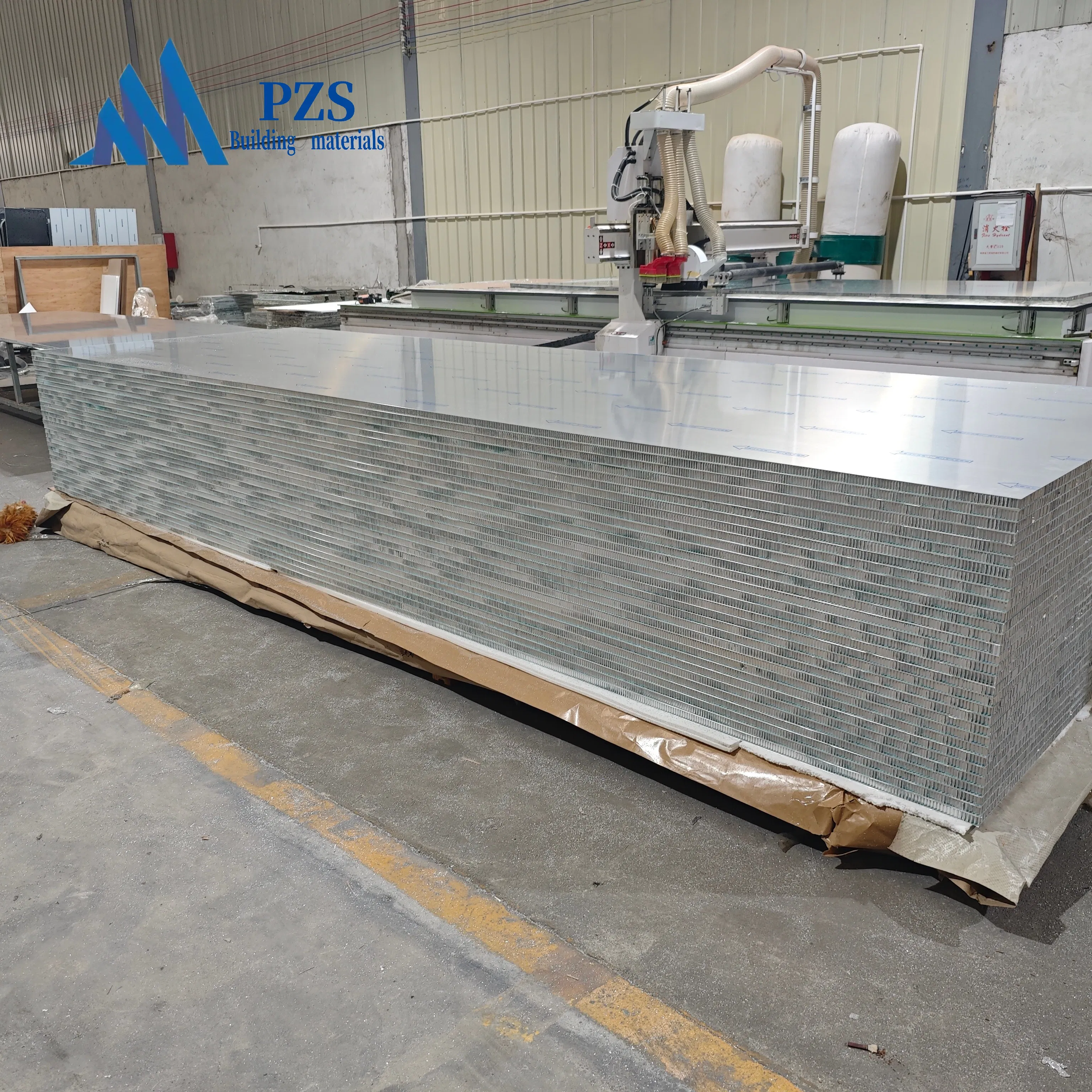

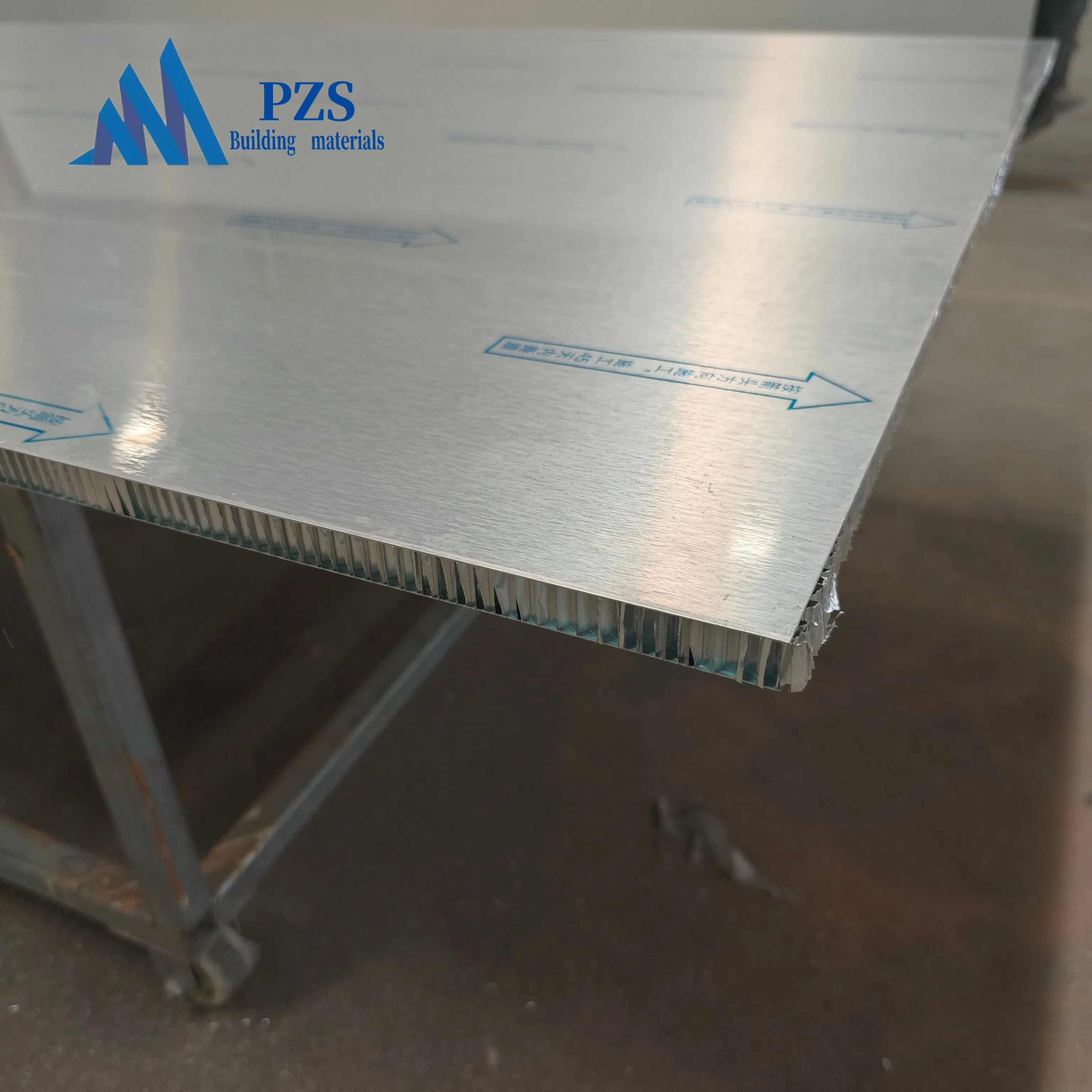

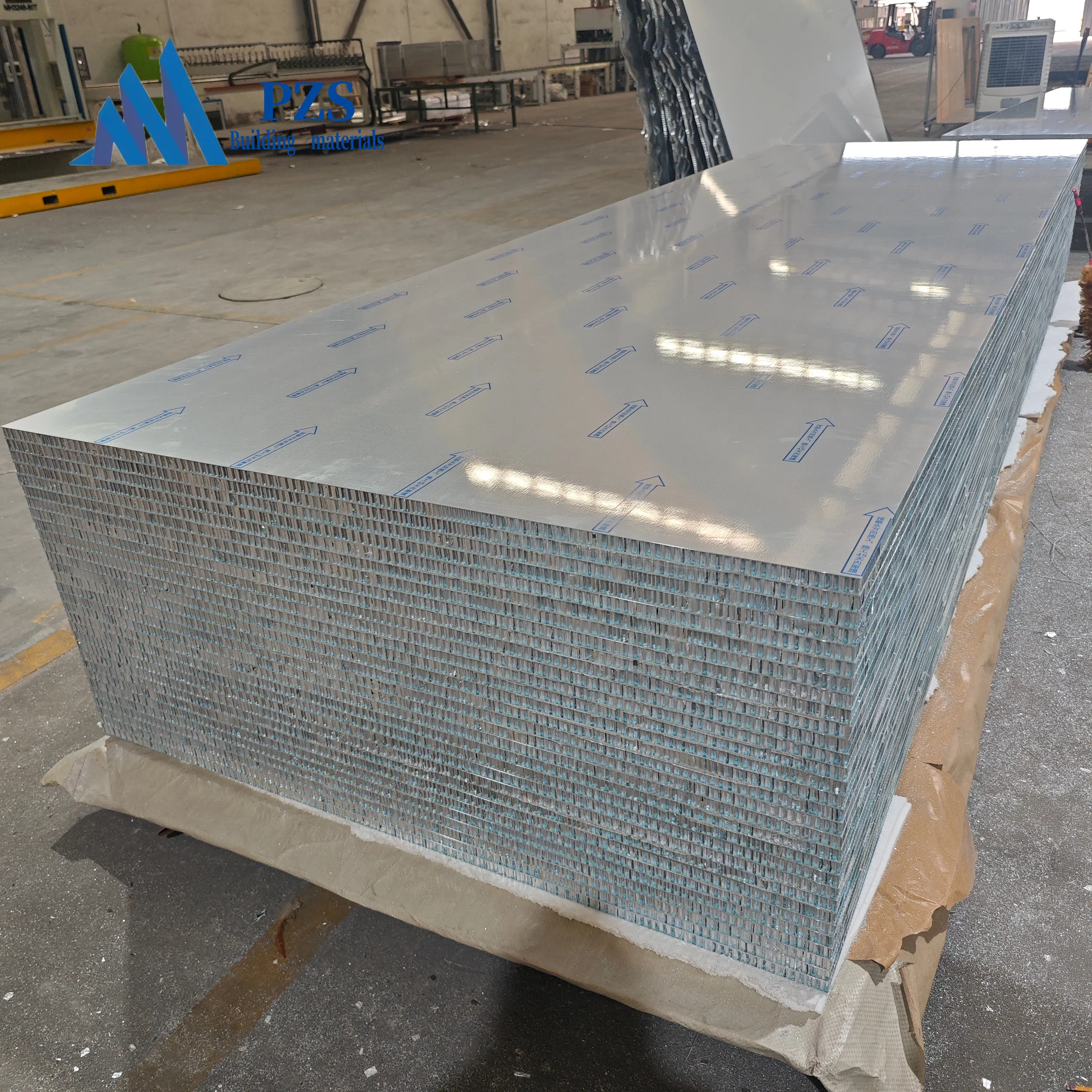

Exterior Wall Panel Aluminum Ceiling, Composite Design, Customizable Thickness

1 / 5

Exterior Wall Panel Aluminum Ceiling, Composite Design, Customizable Thickness

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.	LFW-01	Material	Aluminum Alloy
Performance	High Intensity	Function	Exterior Walls, Walls, Ceilings, Partitions, Ships
Fire Rating	Level A	Application	Architecture, Marine/Transport, Hygienic Spaces
Thickness	5mm~30mm (Customizable)	Panel Options	Natural Stone Sheet (3-5mm) / Aluminum Plate
Temperature	-50ºC~+150ºC	Life Cycle	30 Years+

📦

Product Description

⭐ Core Features

Ultra-light & High-strength: Only 1/5~1/8 weight of traditional stone with 3~5 times bending strength.
Flat & Non-deformed: Honeycomb core disperses stress and avoids temperature-induced deformation.
Easy Processing: Supports cutting, bending, punching, and curved designs (radian ≥ R500).
Fast Installation: Dry hanging method shortens construction periods by over 50%.

🌱 Environmental & Safety

100% Recyclable: Sustainable aluminum panels and honeycomb cores.
Fire Resistance: Class A non-combustible material (melting point 660℃).
Non-toxic: Zero formaldehyde release; smoke density ≤5 in fire.
Sound Insulation: Achieves 25dB+ noise reduction.

📏

Technical Specification

Conventional Thickness	5mm~30mm (total thickness), customizable size
Panel Options	Natural stone sheet (3-5mm) / Aluminum plate (1-2mm) / Ceramic plate
Applicable Temperature	-50℃~+150℃ (Freeze-thaw cycle resistance)
Life Cycle	30 years+ (Outdoor curtain wall)
Sound Resistance	RW 25 dB
Standard Size	1200*2400mm (Width < 2000mm, Length < 10000mm)

🏗️

Engineered Composite Solutions

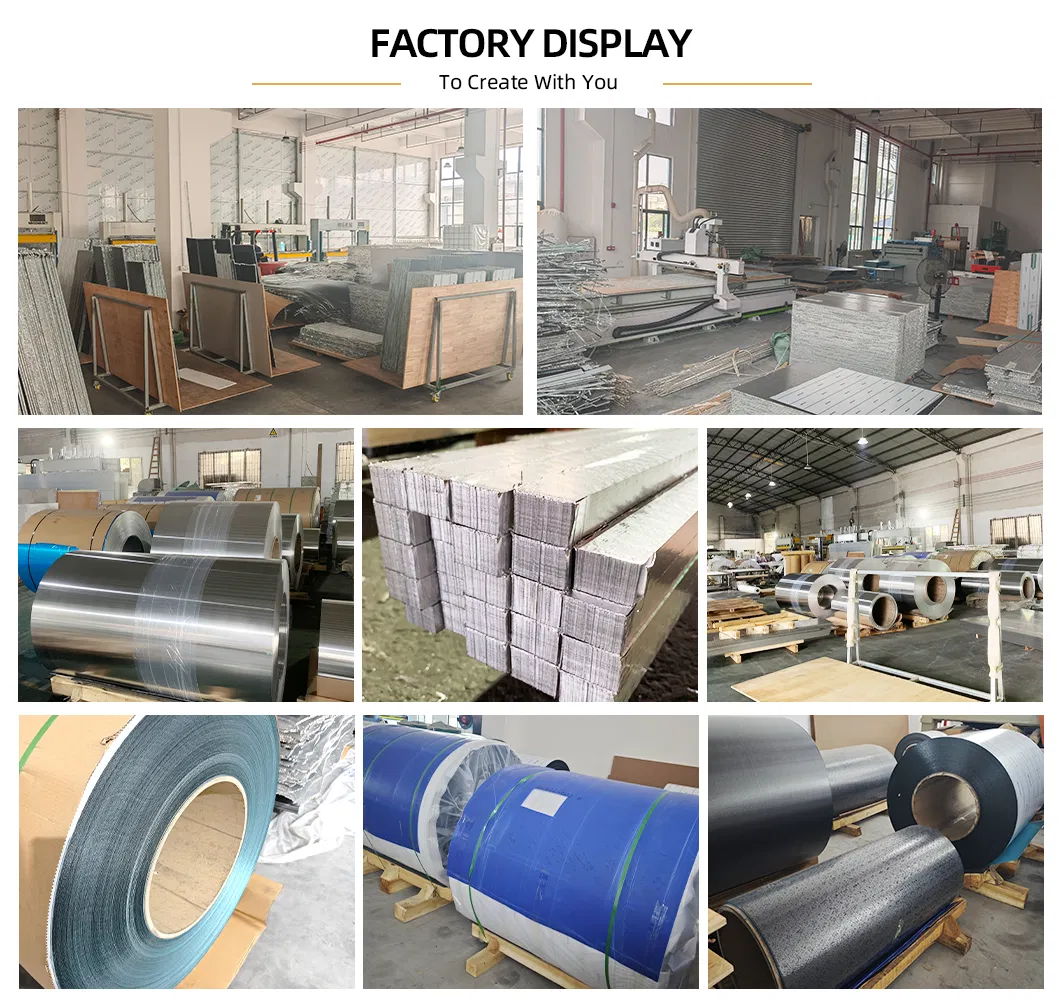

We leverage over 10 years of specialized expertise in advanced honeycomb composite panels. As an ISO-certified manufacturer, we deliver precision-engineered solutions for architectural facades, interior systems, and industrial applications worldwide.

Our Core Expertise

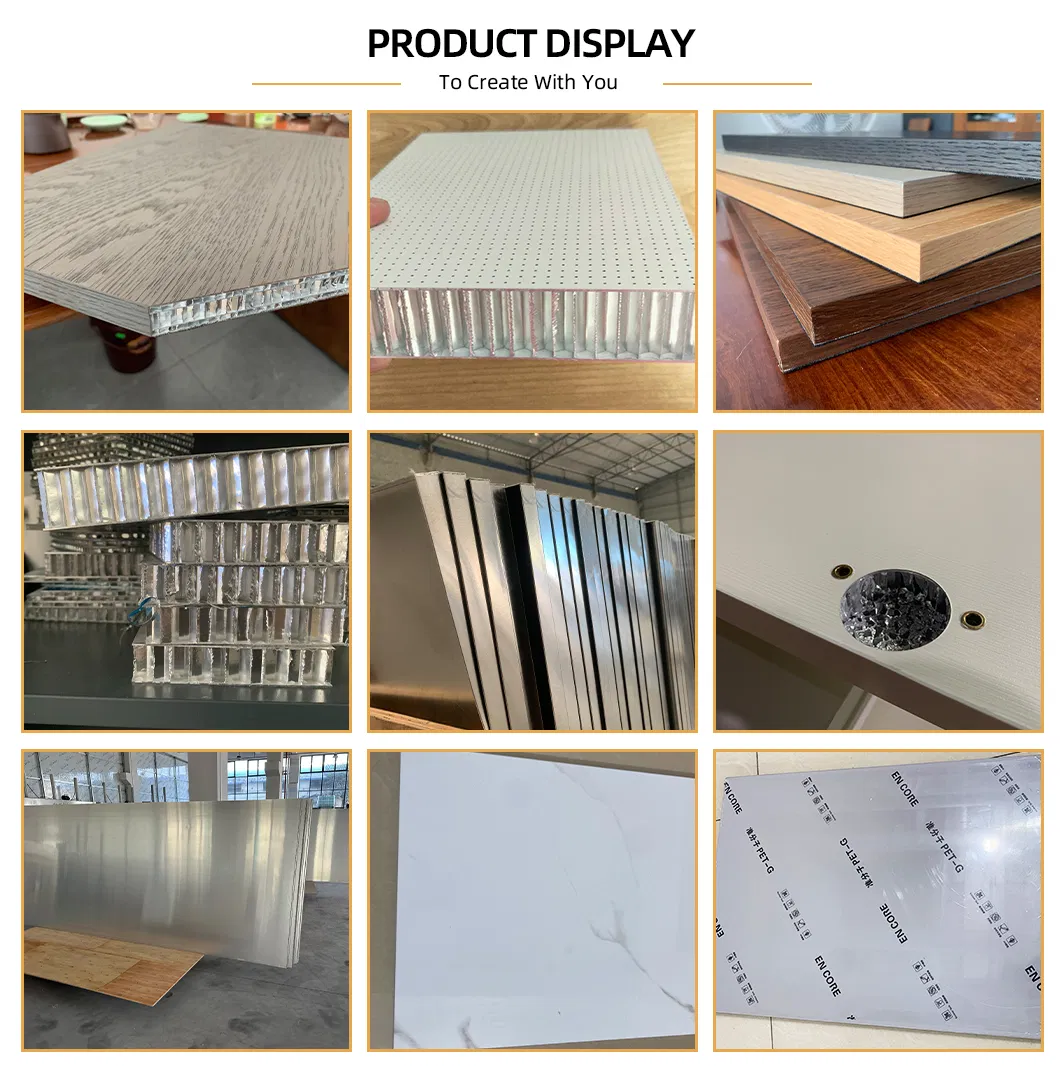

Aluminum Honeycomb: ASTM C297-compliant, high-strength with PVDF/PE coatings.
Stone Honeycomb: Ultra-thin natural stone bonded to aluminum, reducing weight by 70%.
Stainless Steel Honeycomb: 304/316L anti-fingerprint surfaces for marine and hygienic use.

⚙️

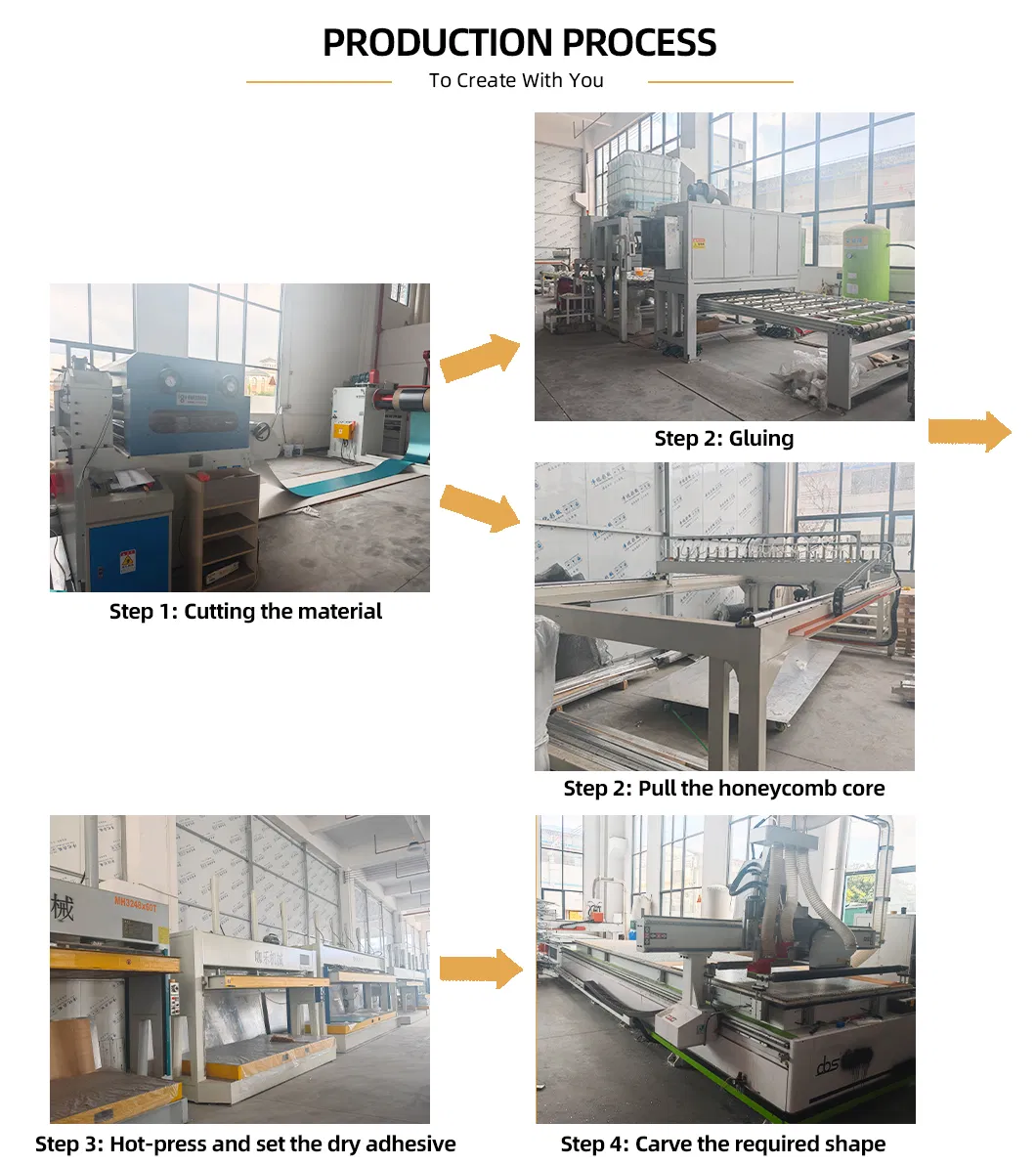

Production Process

1. Material Prep: Degreased AA3003/AA5052 aluminum coils & expanded foil cores.

2. Pre-Treatment: Chemical conversion for coating adhesion (Chromating/Zirconium).

3. Bonding: Vacuum hot pressing at 120-140℃ with epoxy/PU adhesive.

4. Post-Processing: CNC waterjet cutting with ±0.5mm tolerance.

5. Edge Sealing: Aluminum profile injection or custom folding.

6. Quality Control: Peel tests (≥7N/mm) and laser flatness scanning.

🚢

Packing & Delivery

Packaging: Export-standard Plywood boxes for maximum protection.

Annual Capacity: 500,000m² per year serving clients across 30+ countries.

❓

Frequently Asked Questions

Q1: What is the fire rating of the aluminum honeycomb panels? A1: Our panels are Class A non-combustible materials, meeting GB 8624 and ASTM E84 standards, with a melting point of 660℃.

Q2: How much weight can I save compared to solid stone? A2: The honeycomb panels are approximately 1/5 to 1/8 the weight of traditional stone slabs, significantly reducing building load.

Q3: Are these panels suitable for curved architectural designs? A3: Yes, the panels support curved surface designs with a bending radian of R500 or greater.

Q4: What is the typical lifespan for outdoor use? A4: For outdoor curtain walls, the life cycle is estimated at 30 years or more, thanks to high weather resistance and PVDF coatings.

Q5: Is the material environmentally friendly? A5: Yes, both the aluminum panels and the honeycomb cores are 100% recyclable. The production process also uses VOC-free adhesives.

Q6: What is the sound insulation performance? A6: The honeycomb structure provides excellent acoustic properties, achieving a noise reduction effect of RW 25 dB or higher.
