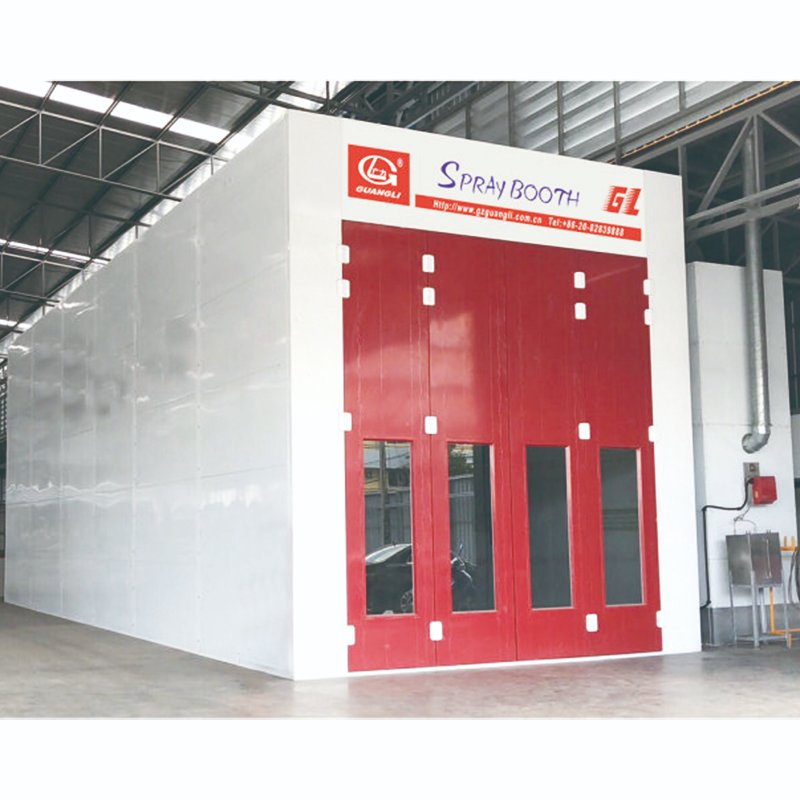

Spray paint booths represent one of the greatest improvements made toward cost-effective productivity in modern manufacturing. Whether painting cars, trucks, boats, or planes, we design systems to fit specific needs. This model is ideal for repair shops requiring high environmental protection standards.

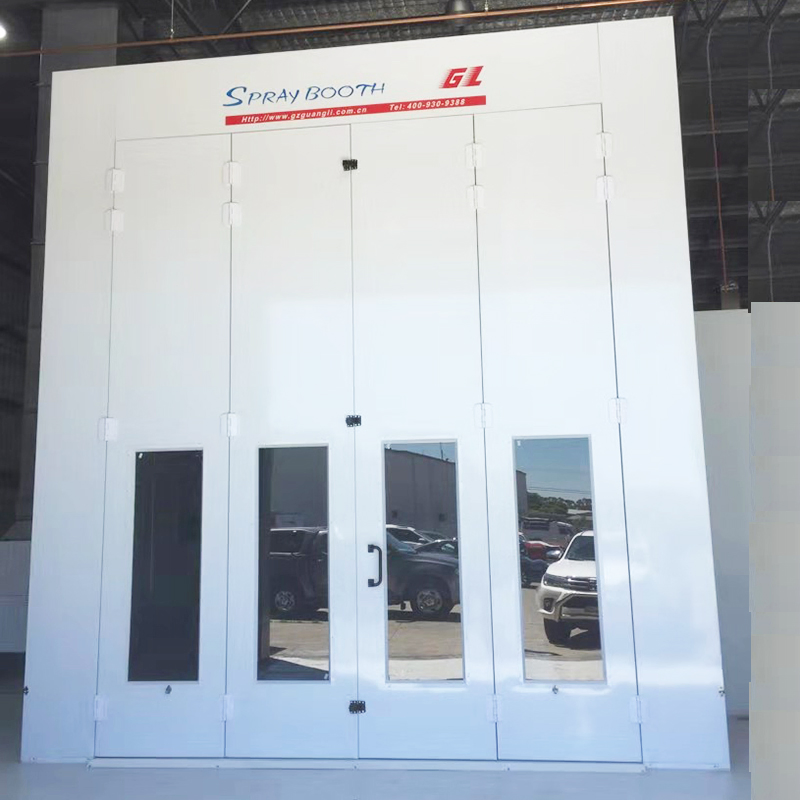

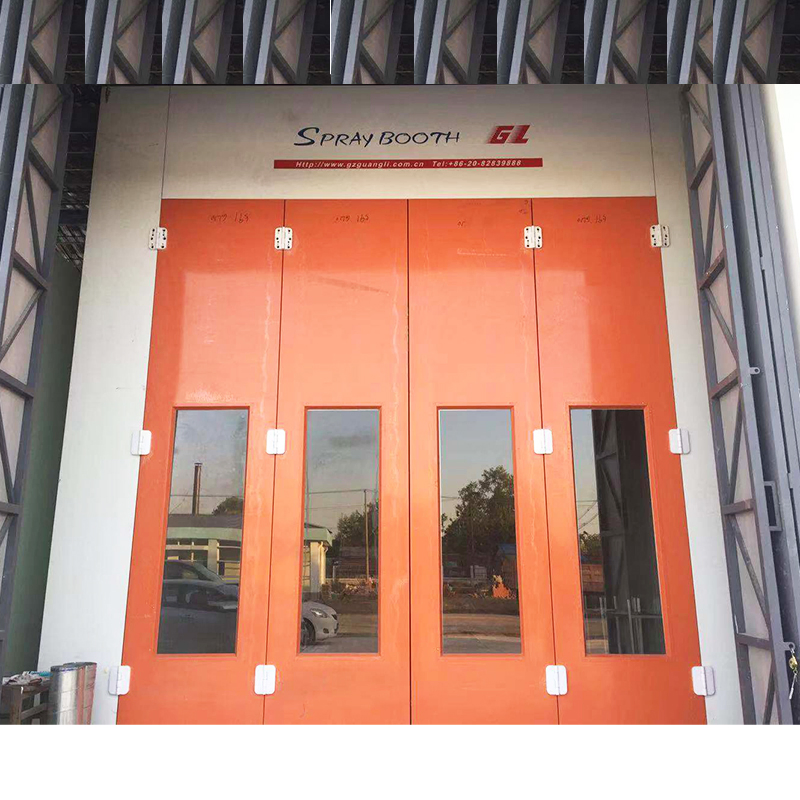

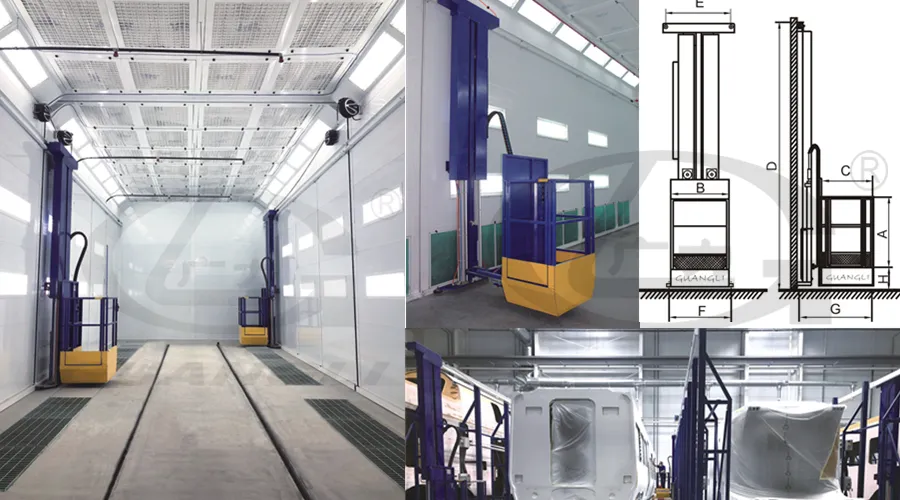

Wall panel: sandwich style, 75mm polystyrene (Rock wool optional). Basement: Concrete structure (2 rows of grids). Personnel Lift available as optional. 4-pcs front door and 2-pcs emergency doors with pressure locks.

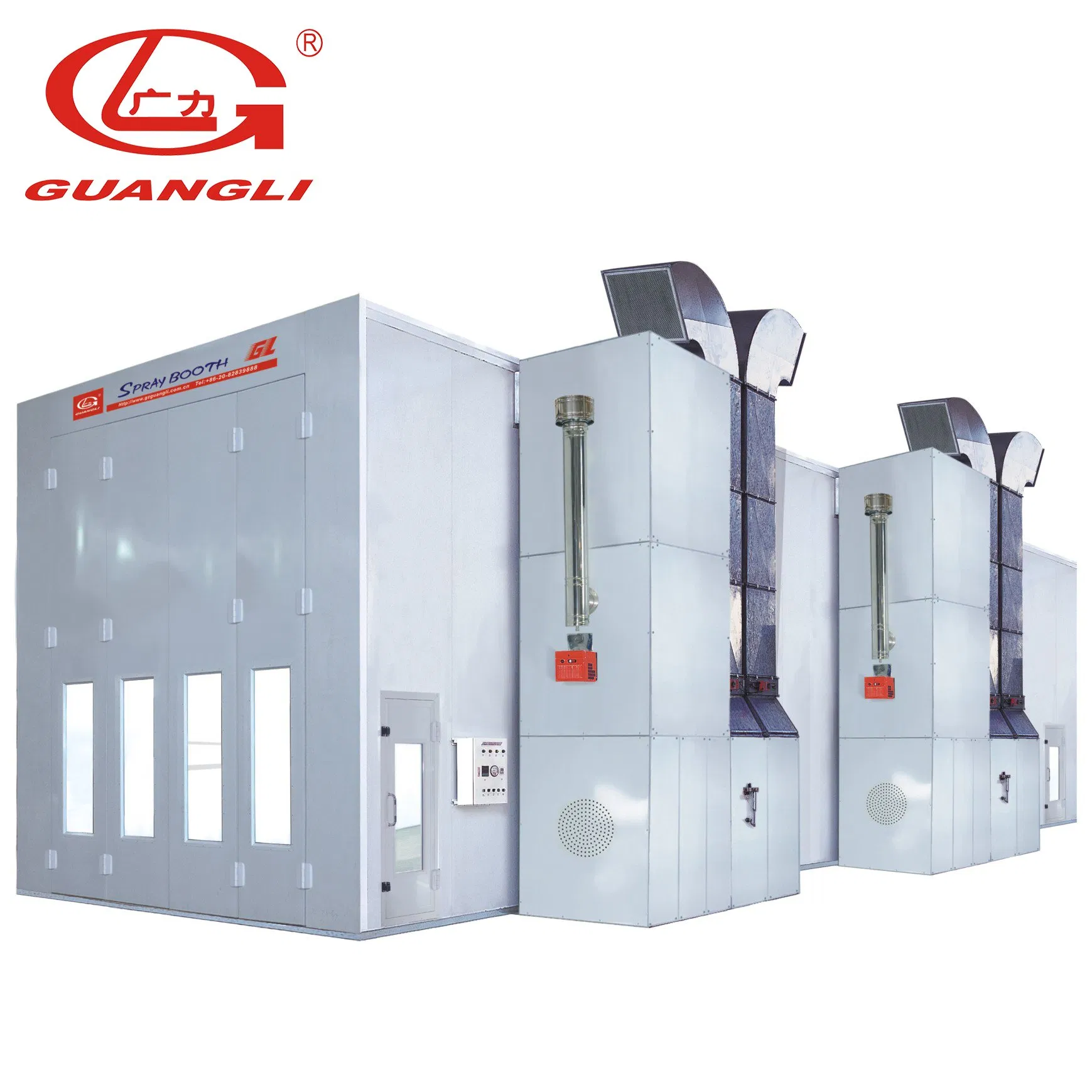

Each set includes 11kw intake and 11kw exhaust fans. Includes straight ducts, bends, and chimney. Automatic air-controlled spraying/baking transition damper. Heat exchanger: stainless steel with RIELLO G20S Burner.
Roof filter: 16pcs mounted on steel frame. Floor and air mouth filters included. Lighting consists of 20 sets of upper lights and 16-32 sets of side lights (4*40w per set).
| External size (m) | 15.2x6.7x5.0 |
| Internal size (m) | 15.0x5.0x4.4 |
| Entrance width/height (m) | 4.0 / 4.0 |
| Fan capacity (m³/h) | 72000 |
| Air velocity (m/s) | 0.3-0.5 |
| Drying Temperature | 20-80°C |
| Power (kw) | 50 |
