Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
1 / 5
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform
Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform

Automated Smart Vertical-Horizontal Car Puzzle Parking System for Mechanical Vehicle Garage Platform

Customization: Available
Level: 2 Level
Parking Post: Customized
Send Inquiry

Product Description

Basic Information
Model NO.
PSH-2
Color
Customized
Installation
Multi-Level, Surface Mount
Material
Steel
Operation
Sweep Card/Button
Power Source
Electric
Lifting Capacity
2000kgs
Warranty
12 Months

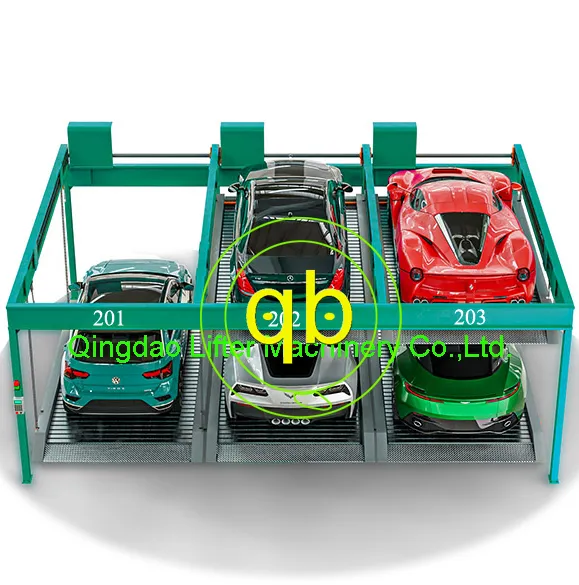

Two Level Puzzle Parking System
Two Level Puzzle Parking System
💡 Operating Principle

The equipment is adopted speed reducer to drive by chains or wires, which top board only lift and fall and the bottom of board only move horizontally. Reserving a parking space is at the bottom, it moves to left or right as loading board move horizontally, to top car can fall to the bottom.

Key Features
✔️ PLC control, easy operation, convenient rise and drop (Button/IC card optional).
✔️ Stable movement with high safety standards for lifting and dropping.
✔️ Loading boards are formed by cold rolling for superior durability.
✔️ Equipped with reliable anti-dropping safety devices.
✔️ Photoelectric relay monitoring for car size and parking position control.
✔️ Beams with grooves to collect water and oil, protecting cars below.
Technical Parameters
Car size (L x W x H)5200mm x 1900mm x 1550mm / 5000mm x 1850mm x 1550mm
Loading capacity2000kgs
Elevator Motor Power2.2kw (2-3 level) / 3.7kw (4-7 level)
Rise & Drop Time90s
Driving ModeMotor and Chain or Wire Rope
SafeguardPreventing Falls, Photoelectric Sensor, Restricted Place
Product Gallery
Parking System Detail 1
Parking System Detail 2
Parking System Detail 3
Parking System Detail 4
Parking System Detail 5
Parking System Detail 6
Parking System Detail 7
Parking System Detail 8
Parking System Detail 9
Parking System Detail 10
Frequently Asked Questions
❓ What is the lifting capacity of this system?
The system has a standard lifting capacity of 2000kgs per platform, suitable for most residential and commercial vehicles.
❓ How long does it take to retrieve a car?
The average rise and drop time for the platforms is approximately 90 seconds.
❓ What safety features are included?
It includes anti-dropping devices, photoelectric sensors for car positioning, emergency stop buttons, and safety railings.
❓ Can the control system be customized?
Yes, while it comes standard with an Omron PLC system, you can choose between button operation, IC card, or PLC touch screen.
❓ Is the equipment protected against oil leaks?
Yes, the beams are designed with grooves specifically to collect any water or oil from upper vehicles to protect the cars parked below.
❓ What are the installation requirements?
This puzzle parking system is versatile and can be installed as surface mount, multi-level, or underground depending on your space requirements.
