📋 Basic Specifications
Installation Type
Multi-Level, Surface Mount, Underground
Operation Mode
Manual / Automatic
Power Source
Battery, Electric, Solar
Safety Features
Anti-slip, Emergency Stop, Overload Protection, Safety Sensors, Locks
Type
Puzzle Parking System
Drive Mode
Hydraulic Cylinder + Wire Ropes
🚀 Semi-automatic Puzzle Parking Systems

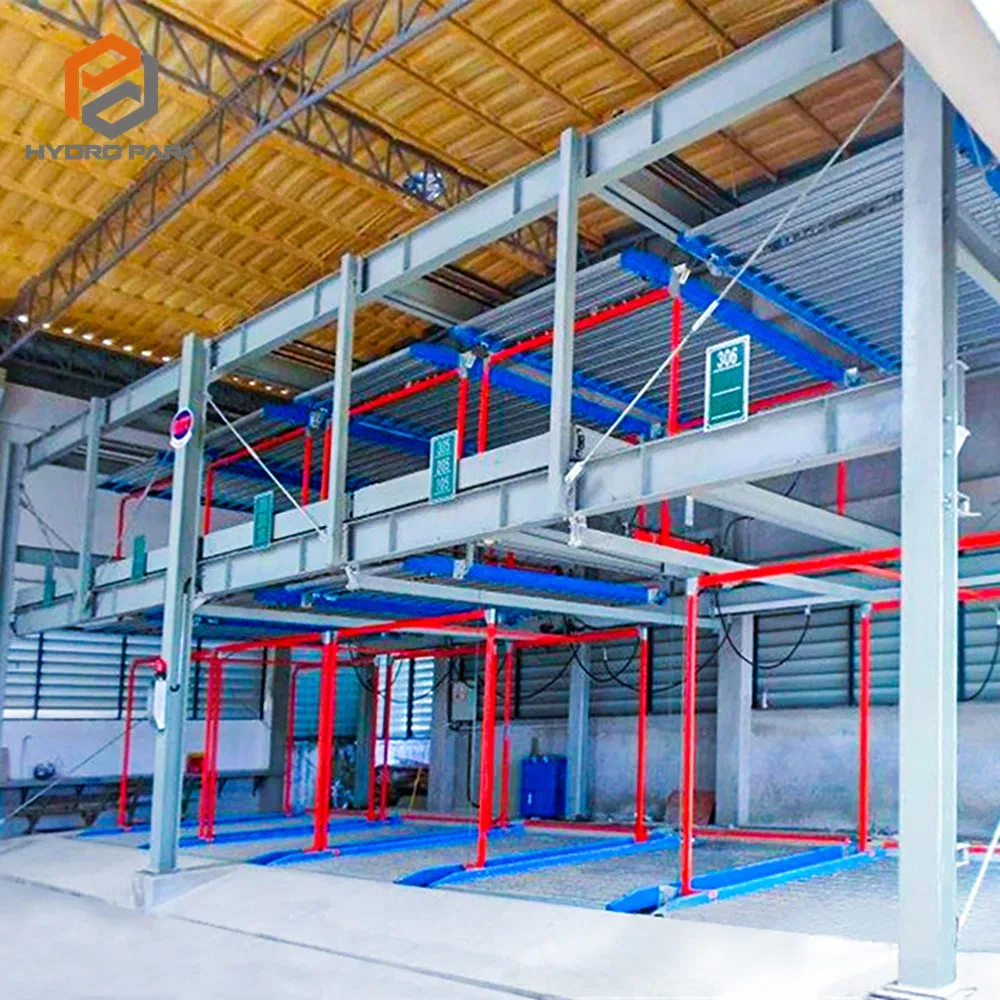

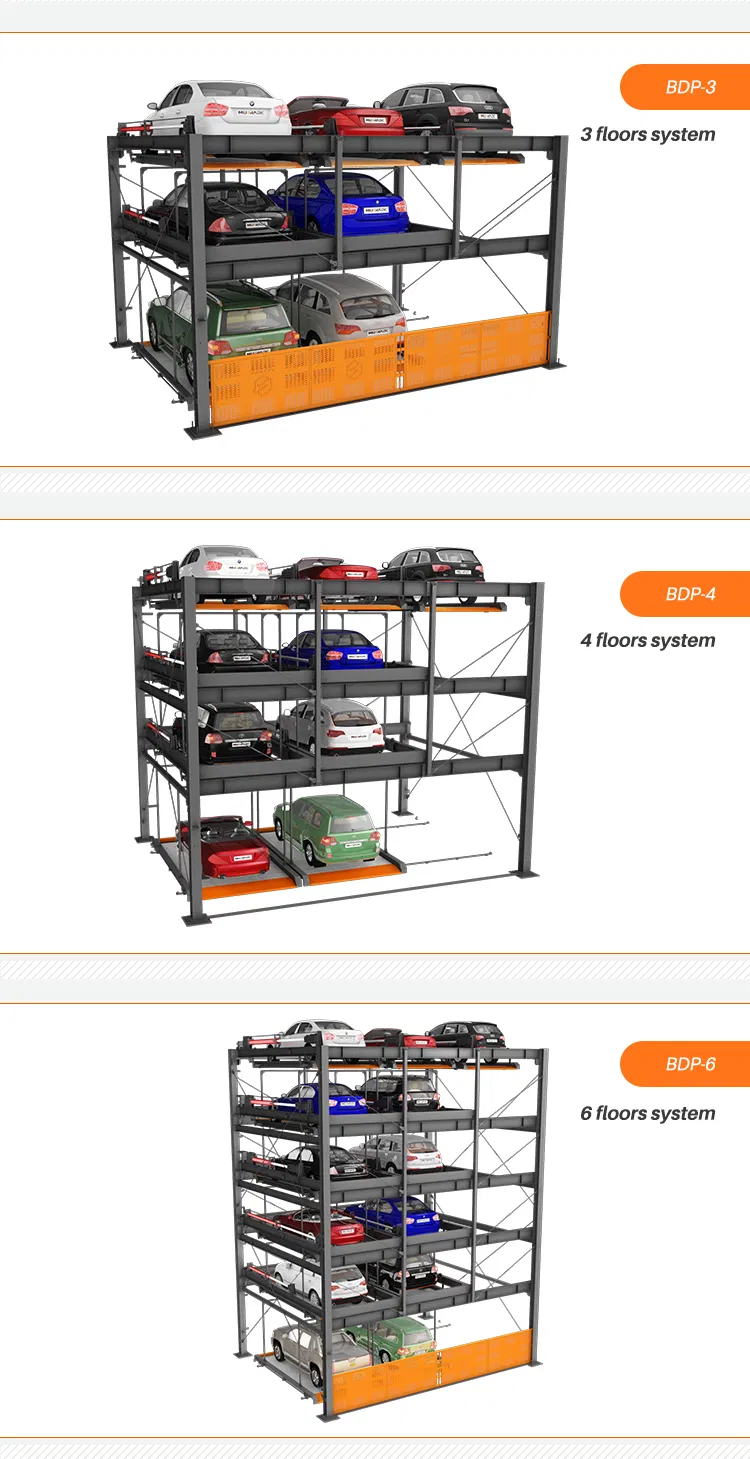

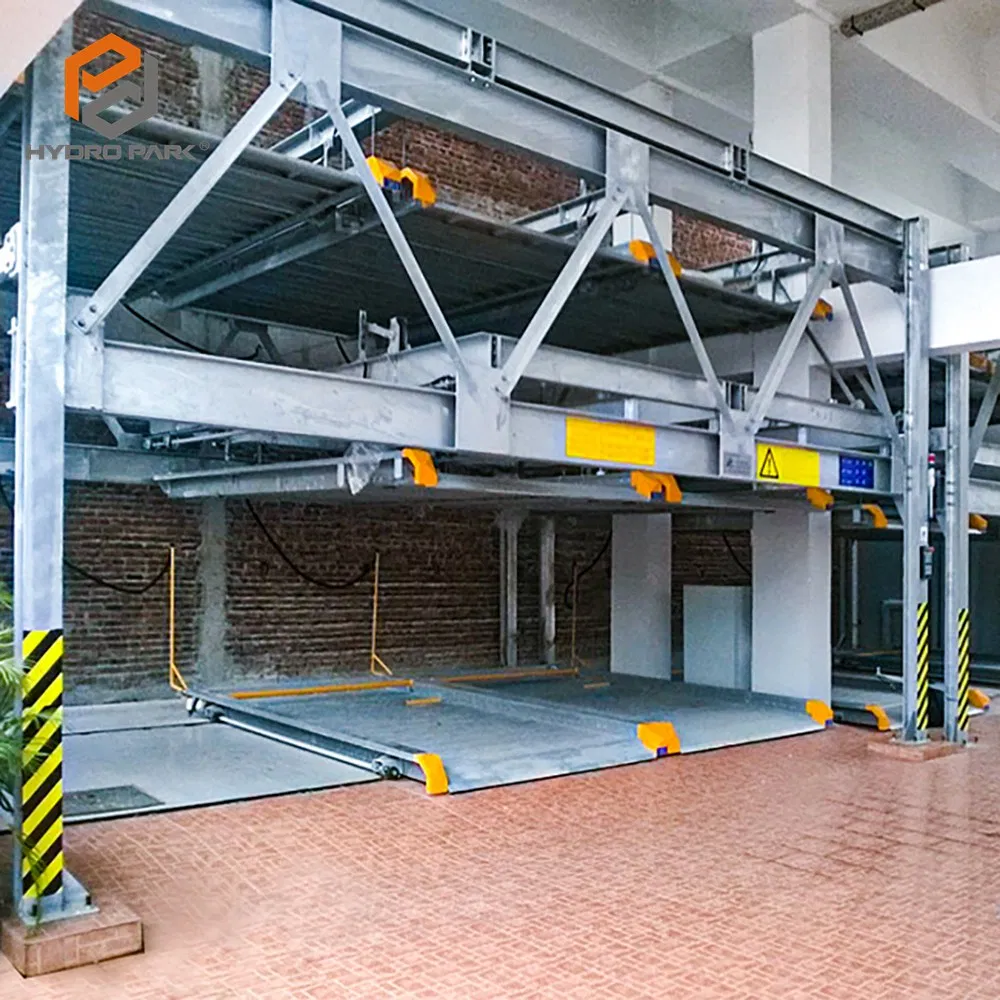

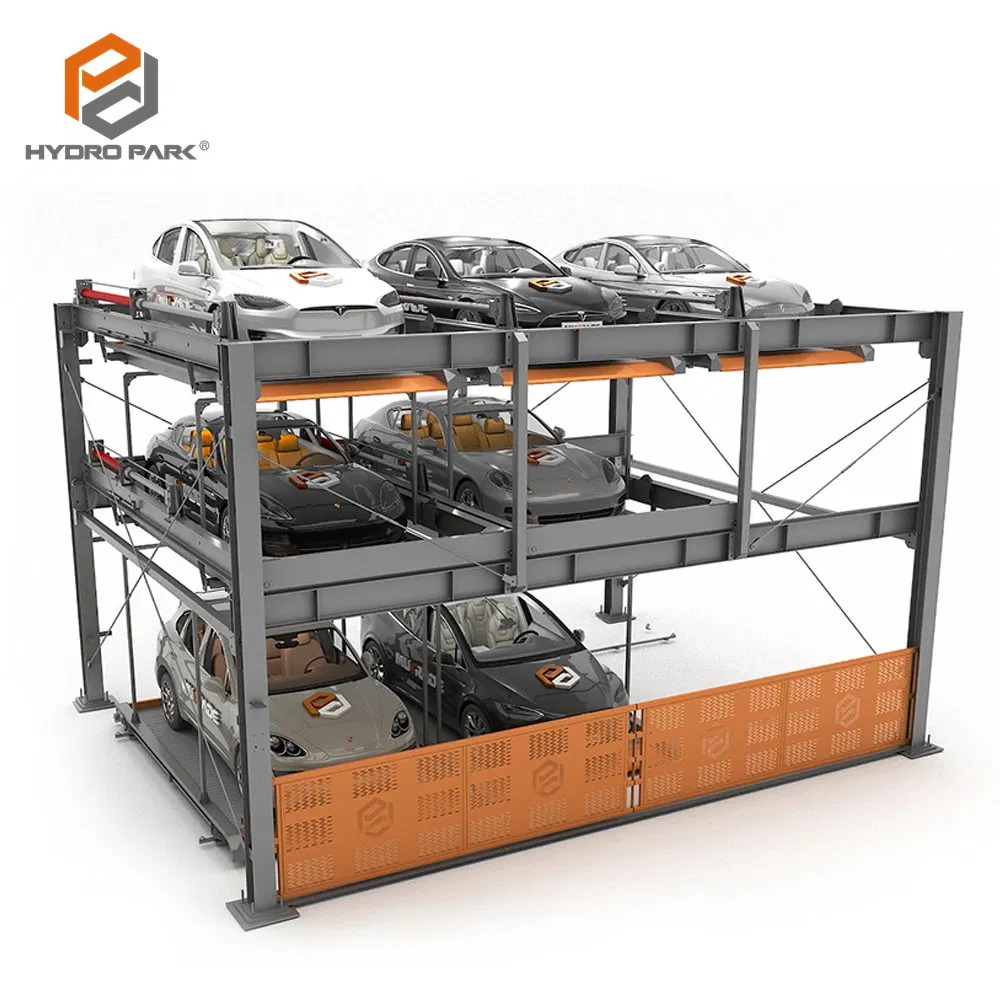

Puzzle systems fulfill the demand for a smart and convenient parking experience by combining lift & slide mechanisms. State-of-the-art parking technology is used to address growing demands for parking spaces, with a maximum of 6 levels above ground and the possibility of additional levels underground. By simply requesting a platform, the system shifts vertically or horizontally to deliver the requested unit to the entrance level.

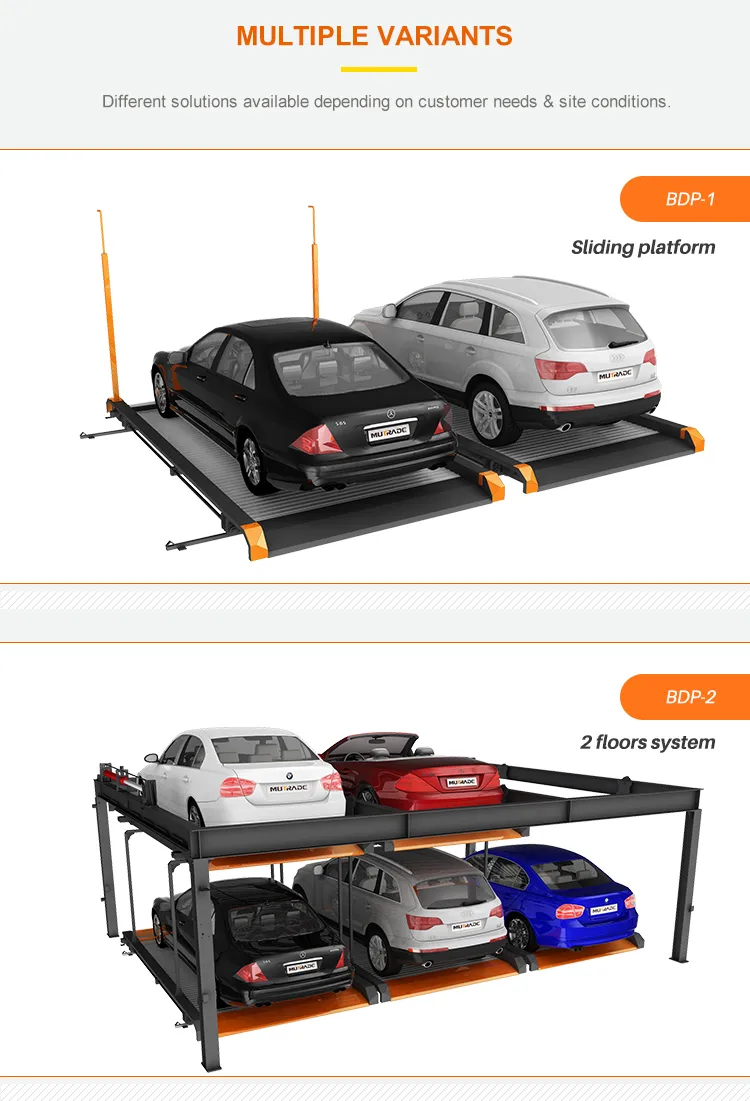

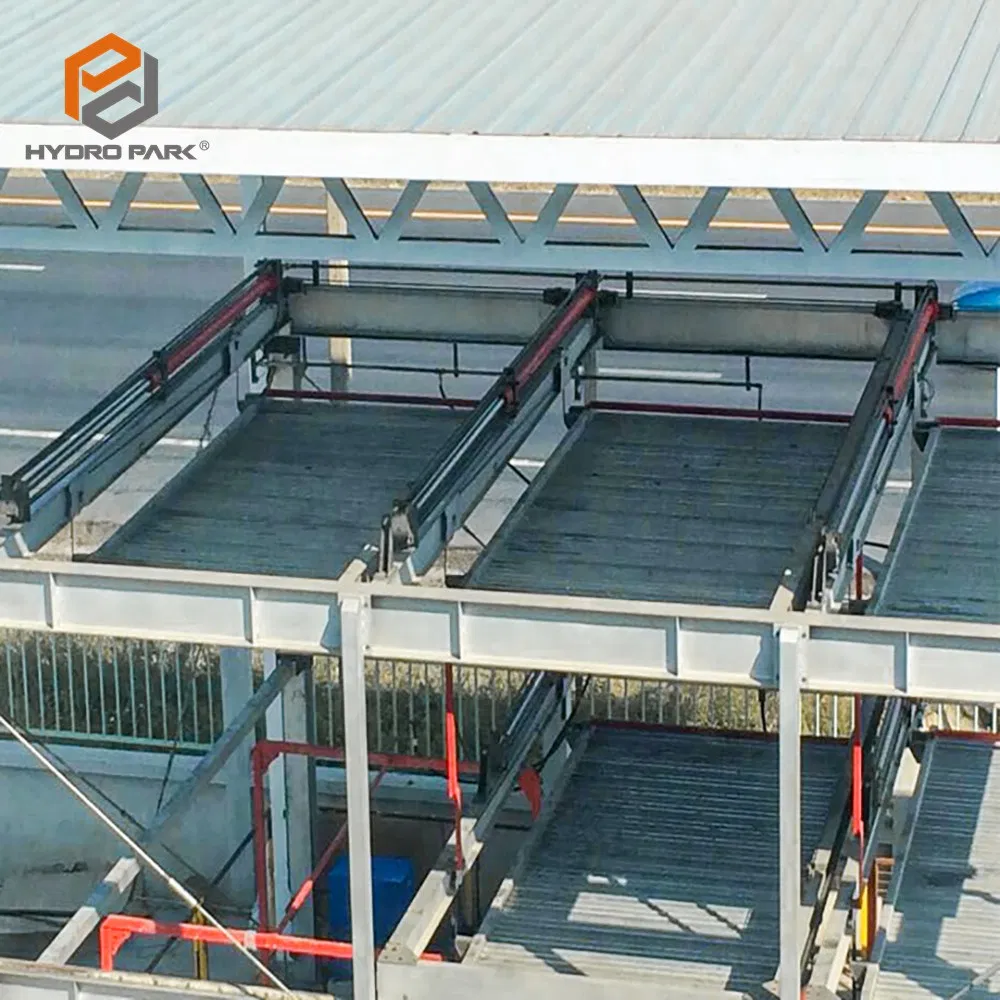

The BDP Series puzzle parking systems adopt premium hydraulic technology, offering a larger loading capacity of up to 2500kg. The master hydraulic power pack increases the lifting speed to a maximum of 15m/min, making it one of the fastest solutions in its class. These systems can be expanded with more grids or rows to increase total car capacity.
💡 For the BDP parking system, the selected space is moved to the desired position via an automatic PLC control system. By swiping a card or inputting a code, the platforms shift vertically or horizontally to reach the ground level.
❓ Frequently Asked Questions
What is the maximum weight capacity for each parking platform?
The BDP Series offers a high loading capacity of either 2000kg or 2500kg per platform, making it suitable for both sedans and SUVs.
How fast does the system lift and slide cars?
The lifting speed ranges from 8-12m/min (up to 15m/min with specific power packs), and the sliding speed is approximately 7.5m/min.
Can the system be installed outdoors?

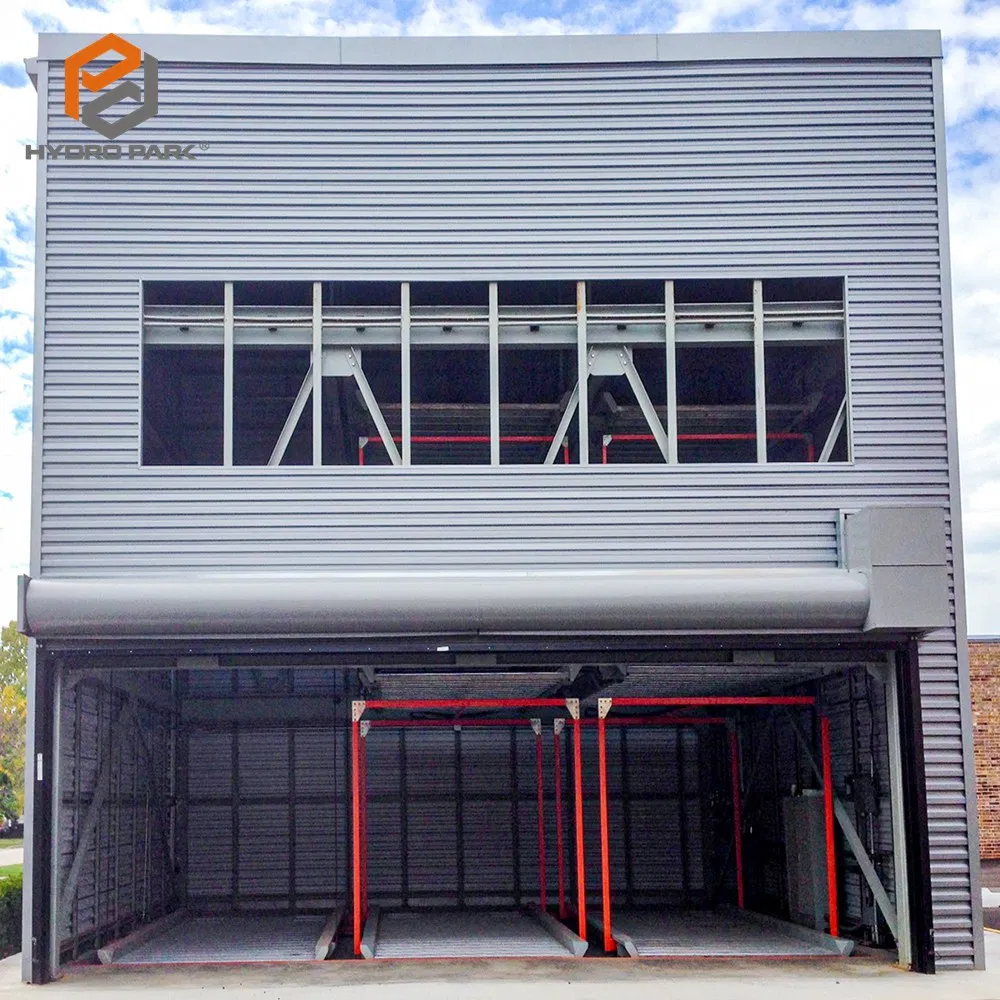

Yes, the system is designed for outdoor installation and features powder-coated finishing and galvanized waving plates for durability.
What safety features are included in the puzzle parking system?

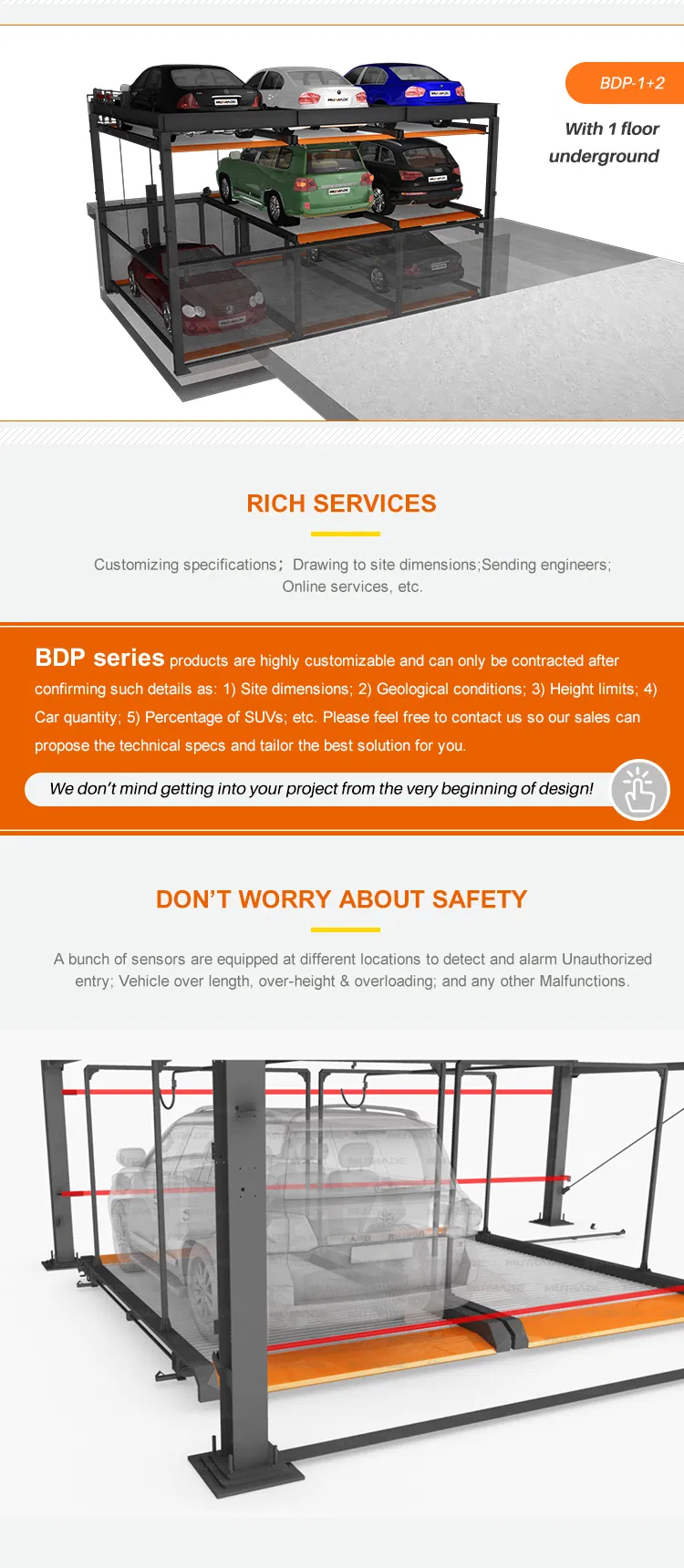

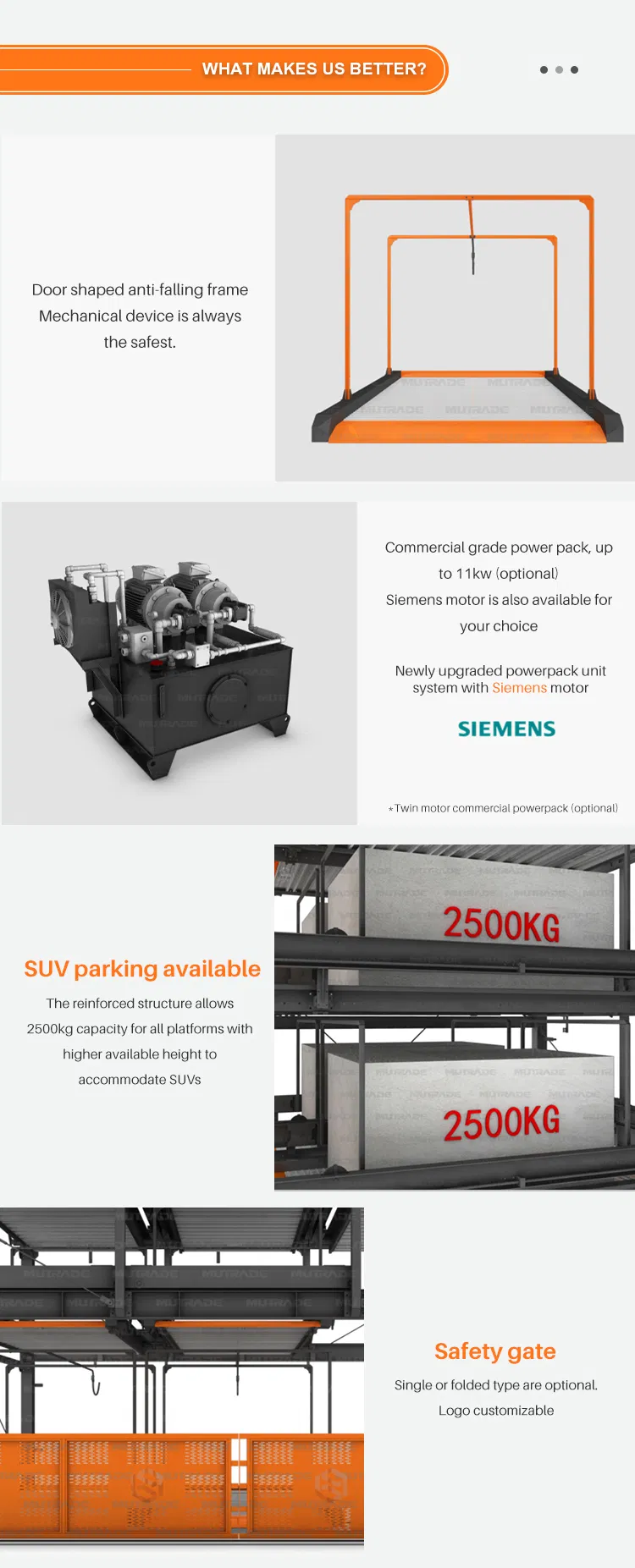

Safety is a priority, including anti-slip surfaces, emergency stop buttons, overload protection, safety railings, sensors, and automatic safety locks.
How do users retrieve their vehicles?

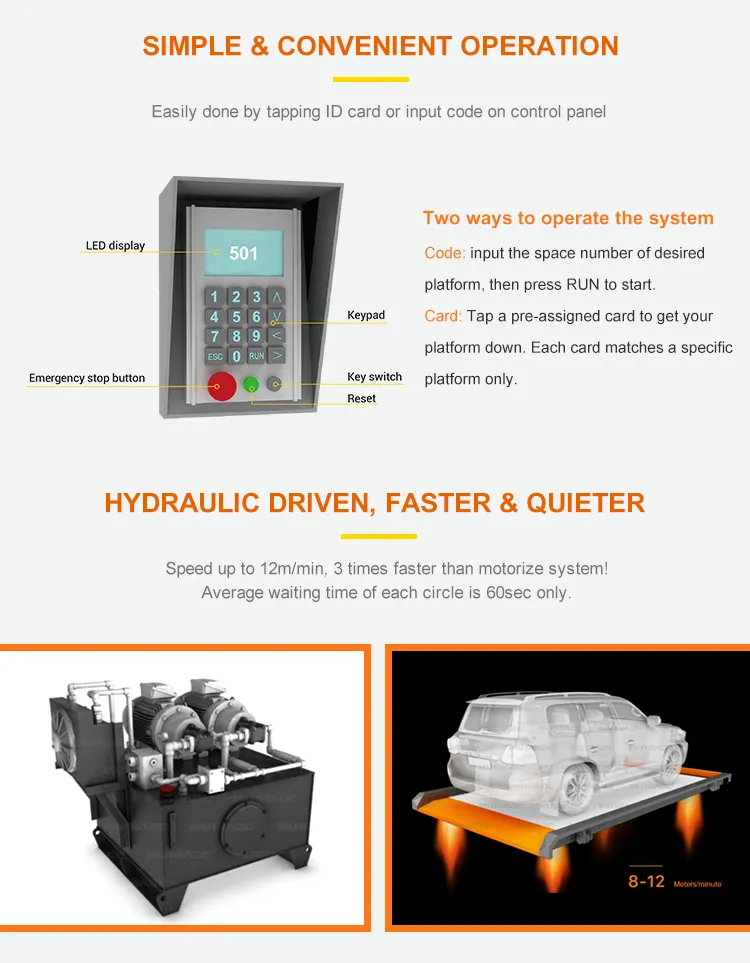

Users can retrieve their cars simply by swiping an IC card or entering a personal code into the PLC control panel.
What are the power requirements for the BDP system?
The system is electric-driven (typically starting from a 4.0kw hydraulic power pack) but can be adapted for solar or battery integration where compatible.
