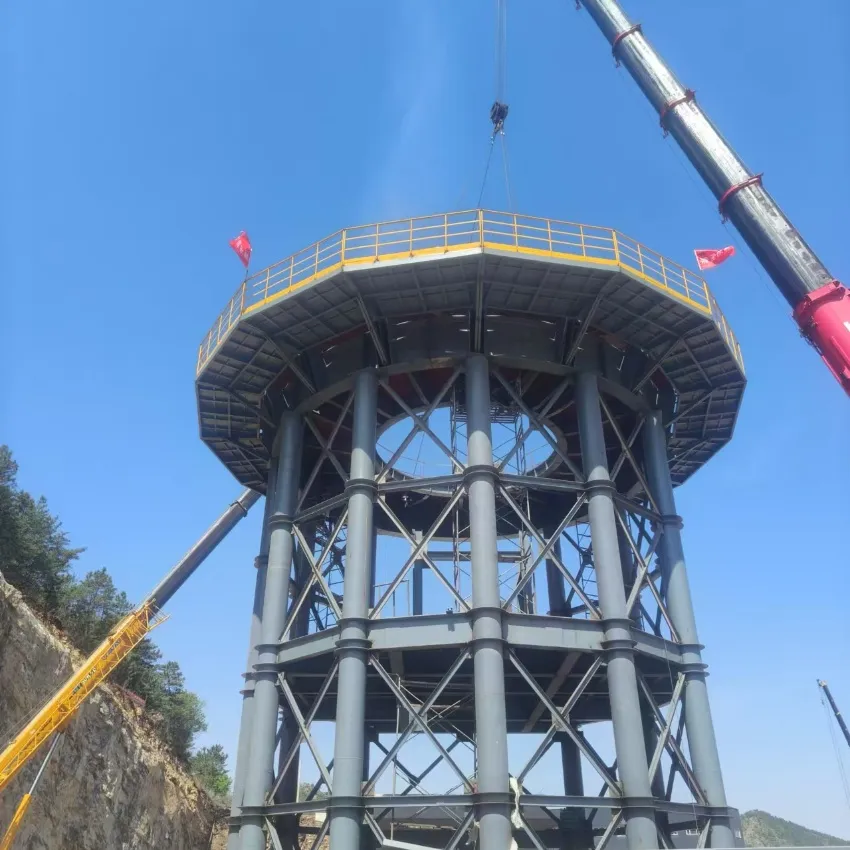

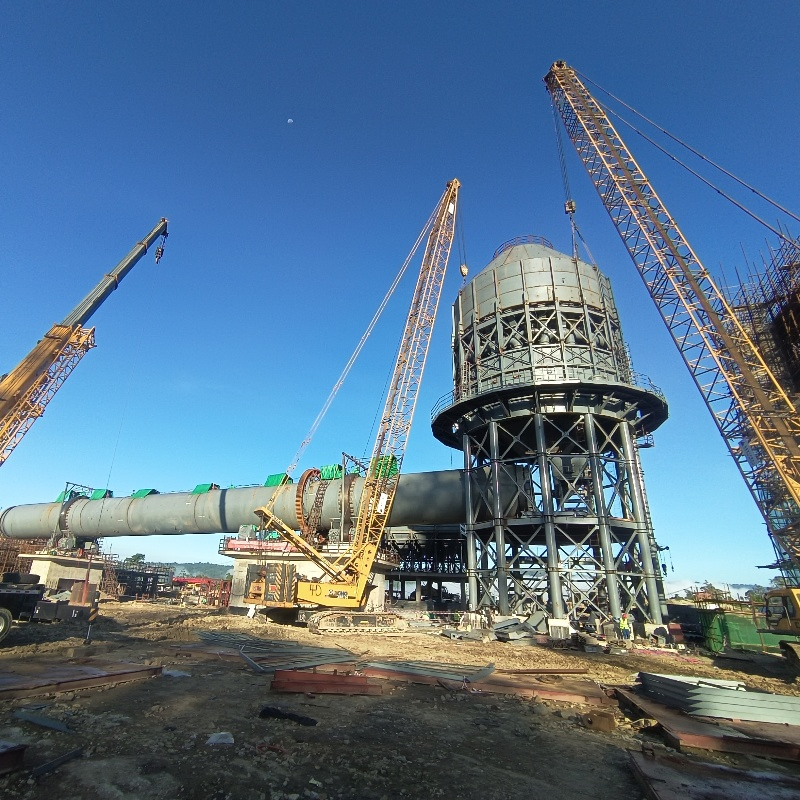

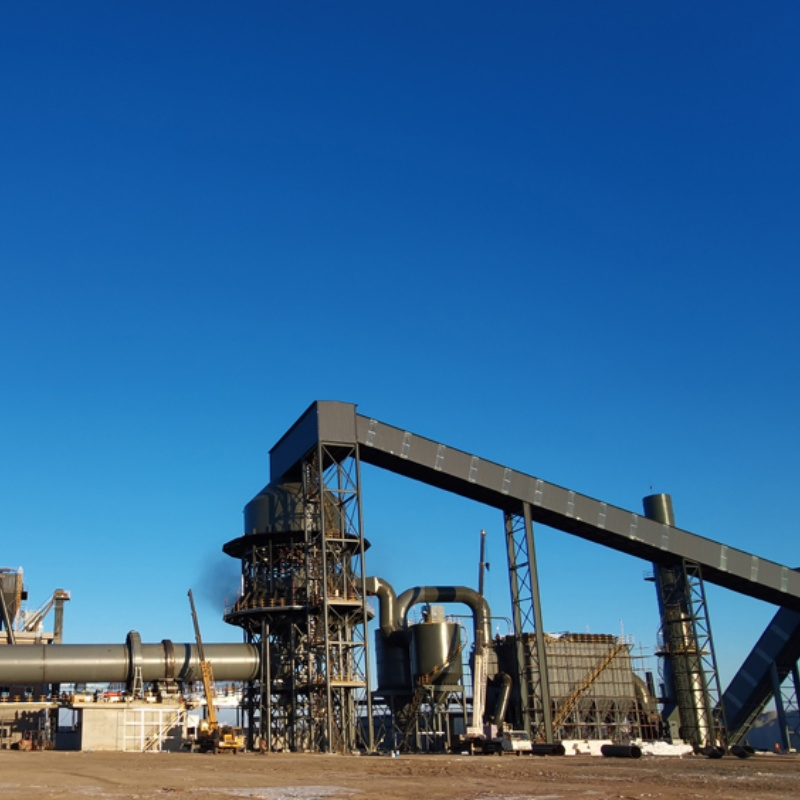

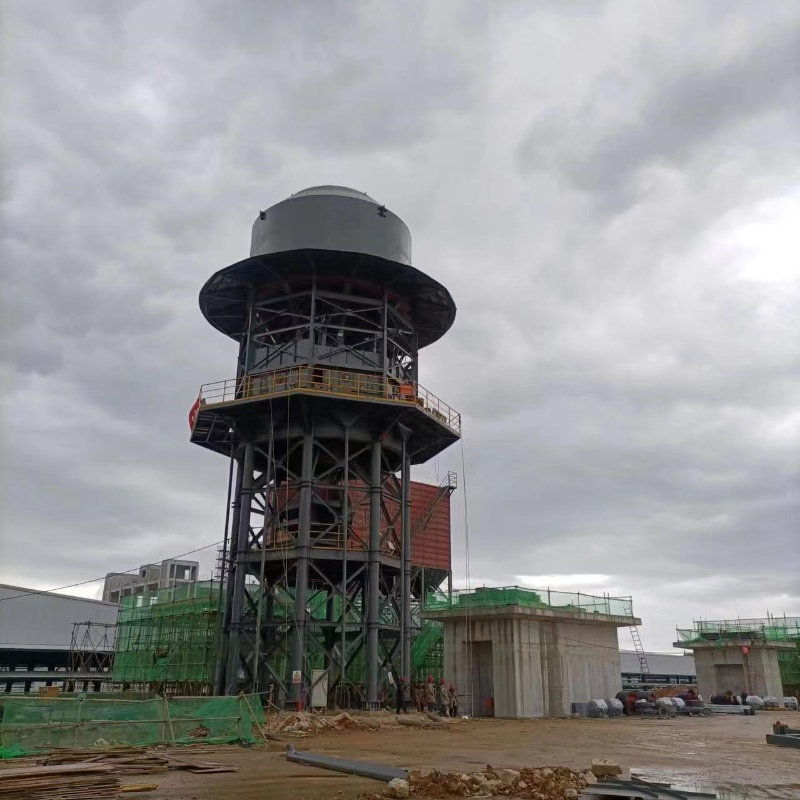

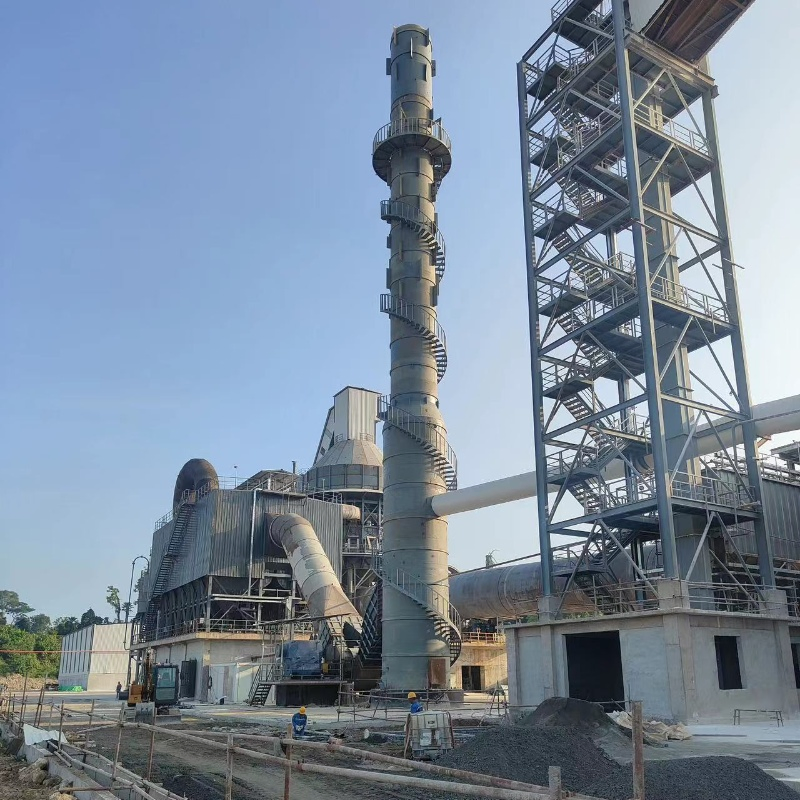

High activity rotary lime kiln is a type of kiln used for lime production. It uses rotation and internal combustion to complete lime calcining operations. It is the main production line for highly active lime products. The successful application of energy-saving and environmentally friendly active lime rotary kiln with vertical preheater and vertical cooler has broken traditional lime production methods.

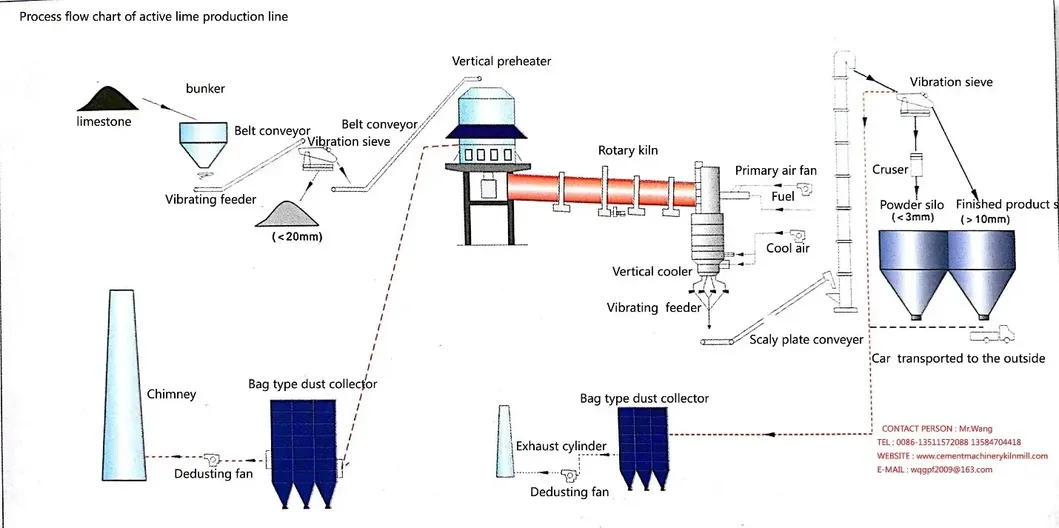

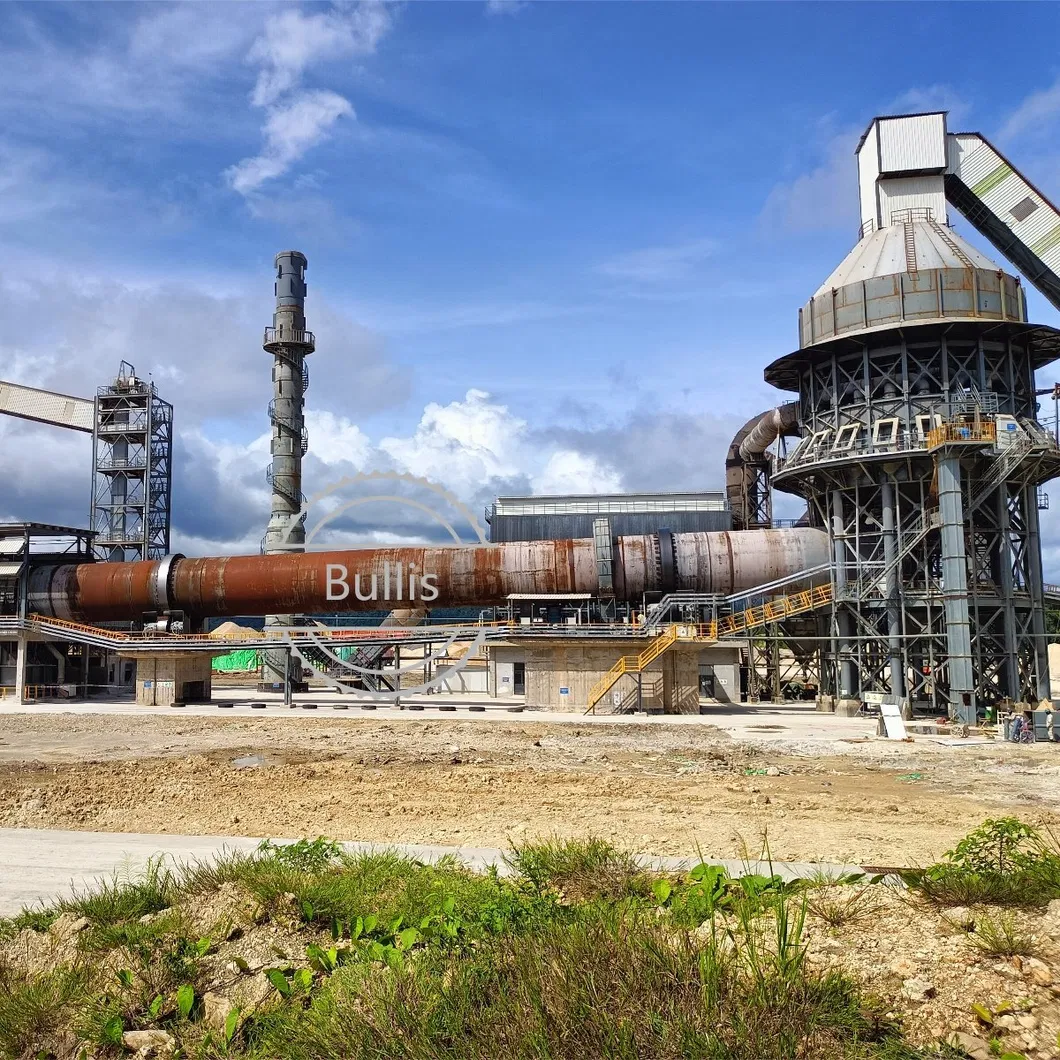

The rotary lime kiln usually consists of a feeding system, a preheating system, a calcining system, a cooling system, and a kiln tail flue gas system. It is the core processing equipment for steel plants, alumina plants, and calcium carbide plants.
| Model | Capacity (t/d) | Speed (r/min) | Main Motor Power | Weight (t) |
|---|---|---|---|---|
| Φ2.5x40 | 150 | 0.62-1.5 | 40kW | 143.6 |
| Φ3.0x46 | 250 | 0.67-3.76 | 110kW | 237 |
| Φ3.6x56 | 400 | 0.4-1.5 | 250kW | 387 |
| Φ4.0x60 | 600 | 0.396-3.96 | 315kW | 487.51 |
| Φ4.88x70 | 1000 | 0.58-3.46 | 550kW | 821 |
1. Engineering Consulting: Tailor-made efficient metallurgical process design.
2. Customized Solutions: Personalized engineering based on specific site conditions.
3. Installation: Professional teams ensuring accurate equipment setup.
4. Project Management: Strict adherence to schedule and industry standards.
5. After-sales: Rapid response and regular maintenance training.
