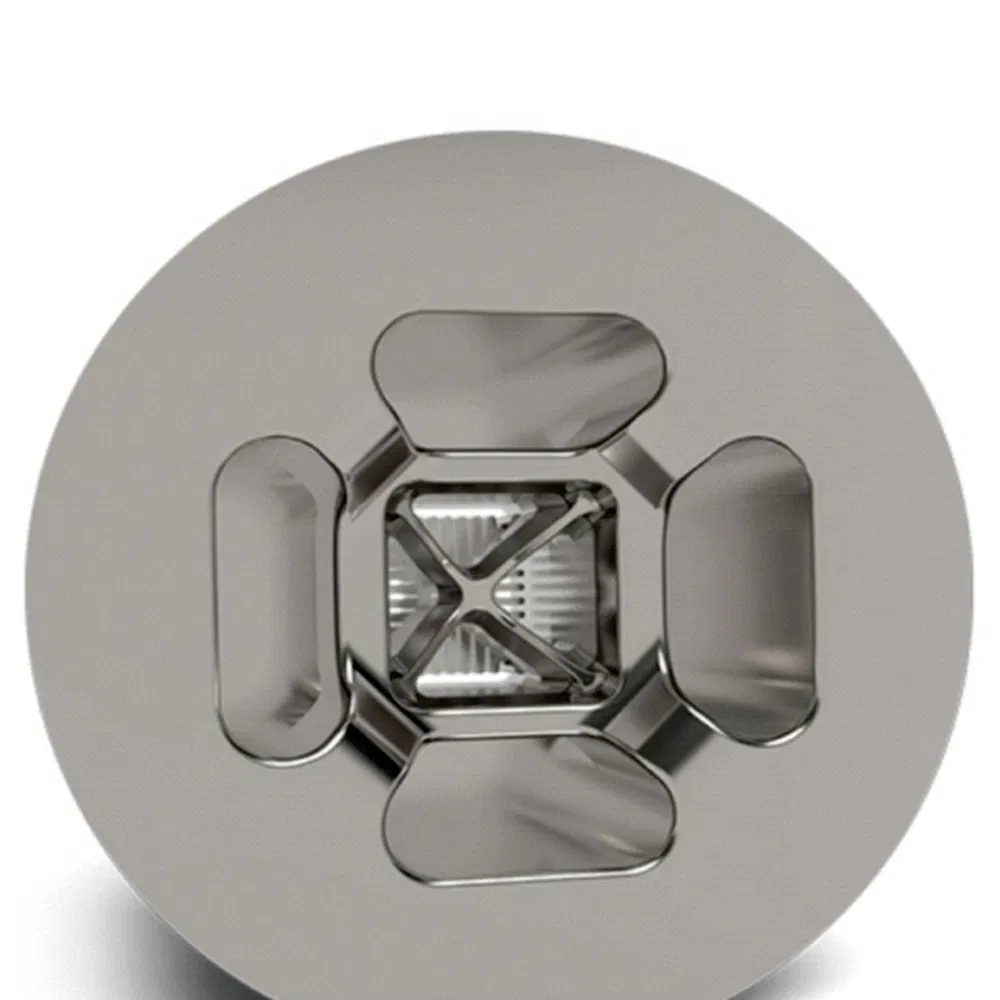

Customized Aluminum Alloy Extrusion Die Design for Curtain Wall Applications

Customization:	Available
Application:	Household Appliances, Hardware, Electronic, Commodity, Home Use, Car
Material:	Steel

Basic Info

Model NO.

Aluminum Extrusion Die

Molding Material

Metal Mould

Extrusion

Extrusion Mould

Hollow Mould

Nose Application

Profile Molding, Film Forming, Bar Shaped, Pipe Forming

Outlet

Direct Feeding

Pressure of Nose

High Pressure

After-sales Service

12 Months

Product Name

Customized Aluminum Profile Extrusion Die

Hardness

Hrb Hardness 48-52°

Mould Life Output

More Than 6 Tons Aluminum Profiles

HS Code

8207209090

Production Capacity

500,000 pieces/Year

Product Description

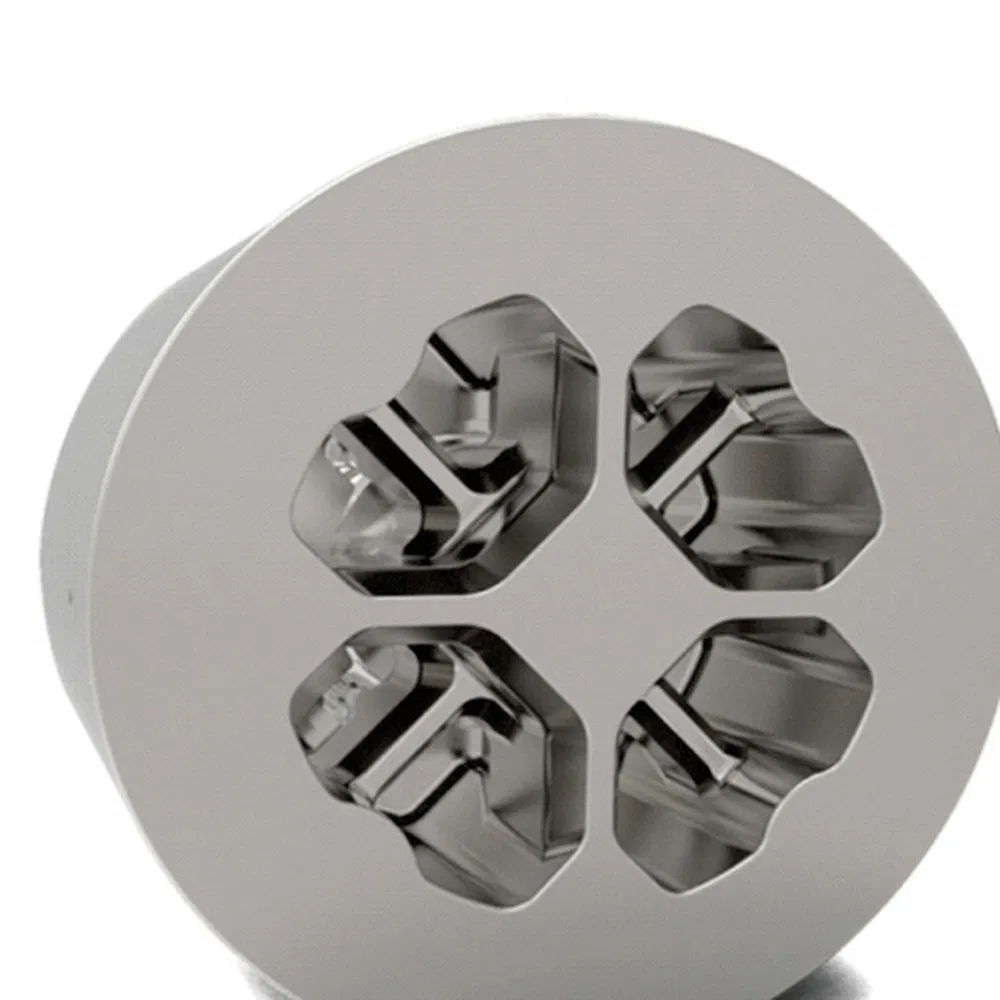

ALUMINUM EXTRUSION DIE

Aluminum Extrusion Die is a high-precision tool designed to shape aluminum profiles with exceptional accuracy and efficiency. Manufactured from durable, heat-resistant steel, this die ensures consistent, precise extrusion for complex and custom designs. Key features include long service life, superior thermal performance, and compatibility with a wide range of extrusion presses.

Superior Accuracy Achieve flawless aluminum profiles with our extrusion die, designed to eliminate inconsistencies and improve production accuracy.

Premium Durability Engineered with premium-grade steel and optimized for heat resistance, it offers unmatched durability and long-term performance.

High Efficiency Perfect for complex designs, it reduces setup time and boosts productivity, giving you a competitive edge in demanding industries.

Specifications

Technical Data Sheet
Material	H13 High-Grade Steel
Surface Treatment	High Quality Vacuum Heat Treatment And Nitriding
Hardness	HRB Hardness 48-52°
Mould Life Output	More Than 6 Tons Aluminum Profiles
Design Software	Computer Simulation, AutoCAD
Facilities	CNC, Grinding, Milling, Lathe, EDM
Die Type	Hollow Die & Solid Die
Delivery Time	Within 15 Working Days
Application	Building Curtain Walls, New Energy Vehicles, Rail Transportation, Consumer Electronics

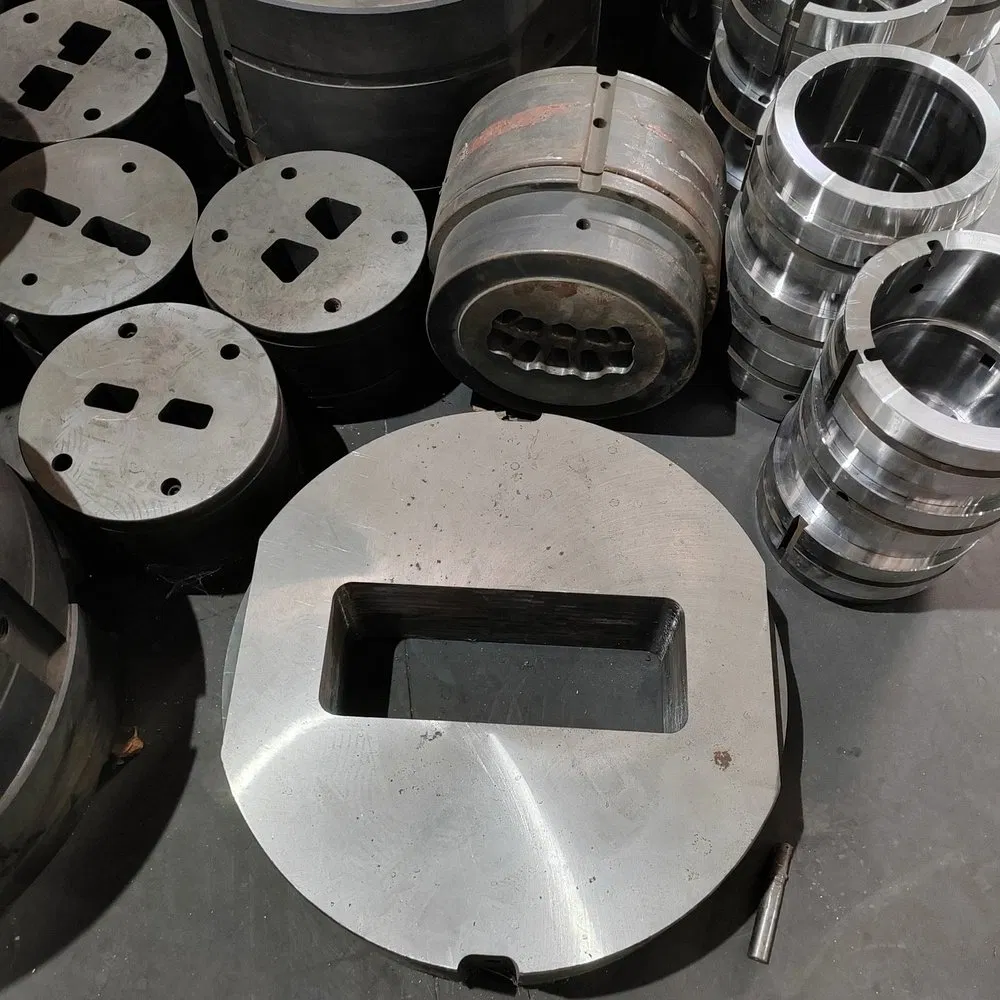

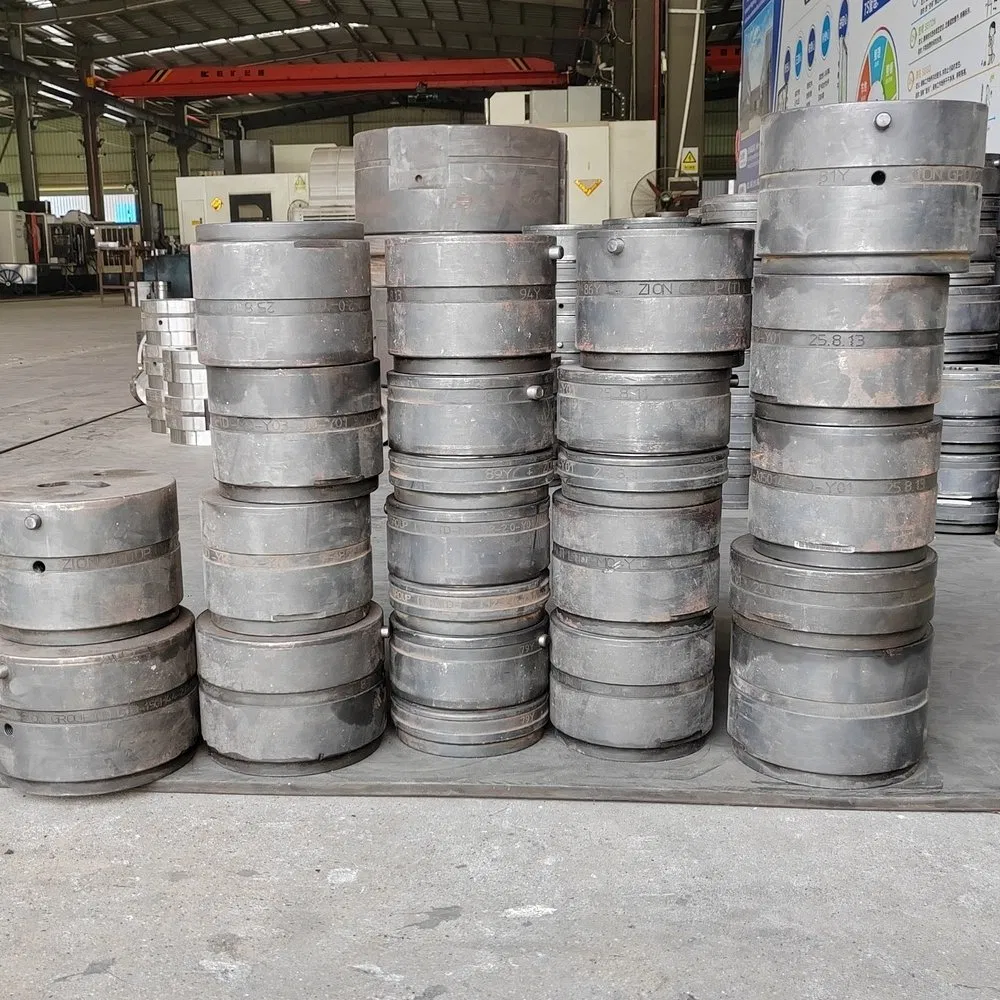

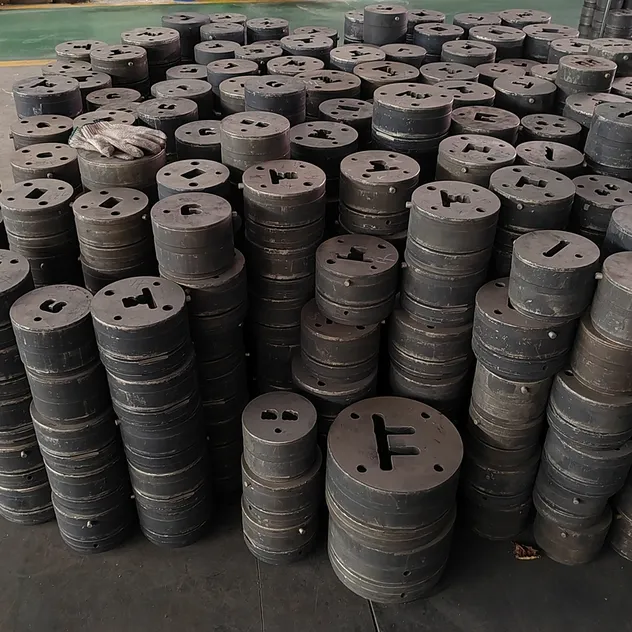

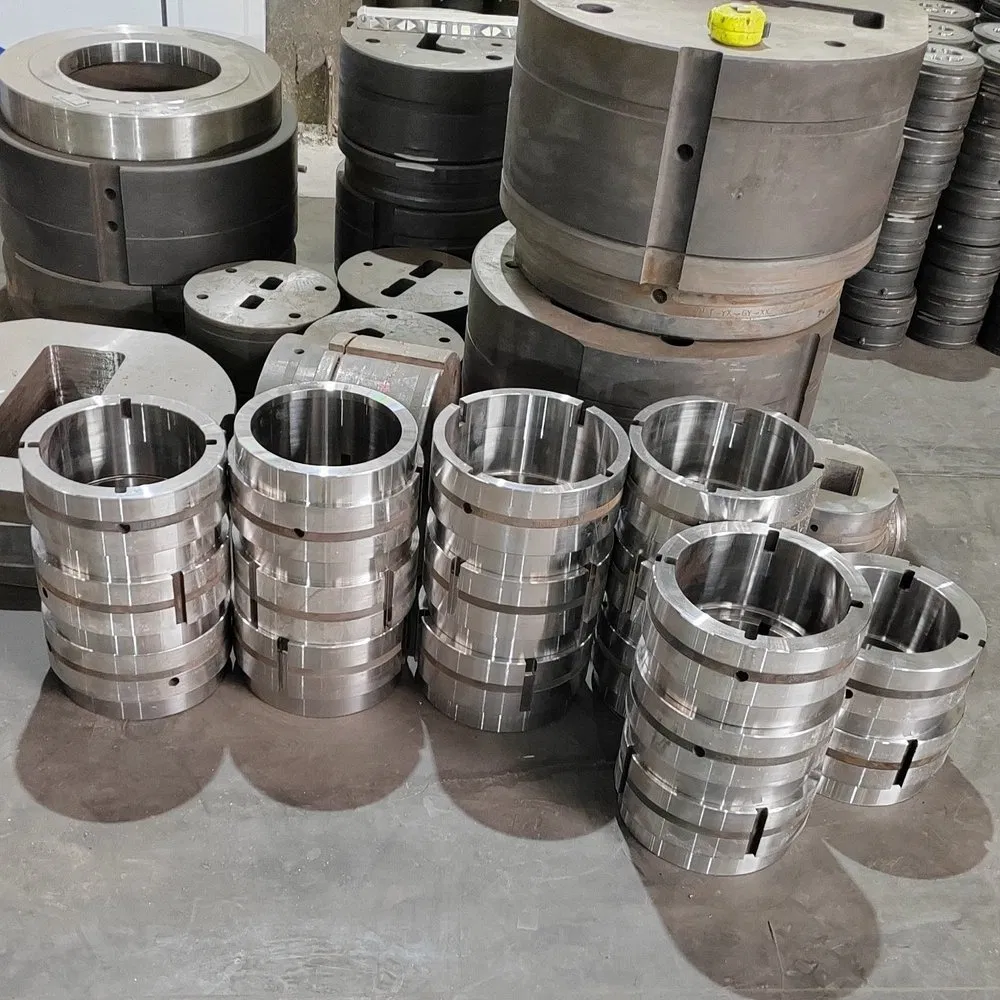

Detailed Photos

PRECISION ENGINEERINGEnsures accurate shaping of aluminum profiles for flawless results.

HIGH DURABILITYMade from premium, heat-resistant steel for an extended lifecycle.

VERSATILE COMPATIBILITYSupports various presses and complex custom designs.

Frequently Asked Questions

1. Are you a factory or a trading company?

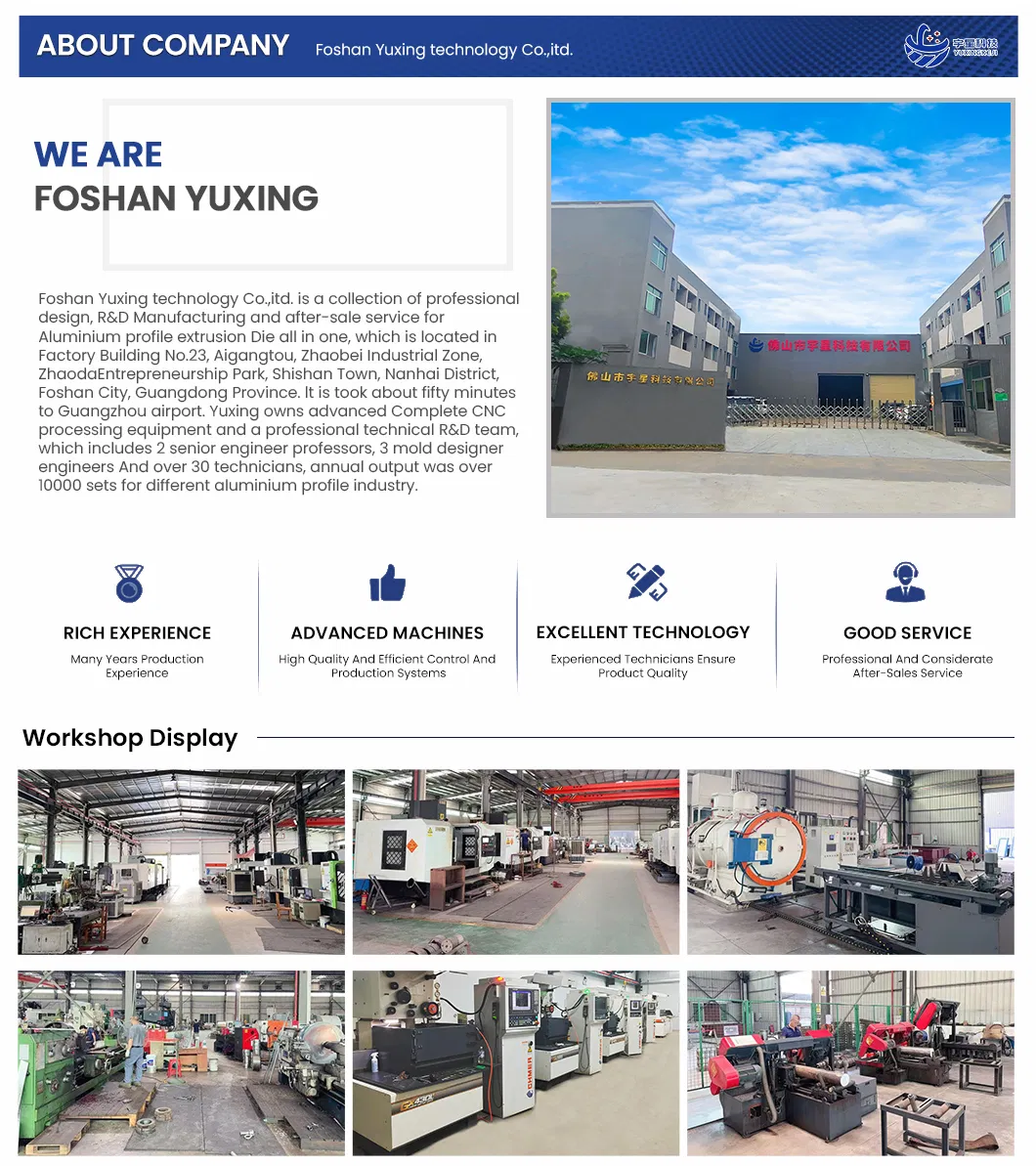

We are a professional manufacturer specializing in aluminum extrusion dies. Our facility is equipped with advanced production machinery and a dedicated R&D team, allowing for strict control over quality, costs, and lead times.

2. How do I order Aluminum Extrusion Dies?

Please provide your technical specifications, including die dimensions, profile drawings, aluminum alloy type, and required output. Our engineering team will analyze the data and provide a technical solution and quotation.

3. What is the typical lead time for production?

The lead time usually ranges from 15 to 30 days depending on the complexity of the custom design. We prioritize production efficiency without compromising on quality standards.

4. What alloys are the dies compatible with?

Our dies are compatible with most common aluminum alloys, such as 6061, 6063, and 7075. We can also customize the die design for specialized or harder industrial alloys.

5. Do you offer after-sales support?

Yes, we provide comprehensive after-sales support including technical guidance, maintenance recommendations, and troubleshooting assistance to ensure optimal performance of your extrusion dies.

6. What design software do you use for simulation?

We utilize advanced Computer Simulation software and AutoCAD to model the flow of aluminum through the die, ensuring the profile is shaped correctly before the manufacturing process begins.
