Aura Mesh Window
Aura Mesh Window

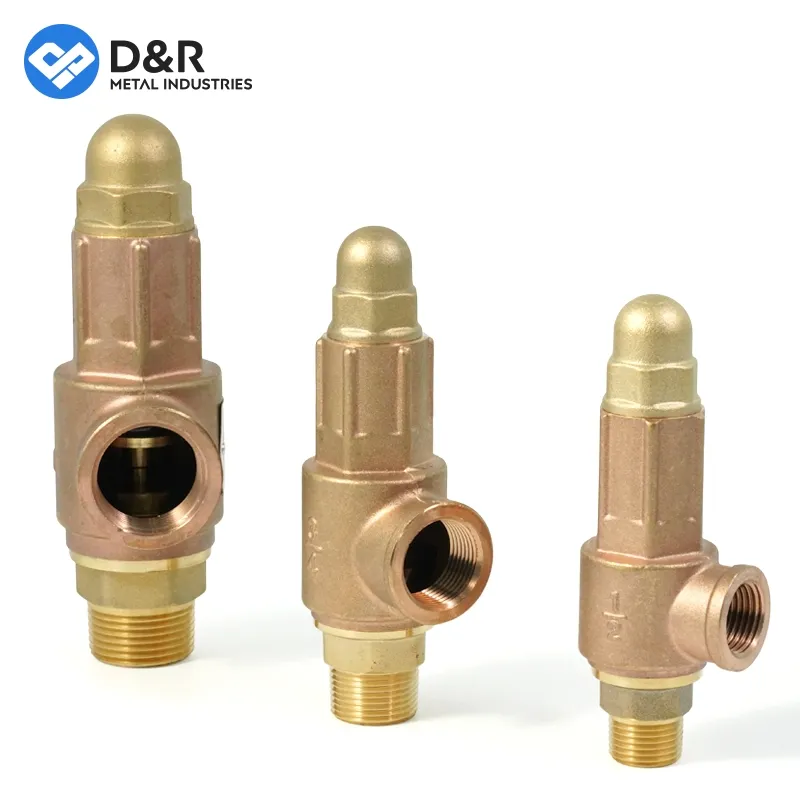

📋 Construction Parts:
| Sealing Material | Temp Range | Features |
|---|---|---|
| FKM | -30 ~ 180℃ | Oil, gas, chemical media |
| PTFE | -60 ~ 170℃ | Strong chemical resistance |
| RPTFE | -60 ~ 220℃ | High-temp stability |
| EPDM | -40 ~ 110℃ | Hot water, HVAC systems |
✅ System pressure acts on the disc from the inlet side.
✅ Pre-compressed spring keeps the disc tightly sealed under normal operation.
✅ When pressure reaches the set point, upward force overcomes spring force and the disc pops open instantly for rapid release.
✅ As pressure drops, the spring restores the disc for a leak-free seal.
| Inlet | d (mm) | Outlet | Lift | H (mm) |
|---|---|---|---|---|
| 1/2" | 13 | 1/2" | 0.5 | 157 |
| 3/4" | 19 | 3/4" | 0.7 | 169.5 |
| 1" | 25 | 1" | 0.9 | 200 |
| 1 1/2" | 38 | 1 1/2" | 1.4 | 243.5 |
| 2" | 50 | 2" | 1.8 | 281.5 |
