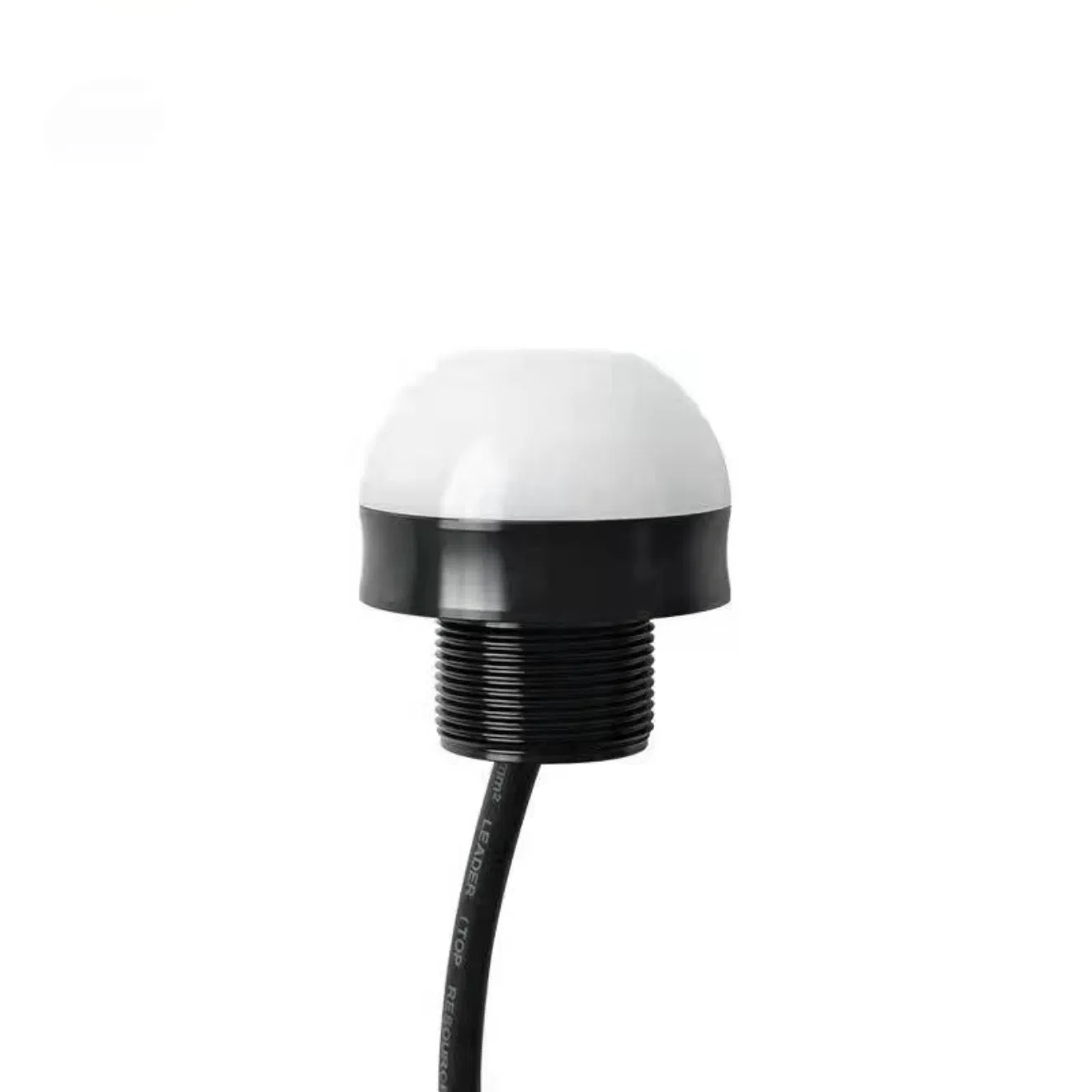

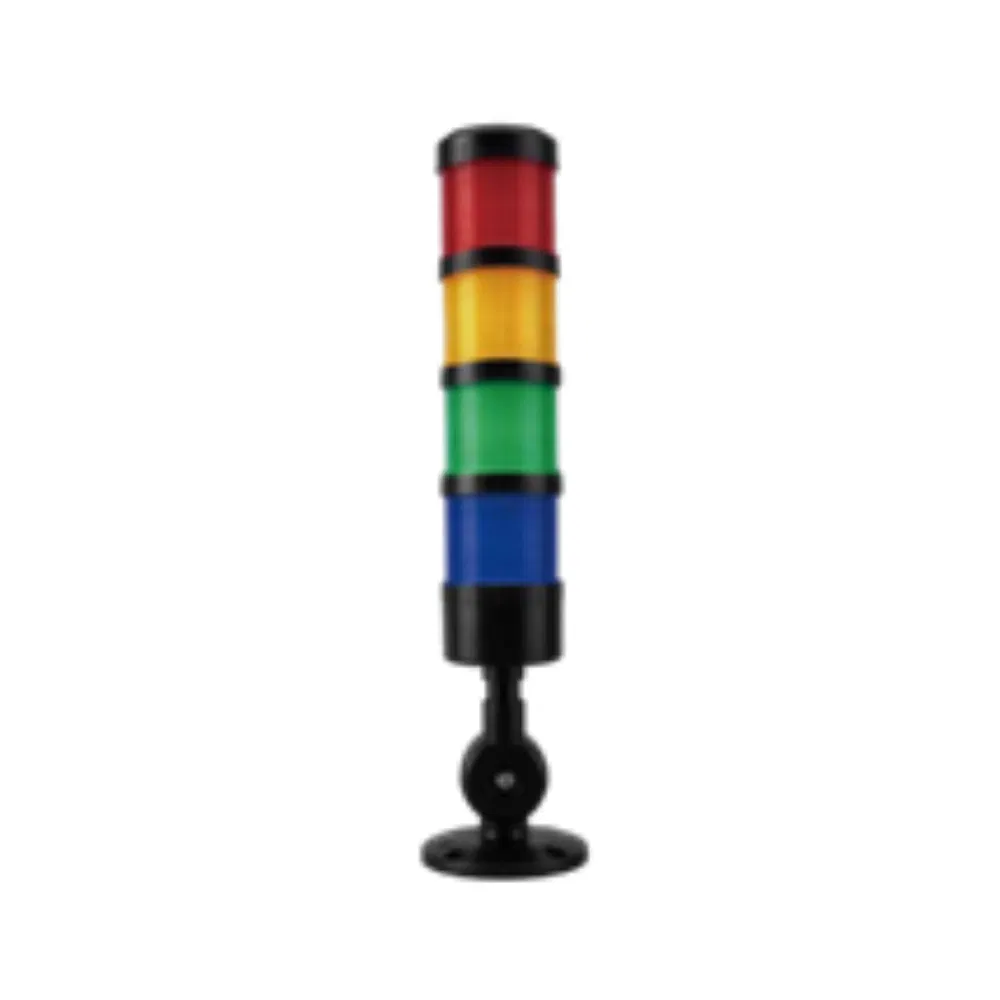

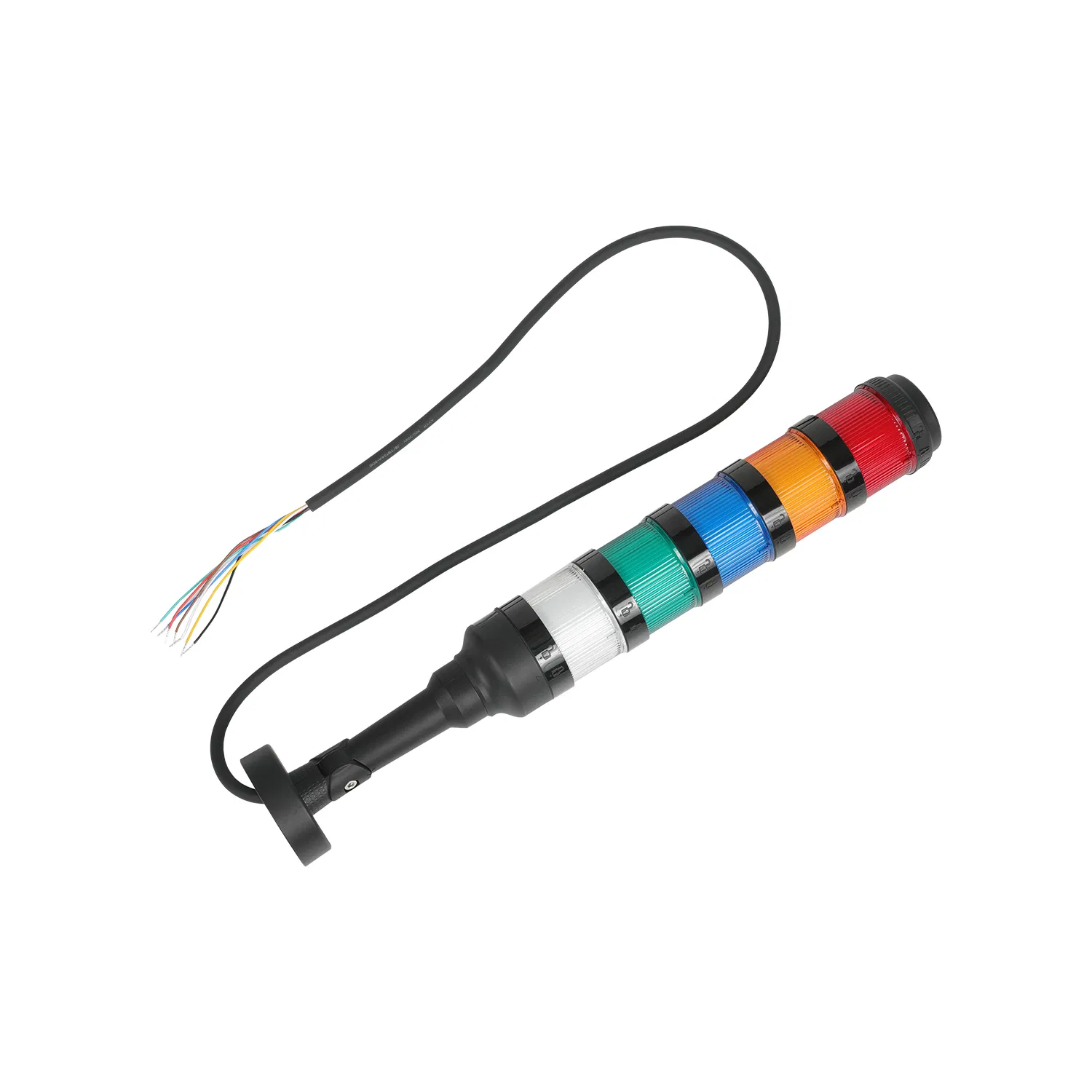

Durable 24VDC Safety Alarm Light SAL1-xxx

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info.
Model NO.
SAL1-xx
LED Life
50000H
Voltage
24VDC
Material
Aluminum alloy+PC
Interface
M12
Ambient Temp
-25℃~55℃
Packaging & Delivery
Package Size
39.00cm * 6.00cm * 6.00cm
Gross Weight
0.500kg
Product Description

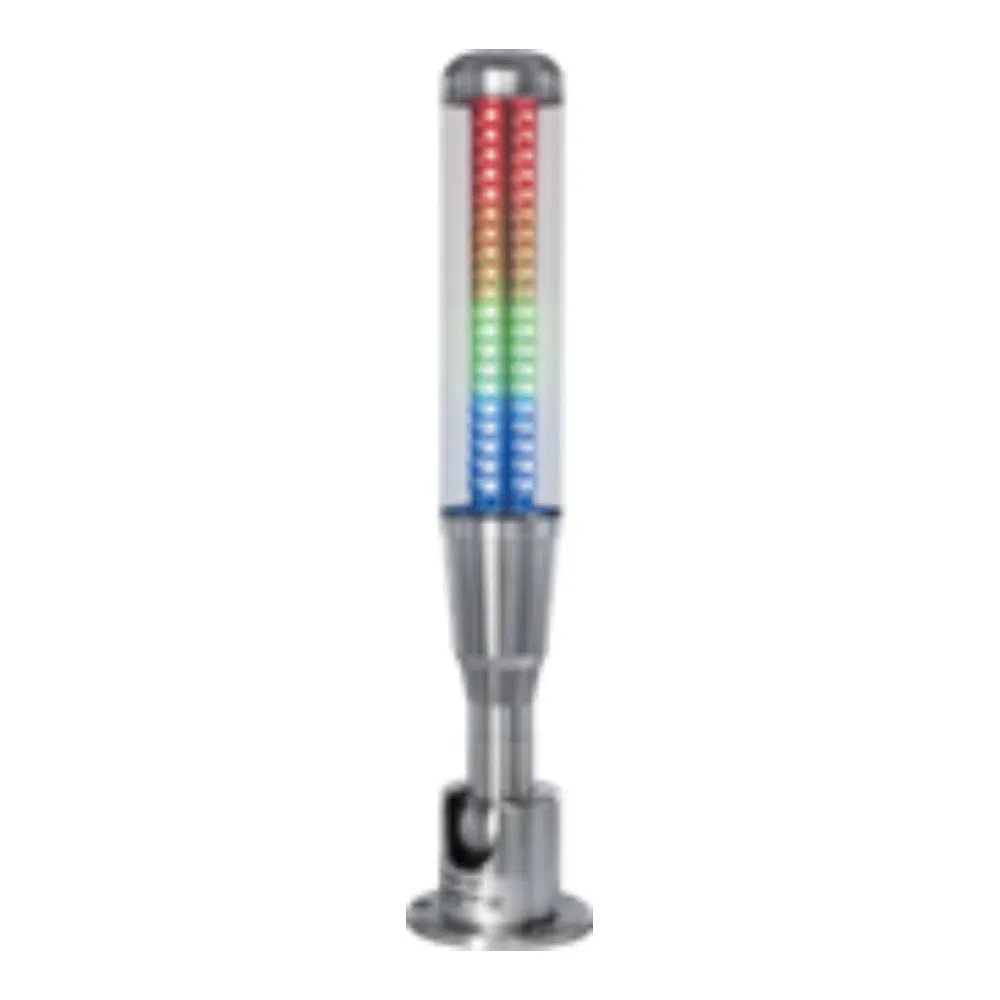

SAL1 series tower light features: High-quality LED construction with long service life. Designed for wide-range visibility and clear recognition. The overall sealing reaches IP67 level (IP65 standard), making it waterproof, oil-proof, and dustproof. The lamp body provides 360° illumination for optimal signaling.

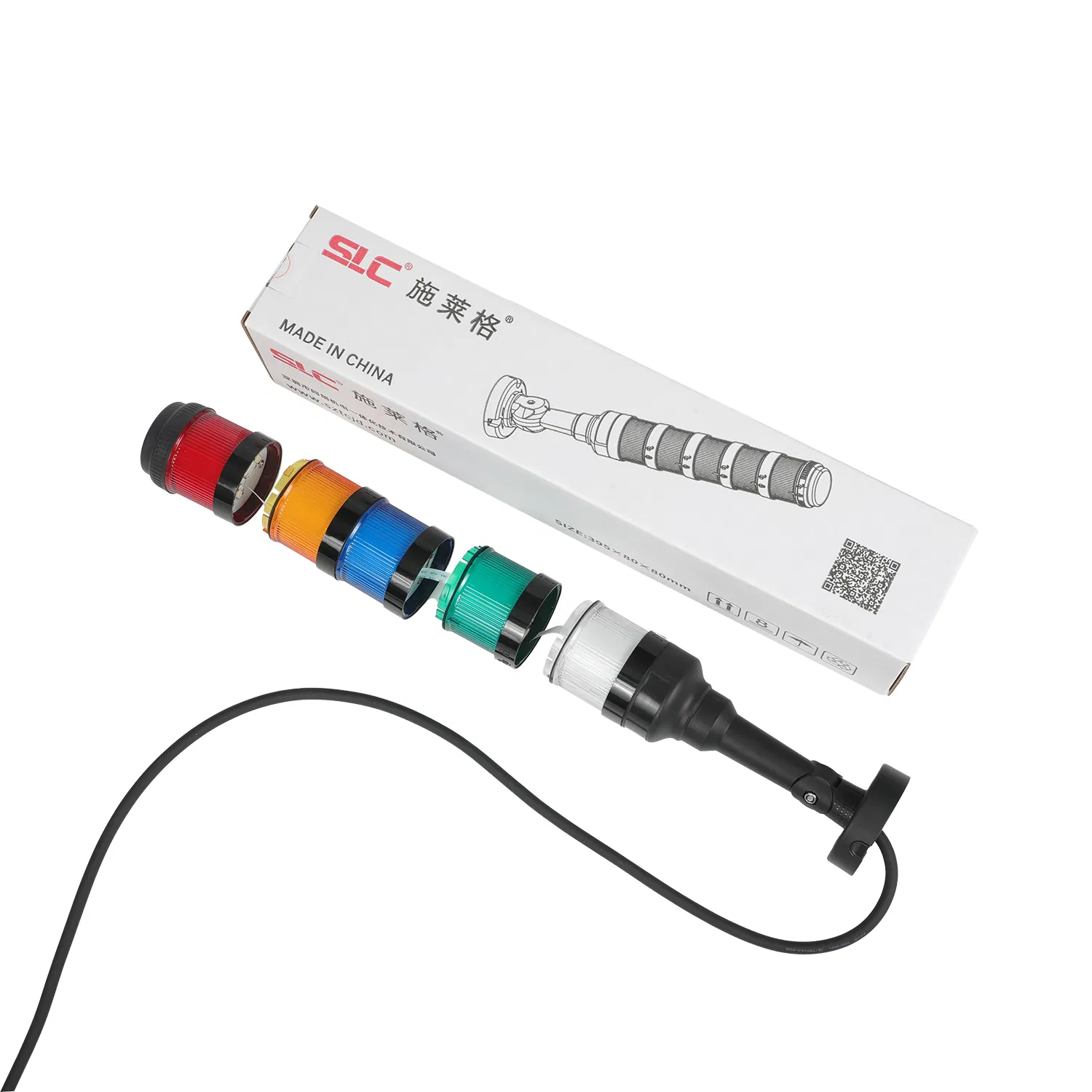

  • Modular design with flexible 3-layer or multi-layer color options.
  • Thermoplastic pedestal suitable for harsh industrial environments.

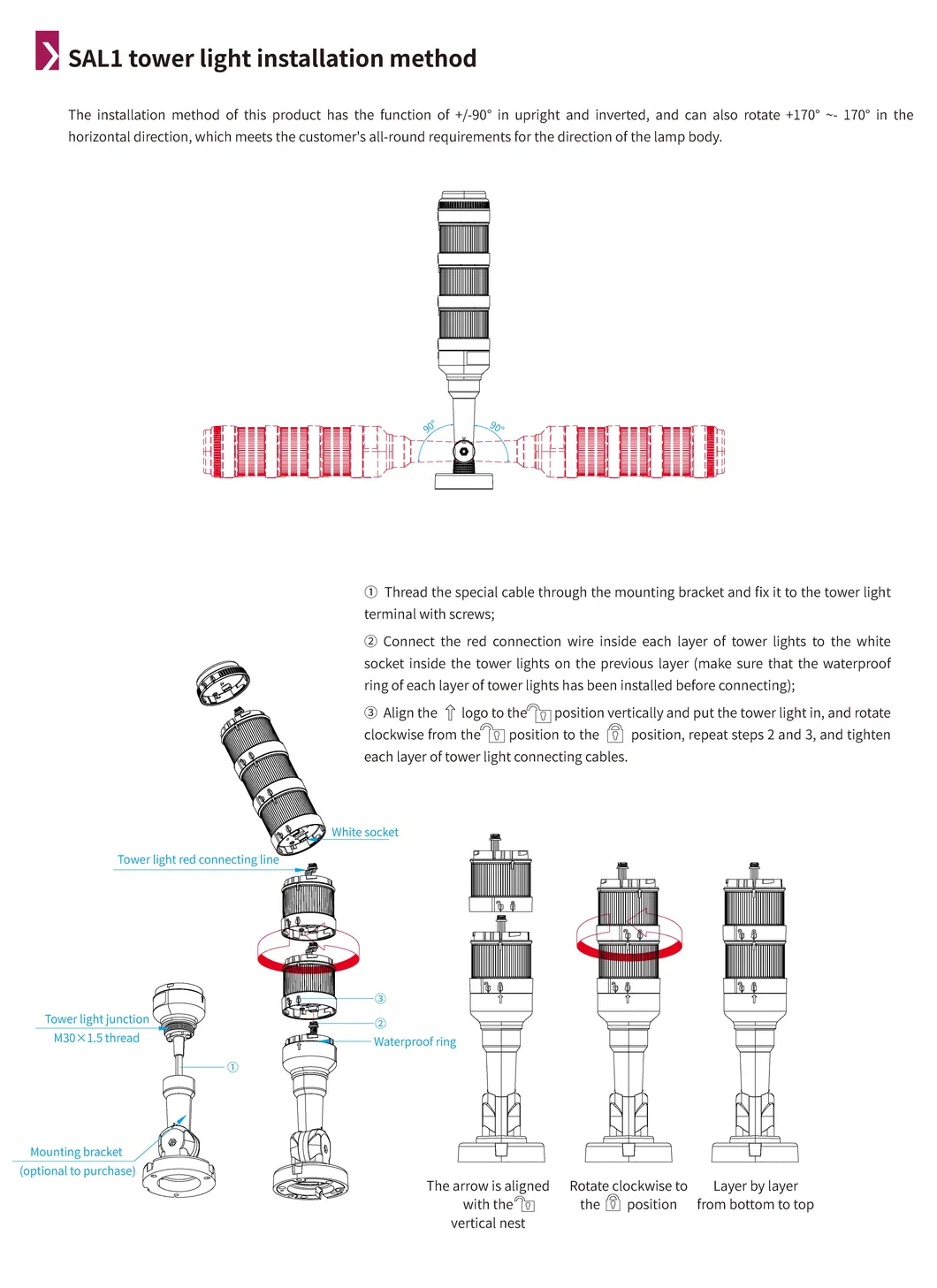

  • Rotatable installation (+/-170°) supporting upright, inverted, or horizontal mounting.
  • Ideal for CNC machine tools, machining centers, and safety inspection systems.
  • Color

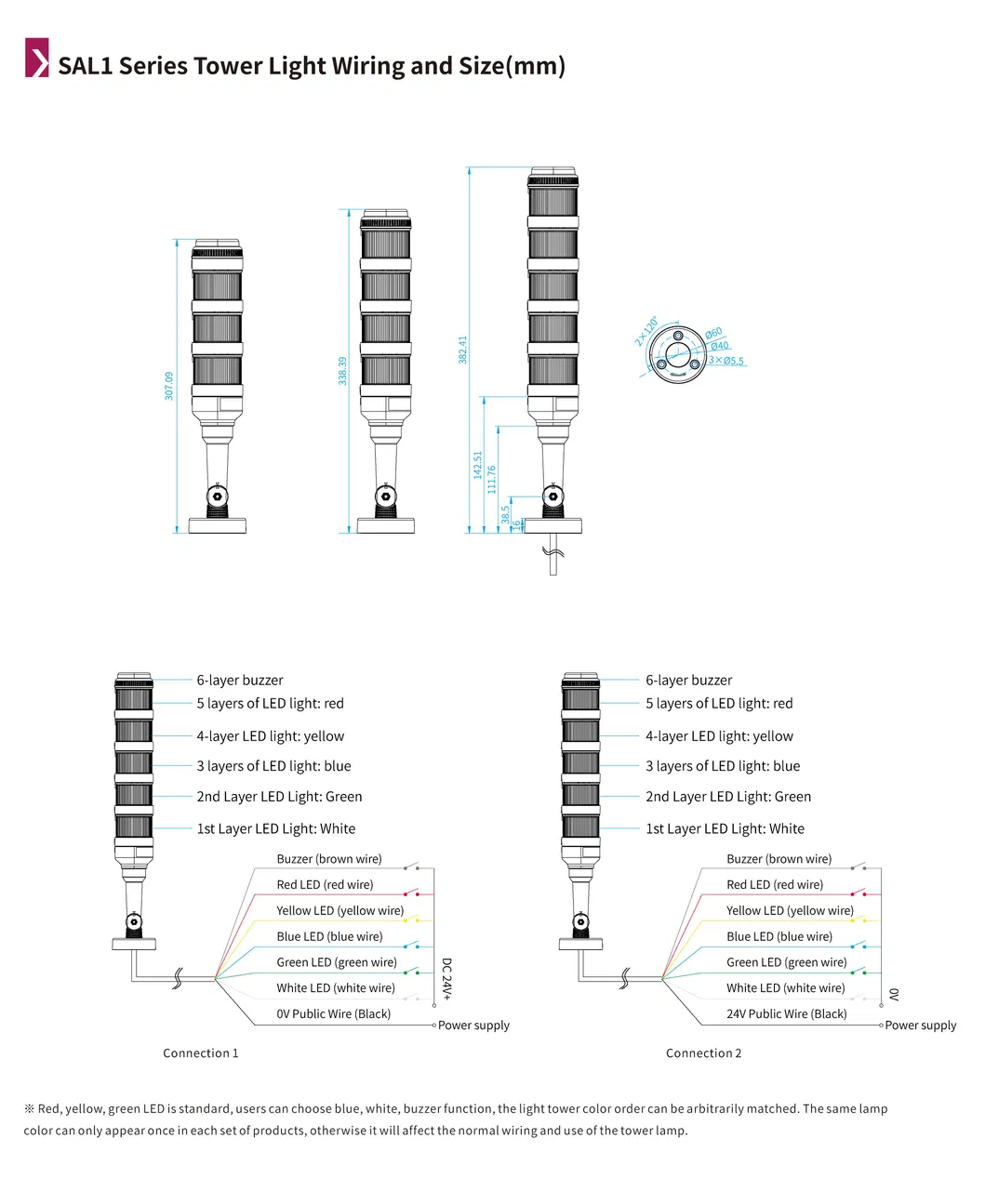

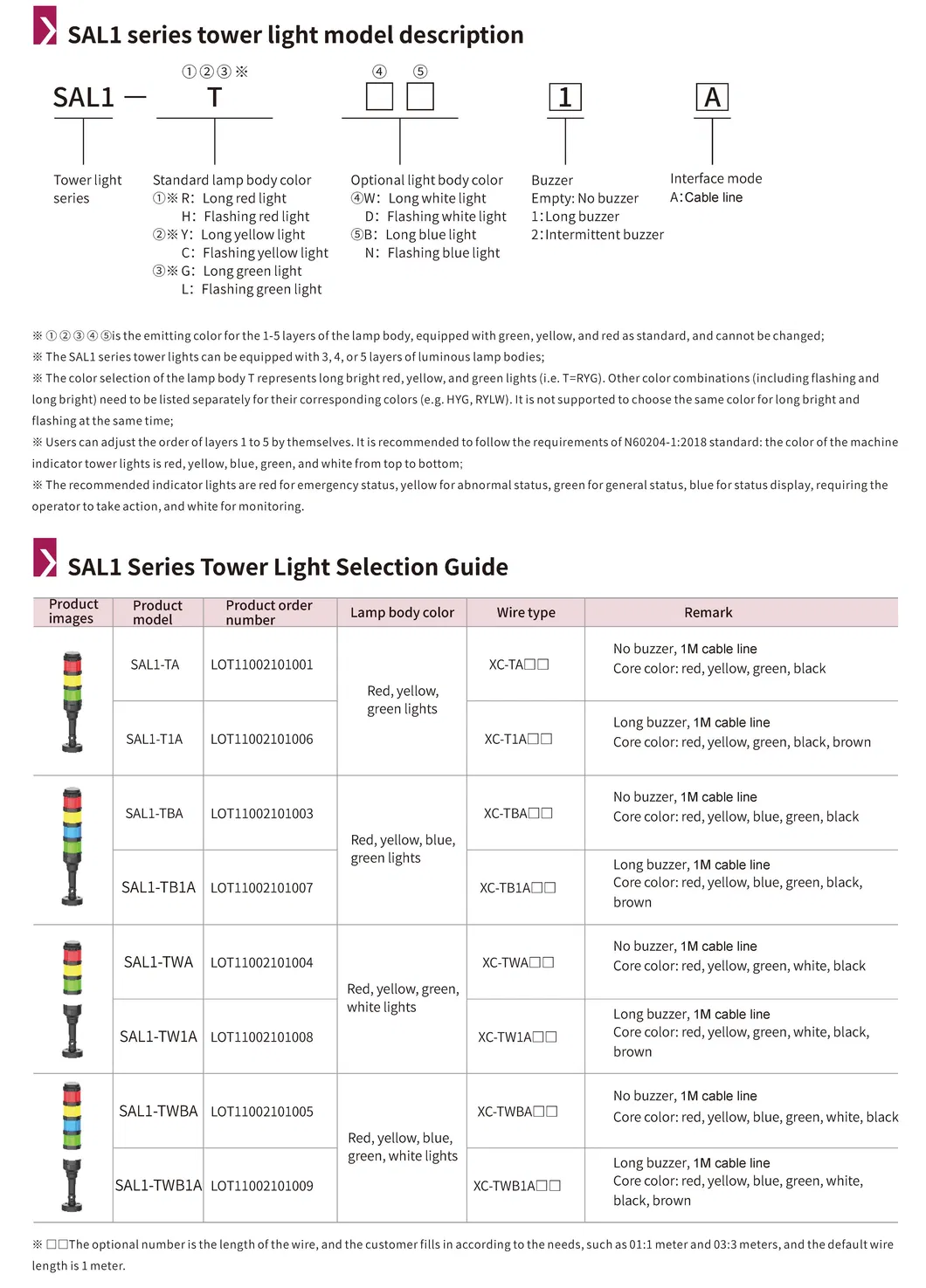

  • SAL1 Technical Parameters
    StandardGB/T14048.5
    CertificateCQC, CE, CCC, TUV, UL
    Waterproof RatingIP65 / IP67
    Red, yellow, blue, green, white
    Diameter50mm
    VoltageDC24V
    Alarm Sound90dB
    Environment-20ºC to 50ºC
    Quality Assurance

    This heavy-duty industrial light is designed to ensure the safety and security of machinery and systems. It is certified with CE, CCC, CQC, EU, TUV, and UL, achieving safety levels such as Ple, SIL, and Type 4. We maintain ISO 9001-2015 and ISO 14001-2015 certifications to guarantee top-notch manufacturing standards.

    Warranty & Samples

    We offer an 18-month warranty period. Any quality problems (excluding man-made damage or improper operation) will be addressed promptly through repair or replacement. Samples are available for testing; the sample cost can be deducted from subsequent mass production orders.

    Frequently Asked Questions
    What is the waterproof rating of the SAL1 series?
    The light is designed to IP65/IP67 standards, making it waterproof, oil-proof, and dustproof for industrial environments.
    How long is the warranty period?
    We provide an 18-month warranty covering quality-related issues with professional repair or replacement services.
    Can the light be installed in different orientations?
    Yes, the modular base allows for upright, inverted, or horizontal installation with a +/-170° rotation range.
    Are the colors customizable?
    The tower light features a modular design where 3 layers or multiple layers (Red, Yellow, Blue, Green, White) can be selected.
    What certifications does the product hold?
    Our safety lights are certified by CE, CCC, CQC, TUV, and UL, meeting international safety standards like SIL and Type 4.
