⚙️ Product Description

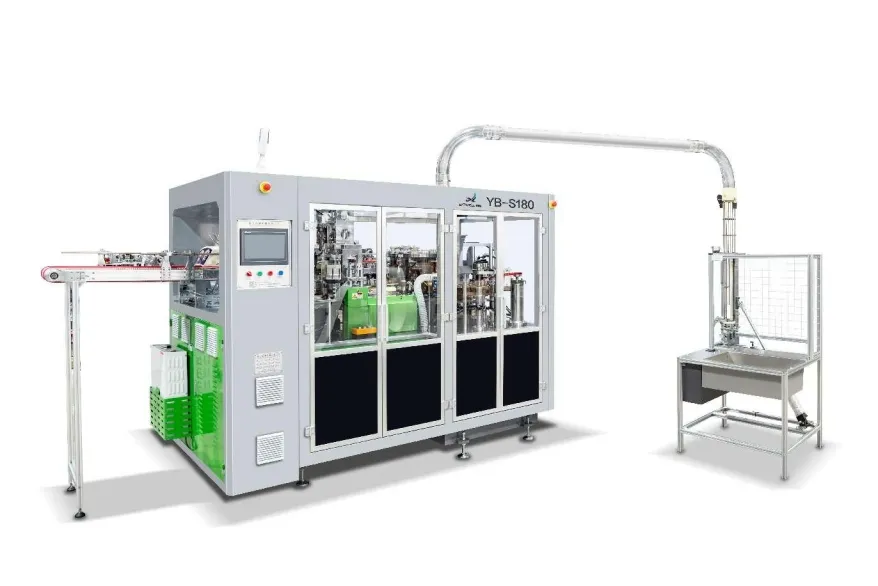

YB-S180 Paper Cup Forming Machine
The high-speed paper cup forming machine offers high performance, efficiency, and quality. The overall steel plate body and oil-draining lubrication system ensure long-term stable operation. Advanced high-precision cam drive and gear transmission make each station accurate. Servo motor tracking bottom feeding paper locks the size of bottom paper, saving raw materials.
🔍 Machine Details & Features

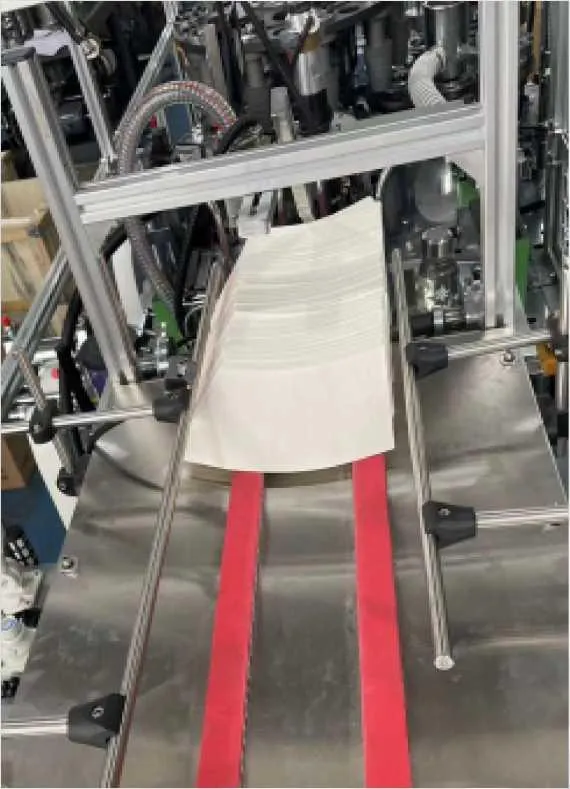

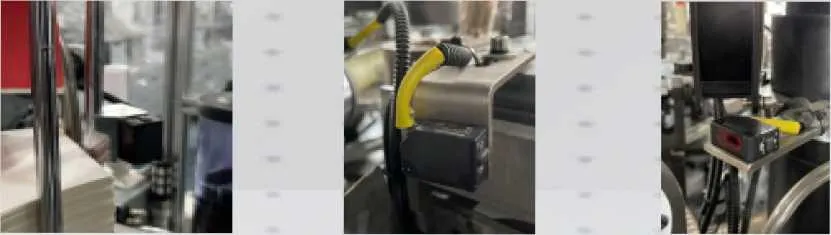

1. Enhanced Paper Feed: Added automatic paper feed device reduces manual labor frequency, allowing one worker to monitor multiple devices.

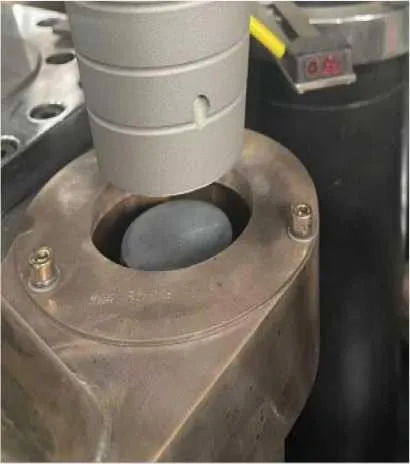

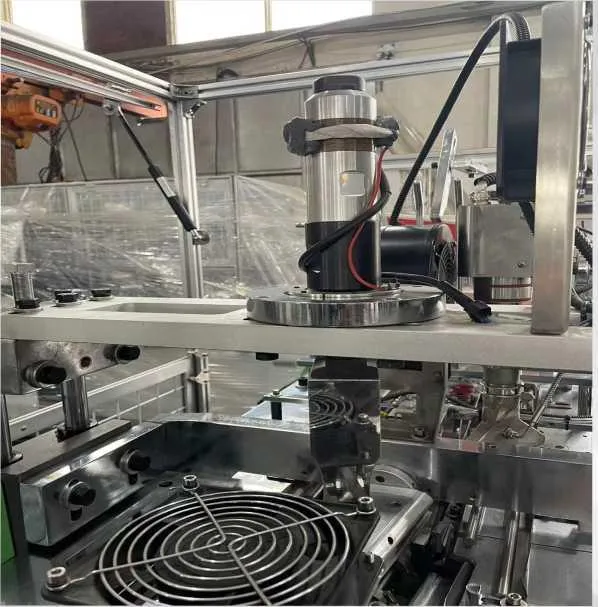

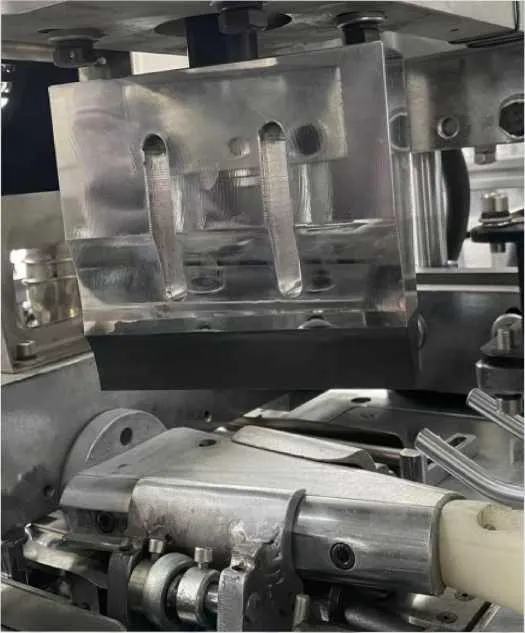

2. Sealing Process: After pre-heating sealing surfaces, the cup body sleeve is sealed on horizontal molds by Ultrasonic. Includes four-stage heating.

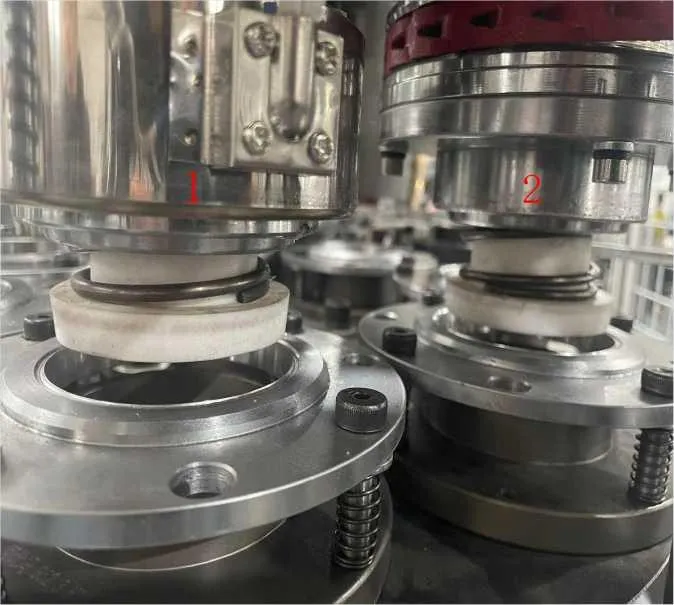

3. Bottom Sealing & Curling: Hot air gun heating and inward pre-folding ensure the cup bottom is sealed perfectly before transferring to the second turntable for top curling.

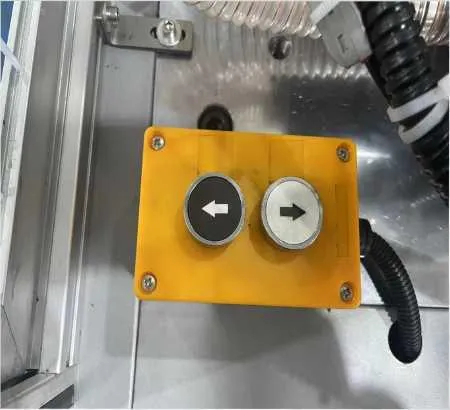

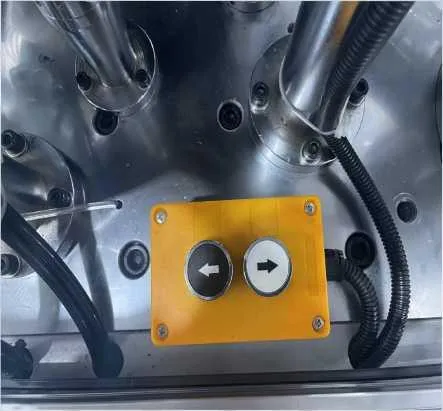

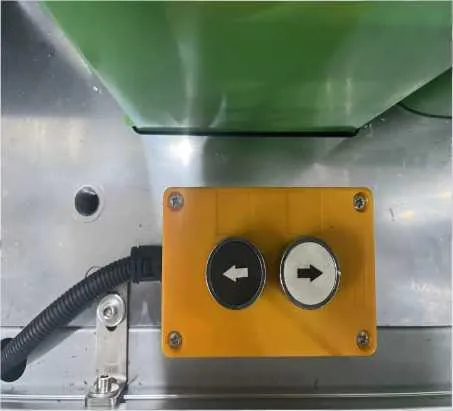

4. Operation Control: Three external control buttons allow for easier machine management during operation checks.

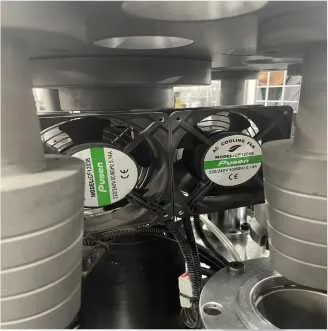

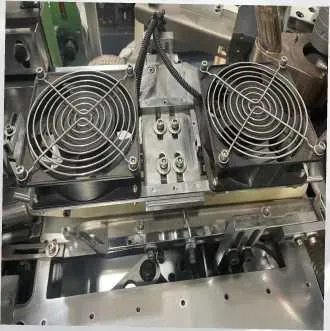

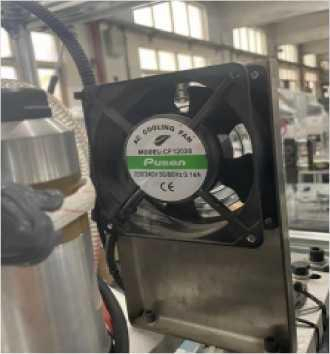

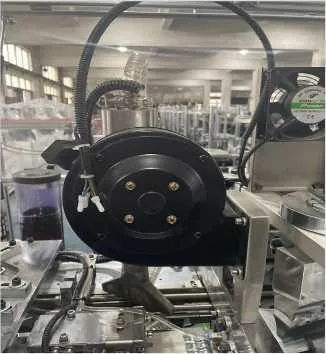

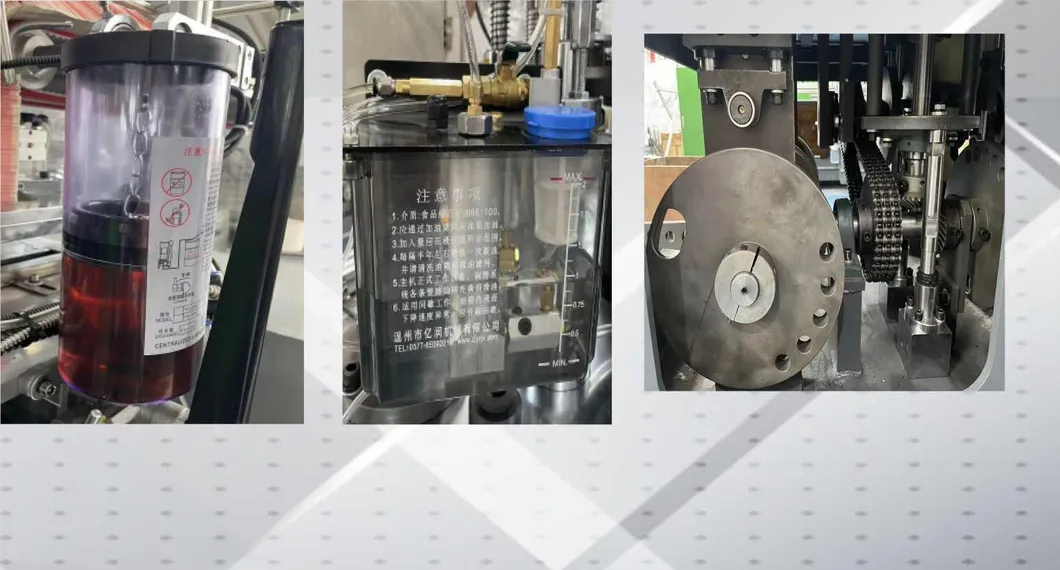

5. Lubrication & Cooling: Automatic oil circulation system for all gear components. Multiple cooling fans maintain optimal condition during high-speed operation.
❓ Frequently Asked Questions
Q1: What is the maximum production speed of the S180 model?
The S180 model can produce between 130 and 150 paper cups per minute, depending on the material and cup size.
Q2: What range of paper cup sizes can this machine accommodate?
The machine is highly versatile, supporting sizes from 2oz to 12oz (and up to 16oz with mold exchanges) with heights ranging from 60mm to 135mm.
Q3: Does the machine support double-sided PE coated paper?
Yes, the machine is compatible with both single and double-sided PE coated paper, making it suitable for both hot and cold drink cups.
Q4: What kind of warranty and after-sales support is provided?
We provide a 13-month warranty starting from the ocean shipping date. During this period, free spare parts are provided for any quality-related issues.
Q5: How does the lubrication system work?
The machine features an advanced automatic oil circulation system including a motor, filter, and copper pipes to ensure all gear components operate smoothly.
Q6: What brands of electrical components are used?
The machine uses high-quality components from international brands like Delta (PLC, Servo, Screen), Schneider (AC Contactor), and Omron (Relay).
