📊 Basic Information
Opening Type
Electric/Manual
Special Function
Insulation, Wind Resistance
Color
Ral9002/Ral9006/Ral7040/Ral7045
Surface Finishing
Finished
Door Panel

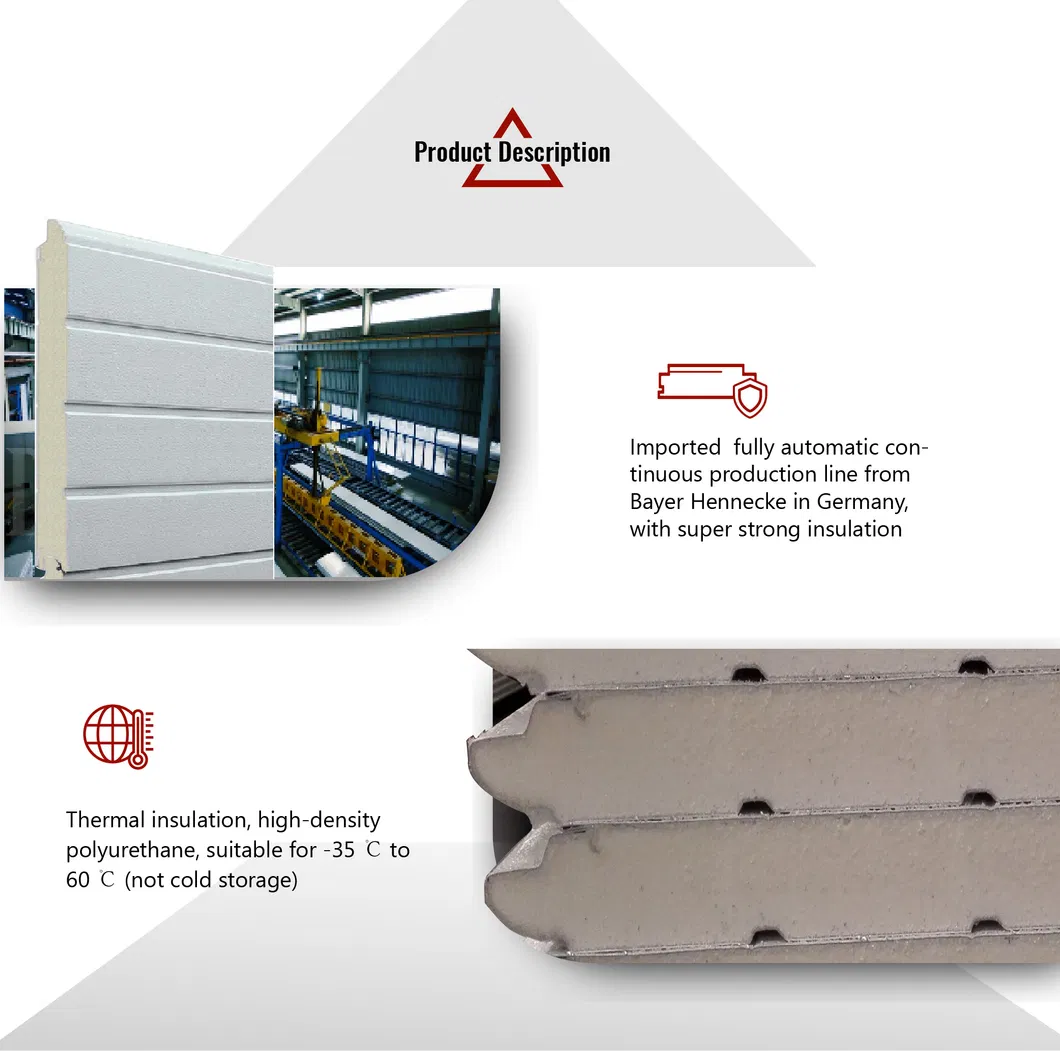

PU Sandwich Panel, 42mm
📦 Packaging & Delivery
Package Size
406.40cm * 66.40cm * 97.10cm
Transport Package
Wooden Box
🖼️ Product Showcase
📝 Detailed Specifications
| Important attributes | Details |
| Country of Origin | China |
| Industry attributes | Industrial Door |
| Features | Insulation, wind resistance, anti-theft, sealing, security, intelligent control |

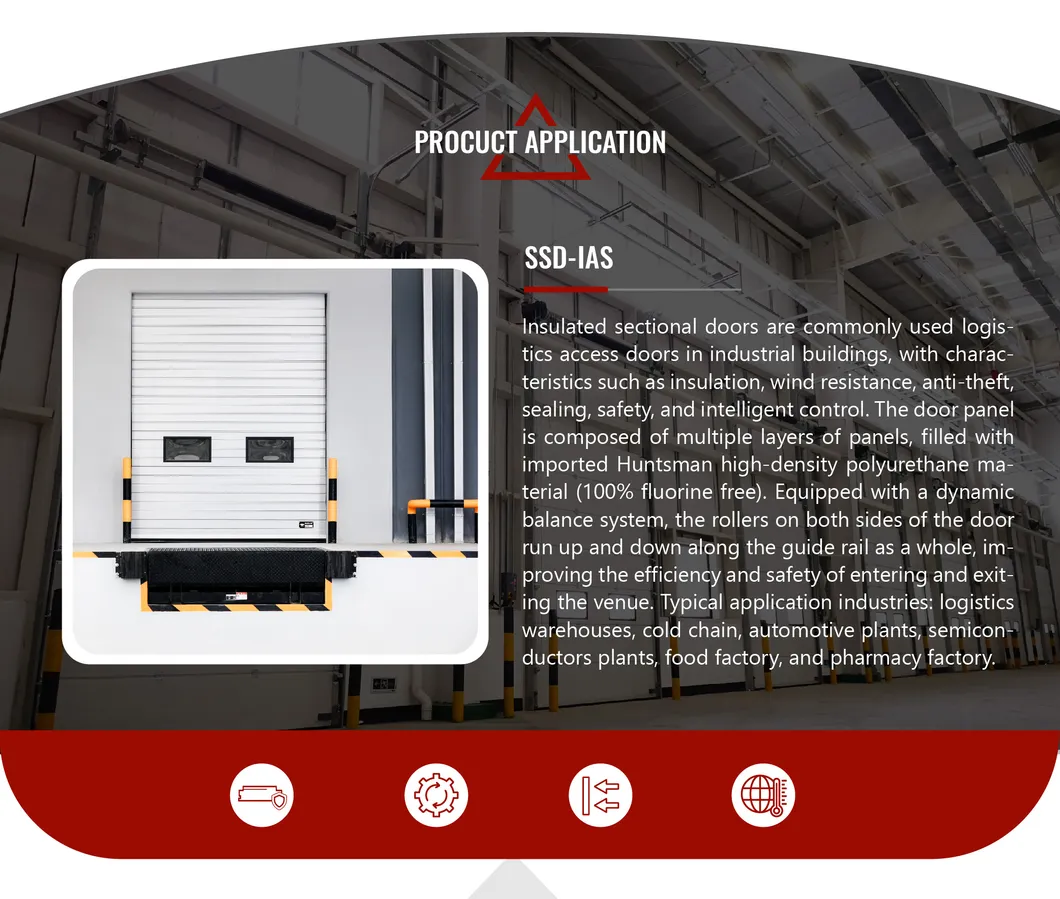

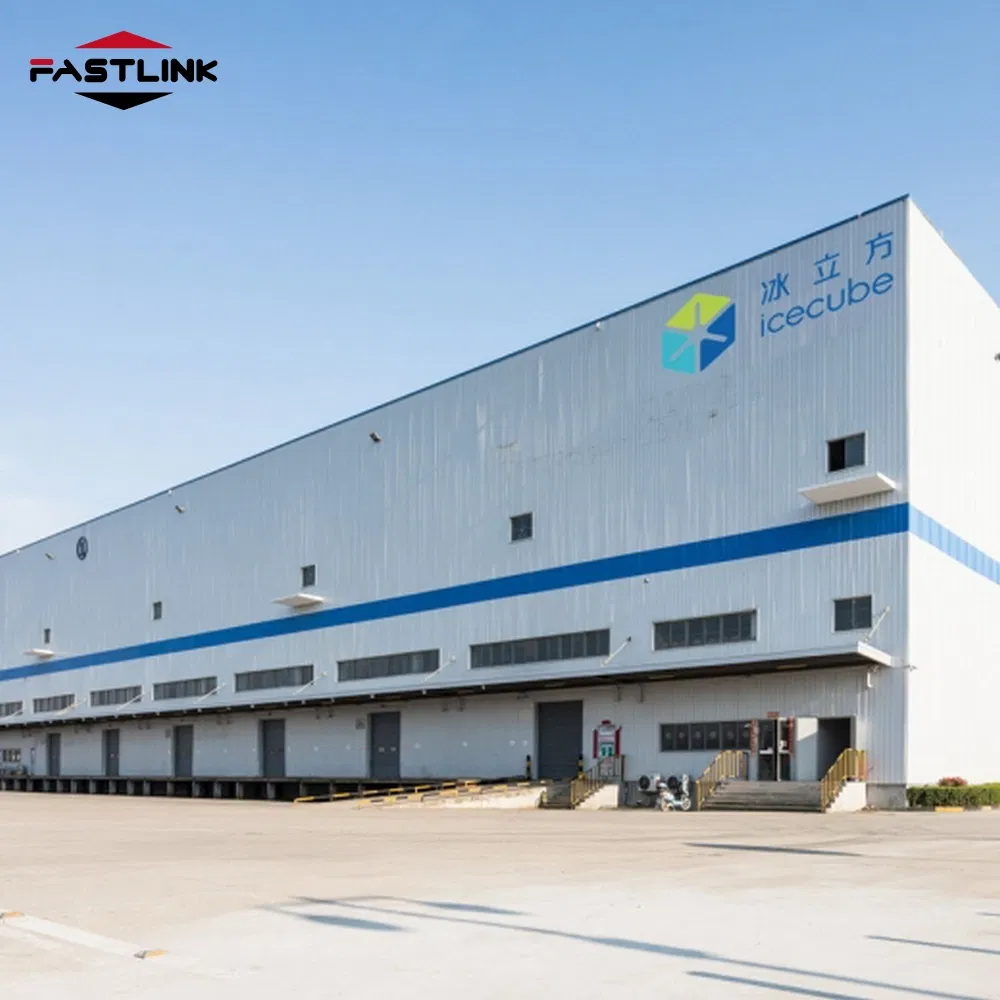

| Application scenarios | Industrial plants, logistics and warehousing buildings |
| Polyurethane | Huntsman brand, freon-free, density: 48kg/m³ |

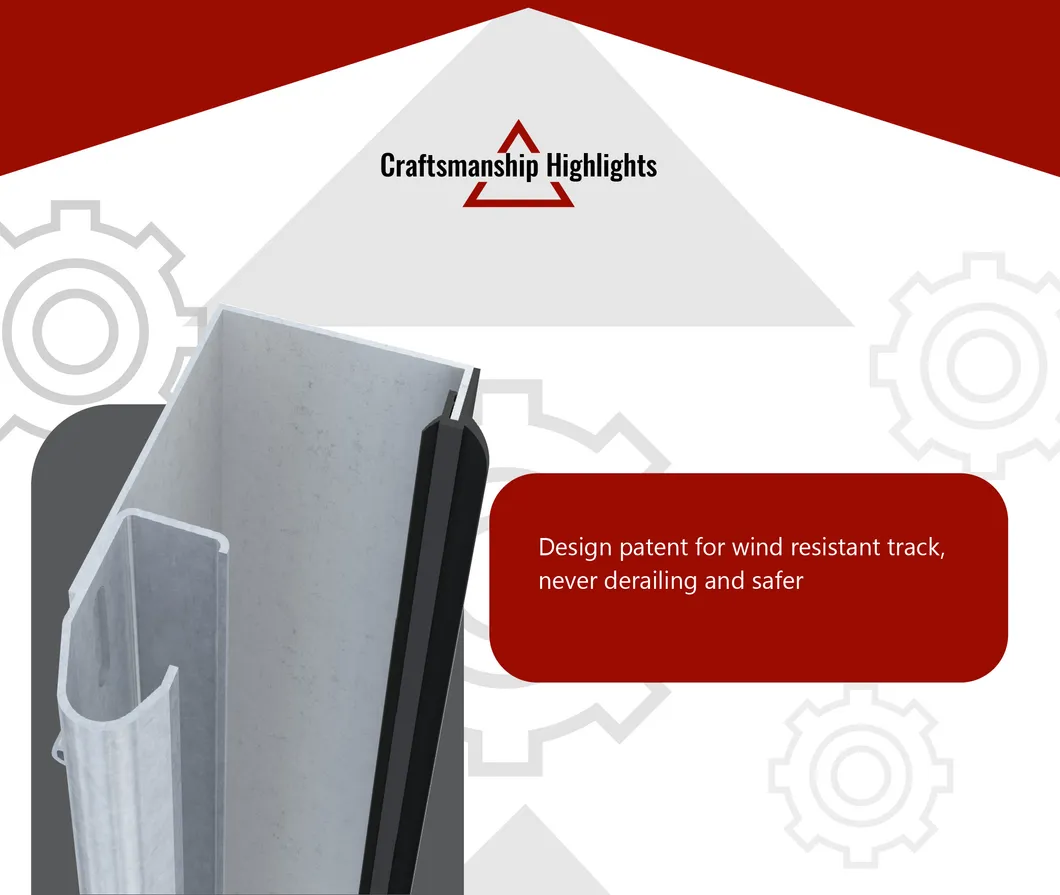

| Rail | Patented wind-resistant track design |

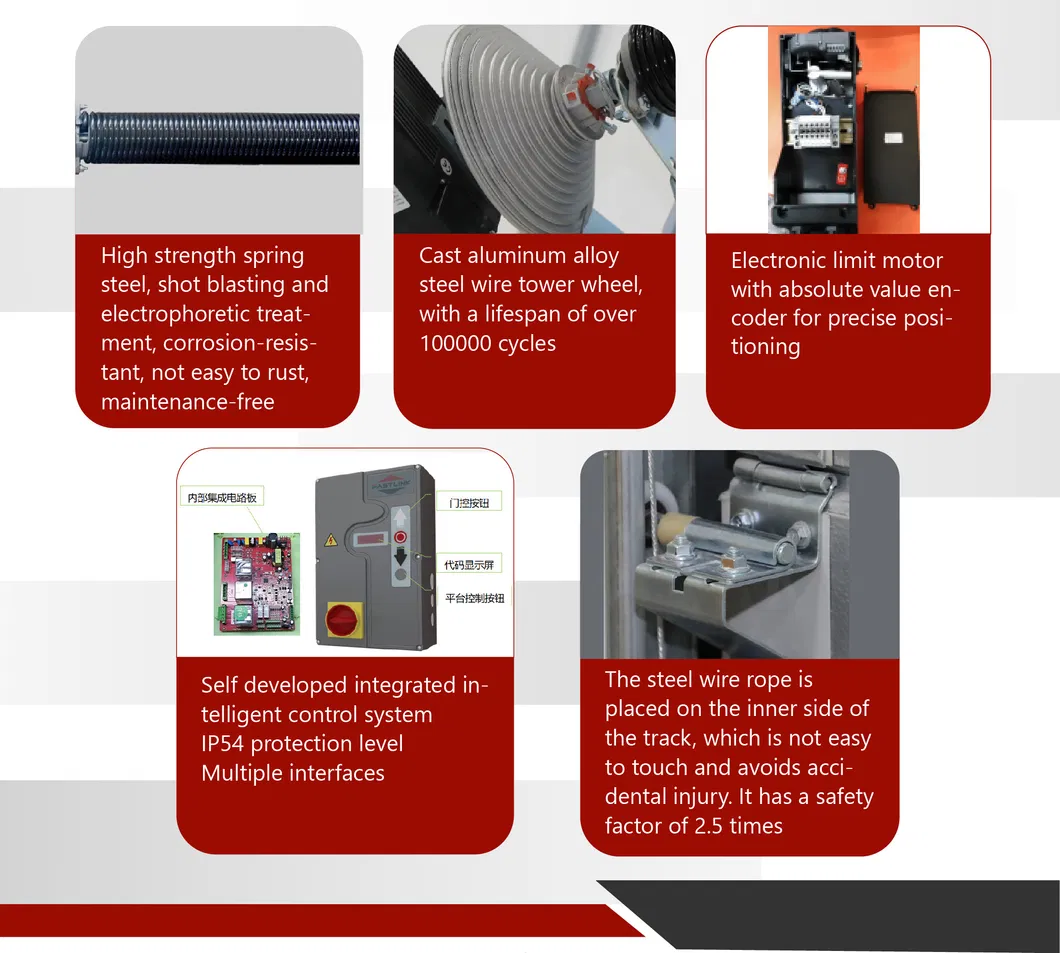

| Motor | Electronic limit motor with absolute encoder for precise positioning |
| Control box | Intelligent control system: fault code display, operation status, fire linkage |

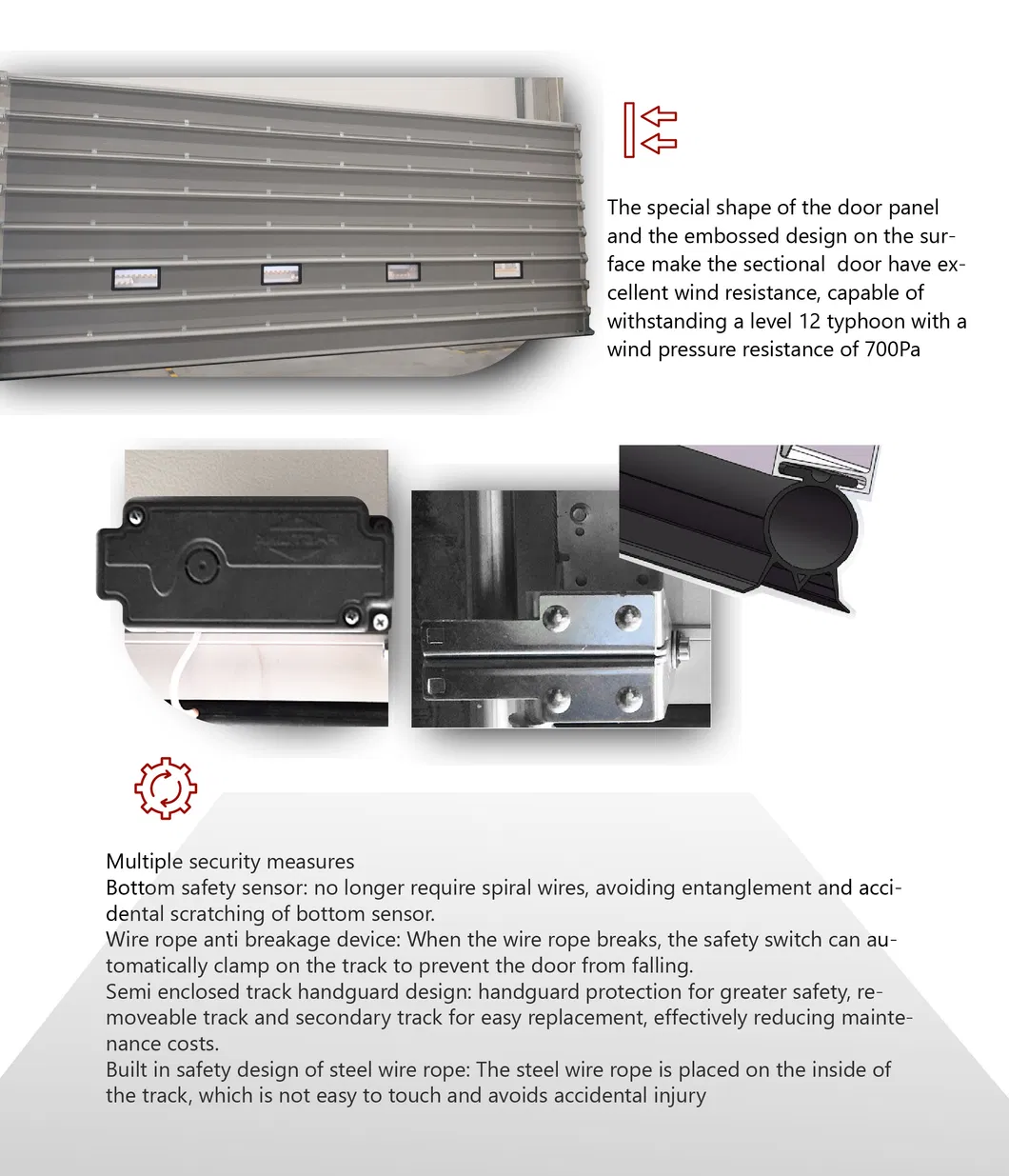

🛡️ Security Configuration
| Wireless bottom safety device | Eliminates spiral wires, avoiding entanglement and accidental scratching. |
| Wire rope anti-breaking | Automatic track jam feature to prevent the door from falling if the rope breaks. |
| Anti-pinch panel | Specially designed panel joints to protect hands during operation. |
| Hand guard design | Semi-closed track and removable auxiliary rails for safer maintenance. |
❓ Frequently Asked Questions
🔹 Is the Insulated Sectional Door safe to use?
Yes, it has passed CE certification and features comprehensive safety designs including bottom rebounding on resistance, anti-breakage protection for steel wire ropes and springs, and an anti-pinch door panel design.

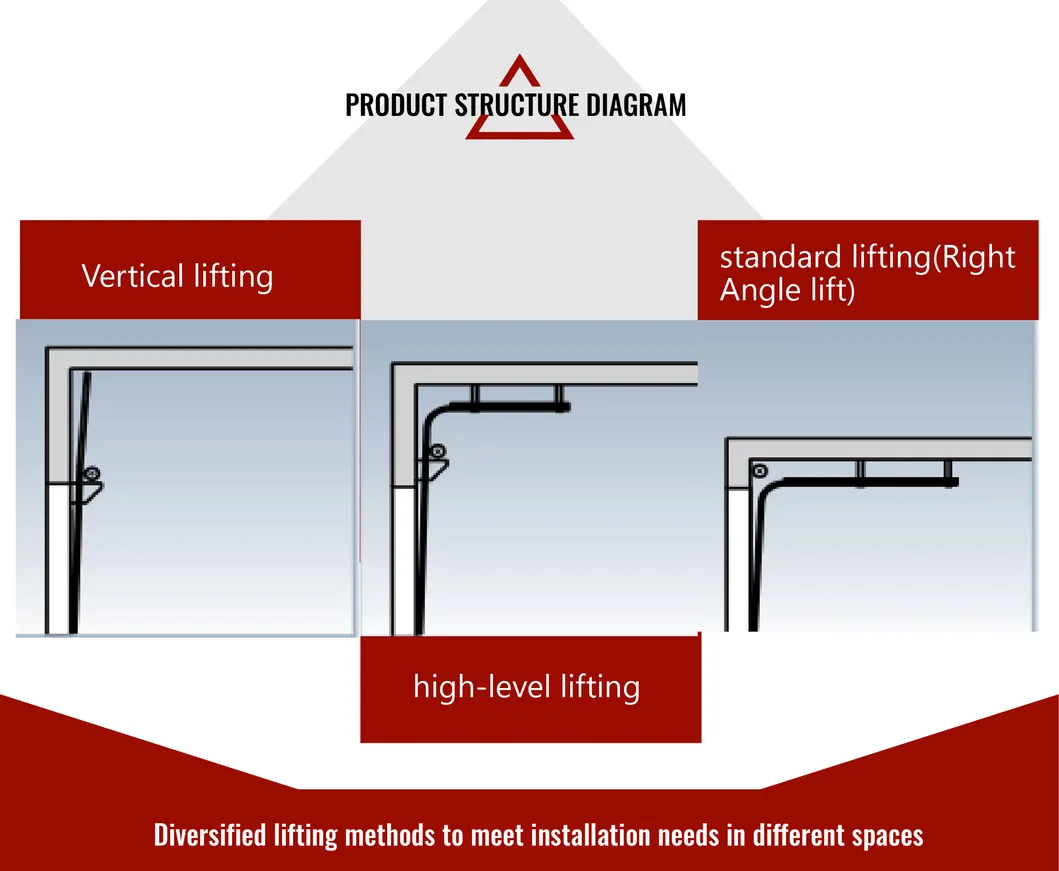

🔹 How much installation space is needed above the door opening?
A minimum installation space of 500mm is required above the door opening.
🔹 Can these sectional doors be used in residential garages?
As long as the installation space is sufficient (minimum 500mm headroom), it can be effectively installed in a garage as a vehicle access door.
🔹 What is the expected service life of these doors?
With normal maintenance, these doors can be used for more than 10 years. Proper usage and regular servicing help extend the service life significantly.
🔹 What are the thermal insulation properties?
The door panels use high-density PU sandwich structures (42mm thickness) providing a thermal insulation property of K=1.1W/(m².K).
🔹 Is the door resistant to extreme wind conditions?
Yes, it features a patented wind-resistant track design and has a wind resistance rating of 700pa according to GB/T 7106-2008 standards.
