Aura Mesh Window
Aura Mesh Window
| Model NO. | LAUREL-S-01 |
| Type | Heat-Resistant Material |
| Item | Calcium Silicate Board |
| Temperature | 650℃-1100℃ |
| Density | 220-1000 Kg/M3 |
| Flexural Strength | 0.5-7.0 MPa |
| Compressive Strength | 1-10 MPa |
| Shapes | Board/Block or Customized |

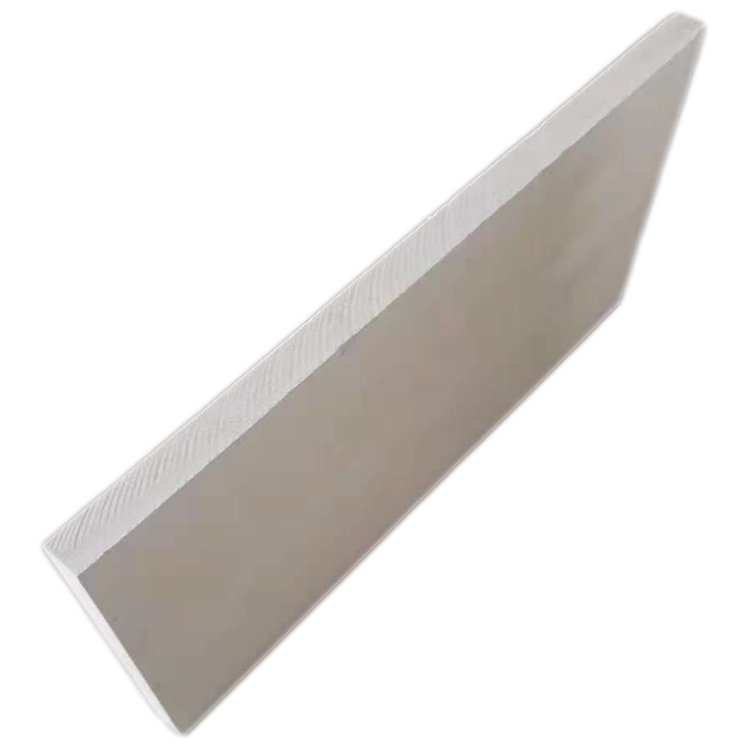

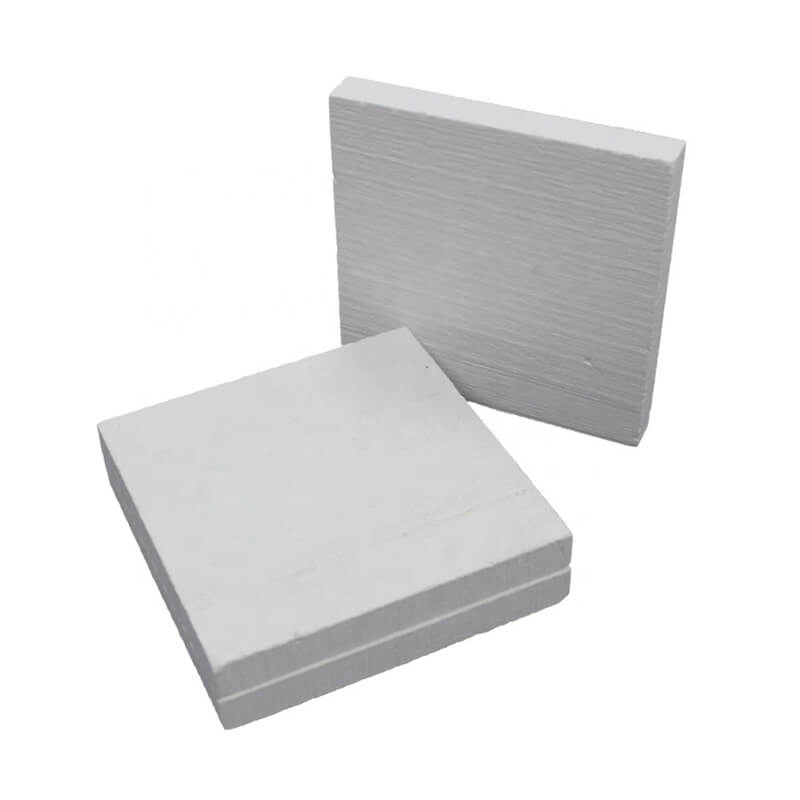

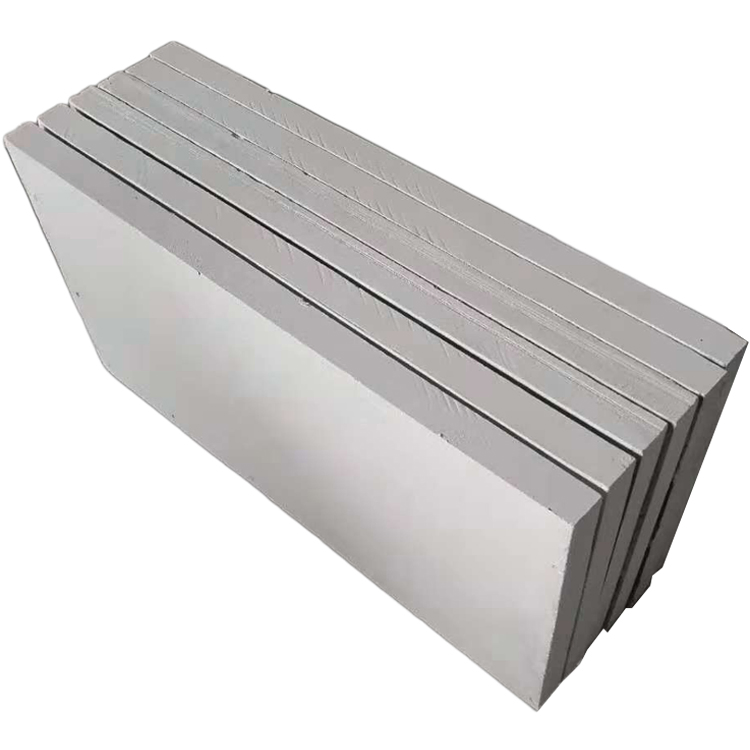

Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperatures up to 1000 ºC. It is lightweight, has low thermal conductivity and high strength, and is easy to install. It is commonly used as furnace backup insulation in steel, petrochemical, ceramic, cement & glass industries.
🔹 Specifications:
✅ Light bulk weight | ✅ Low thermal conductivity | ✅ High compressive strength
✅ Non-toxic & easy to cut | ✅ Strong practicability in construction
| Item | Unit | Data Detail | ||
|---|---|---|---|---|
| Bulk Density | Kg/m3 | 250(±10%) | 270(±10%) | 300(±10%) |
| Flexural Strength | Mpa | ≥0.55 | ≥1.0 | ≥1.2 |
| Max Service Temp | ºC | 1000 | 1000 | 1000 |
| Compressive Strength | Mpa | ≥1.0 | ≥1.5 | ≥2.0 |
| Thermal Conductivity (400ºC) | W/m.k | 0.106 | 0.099 | 0.114 |
Specifically designed for high-temperature industrial thermal insulation:
