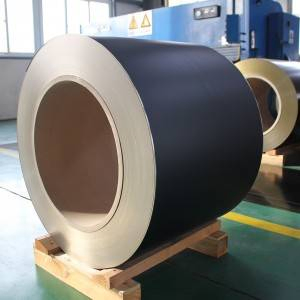

High Performance Smooth Surface FKM & NBR Coating Gasket Material

1 / 5

High Performance Smooth Surface FKM & NBR Coating Gasket Material

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Surface Treatment

Coated

Technique

Cold Rolled

Application

Engine Cylinder Gasket, Accessory Gasket

Edge

Slit edge

MOQ

1 Tons

Steel Thickness

0.2-0.8mm

Rubber Coating Thickness

0.02-0.12mm

Coating Material

FKM, NBR, NBR Foam

Transport Package

Pallet and Waterproof Paper

Specification

500-800mm width

Production Capacity

10000tons/Month

Origin

China

Product Description

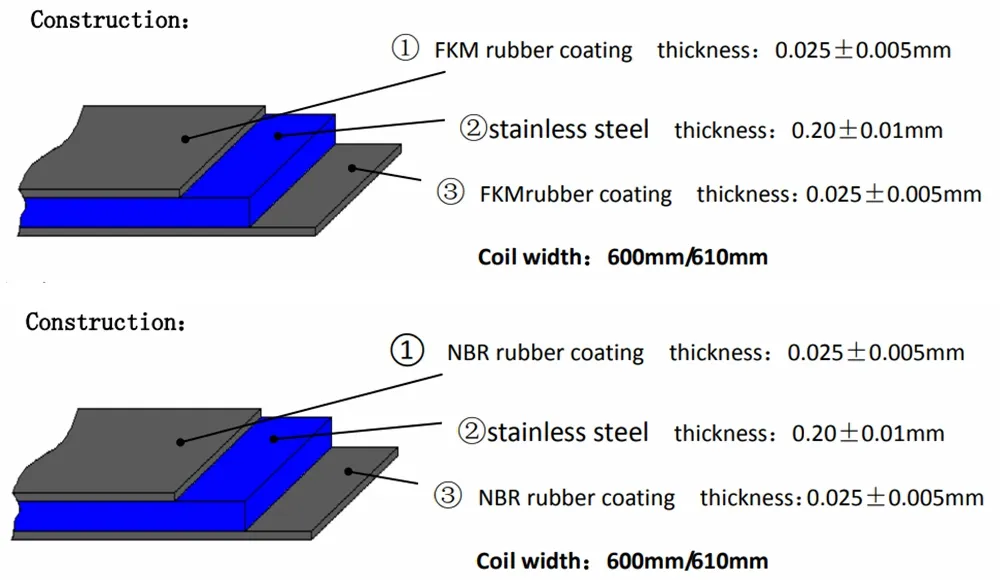

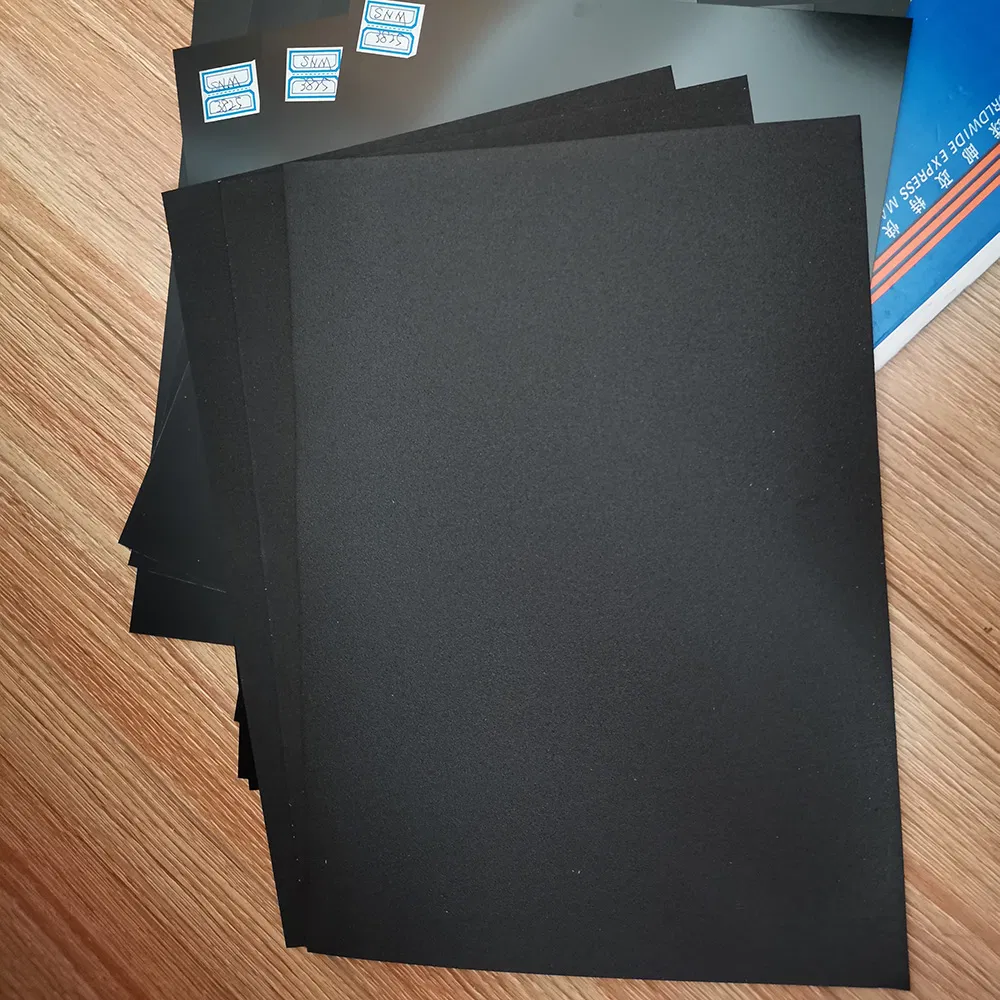

Product Dimension: Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.1 2mm single and double -side rubber coated metal roll material can meet the requirement of different customers.

Characteristics:

Excellent high and low temperature resistance (-20ºC-120ºC for NBR, -40ºC-290ºC for FKM).
Good sealability for gas and fluid applications.
Excellent mechanical performance; tensile strength can reach 100MPa.
Good fluid resistance, suitable for mechanical oil, antifreeze and coolant.
Good anti-ageing property and consistent processing quality.

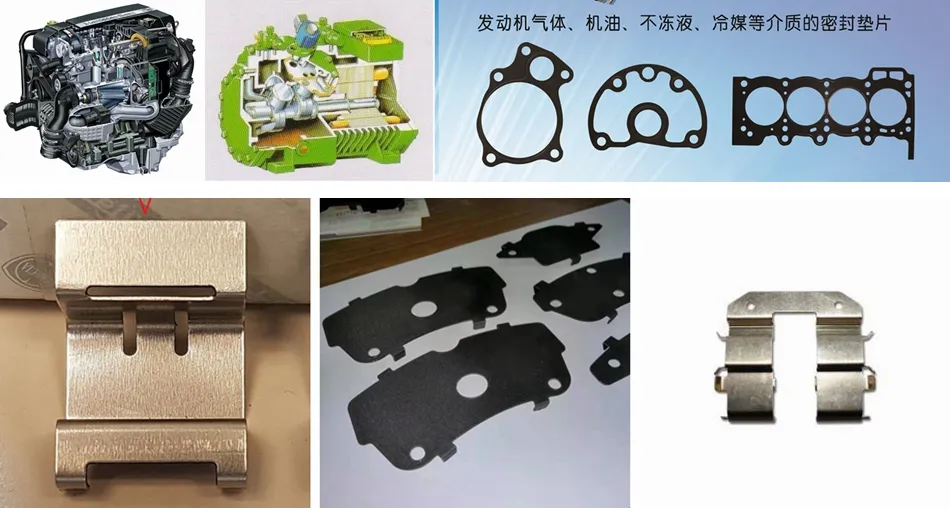

Application

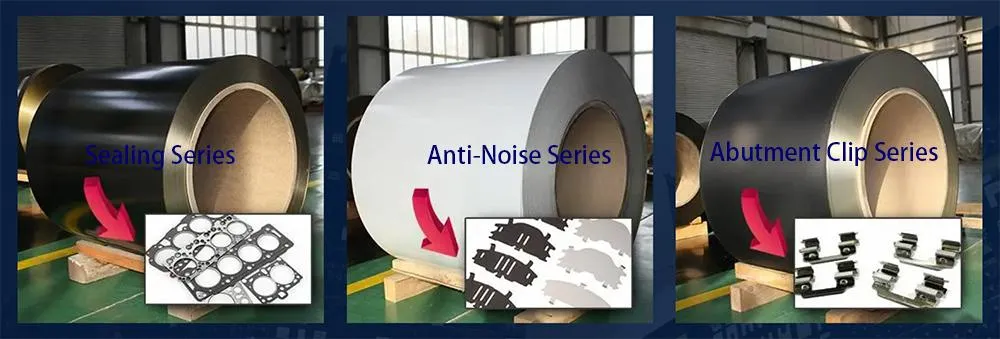

Rubber coated metal materials combine metal rigidity with rubber elasticity. Suitable for automobile and motorcycle cylinder head gaskets, accessory gaskets, refrigeration and compressor gaskets. Supplying 90% OE market share for sealing products.

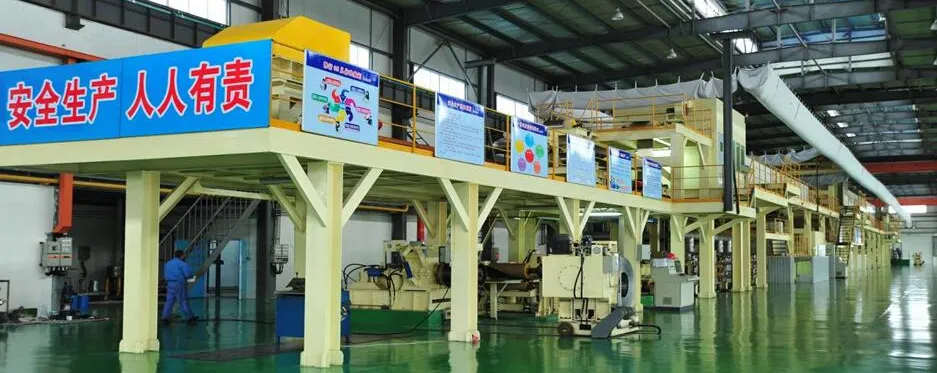

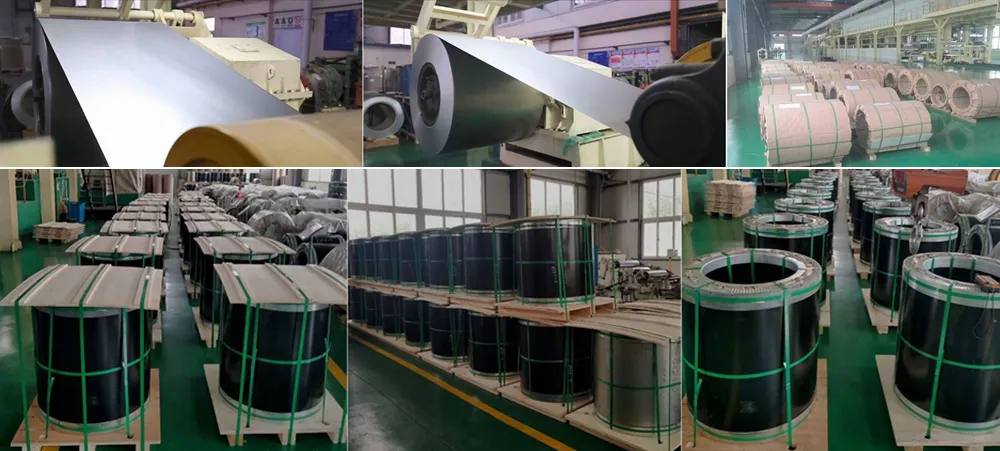

Rubber Coated Metal Production Line

The first NBR & FKM coating steel coil production line in China. Key equipment is from France, Germany and Japan. State-of-the-art automatic production line assures premium quality and short lead time.

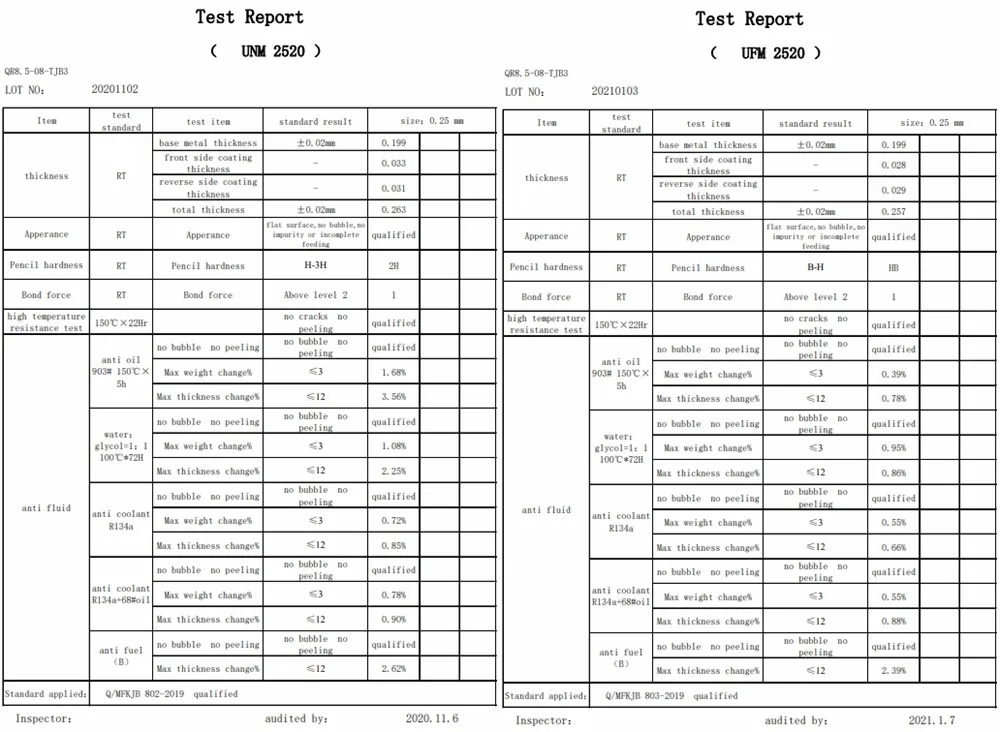

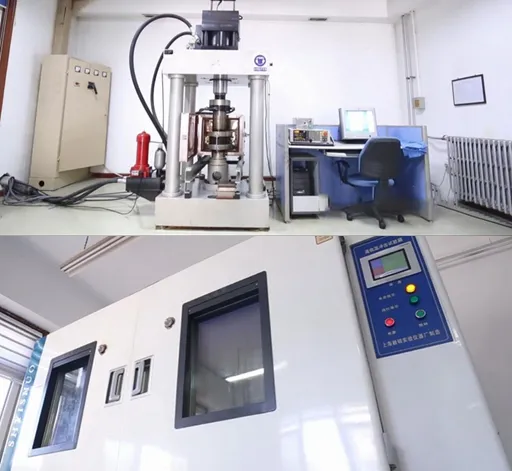

Experimental Facility & Control

Advanced measurement control method using surface pressure analysis instruments from Japan to improve product analysis accuracy.

Phase	Control Activities
Pre-control	Marketing research, Product R&D, Raw material purchase, Technological preparation
In Process Control	Manufacturing process control, Operator control, Equipment monitoring
Post-action Control	Finished product inspection, Quality problem disposal, User feedback

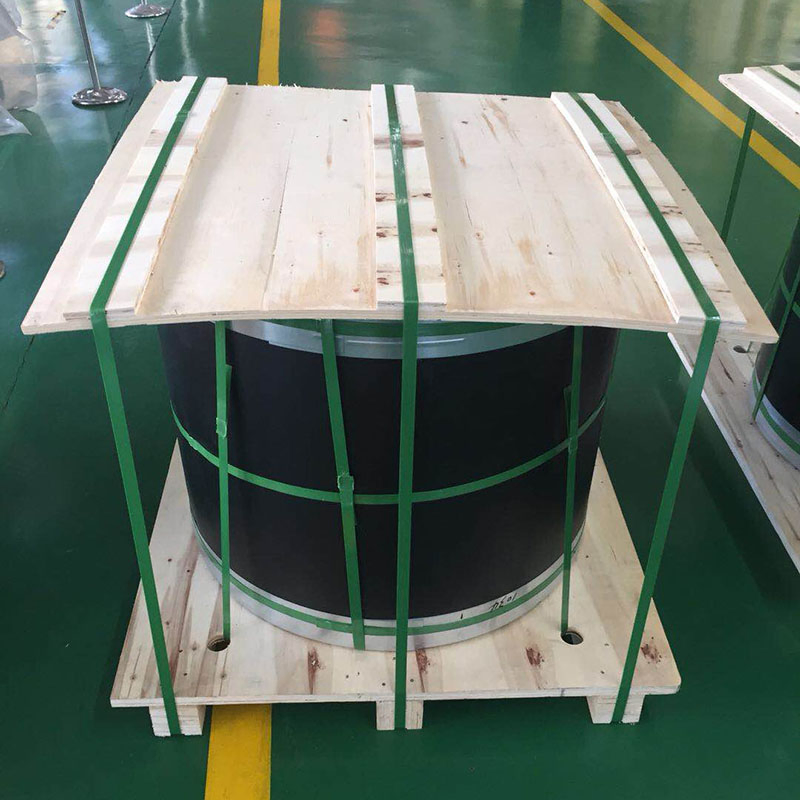

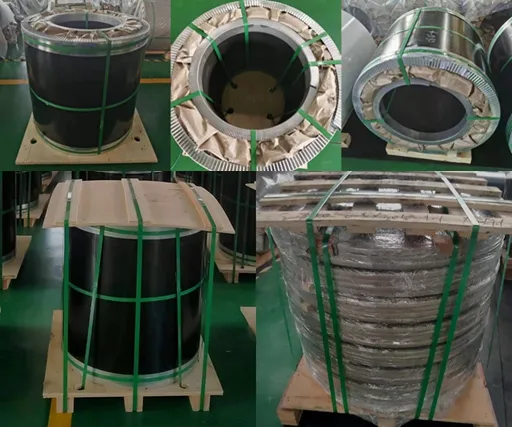

Package and Shipment

Internal & External corner protector with steel collar

Fastening with heat-sealed circumferential plastic strapping

17 mm radial steel strapping x4 (Type A)

Palletized on fumigated and branded wood

Coil weight: 900 - 1000 KG | External diameter: 800 - 900 mm

Frequently Asked Questions

Can I get a sample?

Sure. We usually provide existing samples. Sample charges are refundable when the order reaches a certain quantity. Freight fees are usually borne by the buyer.

What is the delivery time?

The standard delivery time is 20 to 30 days after receiving the T/T prepayment.

Why is the delivery status in master coil?

To save costs and provide a better price, we suggest delivering in master coils (width above 600mm) due to export tax refund differences. Slitting services are available if needed.

What substrate thicknesses are available?

Available metal substrates thickness range between 0.2mm and 0.8mm with a maximum width of 800mm.

Why choose our rubber coated metal materials?

We utilize advanced equipment from Europe and Japan, rigorous quality inspection processes, and provide full test reports and quality certificates.

What are the temperature limits for the coatings?

NBR working temperature is -20ºC to 120ºC, while FKM working temperature ranges from -40ºC to 290ºC.
