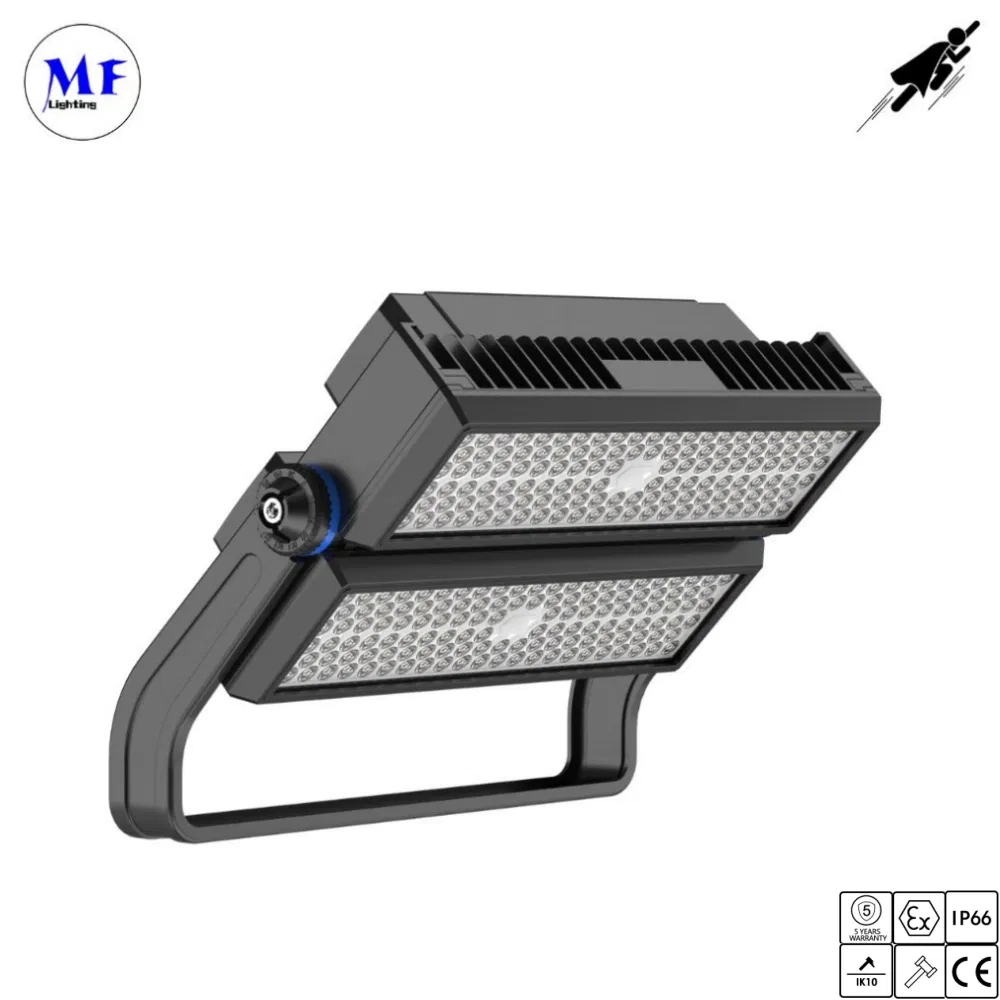

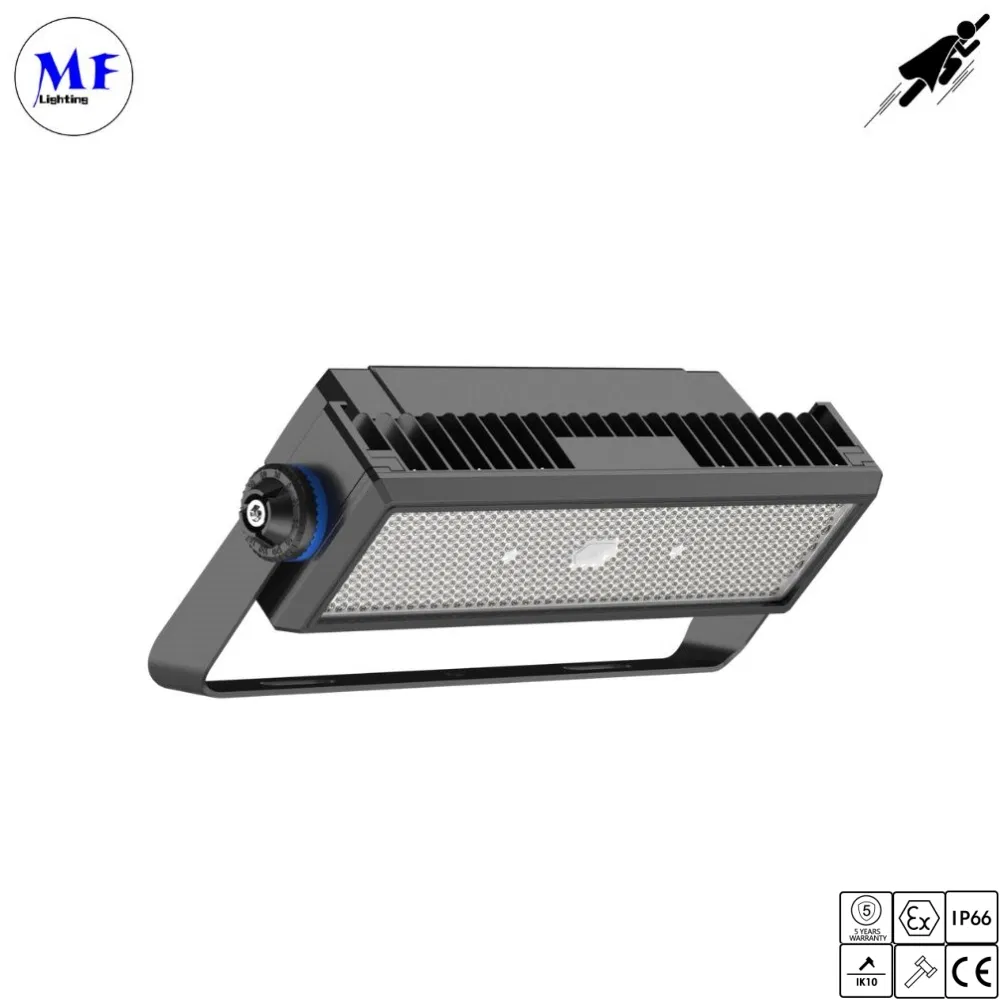

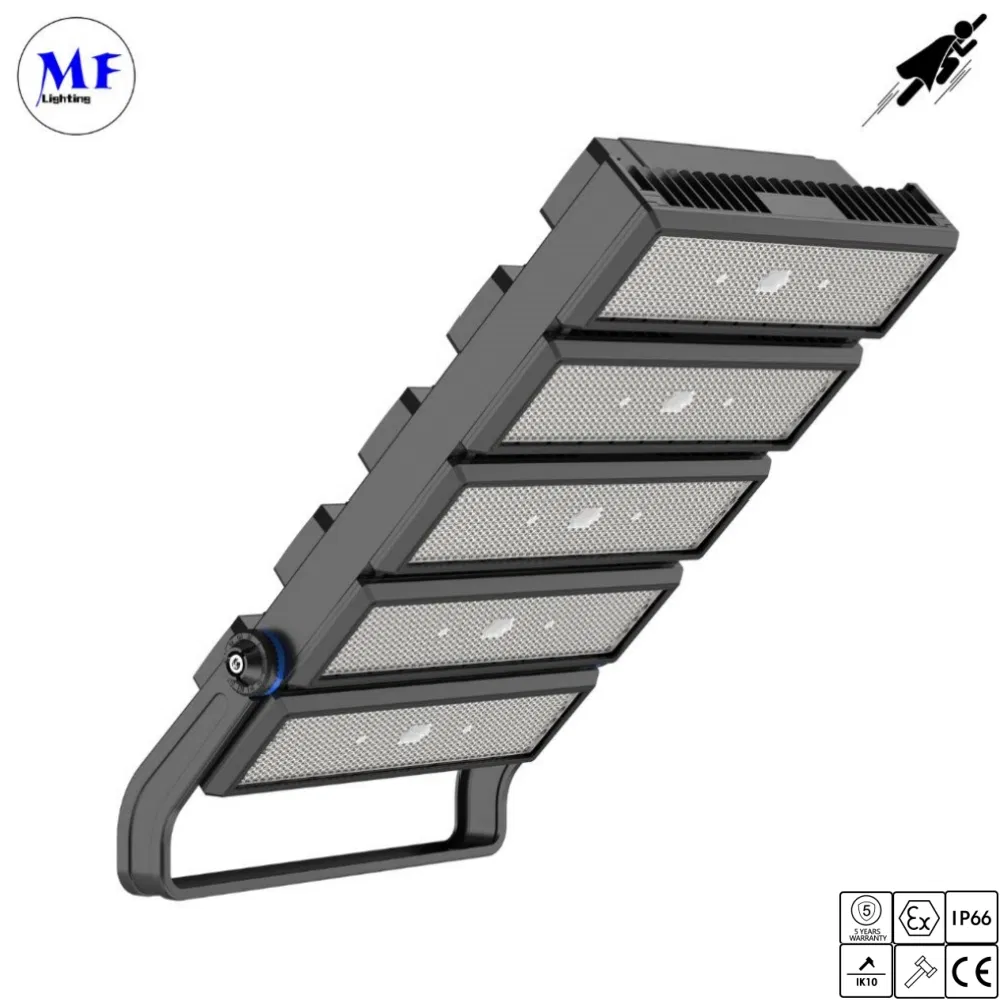

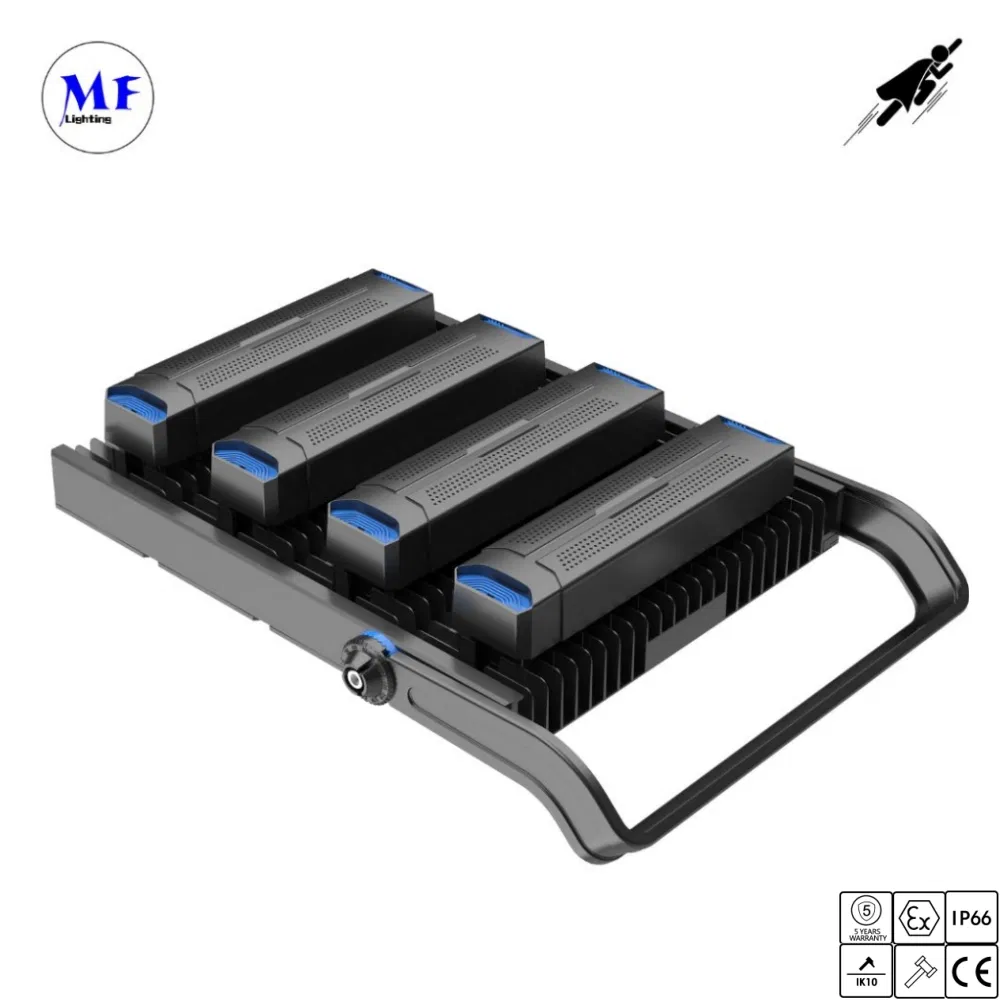

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information Overview
Model NO.:MF Superman II
Power:250W - 1500W Options
IP Rating:IP66
IK Class:IK08/IK10
Voltage:AC85-277V / 100-305V
LED Brand:Osram / Lumileds
Driver:Meanwell / Sosen
Beam Angle:10/25/45/60/90/65°*25°
💡
High Power Module LED Stadium Light
Outdoor Waterproof Flood Light designed for Football, Soccer, and Tennis Sports Courts.

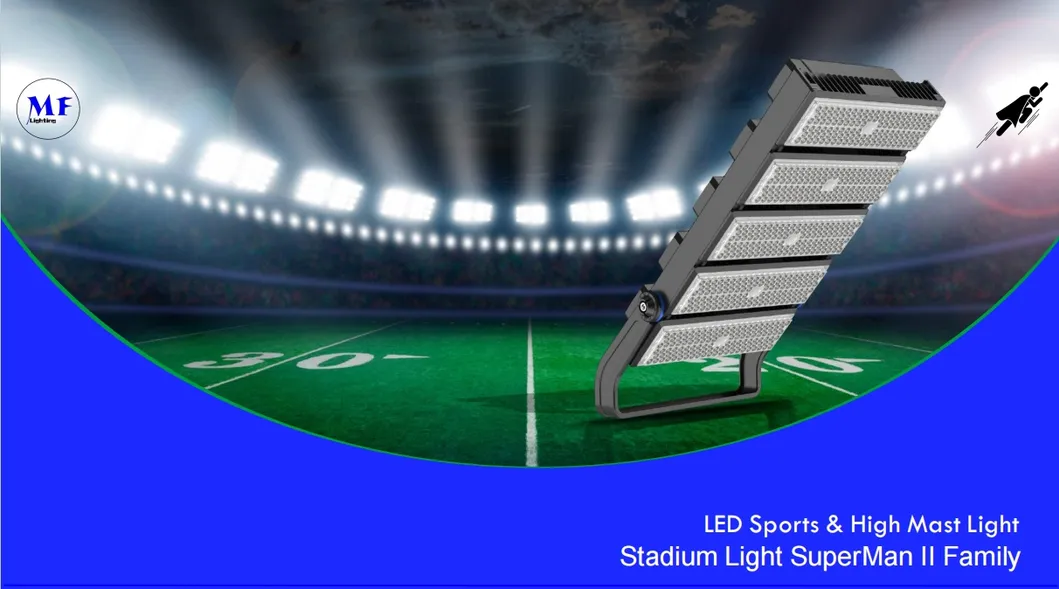

Stadium Light Overview
🚀 Core Features

1. All-In-One Design: Combines world-class performance, energy saving, and thermal management in one sleek package.

2. Flicker-Free Technology: Supports slow-motion replay up to 2000fps for high-definition 4K camera requirements.

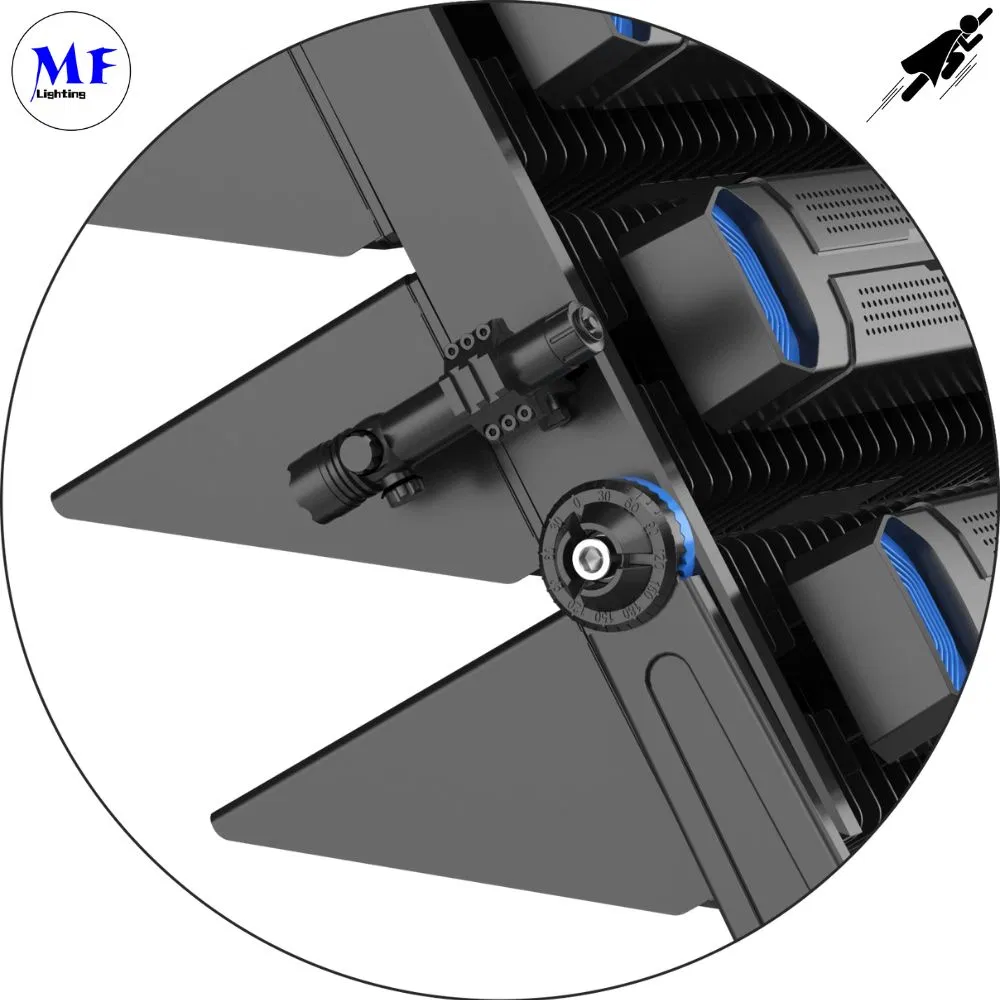

3. Modular Design Concept: 250-300W per module, scalable up to 1500W. Laser aimer equipped for precise field adjustment.

4. High Protection: IP66 and IK10 rated. Features low wind resistance, wire guards for ball-proofing, and 10KV-20KV surge protection.

5. Advanced Thermal Management: Fin-design increases heat dissipation areas using conduction, radiation, and convection.

6. Anti-Spill & Glare: Asymmetrical optical lens focus light on the ground, preventing light pollution and ensuring visual comfort for players.

Technical Layout
📊 Technical Specifications
Feature 250W Module 500W Module 750W Module 1000W Module 1500W Module
Luminous Flux36,000 lm72,000 lm108,000 lm144,000 lm225,000 lm
CCT (K)3000K / 4000K / 5000K / 5700K
CRI (Ra)>70 / >80 / >90
Net Weight7kg14kg20kg26kg32kg
📐 Dimensions & Photometry

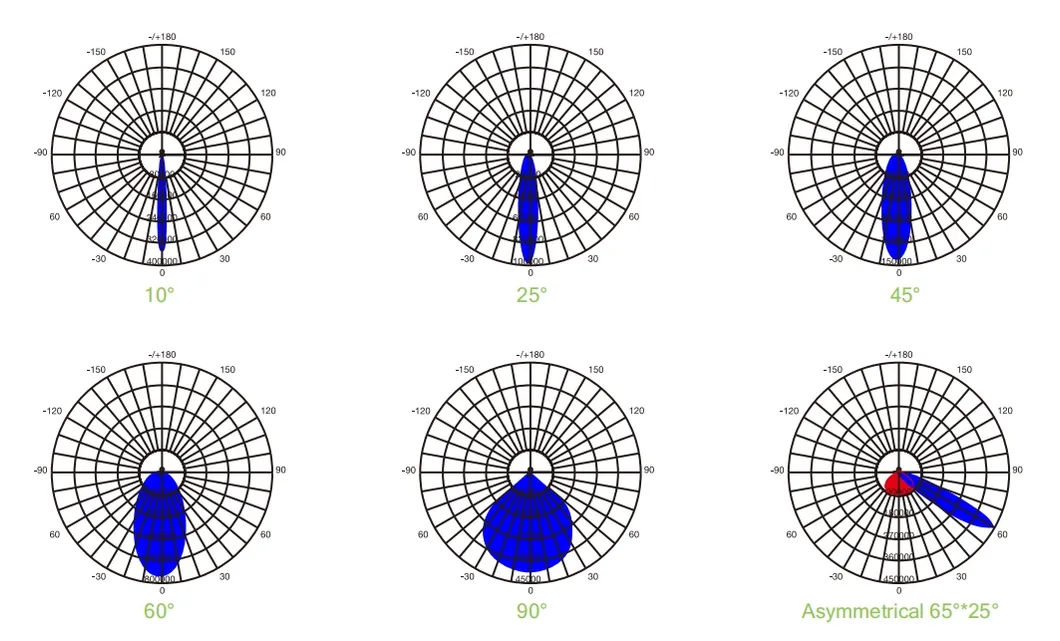

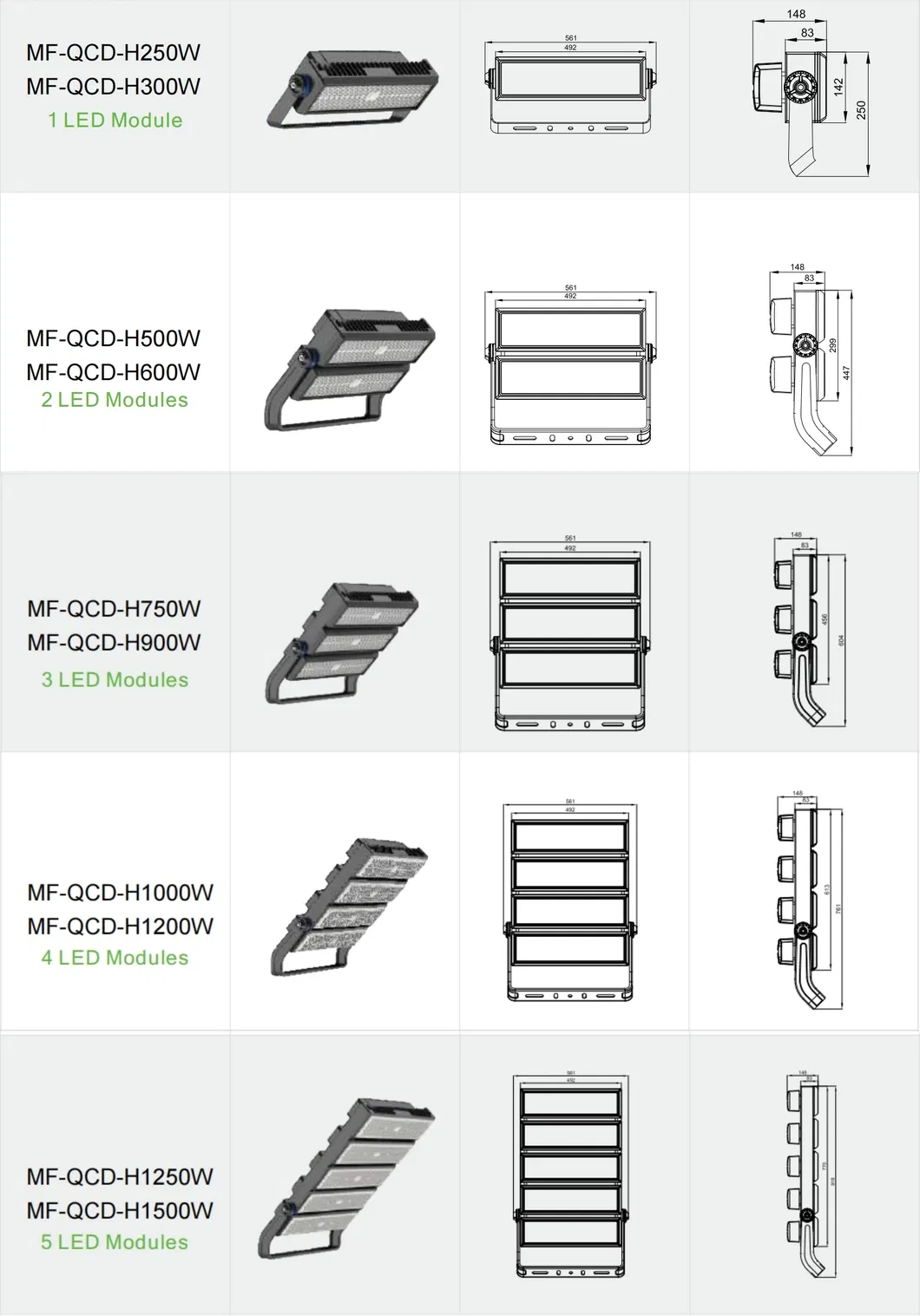

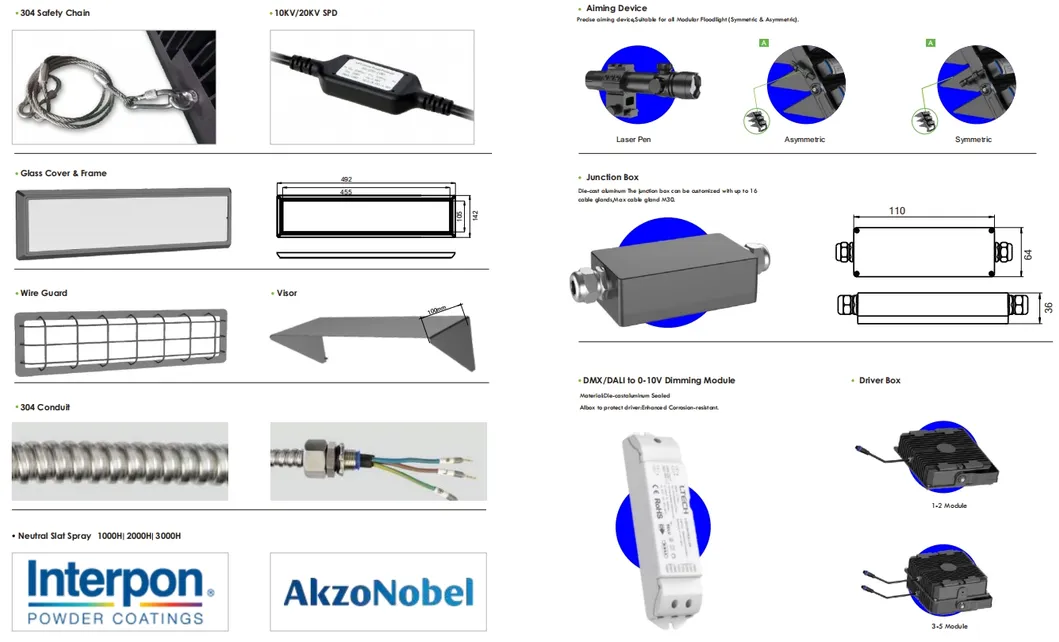

Dimension Diagram Accessories Photometry Data
🏟️ Versatile Applications

Perfect for high-intensity requirements:

  • Sports Stadiums (Football, Soccer, Basketball)
  • Airport Aprons & Seaports
  • High Mast Industrial Areas
  • Construction Sites & Large Parking Lots
  • Bridges, Monuments, and Facades

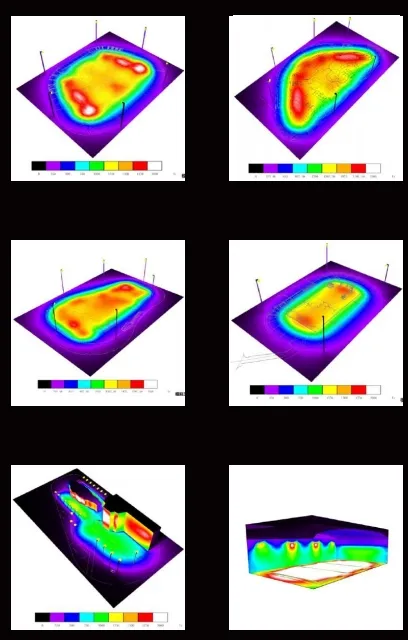

Application Example

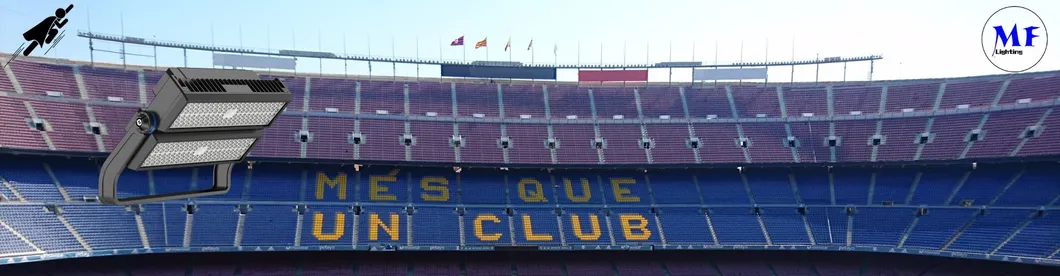

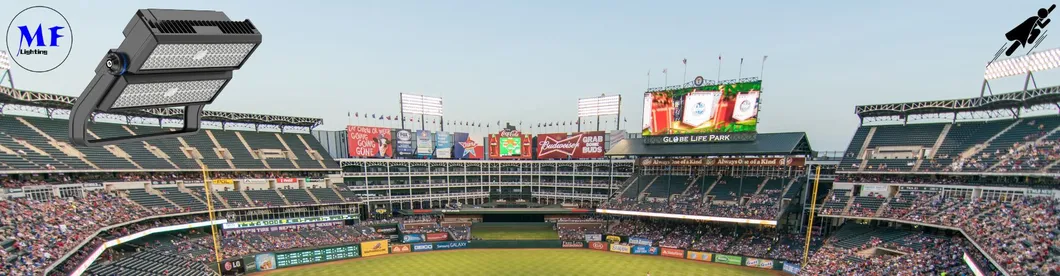

Usage Scenario 1 Usage Scenario 2 Usage Scenario 3
⚠️ Important Considerations

1. Must be installed by a certified electrician per local regulations.

2. Verify local voltage (100-305Vac) before installation.

3. Always turn off power and allow the lamp to cool before maintenance.

4. Use PH neutral detergent and soft cloth for cleaning.

5. Do not cover fixtures with flammable materials.

Installation Note
❓ Frequently Asked Questions
What is the maximum power available for the Superman II series?
The series uses a modular design, starting from 250W per module and reaching up to 1500W with five combined modules.
Are these lights suitable for 4K TV broadcasting?
Yes, the fixtures are flicker-free and support slow-motion replay up to 2000fps, meeting the requirements for 4K high-definition broadcasting.
How does the light handle extreme outdoor weather?
The Superman II is rated IP66 for waterproofing and IK10 for impact resistance, featuring anti-corrosion powder coating suitable for coastal environments.
Does the lighting cause interference with nearby residential areas?
No, the asymmetrical optical lens design focuses the light beam specifically on the field, effectively eliminating spill light into surrounding areas.
What kind of surge protection is included?
The units come with a built-in 10KV surge protection device, with an optional upgrade to 20KV for high-risk areas.
What are the primary applications for these high mast lights?
They are widely used in sports stadiums, airports, seaports, shipping yards, and large outdoor industrial parking lots.
