📋 Basic Information
Power Source
Battery, Electric, Solar
Type
Puzzle Parking System
Lifting Mechanism
Hydraulic
System Height
up to 6 Floors
Lifting Capacity
2000kg/2500kkg
Drive Mode
Hydraulic Cylinder + Wire Ropes

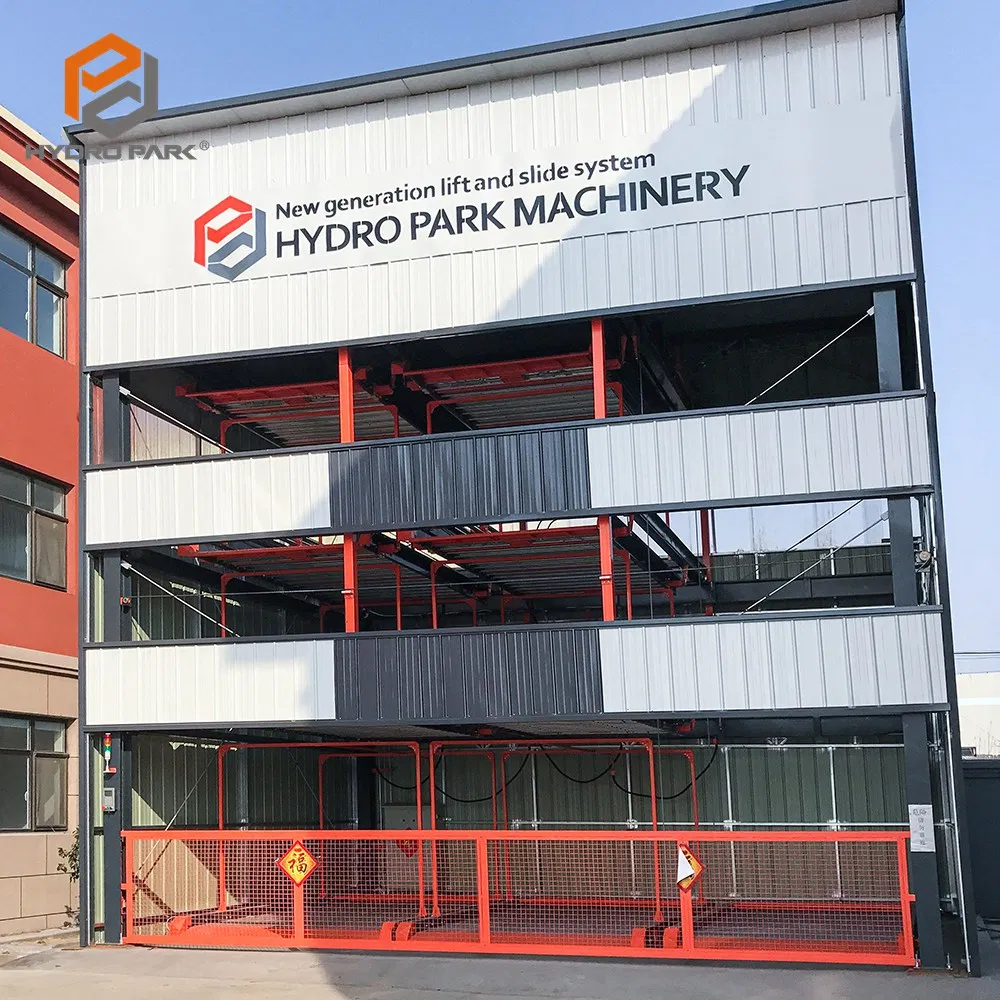

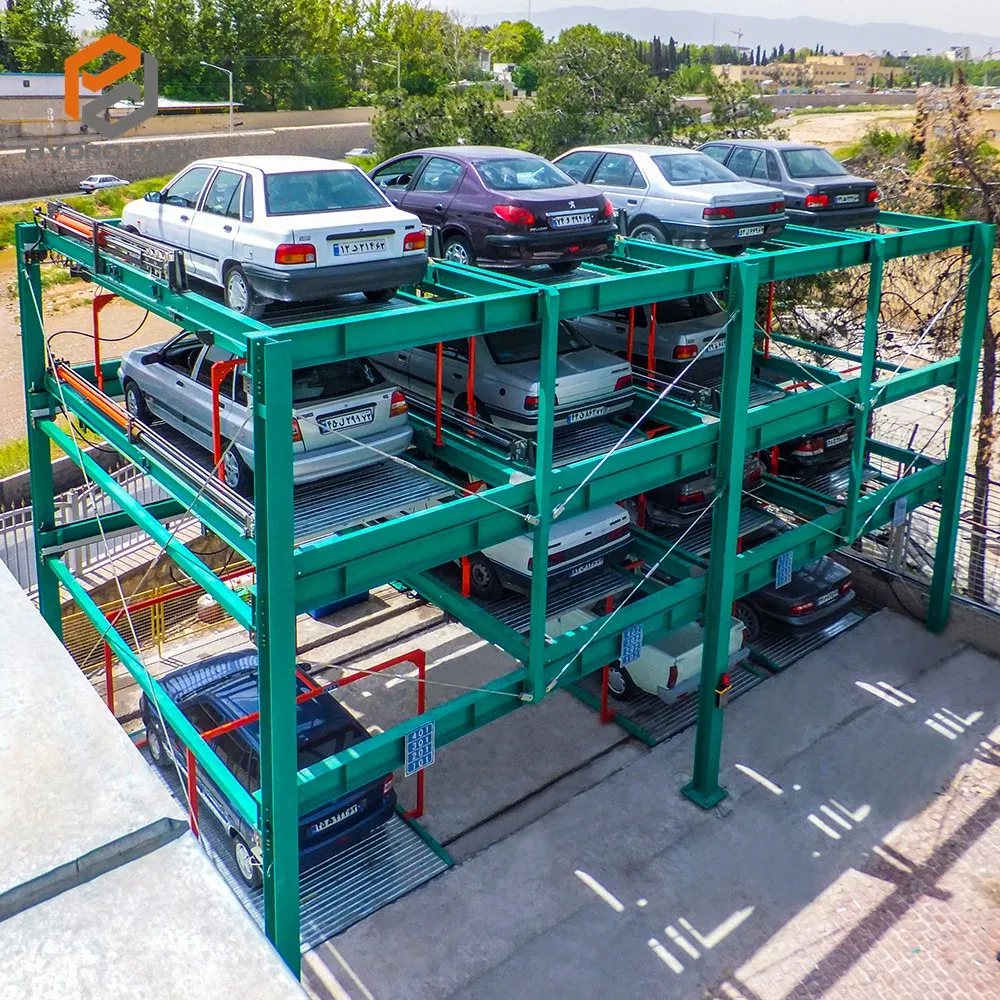

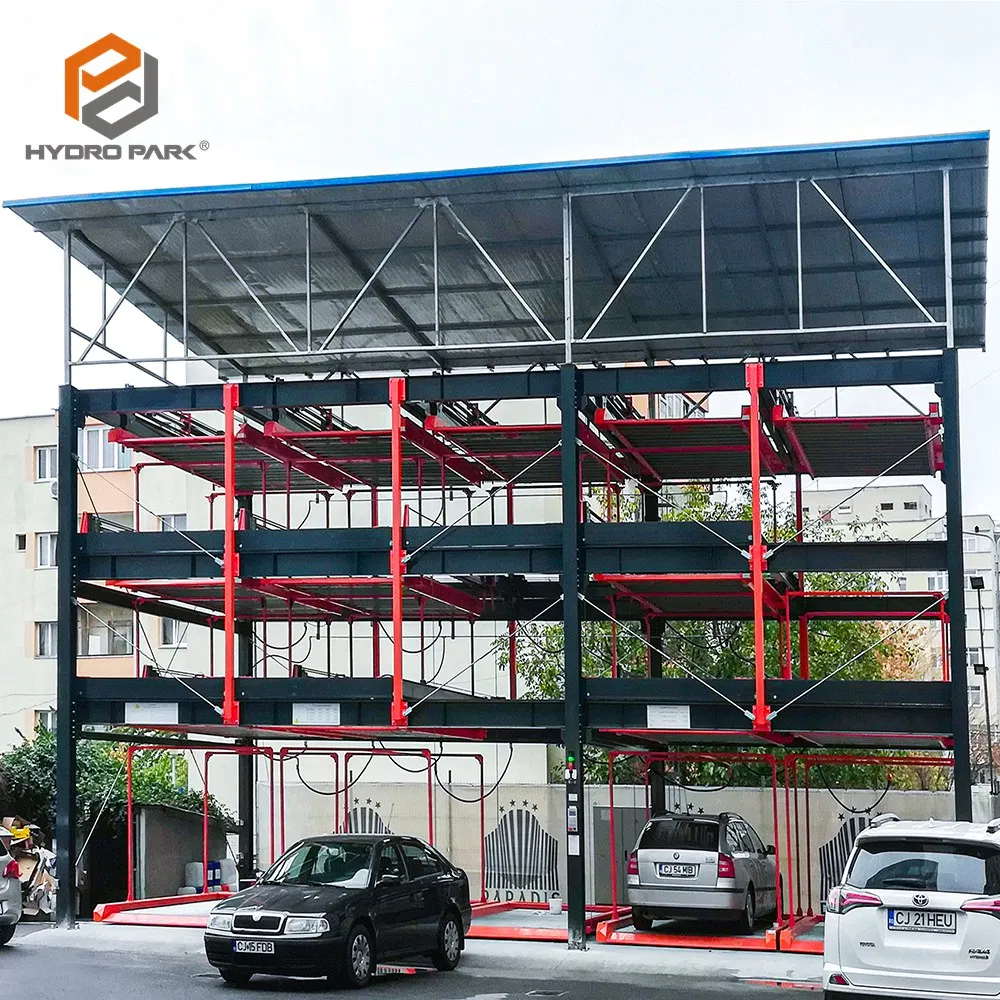

🚀 Semi-automatic Puzzle Parking Systems

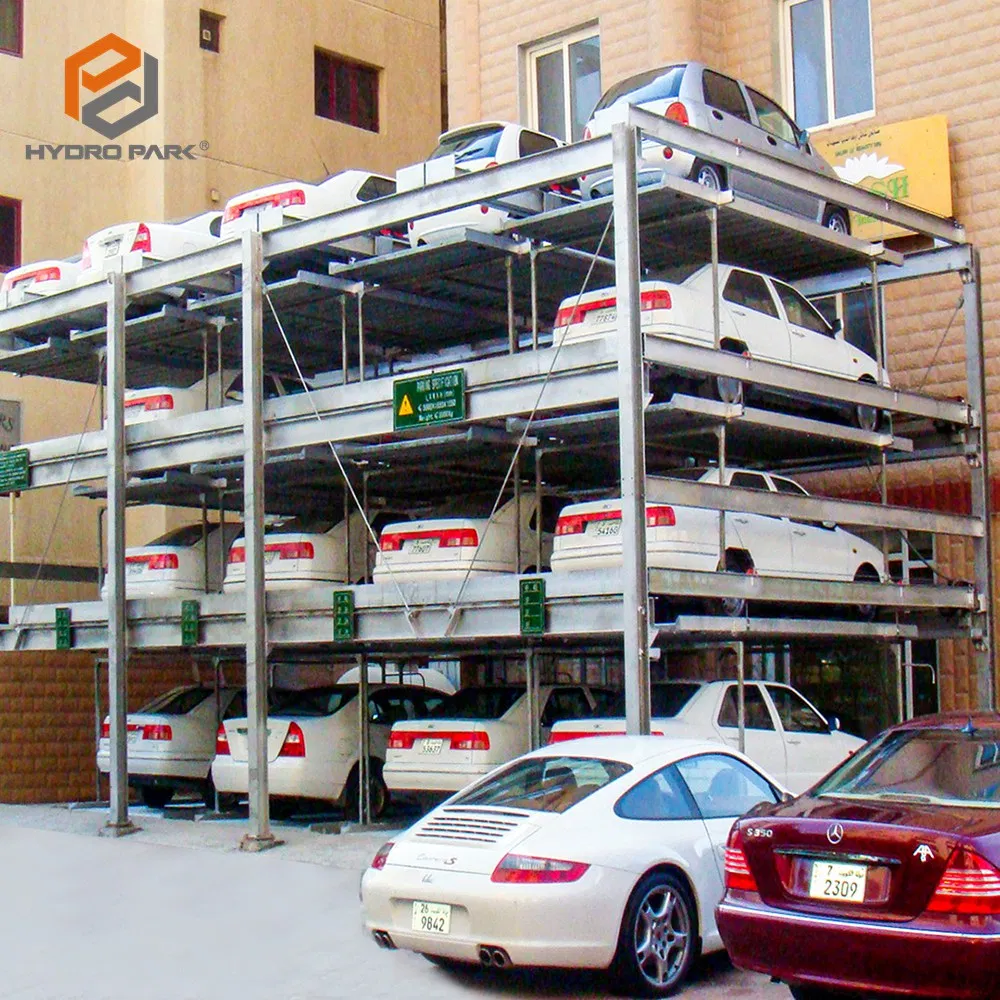

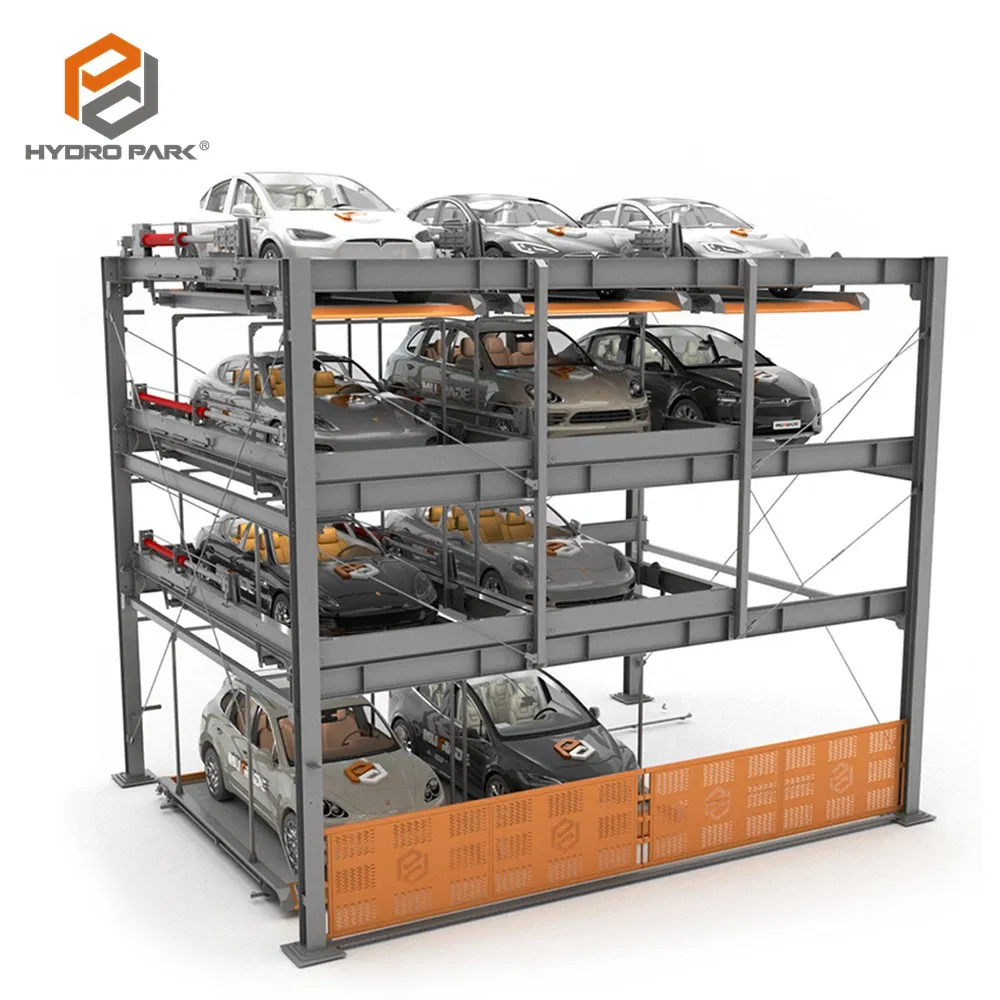

When some people prefer the simplicity of up/down, some others are seeking sophistication. Puzzle systems are such types that fulfill the demand of smart and convenient parking experience by combining lift & slide together. State-of-the-art parking technology are used to address growing demand for parking spaces, max 6 levels built up, and it's possible to add extra levels underground. By simply requesting a free or assigned platform, the system shifts platforms vertically or horizontally to deliver the requested one to the entrance level on ground.
BDP Series puzzle parking systems adopt premium hydraulic technology. They offer larger loading capacity up to 2500kg, and the master hydraulic power pack, starting from 4.0kw, increases the lifting speed to maximum 15m/min, the fastest among all similar solutions. They can be built in various dimensions and added more grids on the side or additional row(s) in front to significantly increase the overall car quantity.
For the BDP parking system, the parking space selected is moved to the desired position by means of an automatic control system, and the parking space can be shifted vertically or horizontally. By swiping card or input code, the system automatically moves the platforms in the desired position.
❓ Frequently Asked Questions
1. What is the maximum lifting capacity of the BDP system?
The BDP series puzzle parking system offers a large loading capacity of up to 2500kg per platform.
2. How many levels can the system be built?

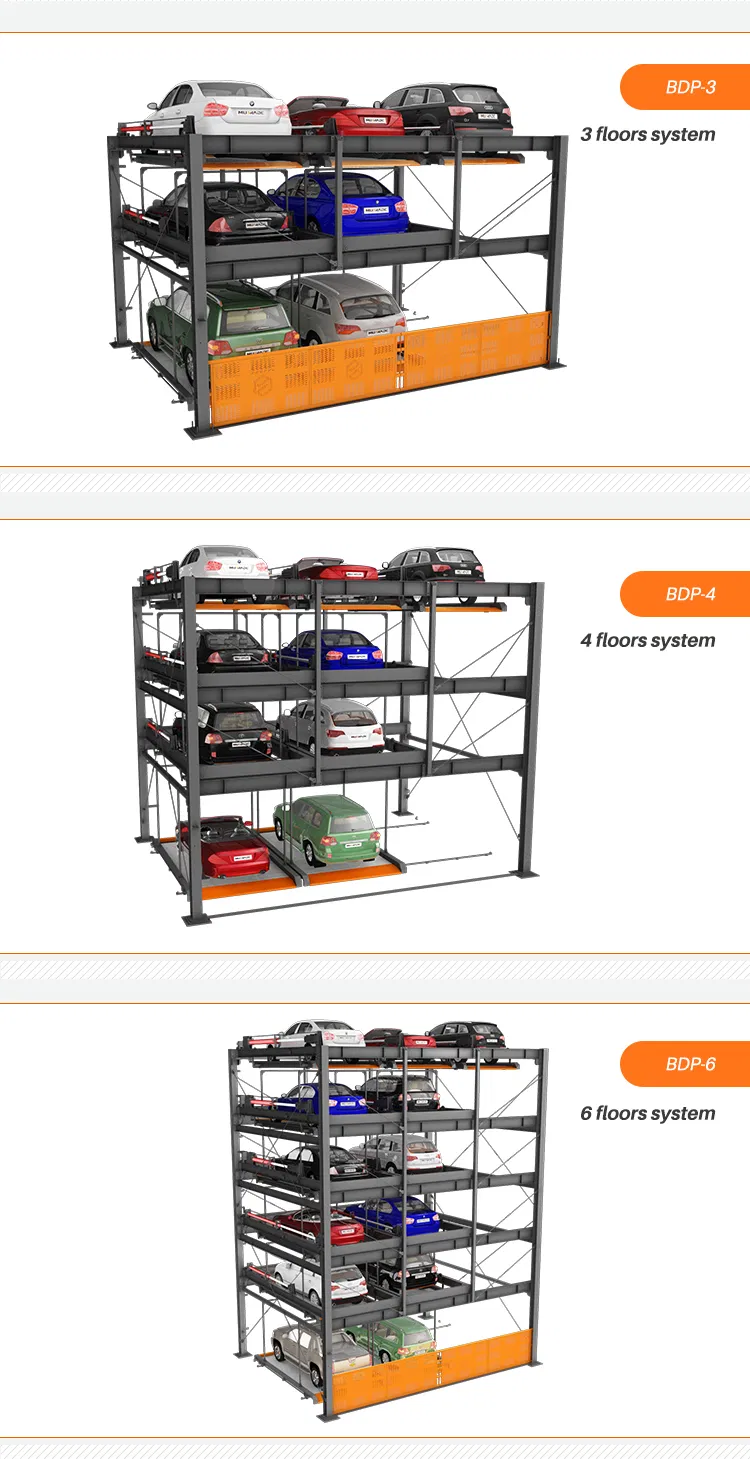

The system can be built up to 6 levels above ground, and it is also possible to add extra levels underground.
3. What is the lifting speed of this hydraulic system?
Thanks to the premium hydraulic technology, it can reach a maximum lifting speed of 15m/min.
4. How do users operate the parking system?
Users can operate the system easily by swiping an IC card or inputting a specific code via the PLC control interface.
5. What safety features are included?
The system includes an anti-slip surface, emergency stop button, overload protection, safety railings, and safety sensors for comprehensive protection.
6. Is the system customizable for different voltages?
Yes, the power supply voltage can be customized to meet the specific electrical requirements of different regions.
