Product Description

Basic Information

Model NO.HD200/CB200/ZB200/Compact-200

Steel GradeS355/ S460/Gr 55c/Gr350/Gr50/Gr65

Loading CapacityHl93/Ha+20hb/T44/Class a/B/MLC110/dB24

Carriage Width3.15m Std. /4.2m Ew/7.35m Double Lanes

Maximum Span60.96m (Single) / 45.72m (Two Lanes)

GalvanizedISO1461/AS/NZS 4680/ASTM-A123

HS Code7308100000

Capacity100,000 Tons

Product Description

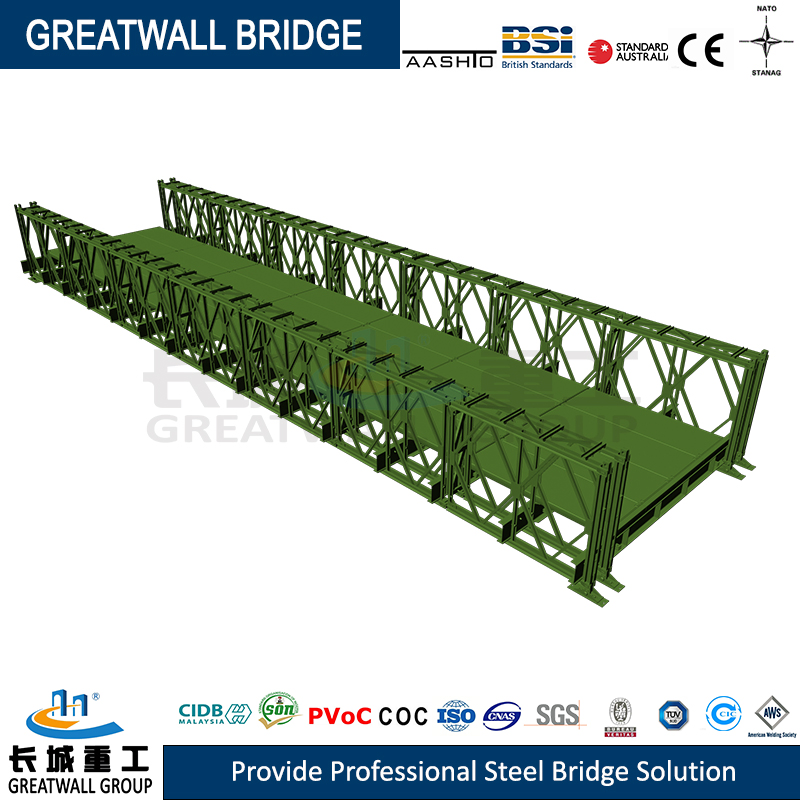

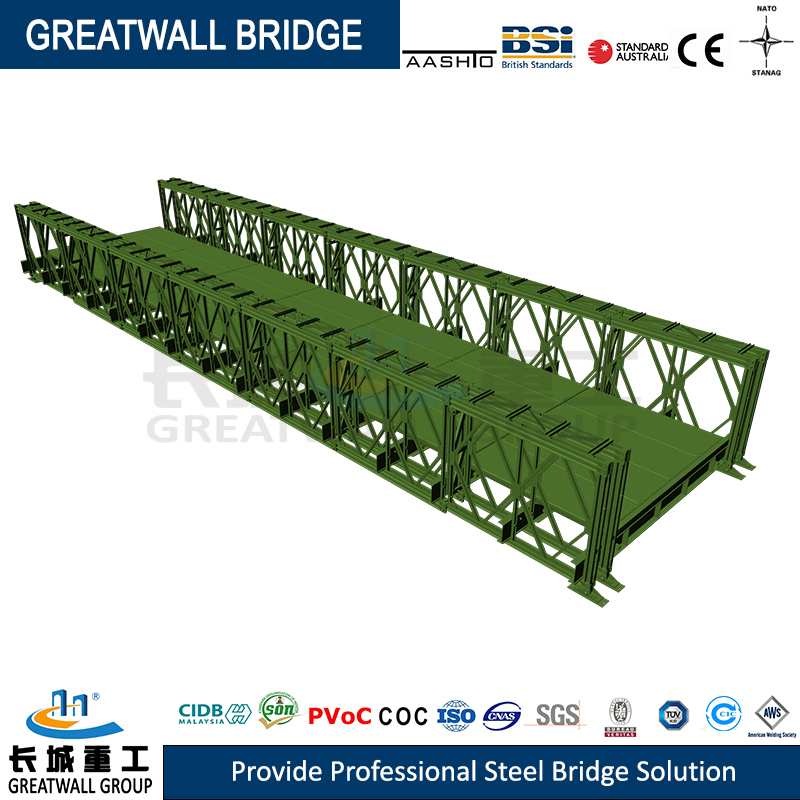

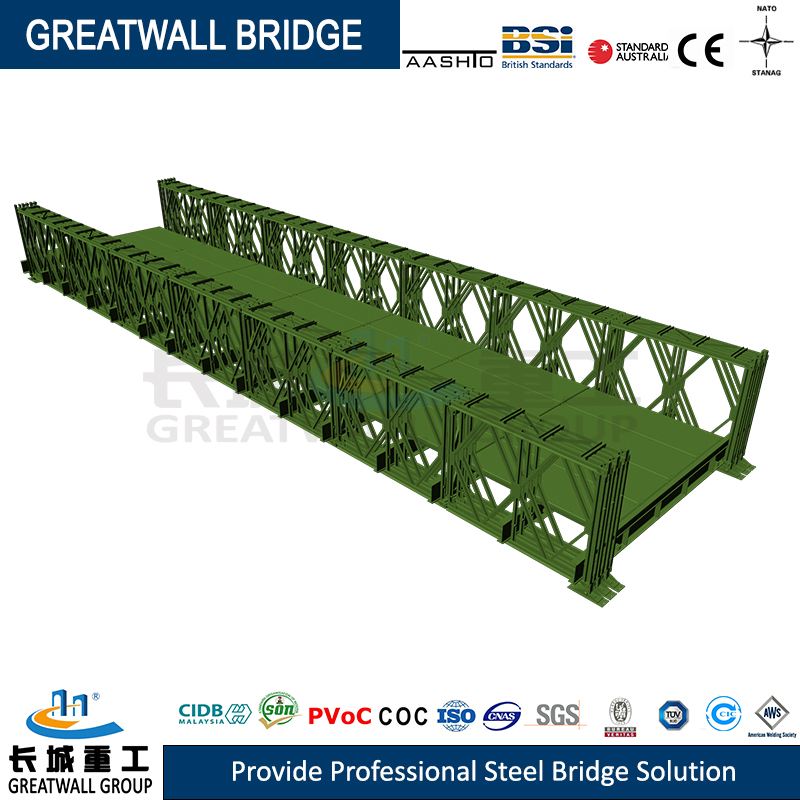

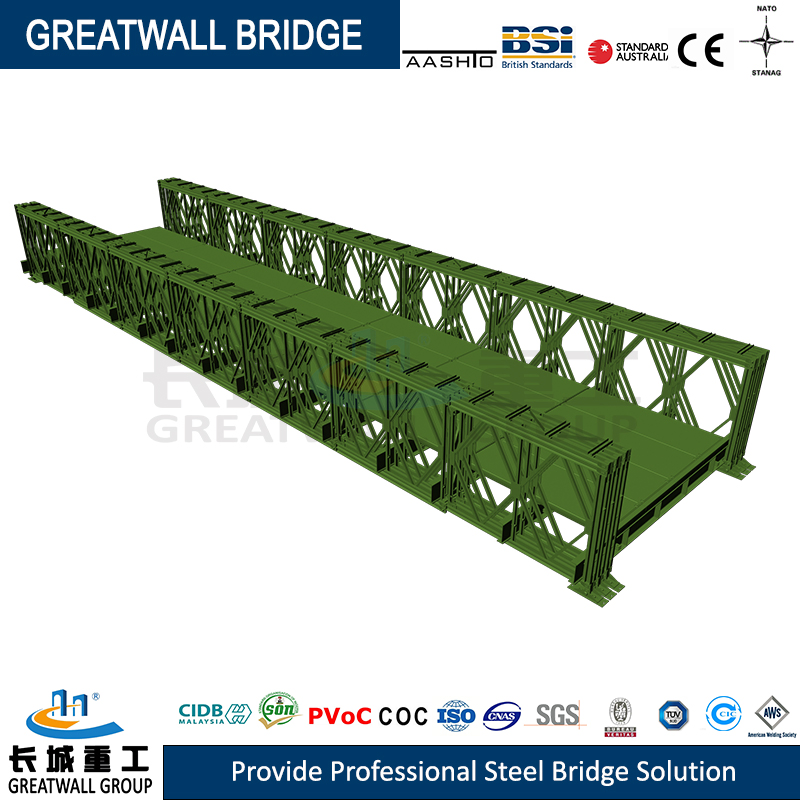

The HD200 bailey bridge features an increased panel height of 2.134m. It employs alternating joints between Reinforcement Chords and panels for longer spans, decreasing inelastic deformation caused by oversized pinholes. The pre-arch method is utilized to significantly reduce mid-span and vertical deflection.

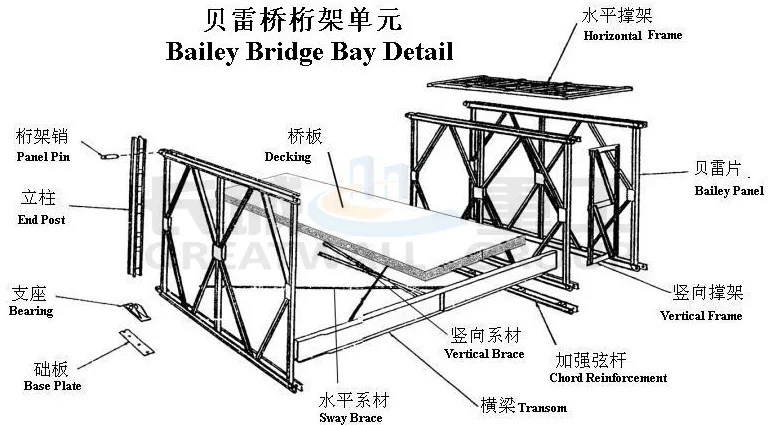

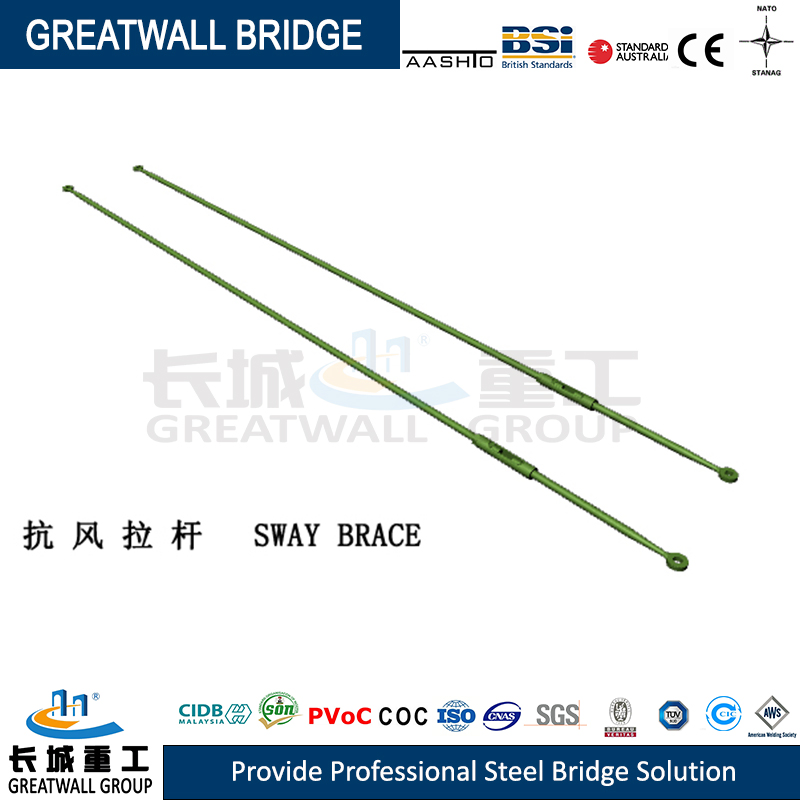

Sway Braces are integrated with transoms to improve overall stability, while bridging prevents side bending. The Compact 200 panel bridge supports both single and double lane configurations, suitable for HS-15, HS-20, HS-25, HL-93, and pedrail-50 load designs.

Technical Specifications

Construction	Section Area (cm²)	Bending Factor (cm³)	Moment of Inertia (cm⁴)
SS	25.48	5437	580174
SSR	50.96	10875	1160348
DS	50.96	10875	1160348
DSR2	101.92	21750	2320696
TSR3	152.88	32625	3481044
QSR4	203.84	43500	4641392

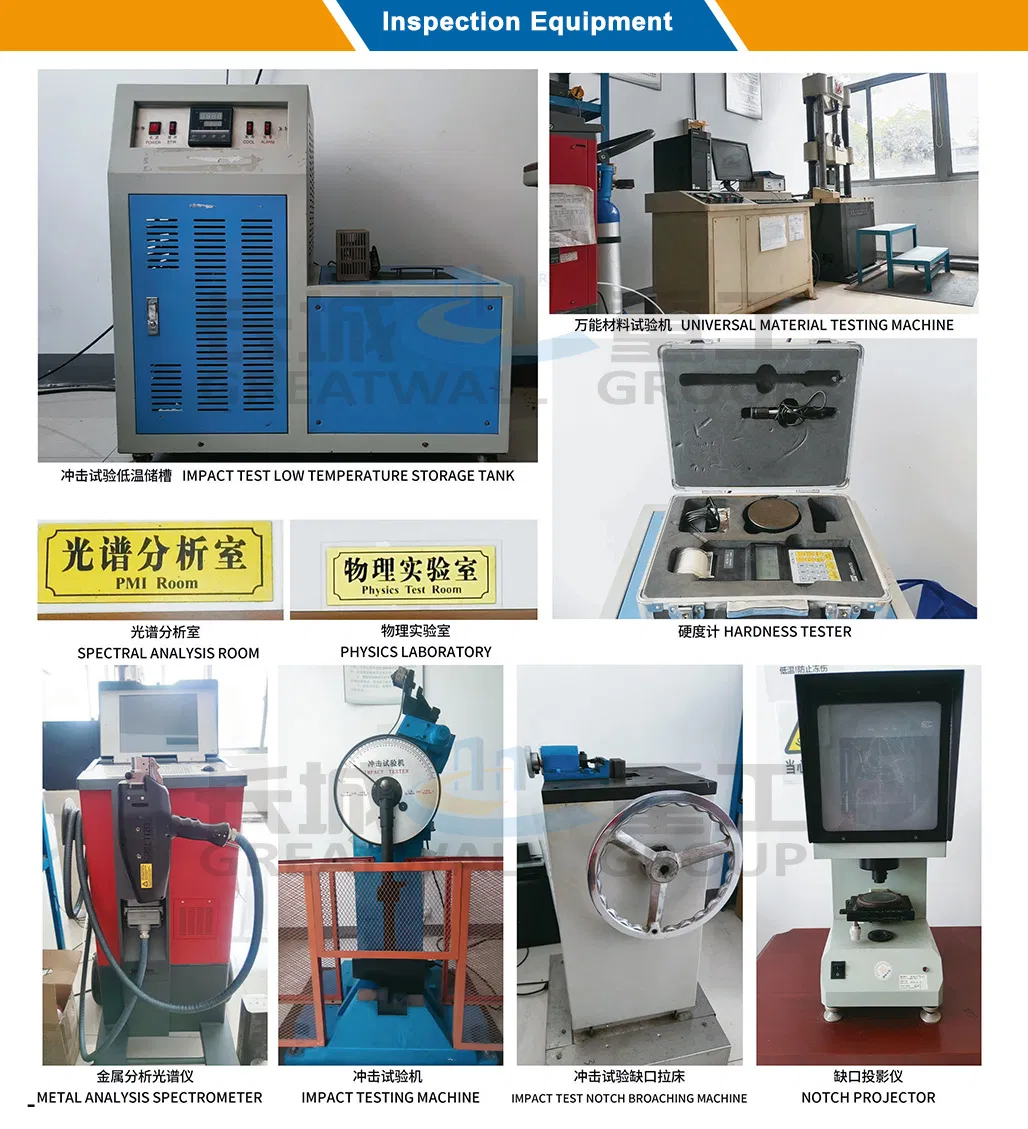

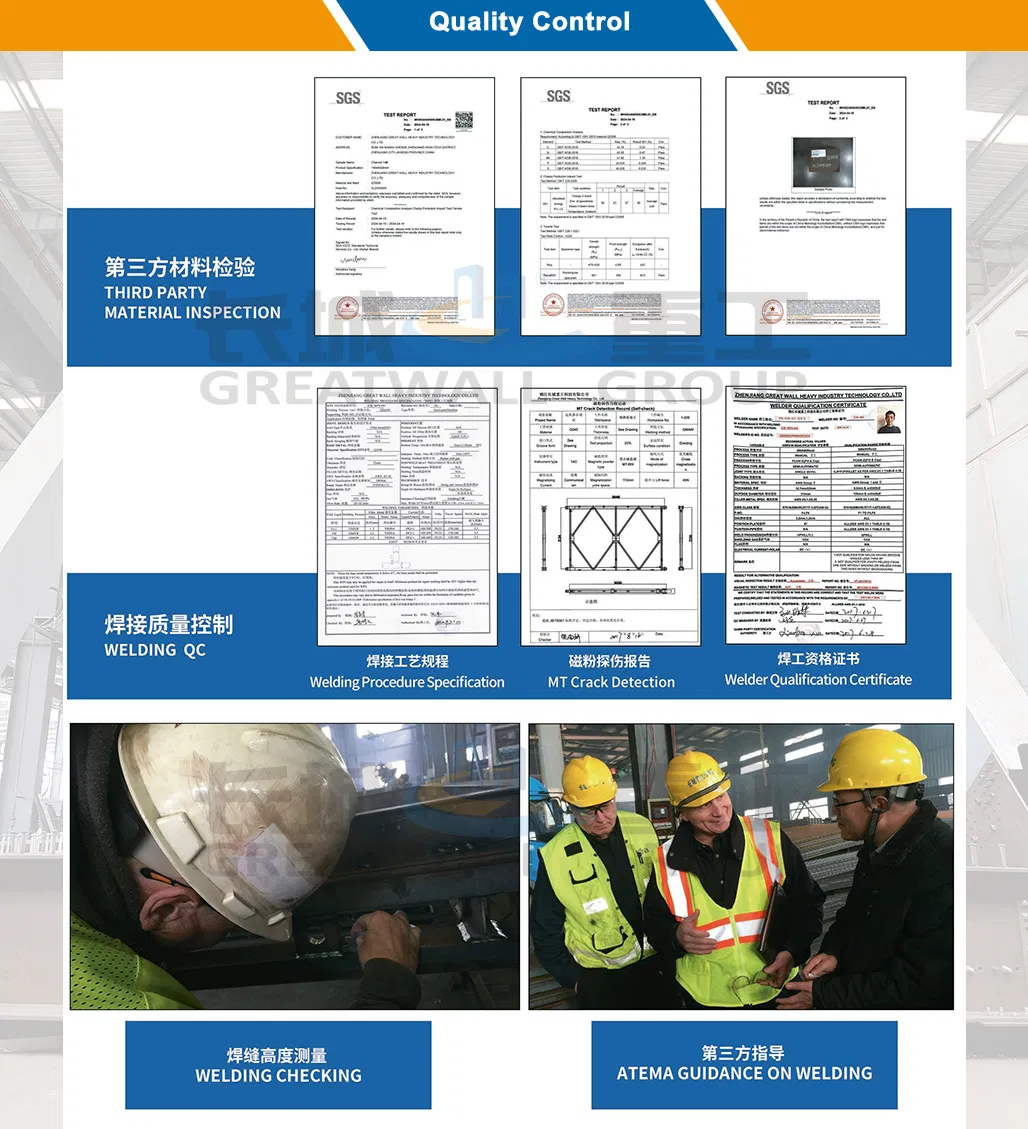

Quality & Advantages

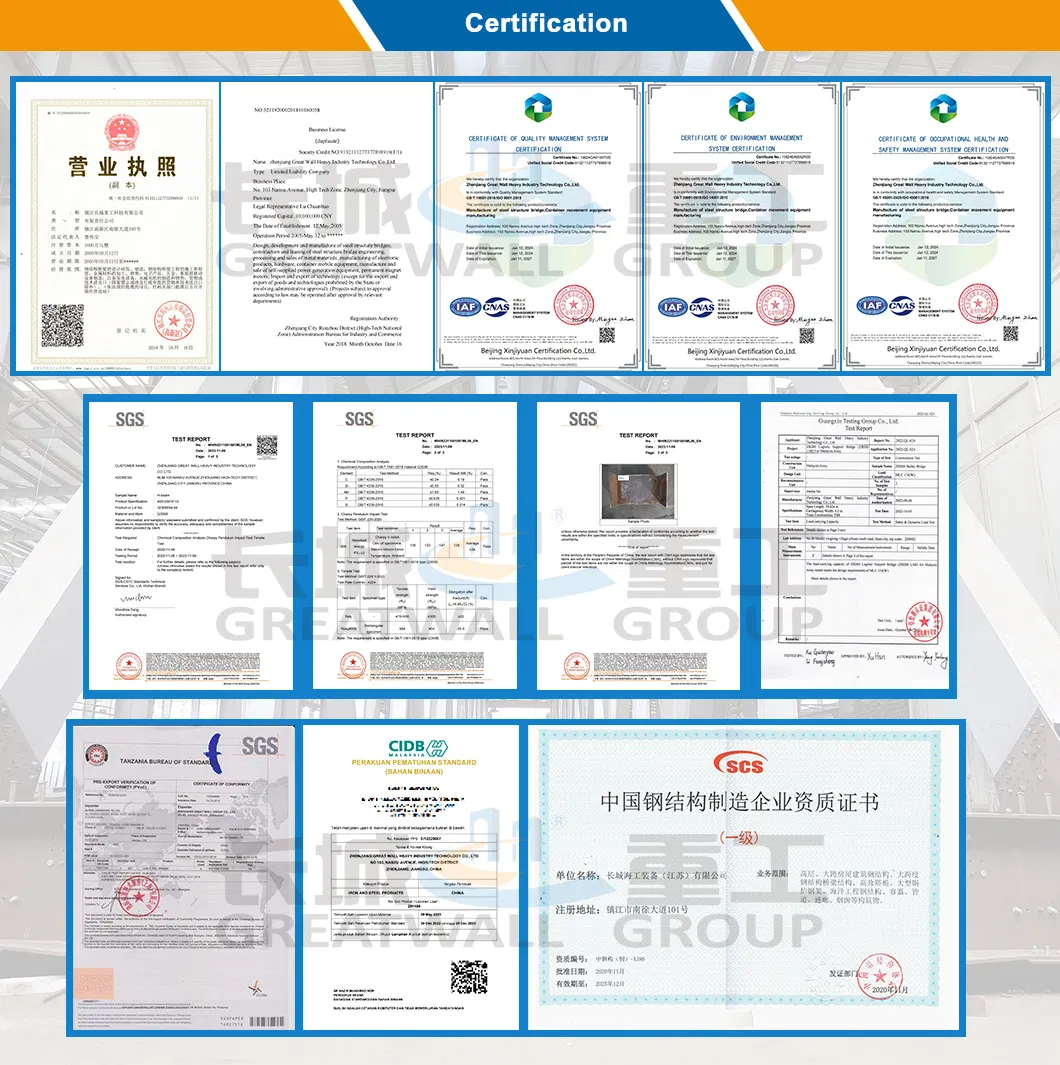

Certifications & Services

Frequently Asked Questions

Which international standards can your products meet? Our products meet the AASHTO American standard, British BS5400, Australia AS5100, and other major international standards.

Do you support custom processing for steel bridges? Yes, we have a flexible technical team capable of processing a variety of non-standard Bailey bridges and steel structures.

What is your annual production capacity? Our annual output exceeds 50,000 tons, supported by 12 specialized production lines for Bailey Bridges and steel structures.

How long does it take to receive a technical response? We provide professional technical feedback within 6 hours and a full quotation with preliminary design within 24 hours.

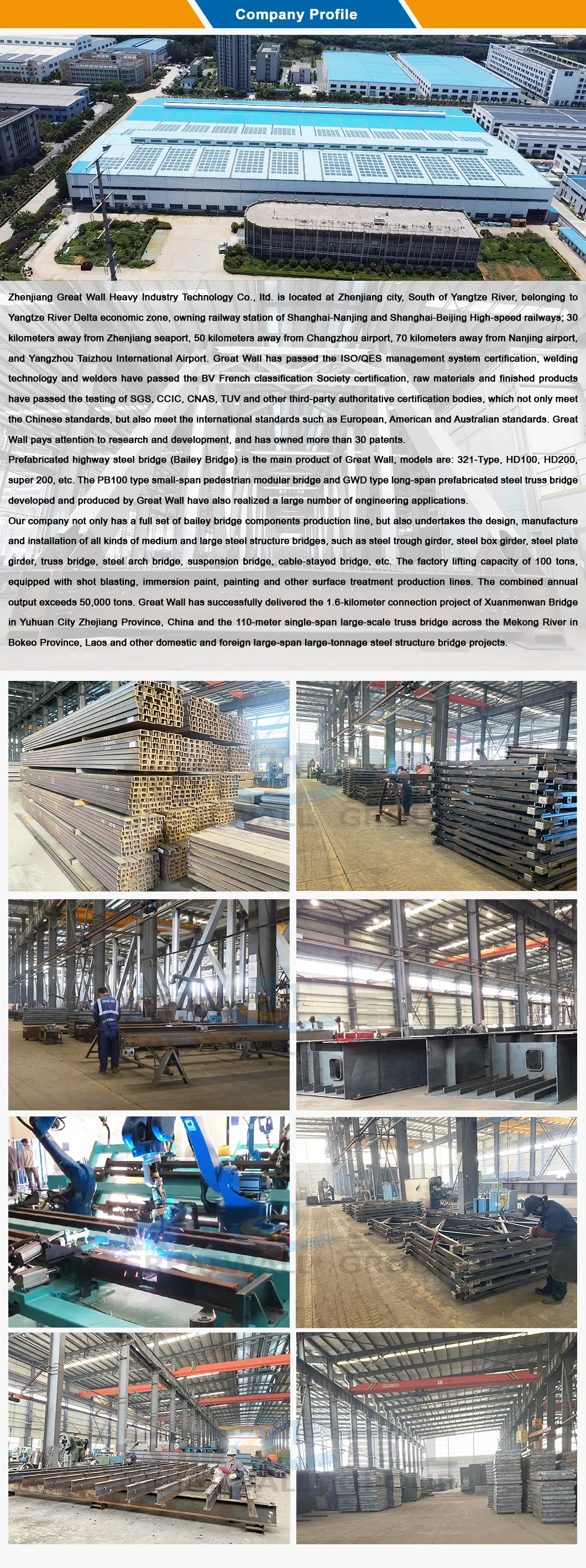

Are you a factory or a trading company? We are an industry and trade integrated company with 20 years of export experience and a factory area of 47,000 square meters.

Which countries have you exported to? Our products are exported to dozens of countries including Nepal, Malaysia, Philippines, Kenya, Colombia, and many others across Asia, Africa, and Latin America.
