Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
1 / 5
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design
Marble Table Production Board Fire Protection Class A2 and Elegant Design

Marble Table Production Board Fire Protection Class A2 and Elegant Design

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Info
Model NO.
sc-01
Material
Stone Honeycomb
Performance
High Intensity
Fire Level
Class A2 (En 13501-1)
Panel Thickness
10-30mm
Service Life
30 Years+
Sound Insulation
RW 15 dB
Origin
Foshan, China
🏗️ Product Description

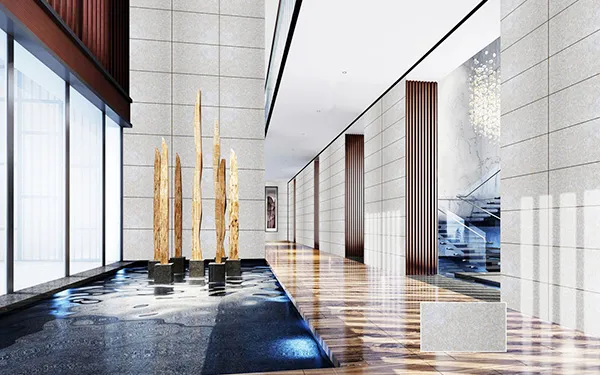

Stone Honeycomb Panel Design

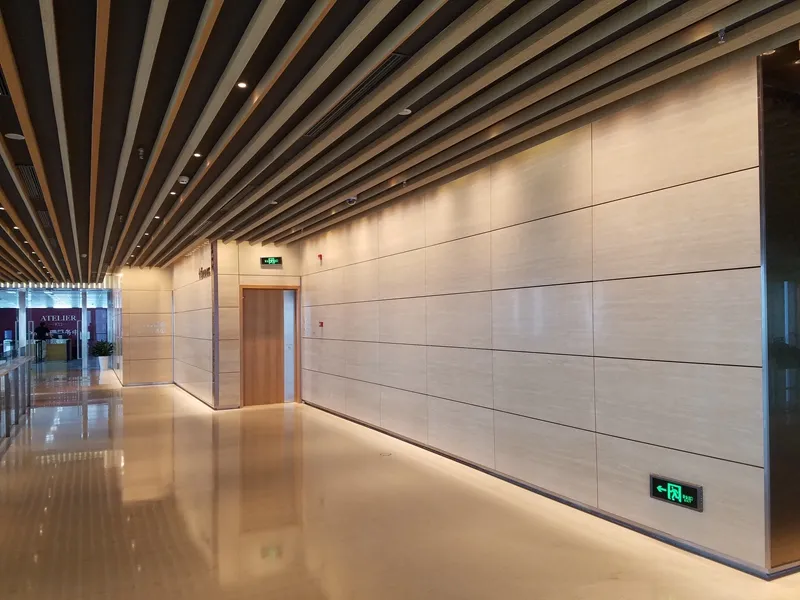

Elegant Stone Panel Application

Stone Honeycomb Panel Features:

  • Lightweight & High Strength: 1/5 the weight of solid stone with 3x higher strength.
  • Authentic Texture: Natural granite/marble surface with original aesthetics.
  • Flat & Rigid: Honeycomb structure resists warping.
  • Thermal/Acoustic Insulation: Reduces noise by 15dB+.

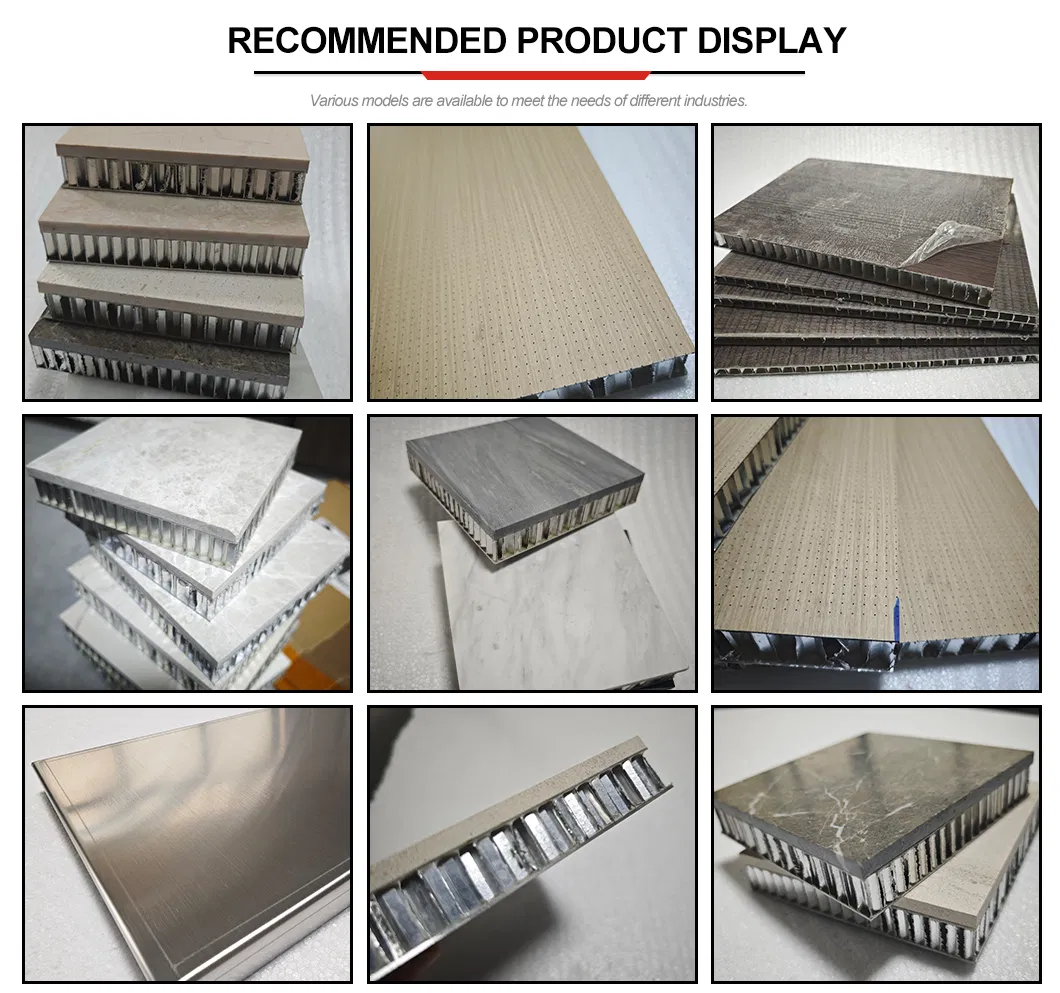

Technical Specifications
📏 Specification
Panel thickness 10-30mm (stone 3-5mm + aluminum core) Flexural strength ≥7.0MPa (GB/T 17748)
Fire protection Class A2 (EN 13501-1) Weather resistance 3000h salt spray test (ASTM B117)
Packaging Plywood boxes, export standard Productive forces 100,000 m2/year
🏢 Technical Excellence

Engineered Composite Solutions

Specializing in advanced honeycomb composite panels with 10 years of expertise. Utilizing 15,000m² production base equipped with automated CNC routers and vacuum hot-press systems to ensure high precision and bond strength (SGS-certified >7MPa).

Our solutions cater to high-end architecture, high-speed train interiors, and marine bulkheads across 30+ countries.

⚙️ Production Process

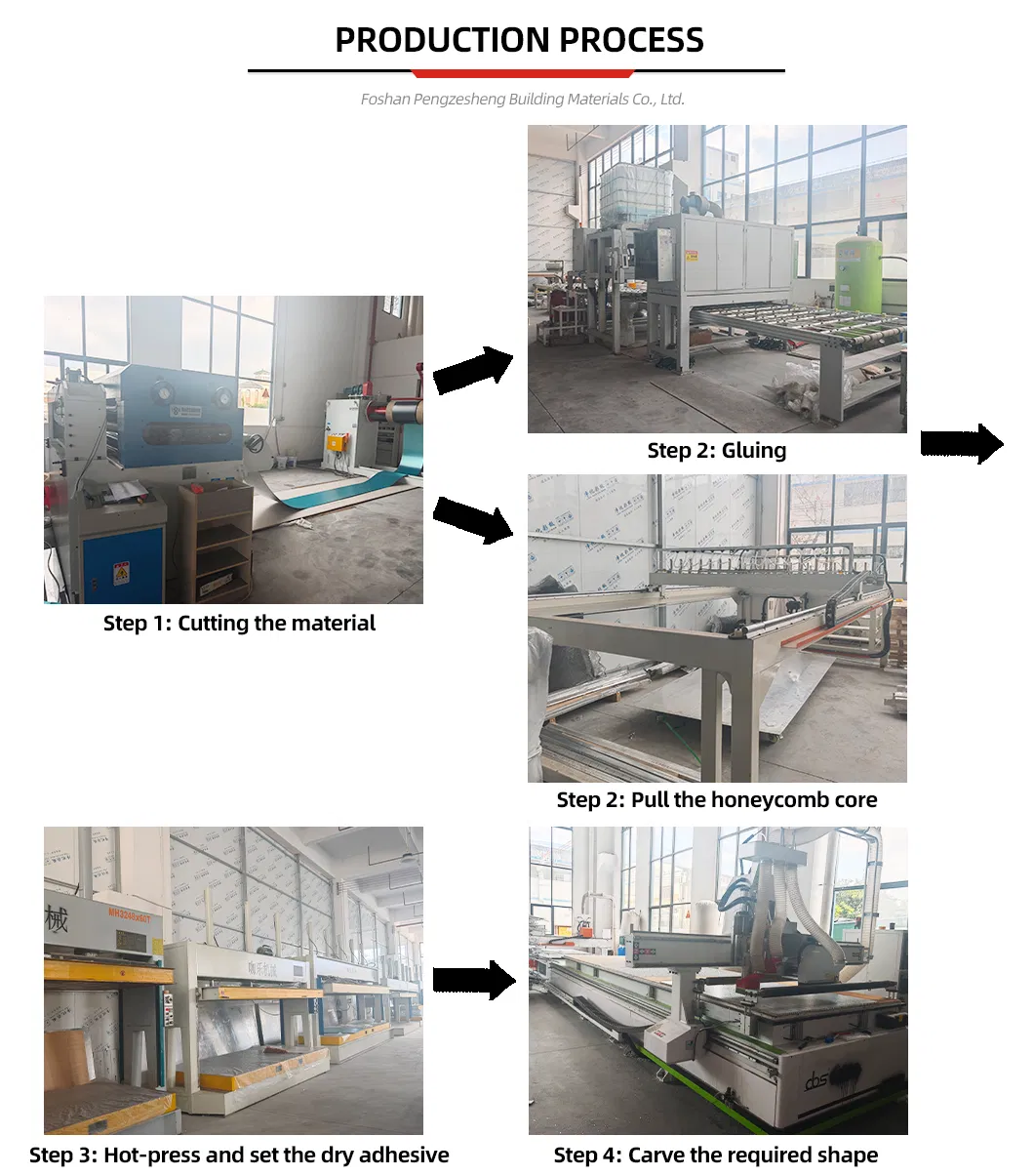

Production Process Flow

1. Pre-Treatment: Chemical conversion and PVDF coating cured at 230℃.

2. Composite Bonding: Face-core-face assembly under 1.2MPa pressure in vacuum hot press.

3. Quality Control: Peel strength tests (≥7N/mm) and laser flatness scanning.

📦 Packing & Delivery

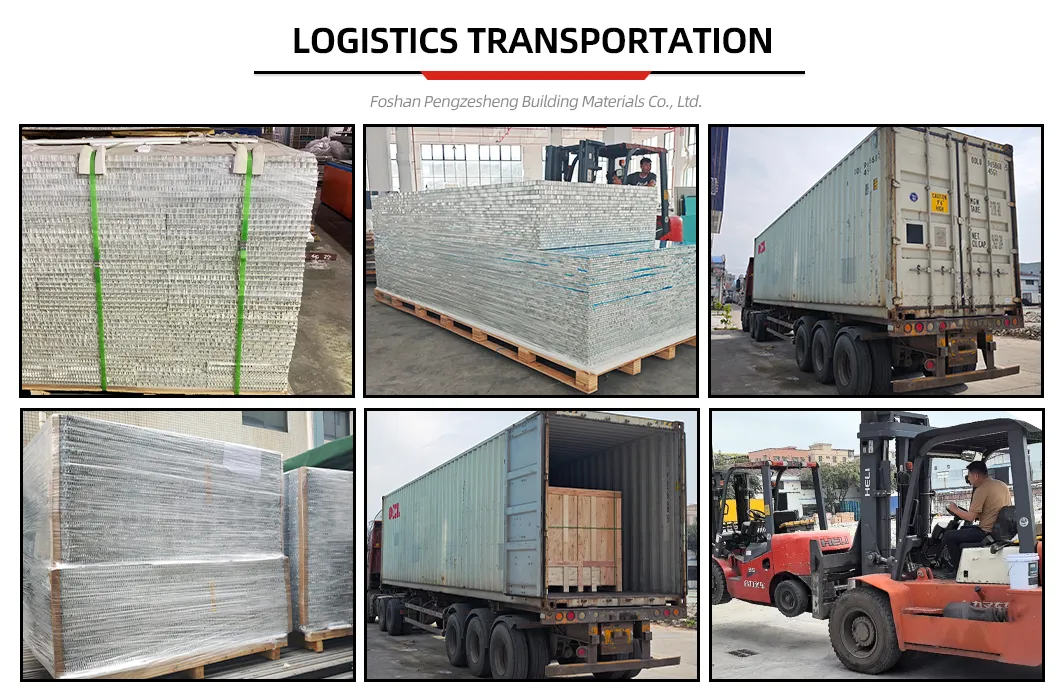

Secure Packing
Frequently Asked Questions
Q1: What are the main benefits of stone honeycomb panels?
They offer the authentic look of natural stone but at 1/5 the weight, making them easier to install and reducing the structural load on buildings.
Q2: Are these panels fire-resistant?
Yes, our panels achieve a Class A2 fire protection rating according to EN 13501-1 standards.
Q3: How long is the expected service life?
For outdoor curtain walls, the lifecycle is 30 years or more, thanks to excellent weather and corrosion resistance.
Q4: Can these panels be used for interior decoration?
Absolutely. They are ideal for interior walls, ceilings, elevator lobbies, and luxury furniture tops.
Q5: Do you support custom sizes?
Yes, we support bespoke sizes up to 4000×2000mm and thicknesses ranging from 10mm to 50mm.
Q6: How do these panels perform in coastal areas?
They have high weather resistance and show no corrosion even after a 3000-hour salt spray test.
