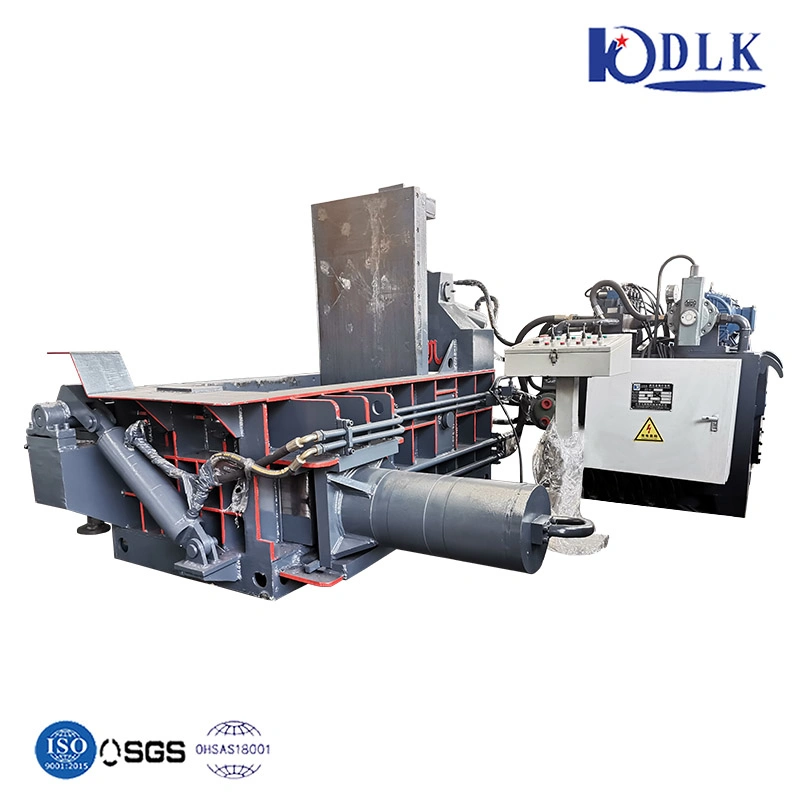

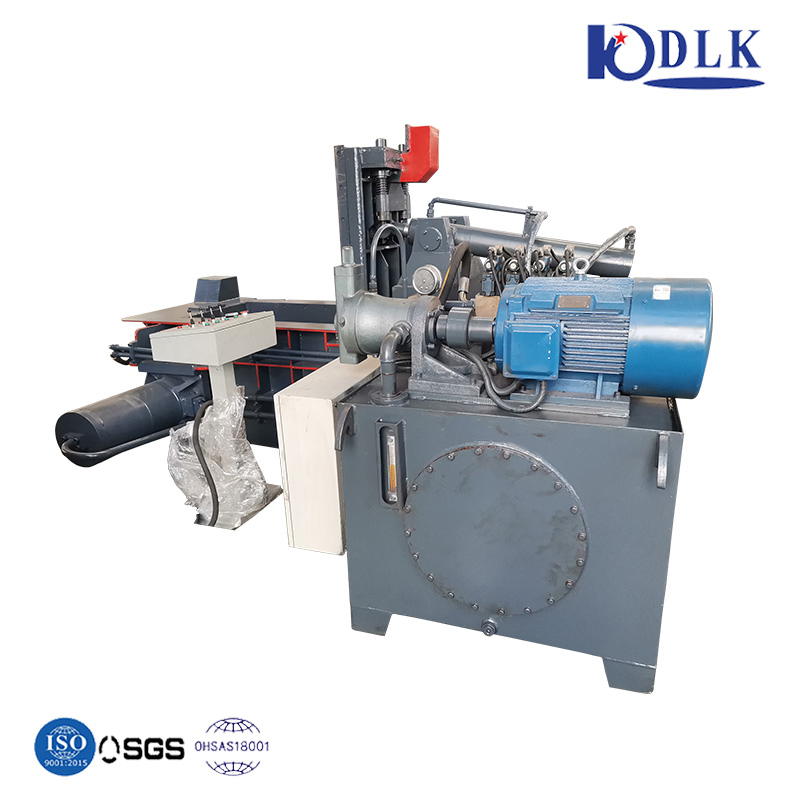

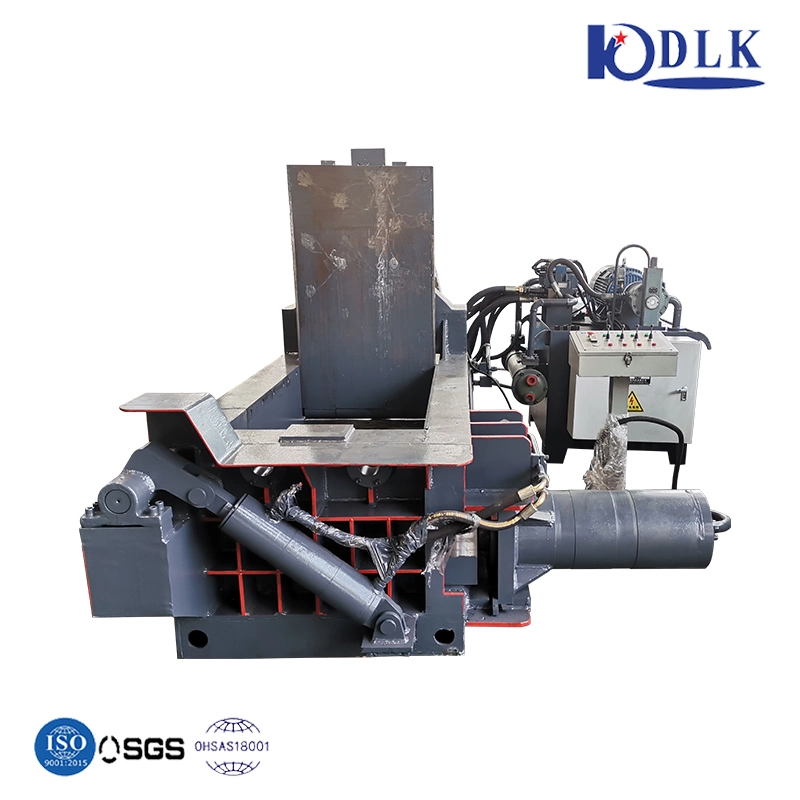

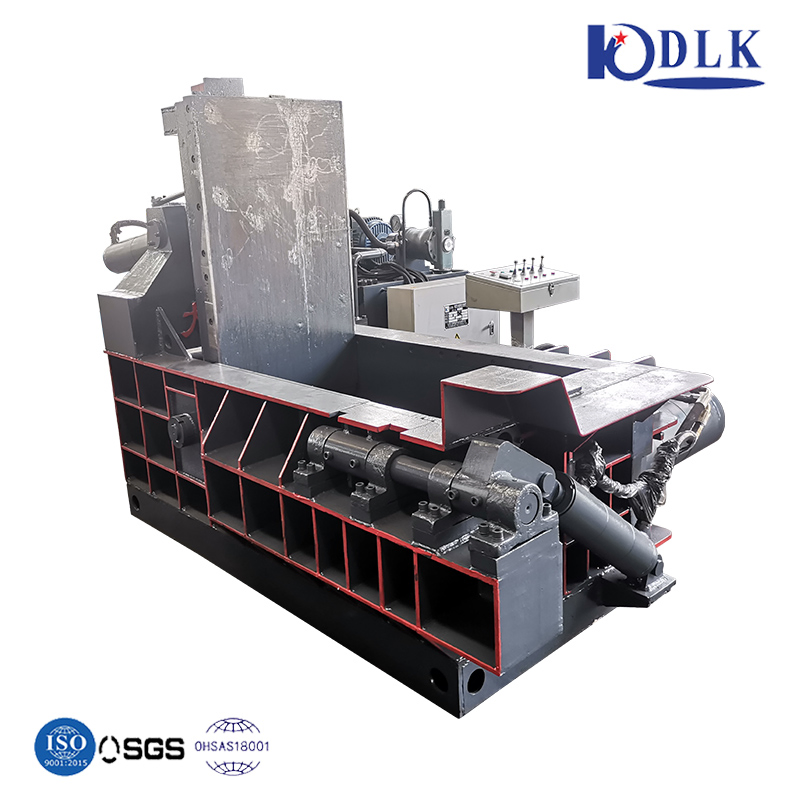

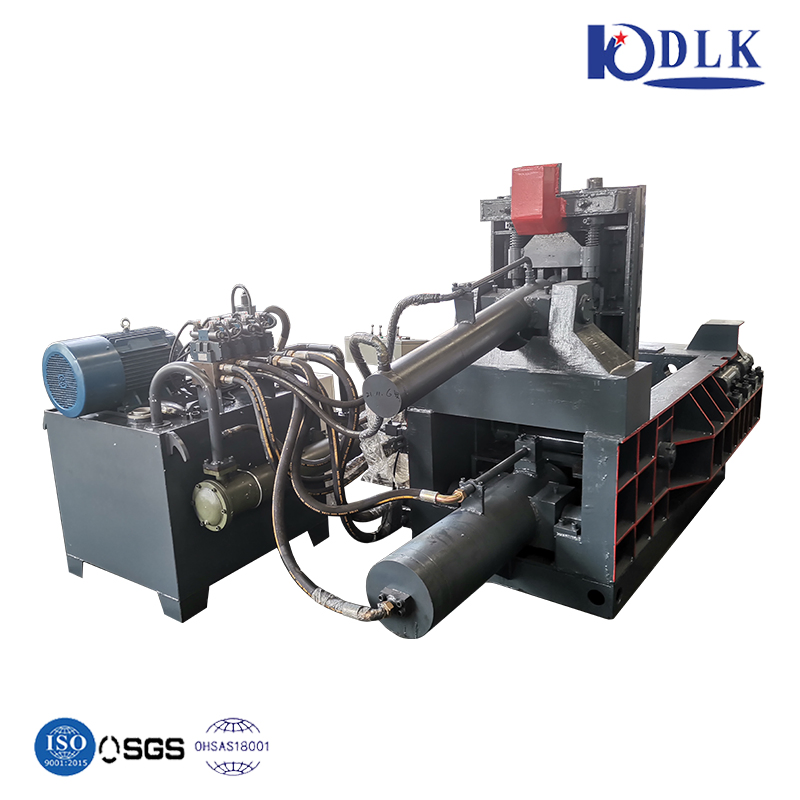

Y81 series metal hydraulic baler is capable of extruding various metal leftover materials, steel parting, waste copper, aluminum, copper, stainless steel and scraped car material into qualified charging such as square column, cylinder, octagon body and other sharps, in a bid to reduce transportation, refine costs and increase transportation speed.
Such baler is mainly used in steel plants, reclamation, processing industry and nonferrous & ferrous metal refining industry. Such machines adopt hydraulic drives with manual or PLC automatic control operation as options. The discharging types fall into turning over, pushing out, forwarding out and manual lifting.
It is unnecessary to fix foot screws. A diesel engine can be used in case of power supply unavailability. The extrusion force ranges from 63 tons to 400 tons, totaling 10 grades for customers' selection, and productivity being from 4 tons/shift to 40 tons/shift.
| Model | Main Cyl.Force (TON) | Press Box Size (MM) | Bale Size (MM) | Bale Weight (KG) | Machine Weight (T) | Container |
|---|---|---|---|---|---|---|
| Y81-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 5-7 | 20GP |
| Y81-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 9-11 | 20GP |
| Y81-200 | 200 | 1600*1000*800 | 260/300 Oct | 50-100 | 13-15 | 20FR |
| Y81-250 | 250 | 2000*1750*1000 | 500*500 | 250-450 | 23-25 | 20FR |
| Y81-315 | 315 | 3000*2500*1200 | 500*500/600*600 | 400-1200 | 44-46 | 40FR |
| Y81-400 | 400 | 3000*2500*1200 | 600*600/700*700 | 800-1300 | 55-58 | 40FR |
| Y81-500 | 500 | 3500*3000*1200 | 600*600/700*700 | 900-1500 | 70-72 | 40FR |
Y81 series hydraulic metal scrap balers is applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps into acceptable furnace charges.
Trusted name in the waste recycling equipment industry for over a decade. Our products include shear baler, scrap baler, scrap shear, and recycling crane. We also supply horizontal and vertical balers for plastic, paper, and textiles.
