Type
Puzzle Parking System
Installation
Multi-Level, Surface, Underground
Material
Aluminum & Q235 Steel
Lifting Capacity
2000kg/2500kg
Drive Mode
Hydraulic + Wire Ropes
Power Source
Battery, Electric, Solar
Control System
PLC Control
Safety Features
Anti-slip, Emergency Stop, Overload Protection
Car Dimensions
5000mm(L) x 1550/2050mm(H)
Finishing
Powder Coating & Galvanized
❓ Frequently Asked Questions

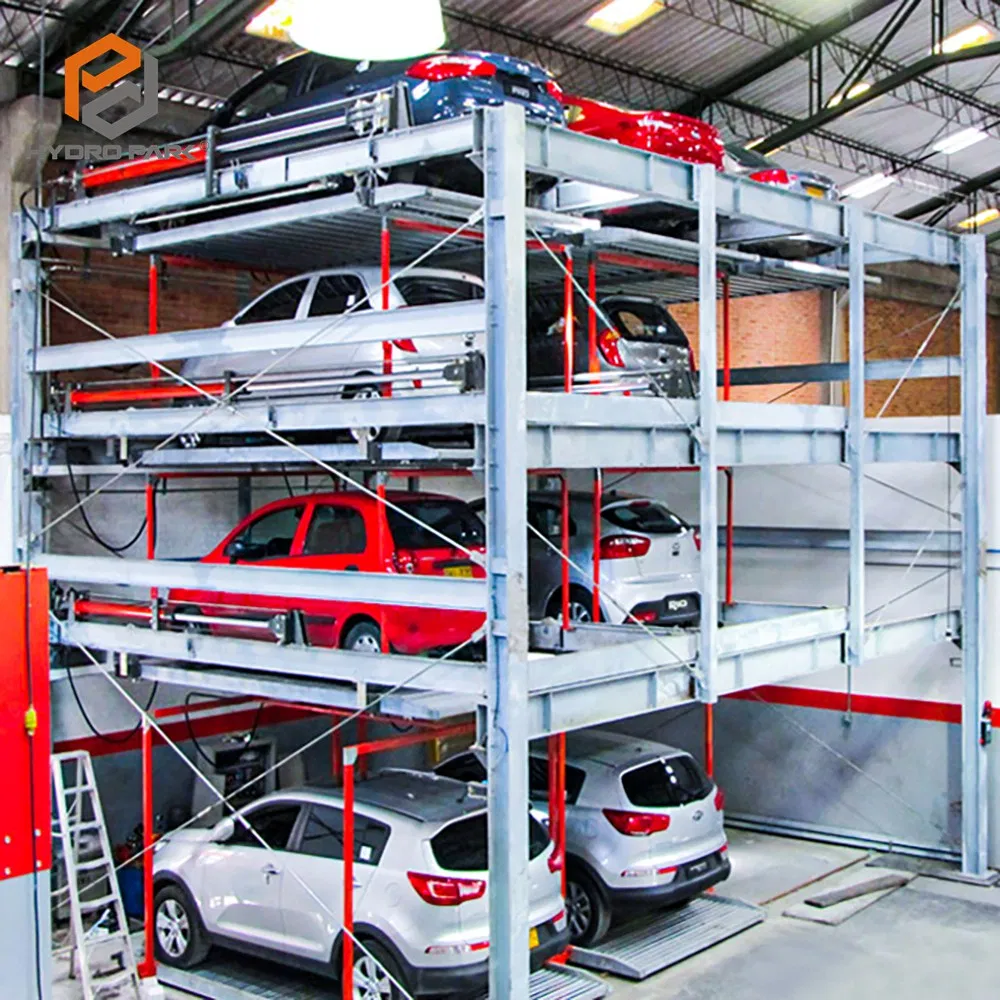

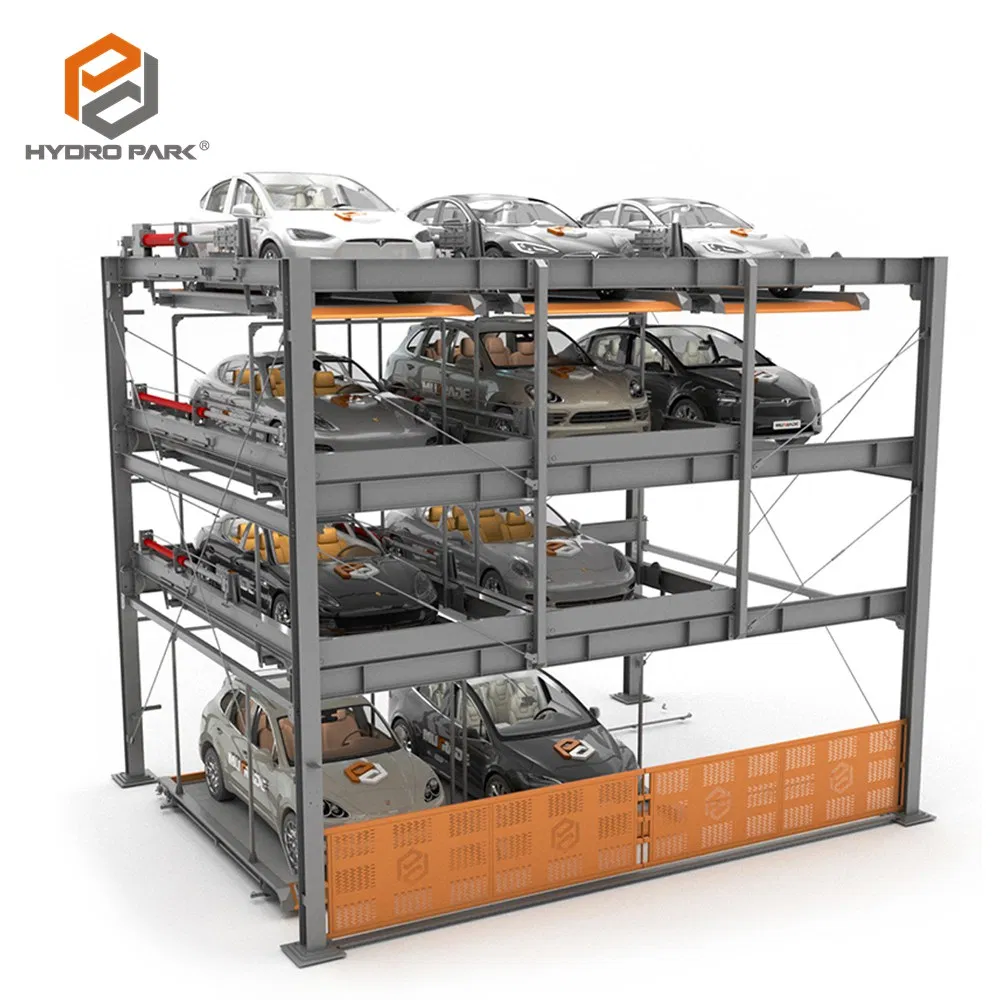

1. What is a BDP Series Puzzle Parking System?
The BDP series is a semi-automatic puzzle parking system that uses hydraulic lifting and sliding to move platforms, optimizing space for multi-level car storage.
2. What are the weight and size limits for vehicles?
The system supports a lifting capacity of 2000kg to 2500kg. It is suitable for cars up to 5000mm in length and heights of either 1550mm or 2050mm.
3. What safety features are included?
The system is equipped with multiple safety mechanisms, including an anti-slip surface, emergency stop buttons, overload protection, safety railings, and electronic sensors.
4. Can this system be installed outdoors?
Yes, it supports various installation types including surface mount and underground, and features powder coating and galvanized decking for durability.
5. What is the power source for the system?
The system is highly versatile and can be powered by traditional electric sources, batteries, or integrated solar power systems.
6. Is the operation difficult for users?
Not at all. The system is controlled by a PLC and operates in a "Quasi Unmanned" mode, making it very user-friendly for residential and commercial use.
