Factory Produces PPGI Color Coated and Pre-Painted Steel Coil Products, Custom Colored Metal Roofing Sheet Building Materials

1 / 5

Factory Produces PPGI Color Coated and Pre-Painted Steel Coil Products, Custom Colored Metal Roofing Sheet Building Materials

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🟦 Basic Specifications

Model NO.

PPGI

Standard

ASTM, JIS, AISI, DIN

Certification

ISO, RoHS, IBR

Technique

Cold Rolled

Application

Construction

Thickness

0.12-3mm

Width

600-1500mm

Material

Dx51d-Z Dx52D-Z PE Coat

Coating

Top:17-25um Back:5-8um

MOQ

5 Tons

📄 Product Description

The prepainted steel sheet in coil is a product obtained by subjecting a hot-dipped galvanized steel sheet, and galvalume steel sheet, or an aluminum sheet to a surface chemical treatment (coating), followed by baking and curing.

The total thickness of the pre-panted galvanized steel coil is composed of the base steel - coating - primer - top paint - protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm.
Paint coating material is usually polyester (PE). Colors can be customized according to the RAL color card or customer samples. Special patterns available: wood grain, flower print, camouflage, brick.

1) PPGI: Also known as prepainted galvanized steel coil, with a hot dip zinc coated steel sheet substrate.

2) PPGL: Also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.

🏗️ Applications

Building, Corrugated Sheet Roofing, Electrical Appliances, Automobile Industry, Transport Packaging, Machinery Processing, Interior Decoration, Medical.

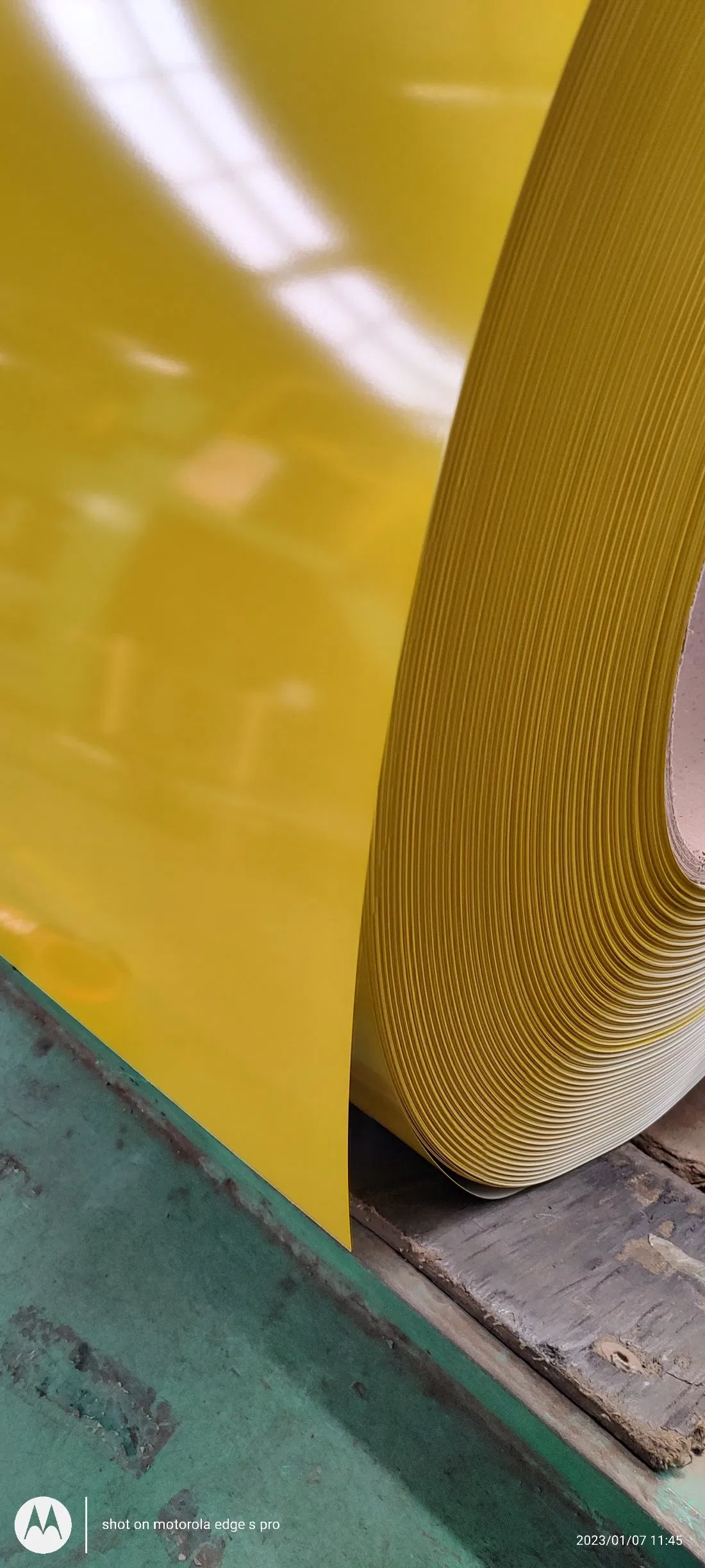

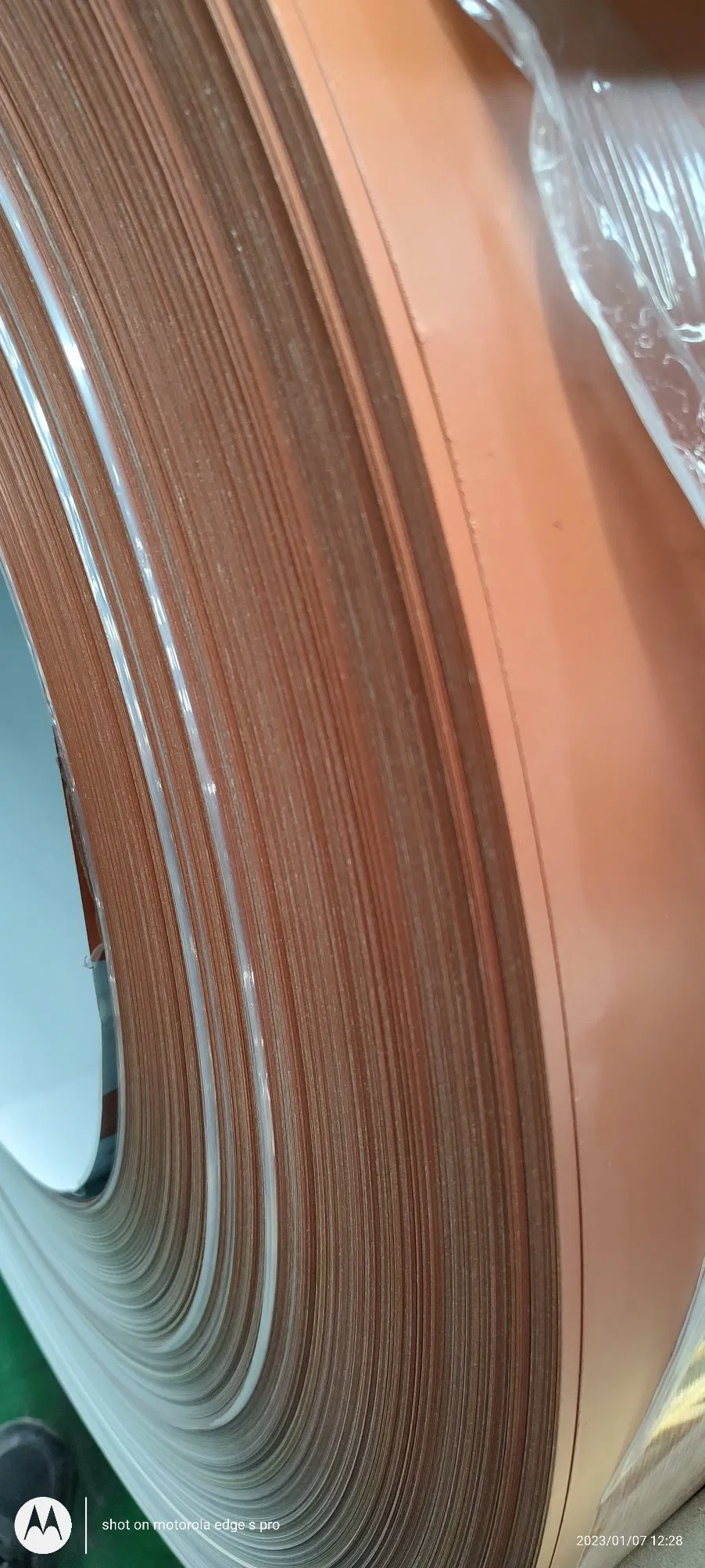

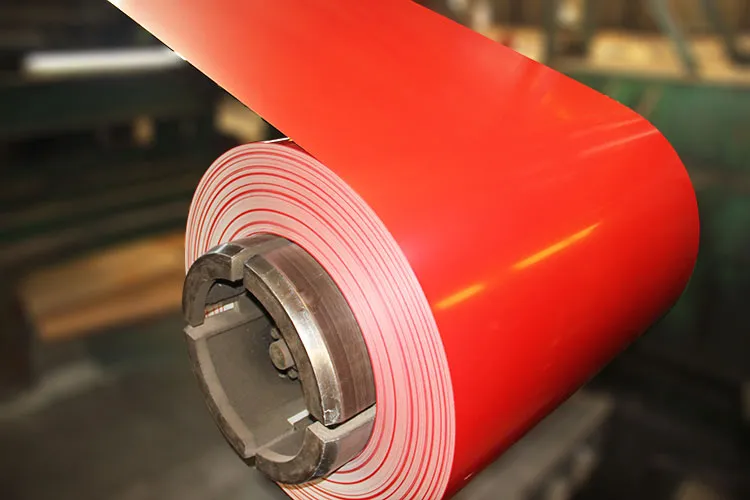

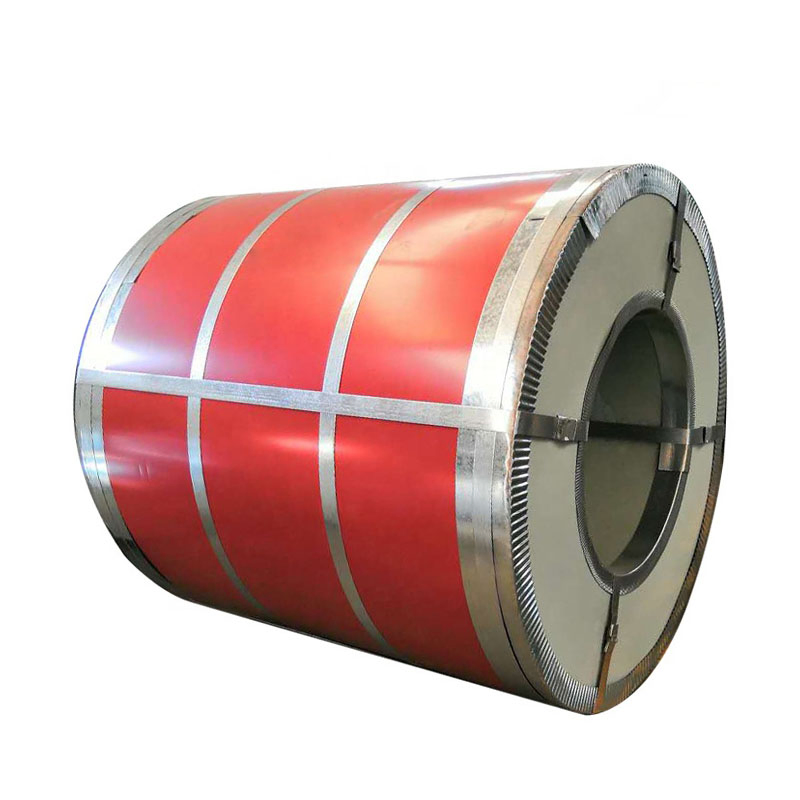

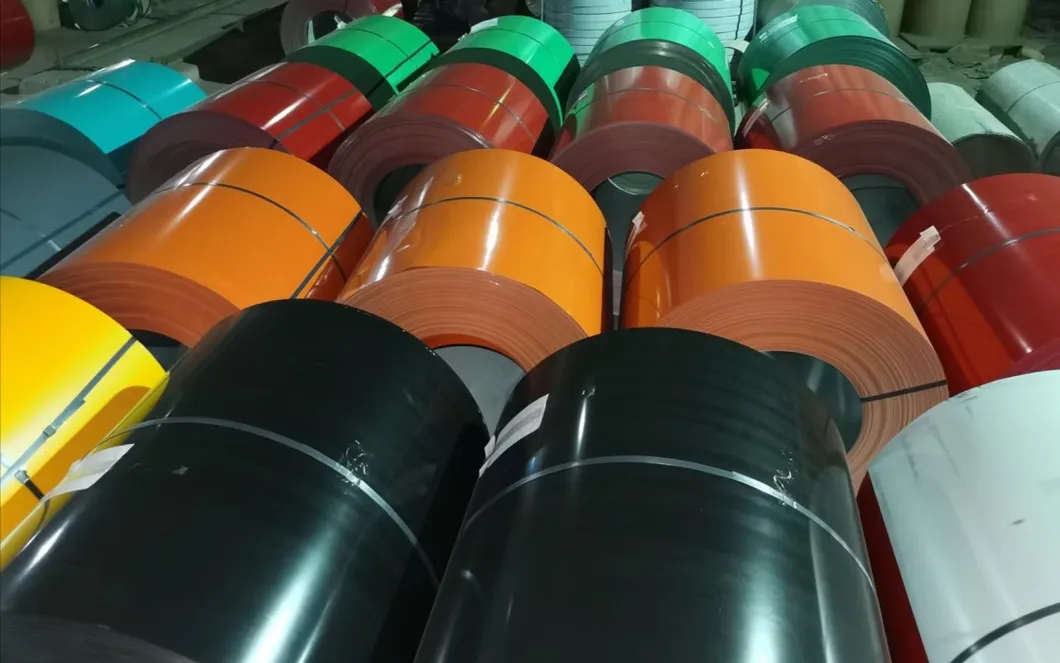

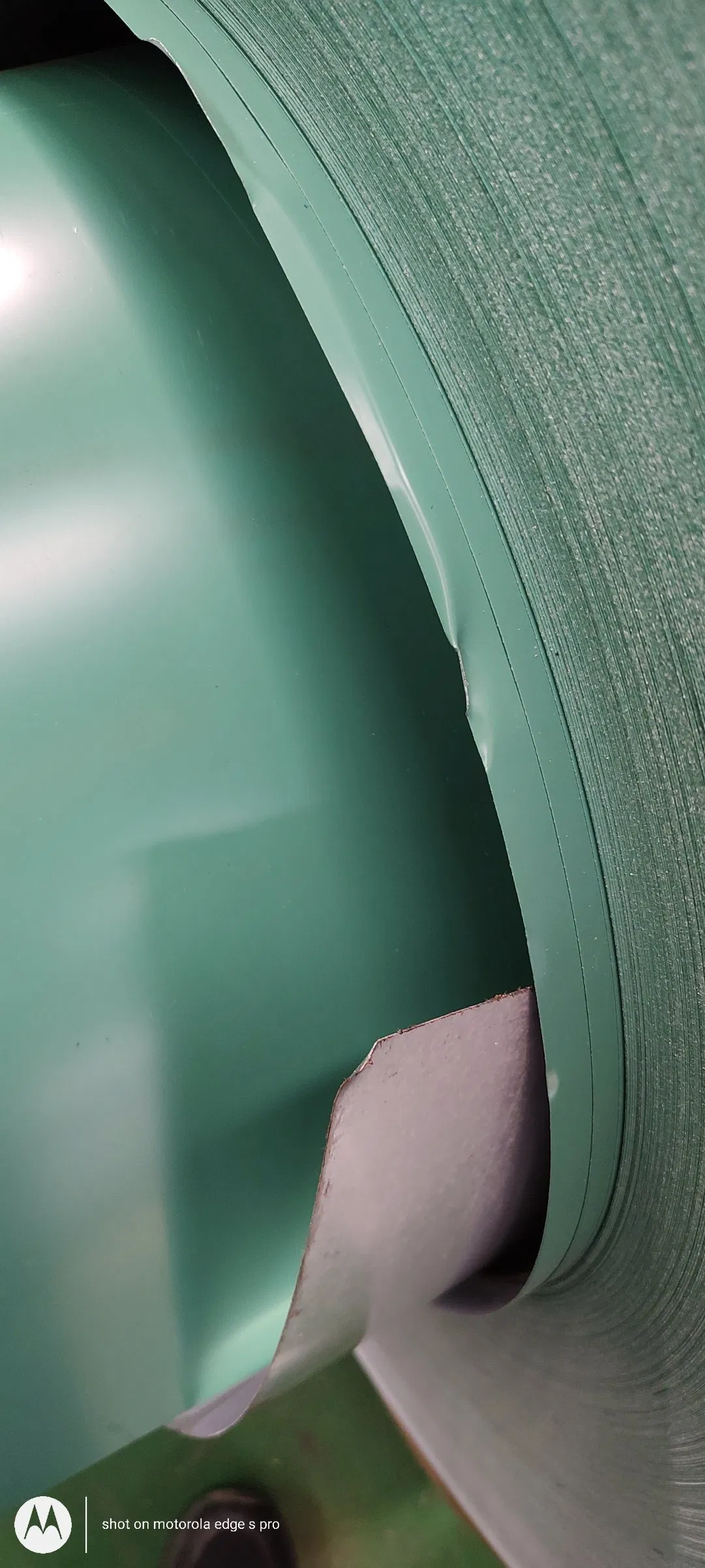

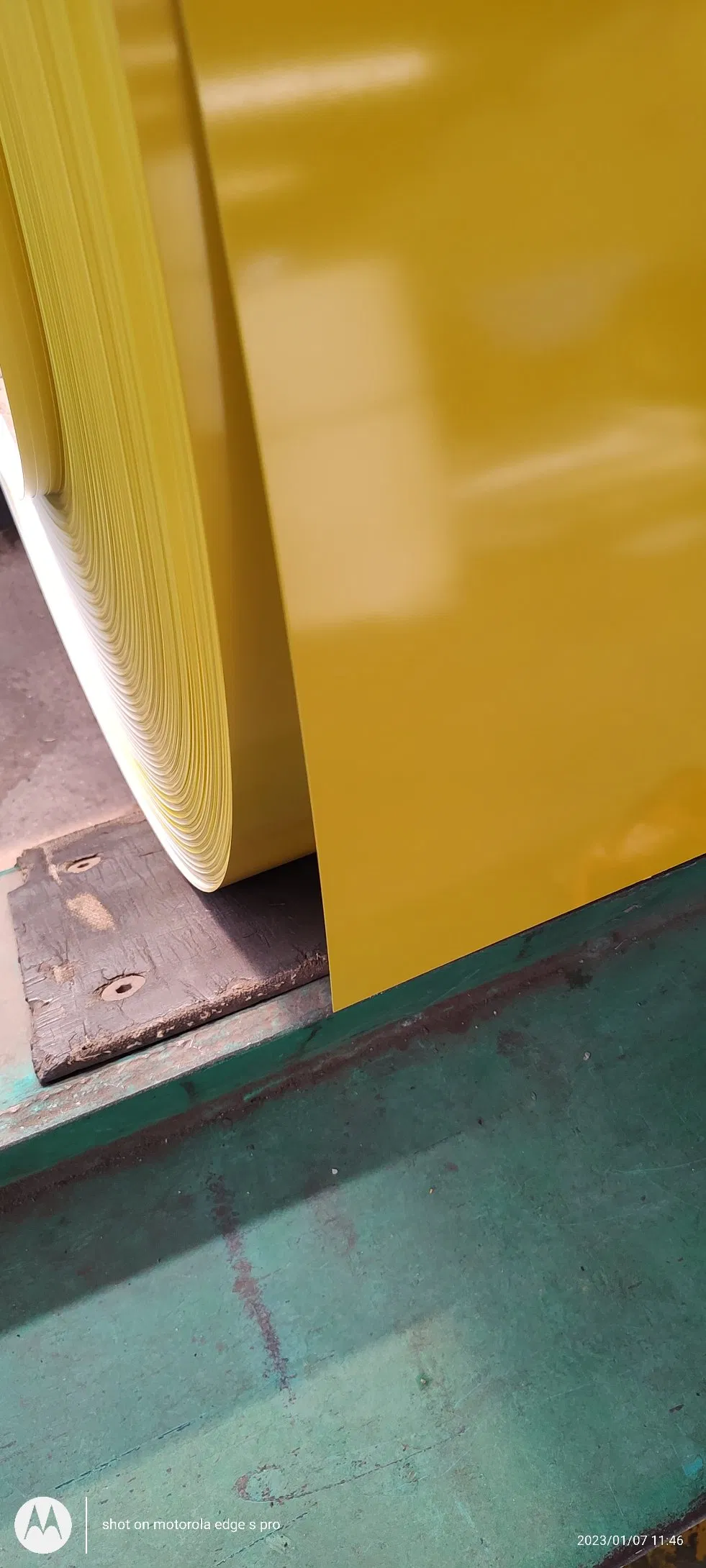

📸 Detailed Photos

📊 Technical Parameters

Product Item	Specification Details
Material	DX51D DX52D DX53D
Zinc Coating	30-275g
Thickness	0.12-3.0 mm
Width	100-1500 mm
Paint Type	PE, SMP, HDP, PVDF
Surface	Glossy and Matt
Hardness	Soft, Hard, Full Hard (G280-G550)

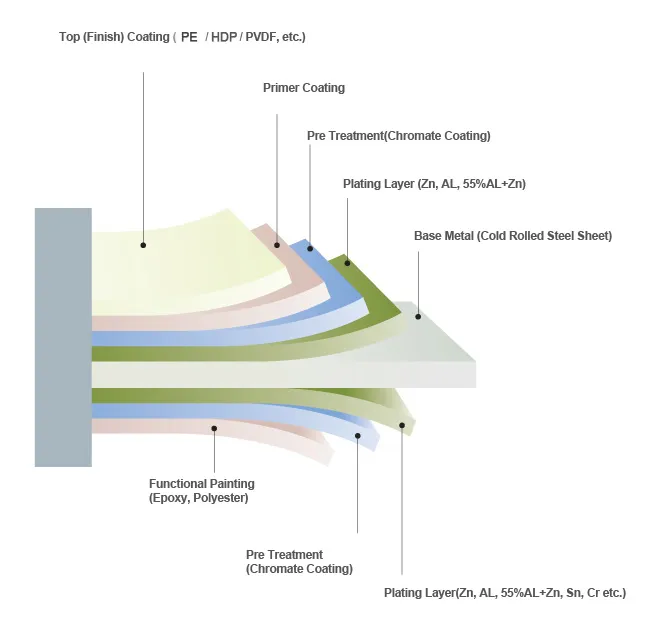

🛠️ Coating Layer Structure

Top (Finish) Coating (PE/HDP/PVDF, etc.)
Primer Coating & Pre Treatment
Base Metal (Cold Rolled Steel Sheet)
Functional Painting (Epoxy, Polyester)

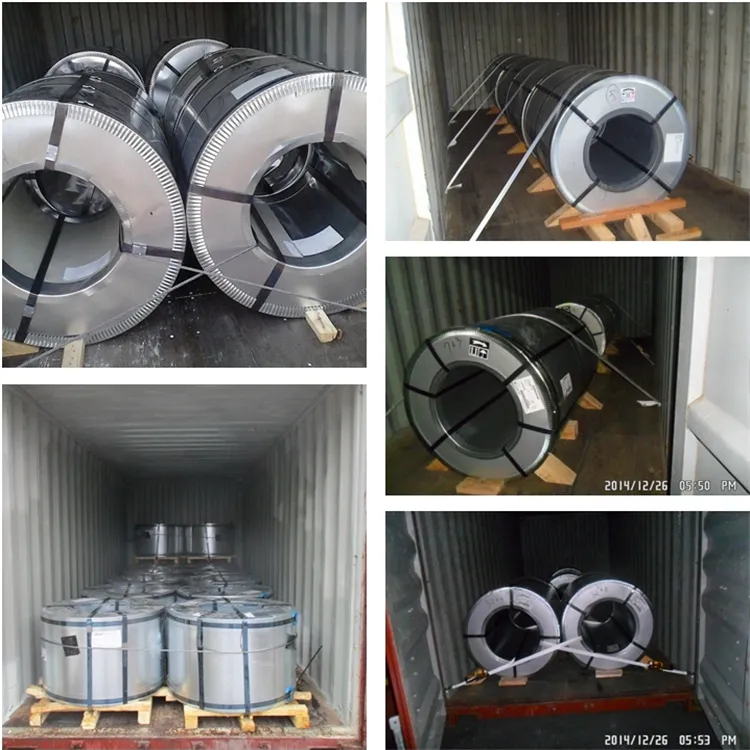

🏆 Quality & Logistics

❓ Frequently Asked Questions

How soon can you make delivery?

Stock items take 2-5 days. Common materials take 7-10 days, while special customized orders usually require 15-20 days for shipment.

Can you provide samples?

Yes, we provide free samples for inspection, though transportation costs are covered by the customer.

What are the payment terms?

We typically accept T/T and L/C, with a 30% deposit and 70% balance payment.

What shipping methods do you use?

Samples are sent via DHL/UPS/FedEx. Mass production orders are primarily shipped via sea freight, with air and rail options also available.

Do you accept customization?

Yes, thickness, coating type, colors, and patterns can all be customized to your specific requirements.

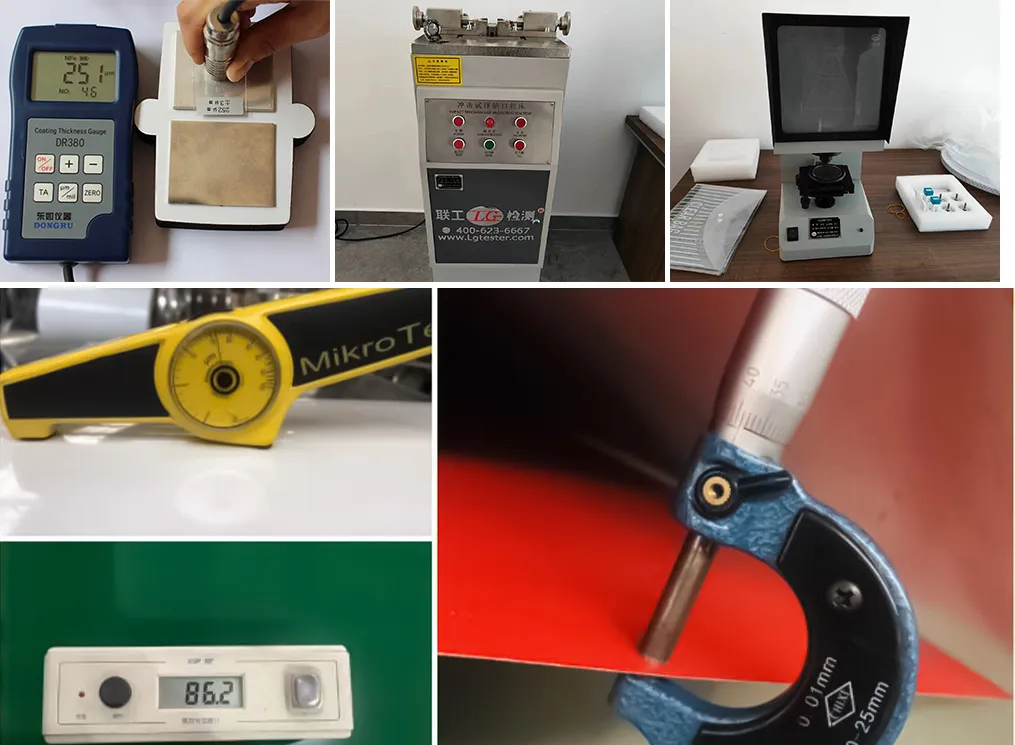

How is product quality ensured?

A Mill Test Certificate is supplied with every shipment. We also welcome third-party inspections from organizations like SGS.
