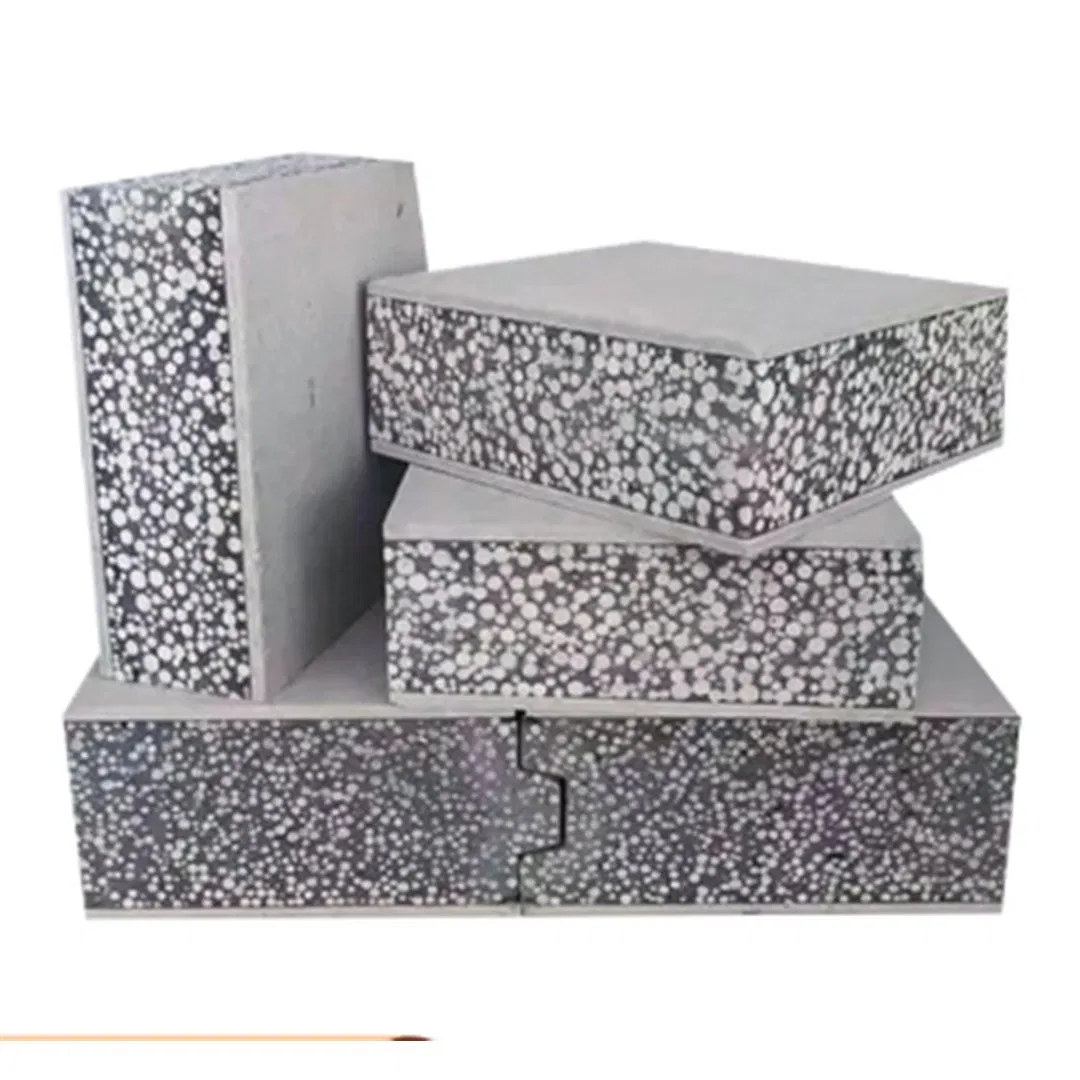

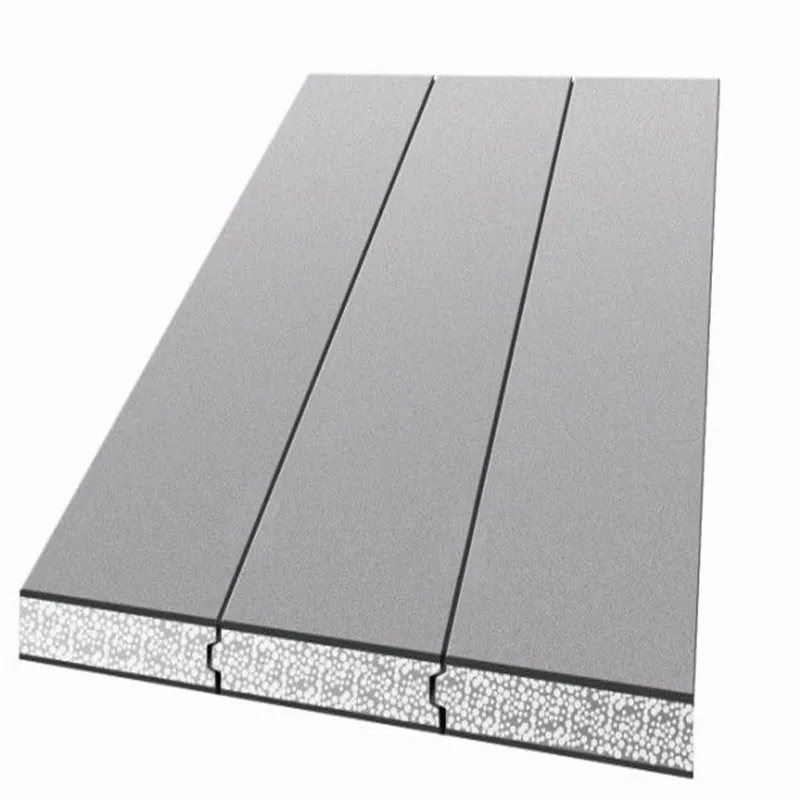

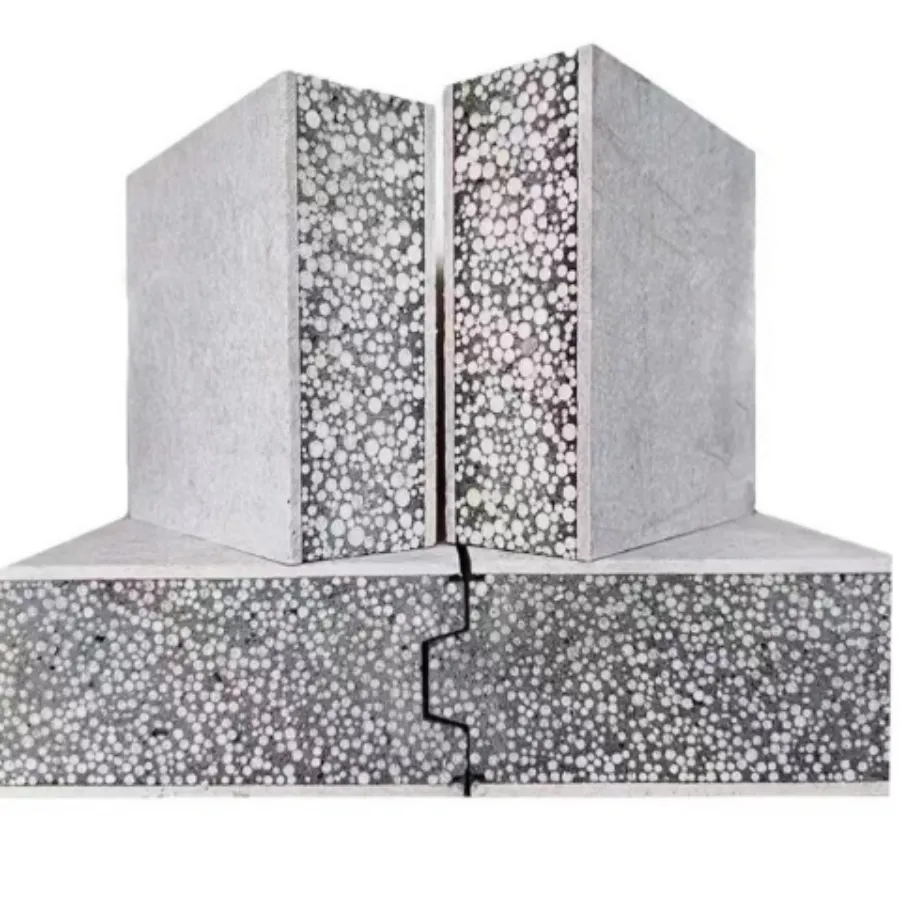

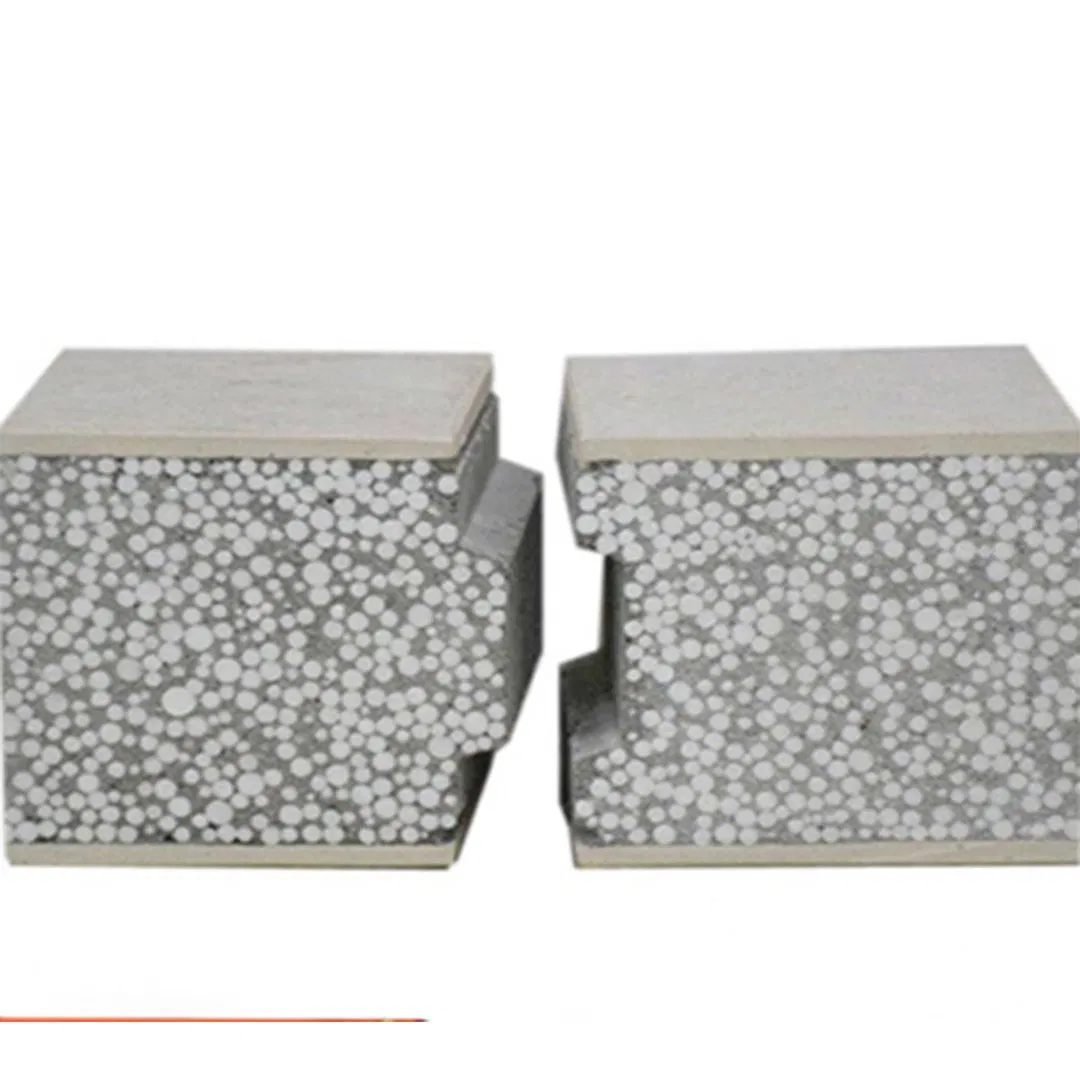

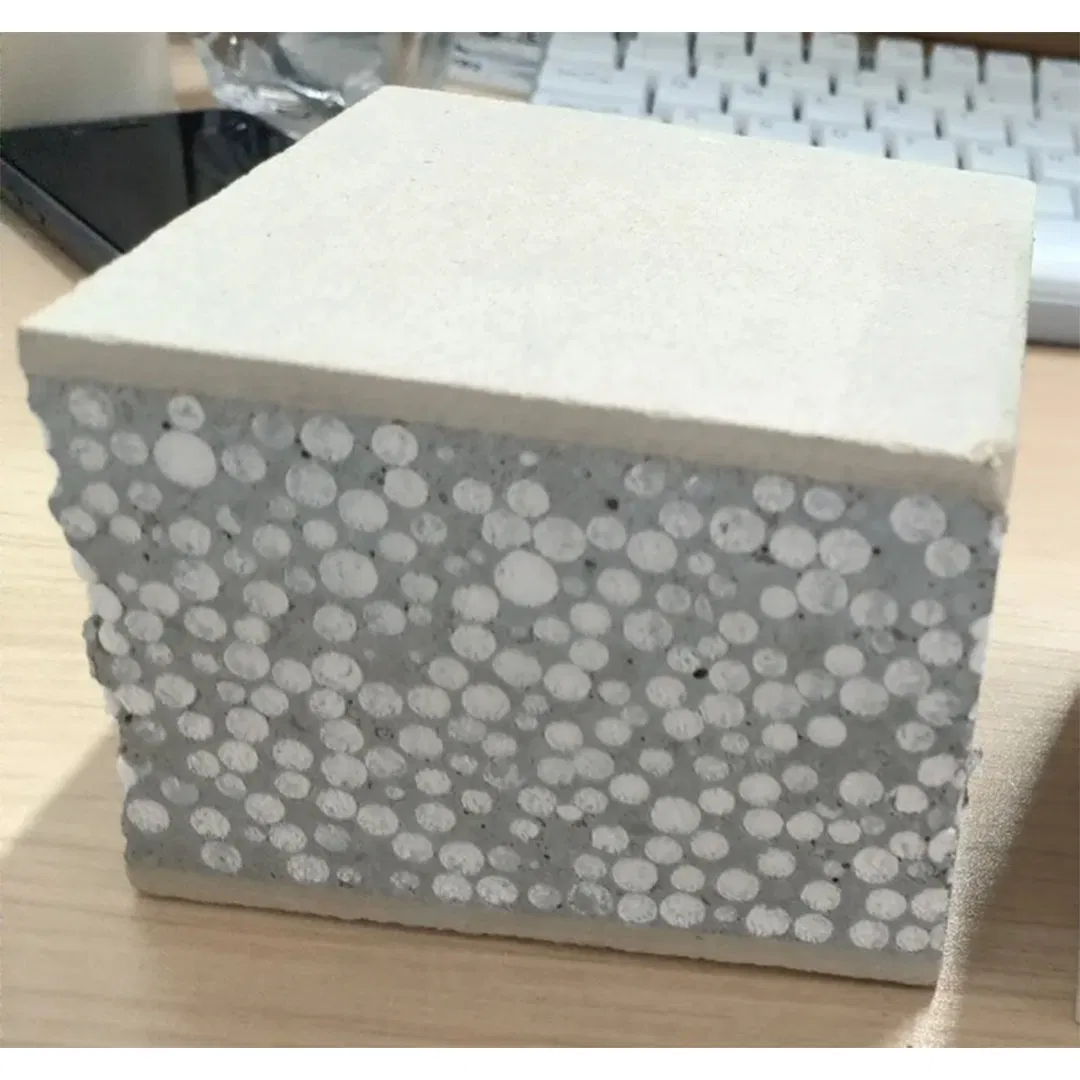

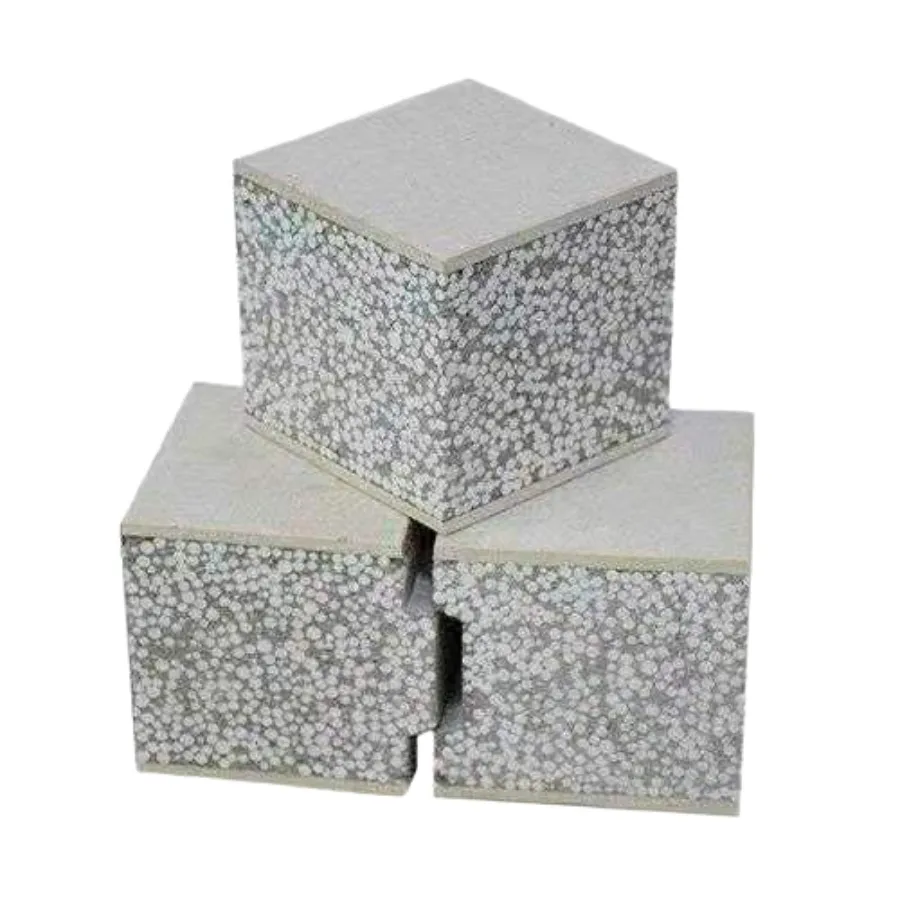

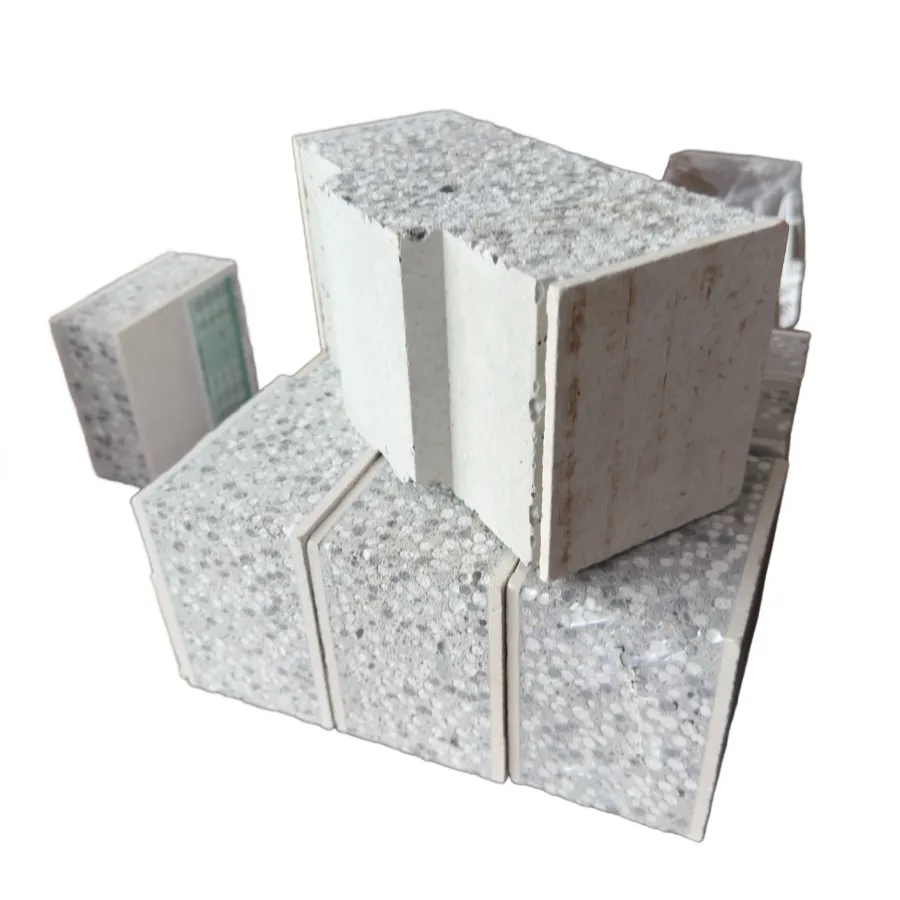

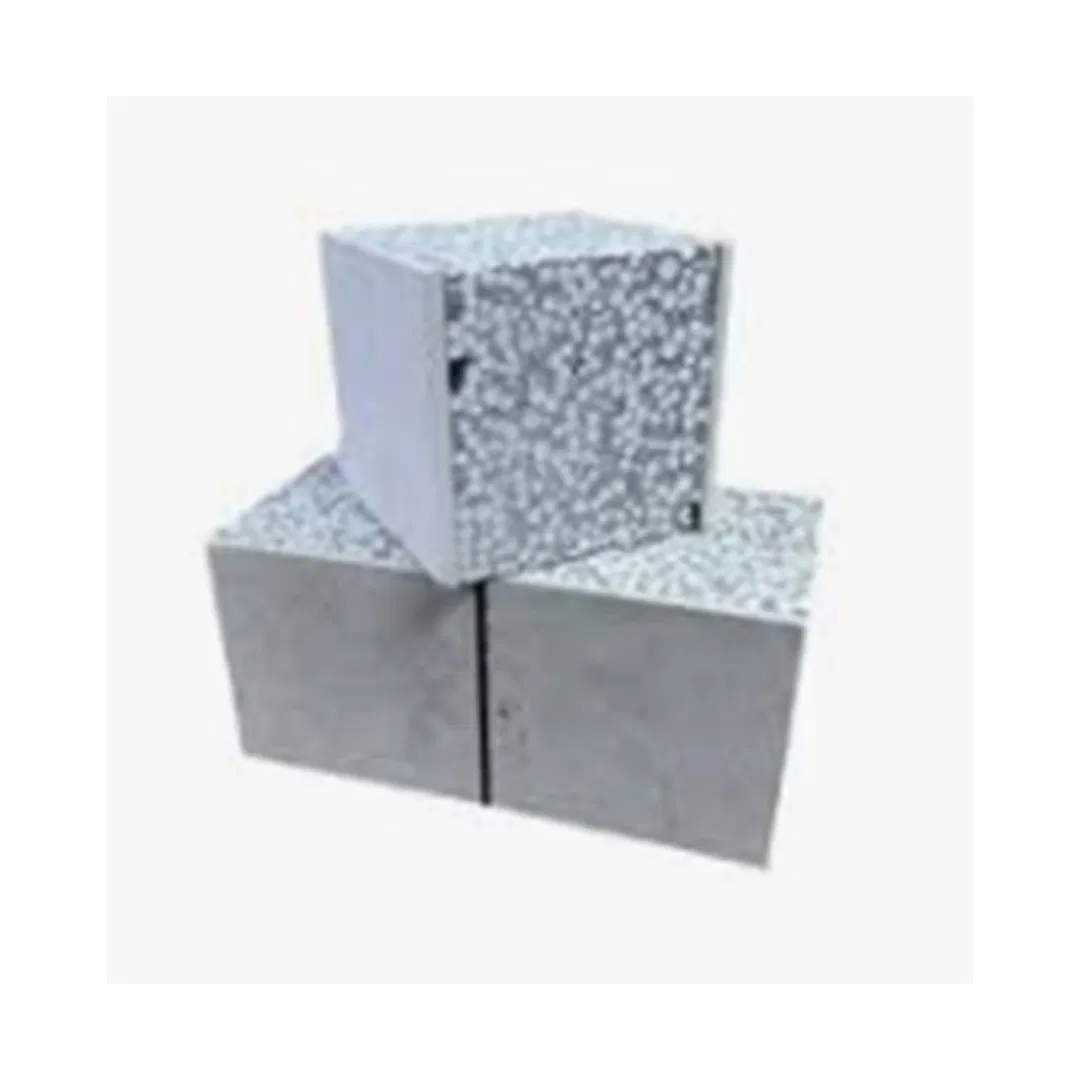

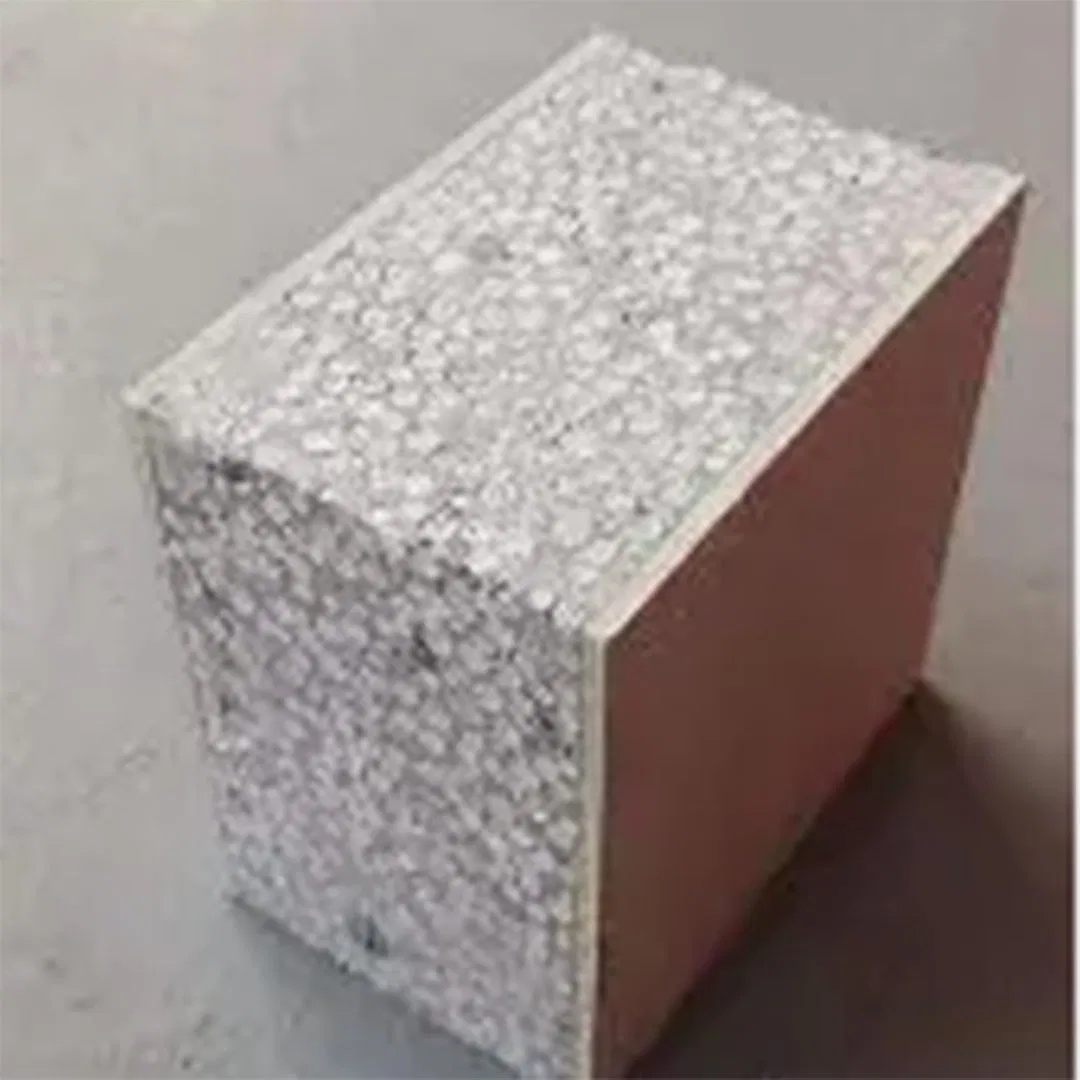

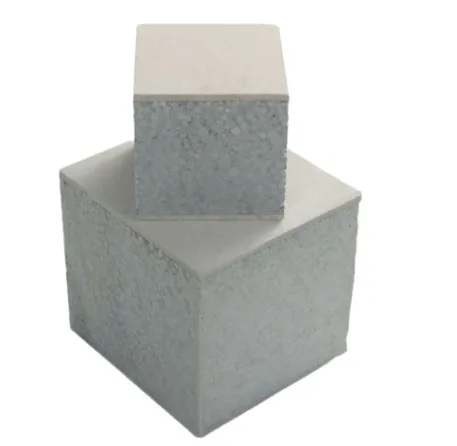

EPS Cement Sandwich Panel is a high-performance prefabricated building material composed of fiber-reinforced cement boards and an Expanded Polystyrene (EPS) foam core. This revolutionary material is ideal for modern, sustainable, and cost-effective construction projects.
| Parameter | Value / Description | Testing Standard |
|---|---|---|
| Panel Thickness | 50mm - 200mm (customizable) | ASTM C1289 |
| Thermal Conductivity | 0.033-0.038 W/(m·K) | ASTM C518 |
| Fire Rating | Class A (Non-combustible) | EN 13501-1 |
| Sound Insulation | 40-45 dB (for 100mm panel) | ISO 10140 |
| Density (EPS Core) | 18-30 kg/m³ | ASTM D1622 |
| Feature | EPS Sandwich Panel | Brick Wall | Concrete Panel |
|---|---|---|---|
| Weight (kg/m²) | 15-25 | 180-220 | 200-250 |
| Installation Time | 1-2 days per house | 2-4 weeks | 3-6 weeks |
| Cost Efficiency | 30% cheaper | High labor cost | High material cost |

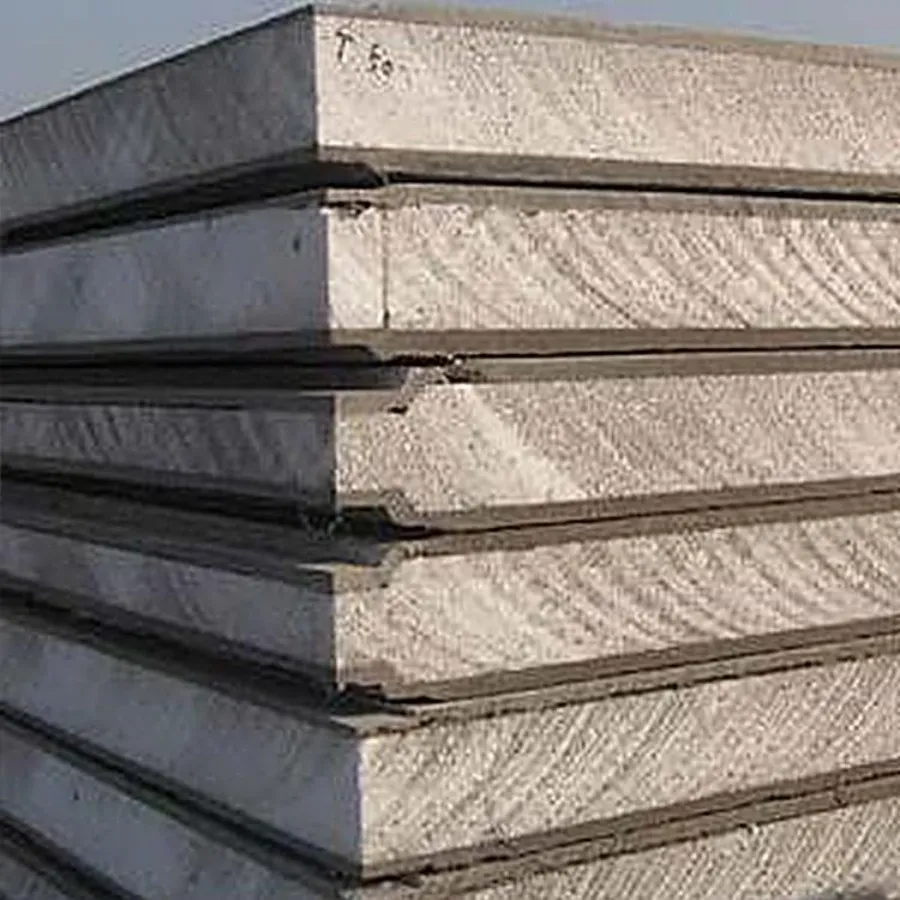

1. Foundation Preparation - Ensure a level base.
2. Panel Alignment - Use laser level for precision.
3. Mechanical Fixing - Screws/anchors every 400mm.
4. Joint Treatment - Seal with elastic mortar.
Our facility covers 20,000 square meters with an annual production capacity exceeding 1 million square meters of lightweight energy-saving composite wall panels. We are ISO-certified and provide comprehensive wall system solutions.
