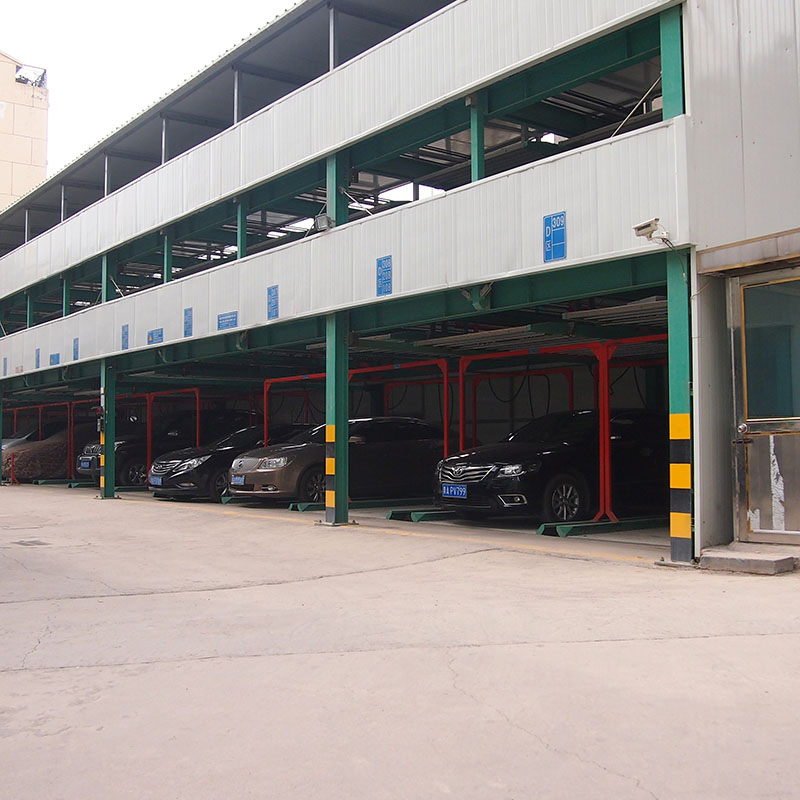

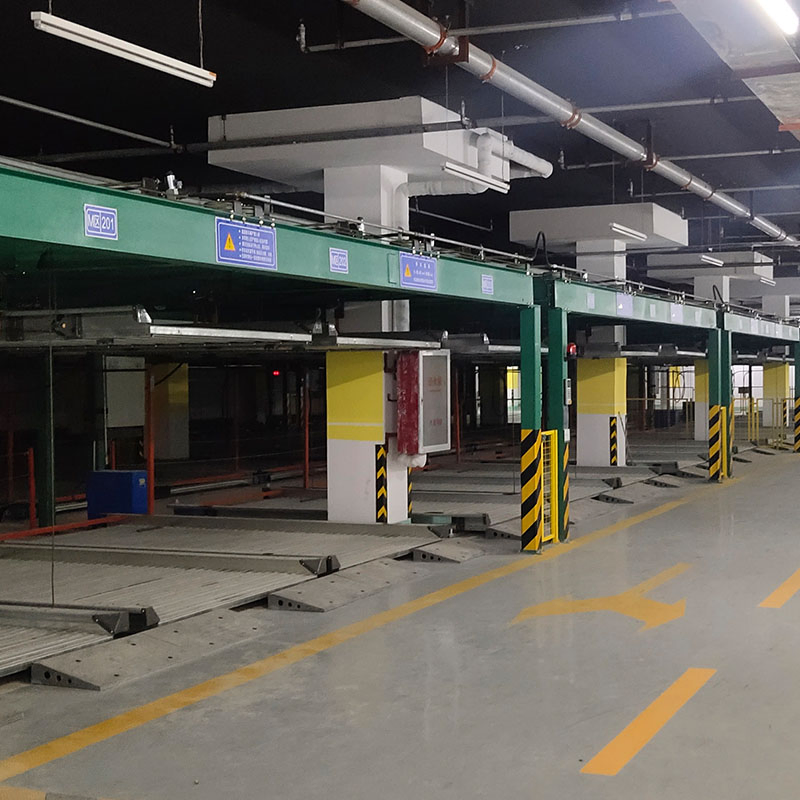

The semi-automatic puzzle parking system can be arranged in multiple columns. Each control unit has a ground-floor empty parking space serving as an exchange space. Ground-level parking spaces allow for direct vehicle access. When accessing upper-level parking spaces, all ground-level parking spaces between the one directly below the target parking space and the empty parking space will move horizontally toward the empty space by one parking space width, thus creating a lifting channel beneath the target parking space.

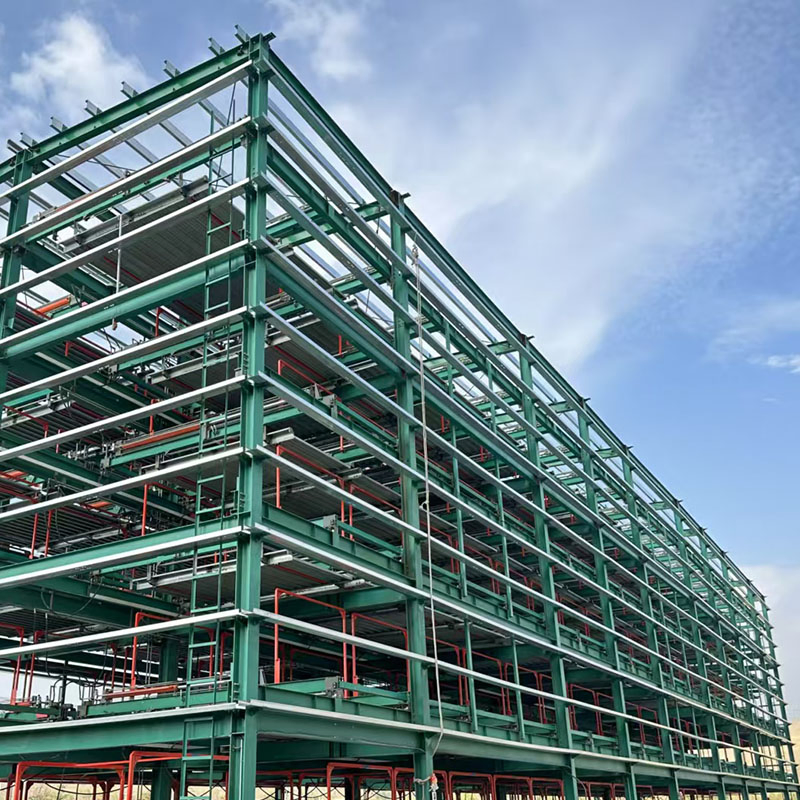

This equipment is primarily composed of a steel frame structure, vehicle platforms, vertical drive system, horizontal drive system, and advanced safety protection systems. It is suitable for underground spaces or any open ground areas.
| Item | Specification |
|---|---|
| Vehicle Dimensions (mm) | Sedan: 5300×1900×1550 | SUV: 5300×1900×2050 |
| Vehicle Weight (kg) | 2,350 - 3,000 |
| Lifting Speed (m/min) | 4.5–10 m/min |
| Retrieval Time | Max. 40 seconds |
| Operational Noise | <65 dB |
| Operation Mode | Mobile App, IC Card & Keypad |

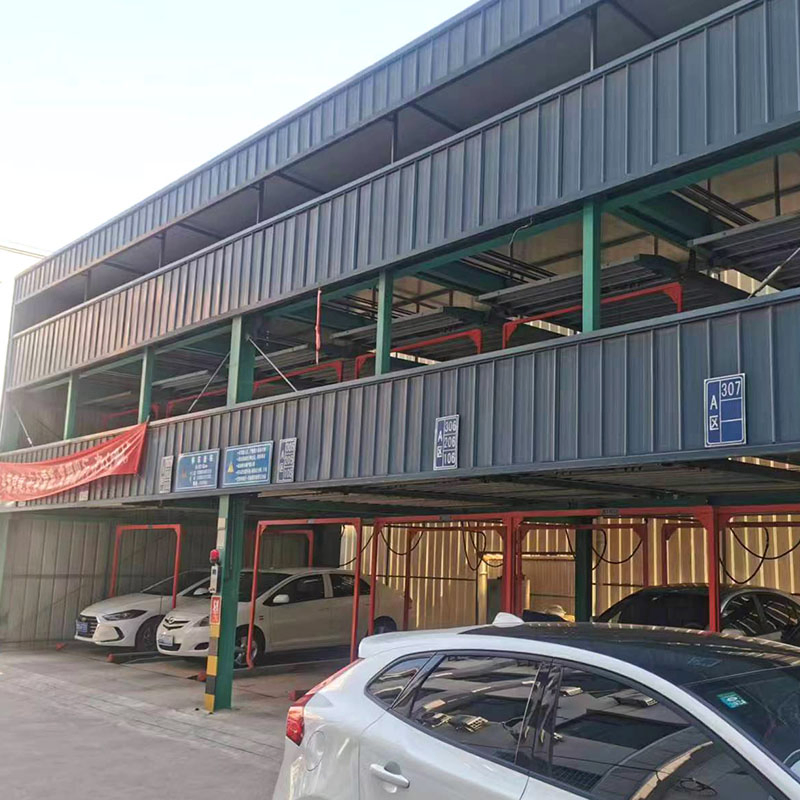

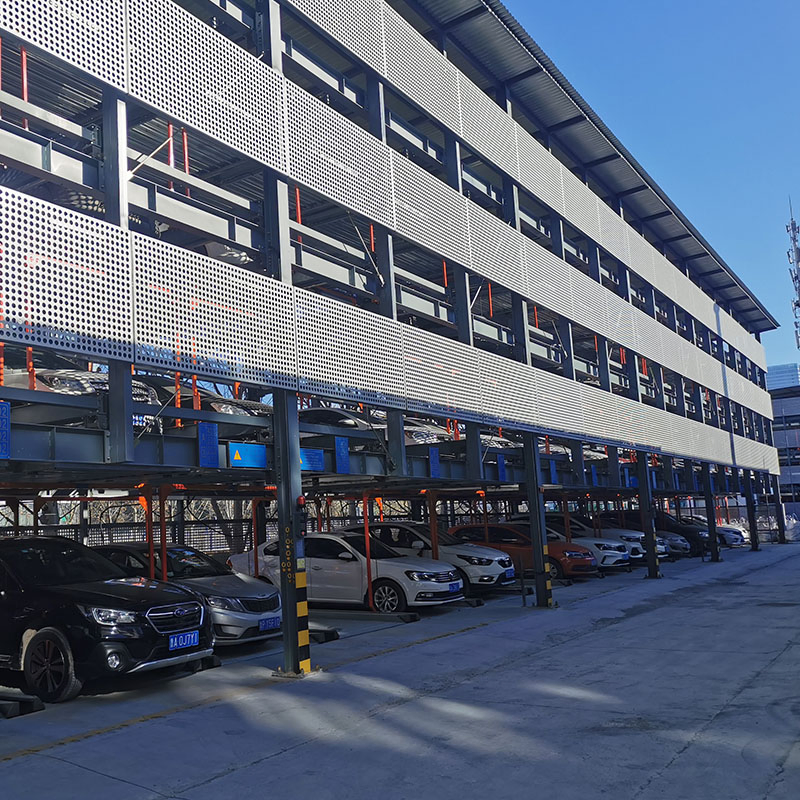

| Surface Treatment | Shot blasting + zinc spraying + paint coating |
| Safety Features | Anti-slip Surface, Emergency Stop, Overload Protection, Sensors |
Anti-fall locking devices and 8-degree seismic rating.

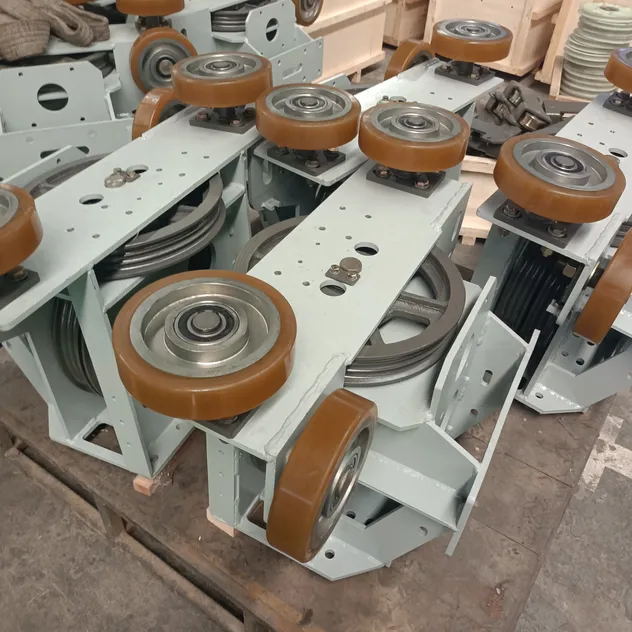

High-speed motor with steel wire rope lifting system.
PLC control system with App and card access support.

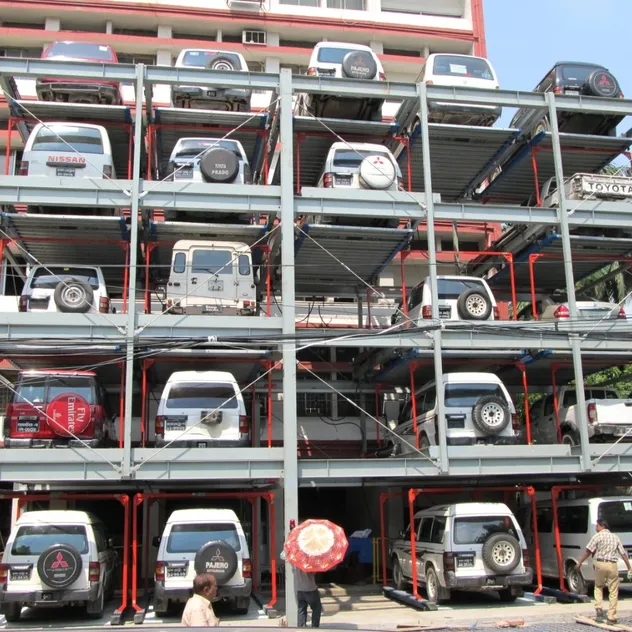

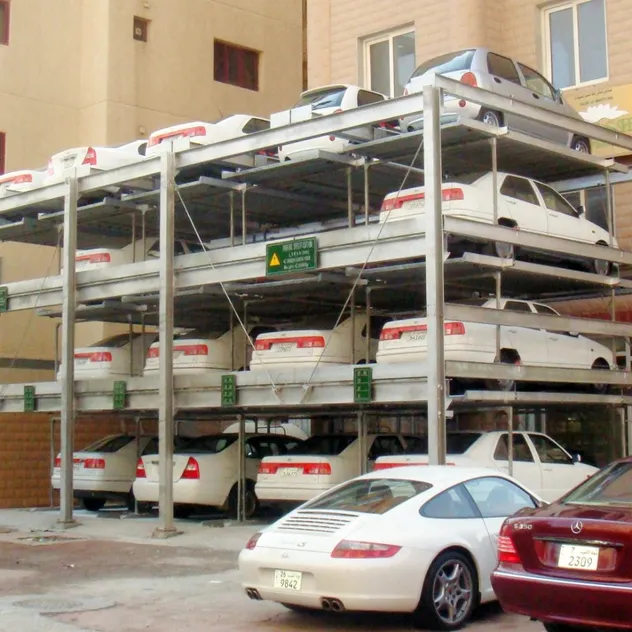

Our parking solutions have been successfully implemented in various countries including the United States, Kuwait, Vietnam, and Bangladesh, serving residential, commercial, and public parking needs.
