Home > Waterproof & Wind Pressure Performance > Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector

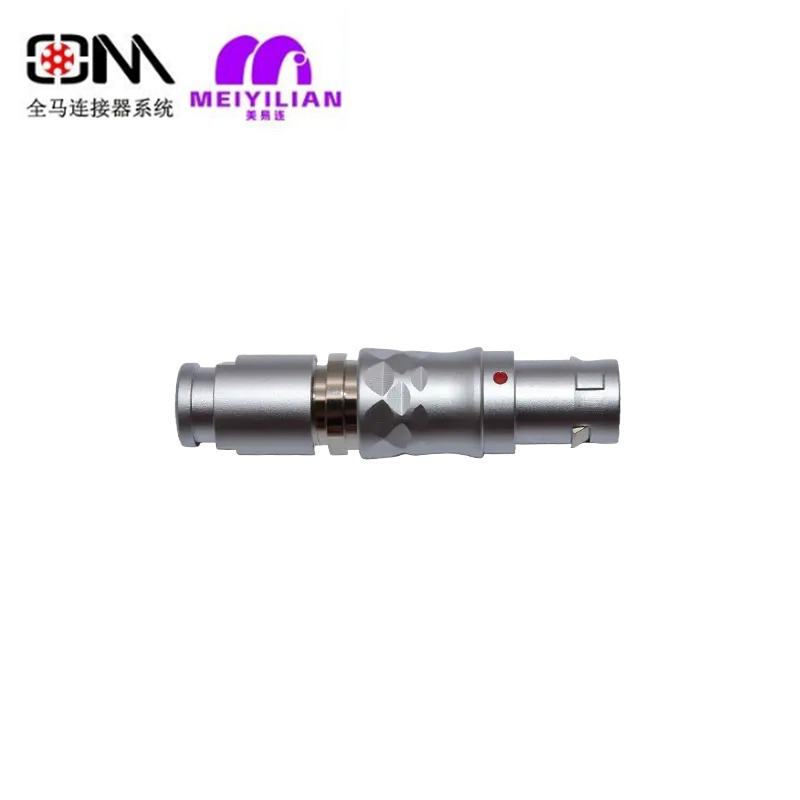

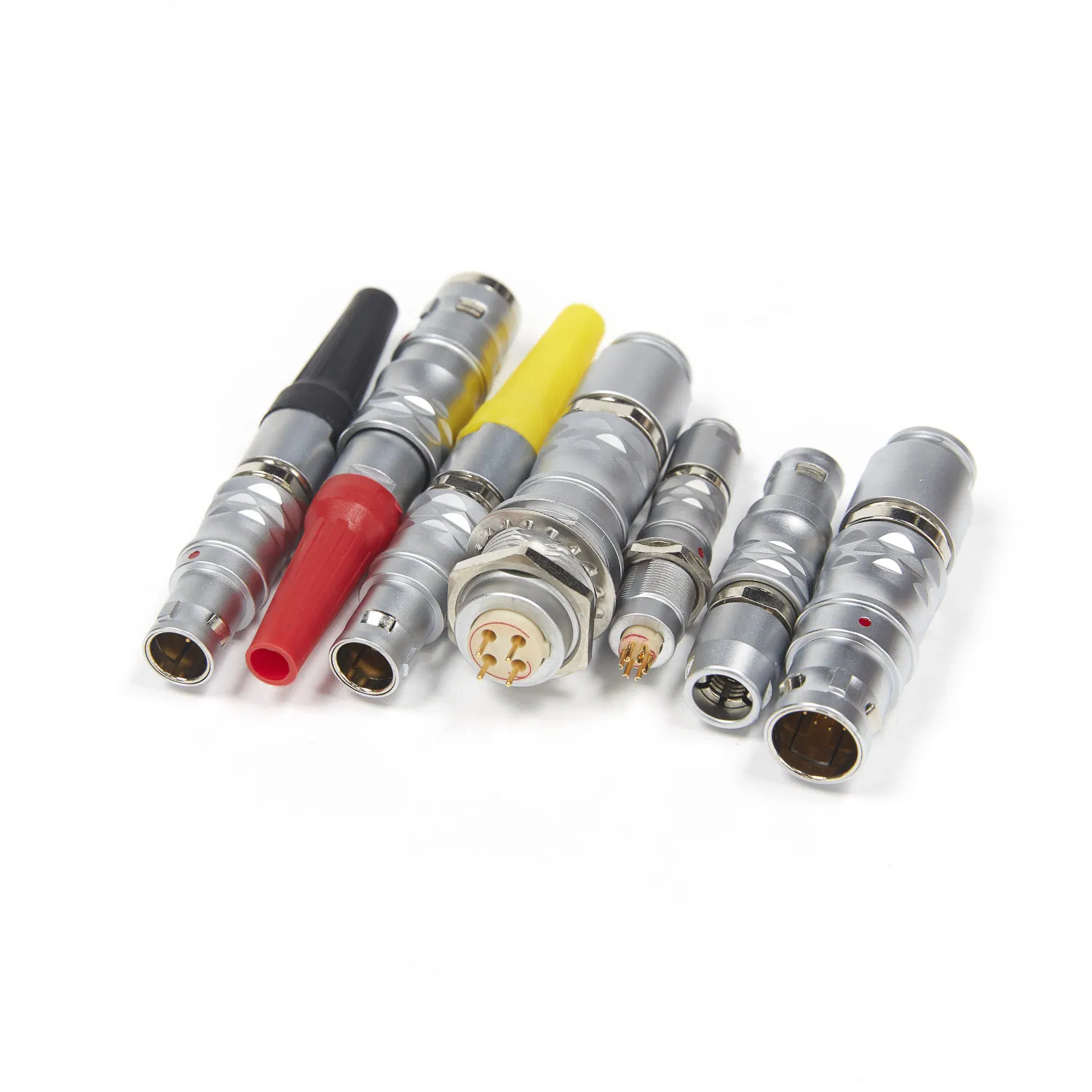

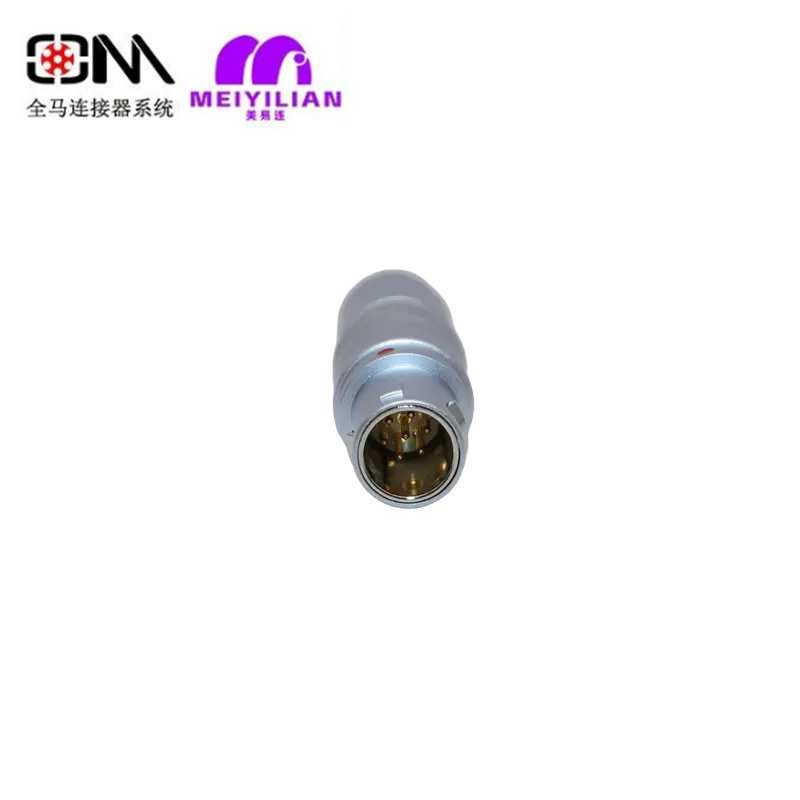

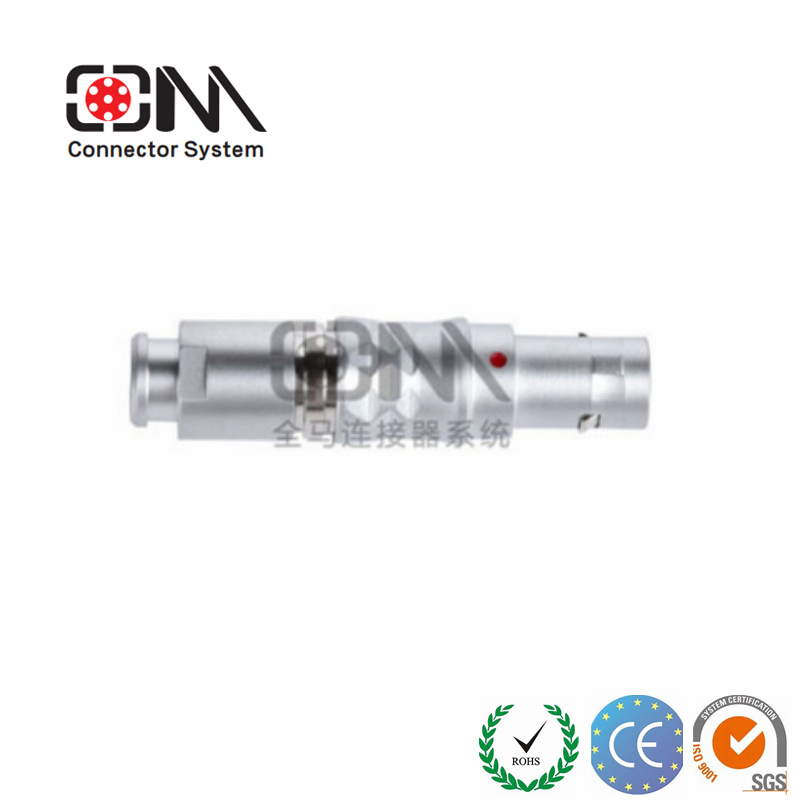

Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
1 / 5
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector
Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector

Qm B Serie Tgg Circular Push Pull Waterproof M12 RJ45 AC/DC Metal Aerial Electrical Connector

Customization: Available
Interface Type: AC/DC
Operating Frequency: Low Frequency
Send Inquiry

Product Description

📌 Basic Information
Model NO.:TGG. 1B. 307. CLAD52Z
Gender:Male
Certification:RoHS, CE, ISO9001
Application:Automobile
Protection:IP50
Contact:2-30 Multi Pin
Material:Copper Alloy
Mating:>5000 Times
🔍 Product Description

TGG plug: B series push-pull self-latching connector with fast separation, simple and convenient, firm and reliable characteristics.

  • Tail cap with sheath
  • With cable clamp
  • Multiple positioning pin options avoid mixing between similar connectors
📸 Detailed Photos
Push Pull Connector 1

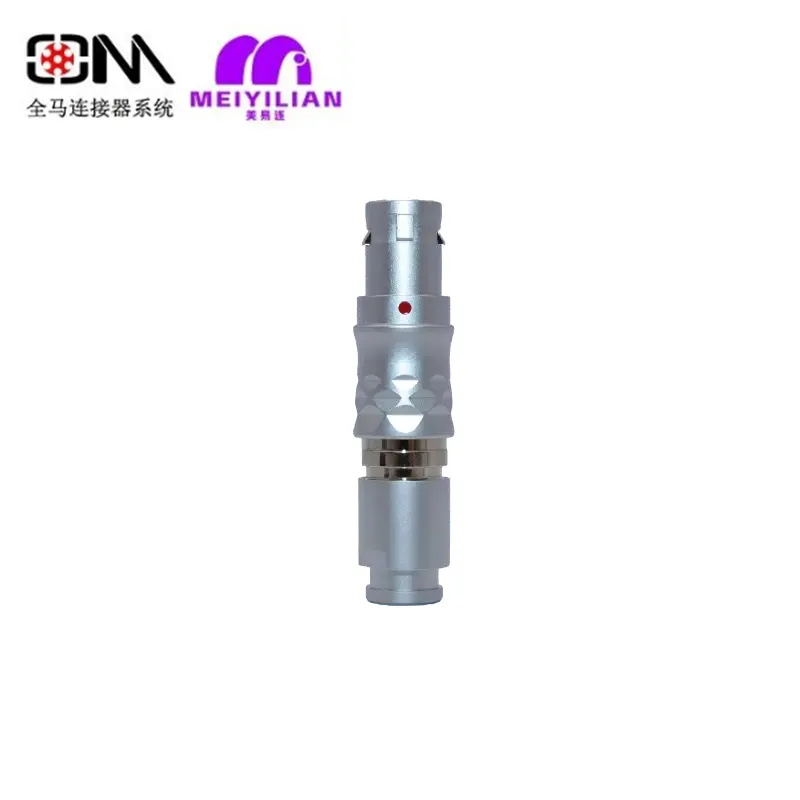

Push Pull Connector 2
Push Pull Connector 3

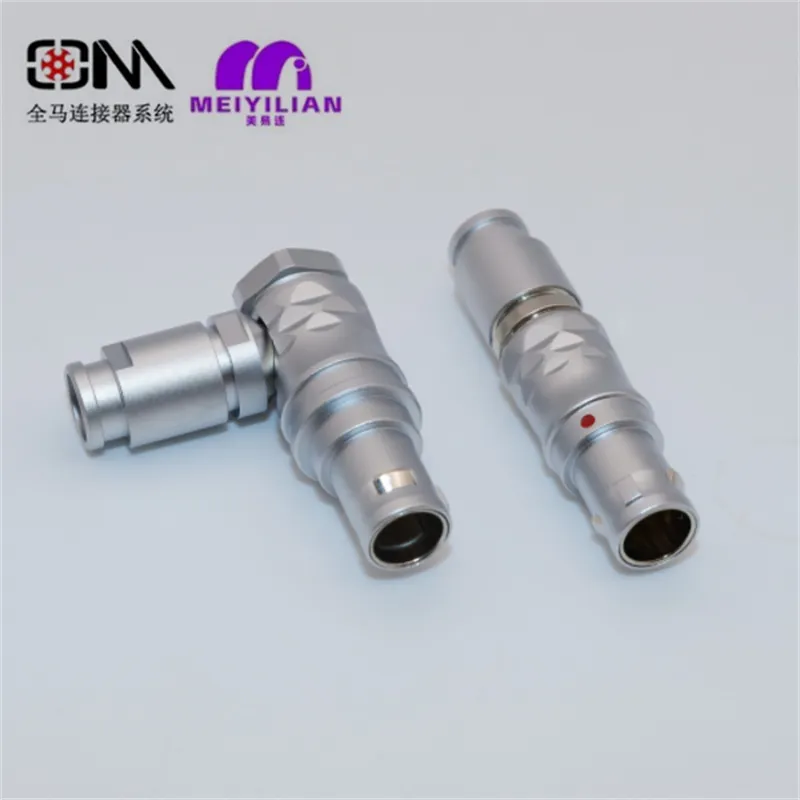

Push Pull Connector 4

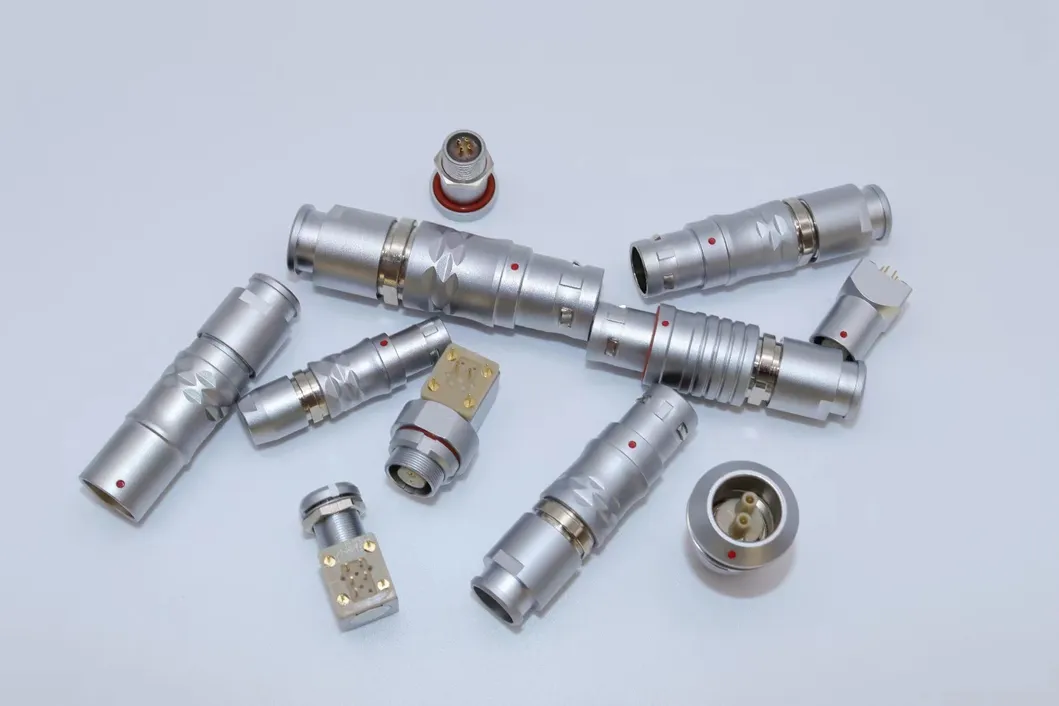

Push Pull Connector 5
⚙️ Key Features
  • Fast push-pull self-latching system
  • Welding, crimping, and PCB(Printed Circuit Board) pin core
  • Straight type, 90° angle type available
  • All-round shielding effect against electromagnetic interference
  • 2-40 multi-cores high-density installation to save space
📊 Specifications
Parameter Standard Value
Number of inserts>5000
HumidityMax 95% at 60ºC
Temperature Range-55ºC ~ +250ºC
Vibration10-20000Hz, 15g
Mechanical Shock100g.6ms
Salt Spray Test>96h
Protection LevelIP50
📐 Model Selection & Dimensions

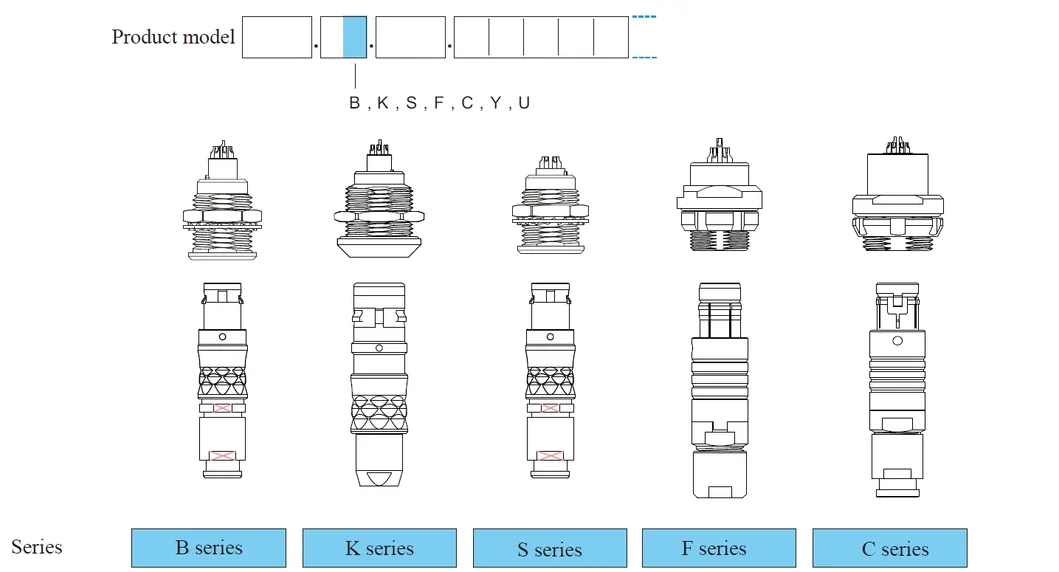

How to choose model
SeriesModelA (mm)L (mm)M (mm)S1 (mm)S2 (mm)
00BTGG6.436.528.55.56.0
0BTGG9.535.525.08.07.0
1BTGG12.042.031.010.09.0
2BTGG15.049.037.013.013.0
3BTGG18.056.542.015.015.0

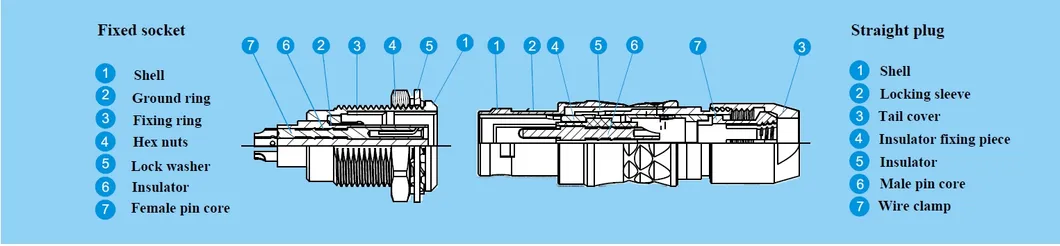

Dimension Diagram 1

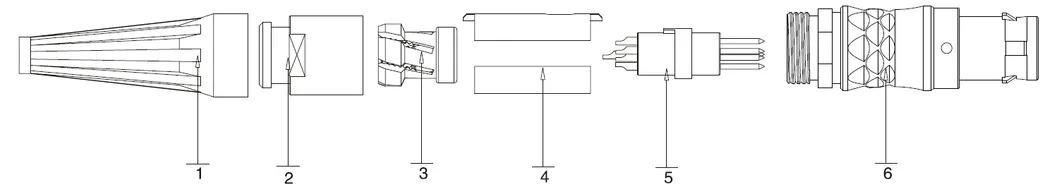

Dimension Diagram 2
❓ Frequently Asked Questions
Q1: Are you a professional manufacturer? Yes, we are a professional manufacturer of push-pull connectors with specialized sales and production facilities.
Q2: What is the typical lead time for an order? Normally, orders are delivered within 7-12 working days after placement.
Q3: Is this connector compatible with other major brands? Yes, the B series is designed to be fully compatible with LEMOS connectors.
Q4: In which industries can these connectors be used? They are widely used in medical, measurement, audio-video, navigation, industrial control, and automotive fields.
Q5: Do you provide samples for testing? Yes, we can provide samples and technical support to help solve your connection requirements.
Q6: What certifications do your products hold? Our products are certified with CE, ISO9001, ROHS, and SGS standards.
