Rubber Coated Metal Material NBR & FKM Coating Ss

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Surface TreatmentCoated

TechniqueCold Rolled

ApplicationEngine Cylinder Gasket

EdgeSlit edge

MOQ1 Tons

Steel Thickness0.2-0.8mm

Coating Thickness0.02-0.12mm

Coating MaterialFKM, NBR, NBR Foam

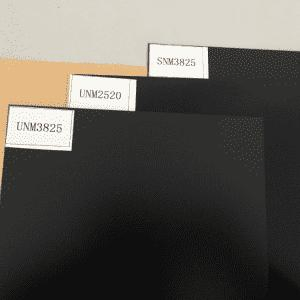

SampleFree A4 Samples

Capacity10000tons/Month

Product Description

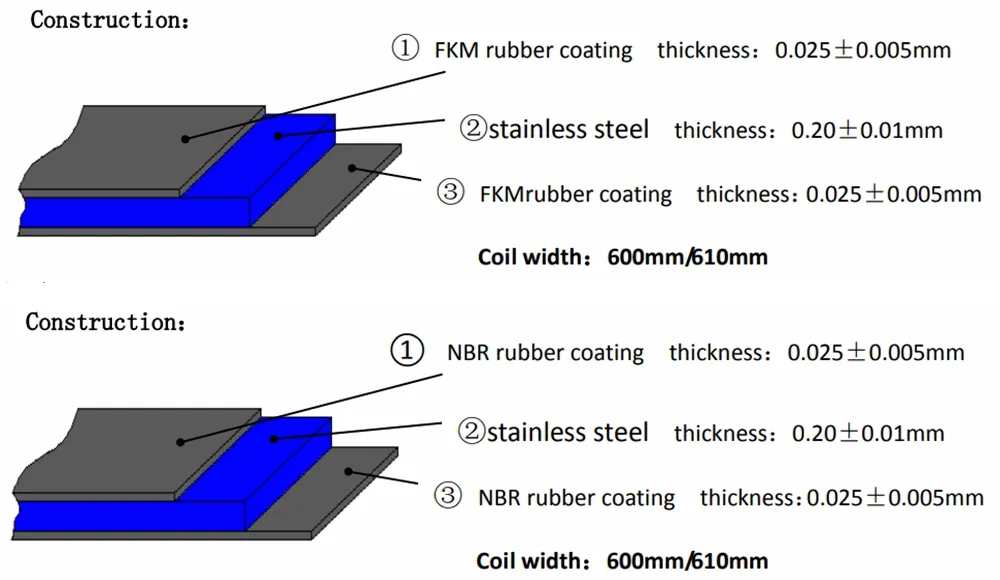

Product Dimension: Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.12mm single and double-side rubber coated metal roll material can meet the requirement of different customers.

Key Characteristics

Excellent high and low temperature resistance (-20ºC to 120ºC for NBR, -40ºC to 290ºC for FKM).
Superior sealability suitable for both gas and fluid applications.
High mechanical performance with tensile strength up to 100MPa.
Outstanding recovery and stress relaxation performance.
Resistant to mechanical oil, antifreeze, and various coolants.
Fine processing properties for continuous automatic production.

Advanced Production & Quality Control

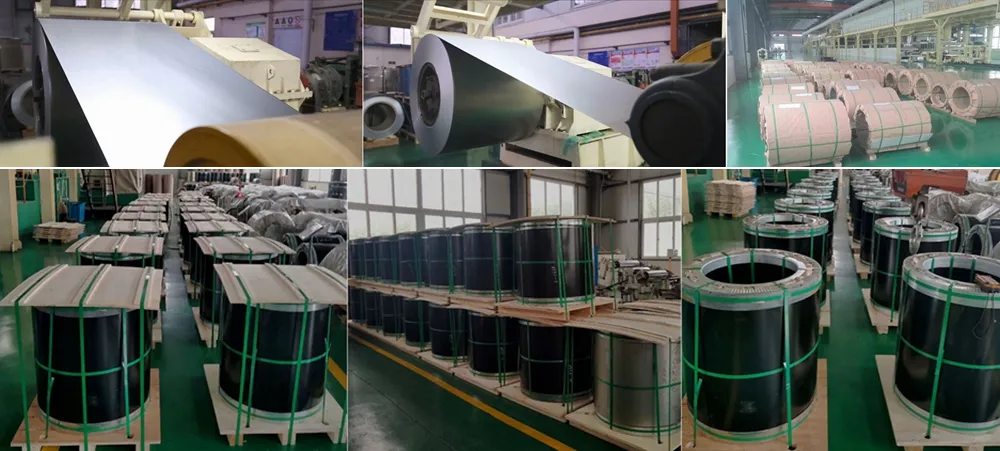

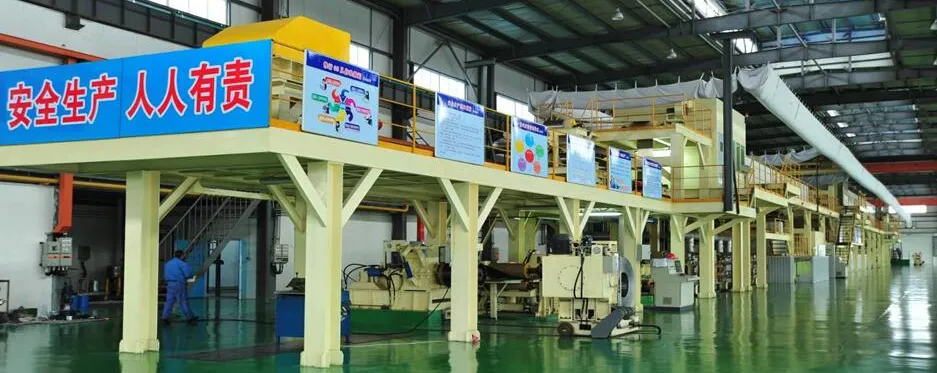

Utilizing the first NBR & FKM coating steel coil production line in China with key equipment from France, Germany, and Japan. Our facility ensures premium quality and short lead times through state-of-the-art automatic lines.

Control Phase	Activities
Pre-control	Market research, R&D, Raw material procurement, Technological prep.
In Process Control	Manufacturing control, Equipment monitoring, Environment control.
Post-action Control	Finished product inspection, Quality disposal, User feedback.

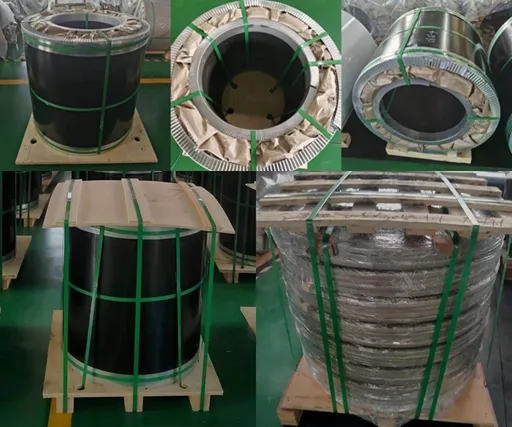

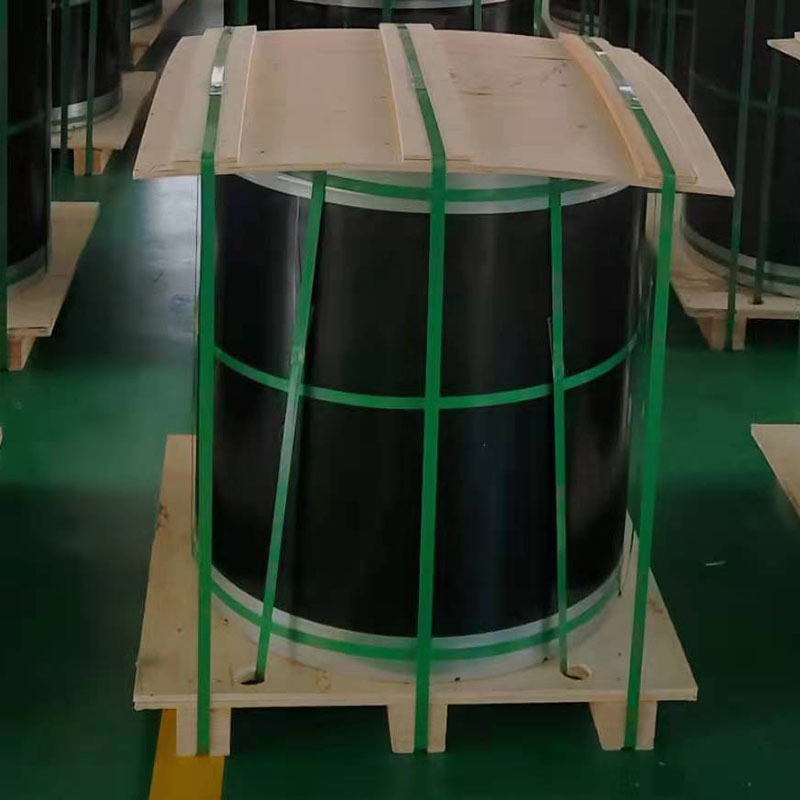

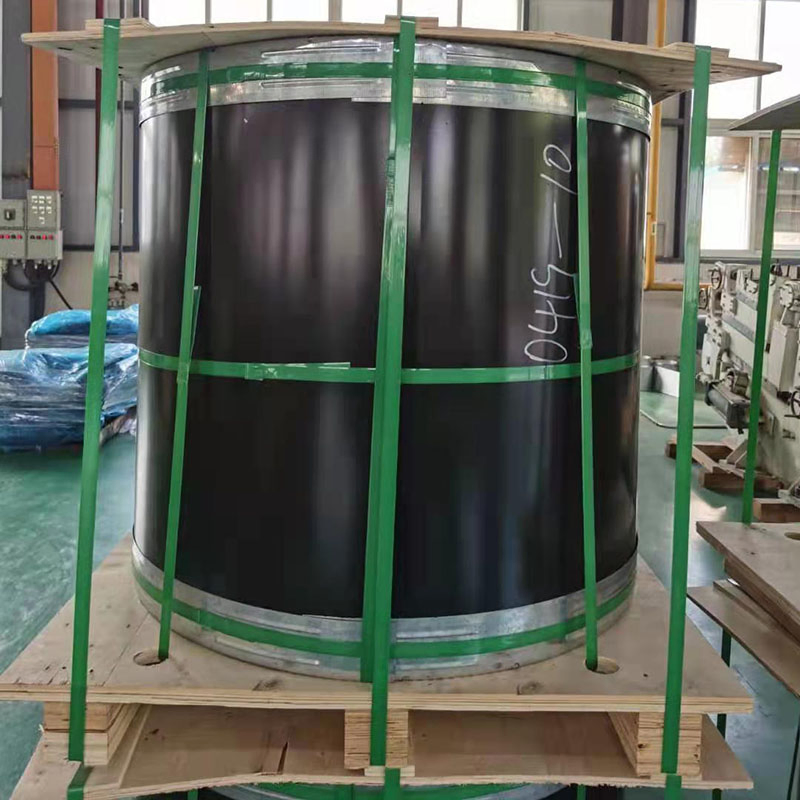

Packaging & Shipment Specifications

Internal and external corner protectors with steel collars.
Palletized exclusively on fumigated and branded wood.
Coil Weight: 900 - 1000 KG | External Diameter: 800 - 900 mm.
Internal Diameter: 400 mm with optional 8mm card inner sleeve.

Frequently Asked Questions

Q: Can I get a sample of the rubber coated metal? A: Sure. We usually provide existing samples. Sample charges are refundable when orders reach a certain quantity. Usually, the freight fee is borne by the buyer.

Q: What is the typical delivery time for orders? A: The delivery time is generally 20 to 30 days after receiving the T/T prepayment.

Q: Why is the material delivered in master coils? A: Delivering in master coils (width above 600mm) helps save costs and provides better pricing due to export tax refund differences. If you lack slitting capacity, we can provide slitted rolls.

Q: What are the temperature limits for NBR and FKM coatings? A: The working temperature for NBR coating is -20ºC to 120ºC, and for FKM coating, it is -40ºC to 290ºC.

Q: Why should we choose your sealing materials? A: We utilize advanced production equipment from Germany and Japan, maintain rigorous quality inspections, and provide full test reports and quality certificates for every batch.

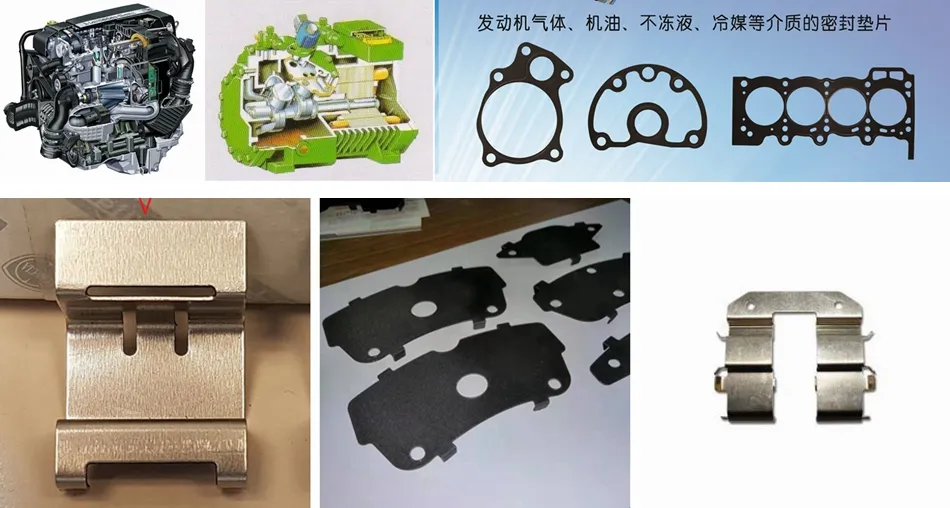

Q: What applications are these materials suitable for? A: They are ideal for automobile and motorcycle cylinder head gaskets, accessory gaskets, refrigeration gaskets, and compressor gaskets due to their excellent recovery and fluid resistance.
