Basic Information
Surface Treatment:Coated
Technique:Cold Rolled
Application:Engine Cylinder Gasket, Accessory Gasket
Edge:Slit edge
MOQ:5 Tons
Stainless Steel Thickness:0.2-0.8mm
Rubber Coating Thickness:0.02-0.12mm
Coating Material:FKM, NBR
Production Capacity:10000 tons/Month
Origin:China
Product Description

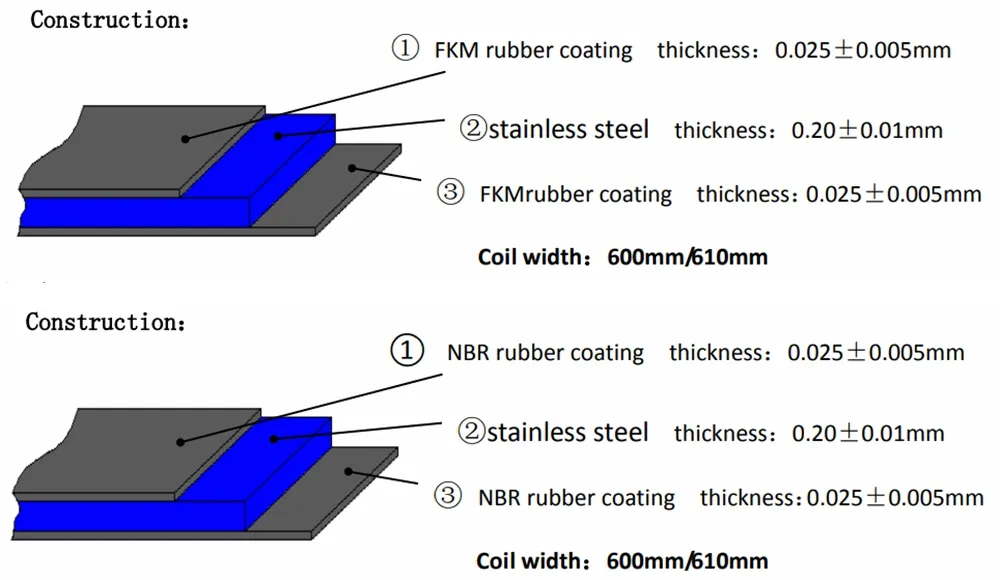

Product Dimension:

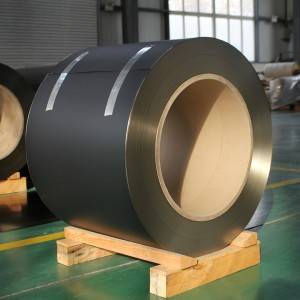

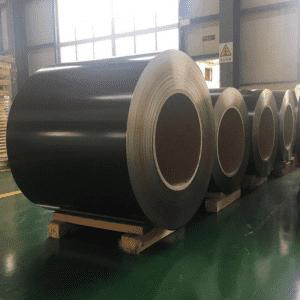

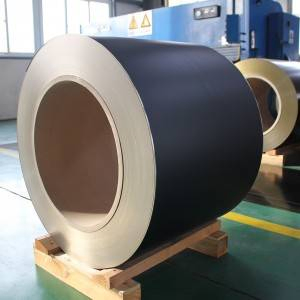

Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.12mm single and double-side rubber coated metal roll material can meet the requirement of different customers.
Key Characteristics
- Excellent high and low temperature resistance (-40ºC to 120ºC).
- Good sealability for gas and fluid applications.

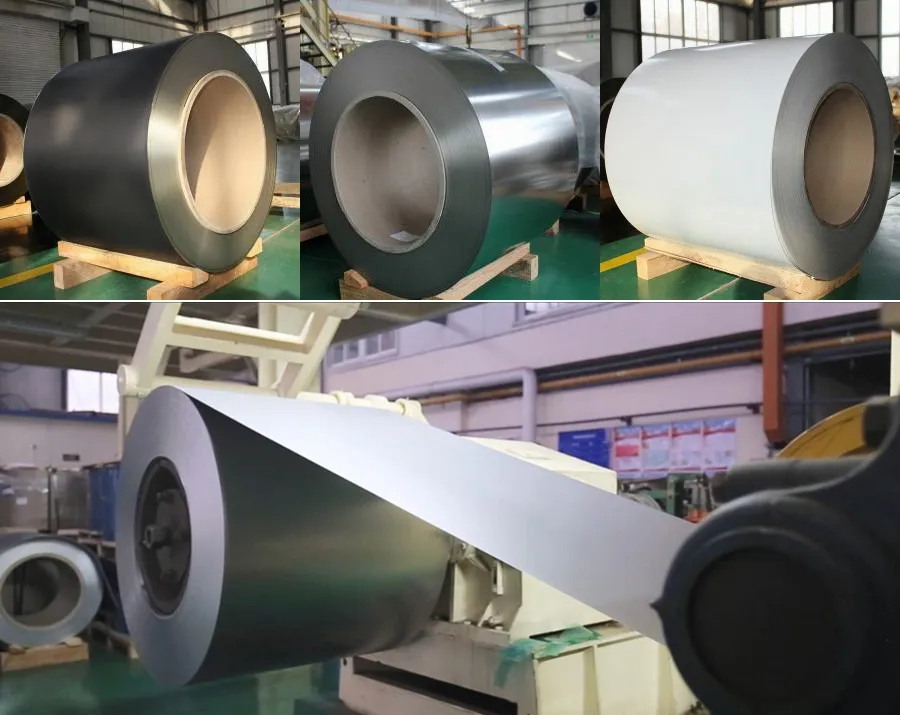

- Excellent mechanical performance (Tensile strength up to 100MPa).
- Superior compression, recovery, and stress relaxation.
- Resistance to mechanical oil, antifreeze, and coolant.
- Fine processing properties for continuous automatic production.

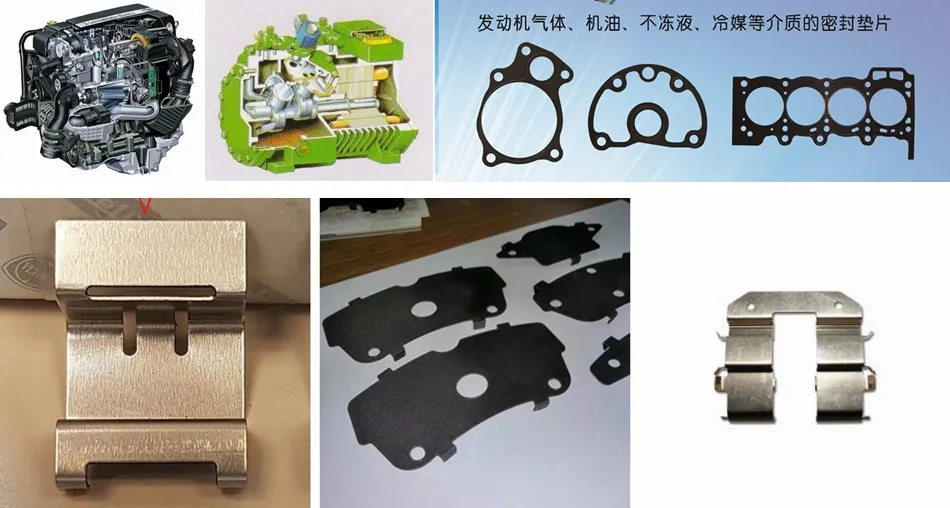

Application & Markets
Rubber coated metal materials combine metal rigidity with rubber elasticity. Ideal for automobile/motorcycle cylinder head gaskets, accessory gaskets, refrigeration, and compressor gaskets. We are supplying 90% OE market share for sealing products in China and overseas.

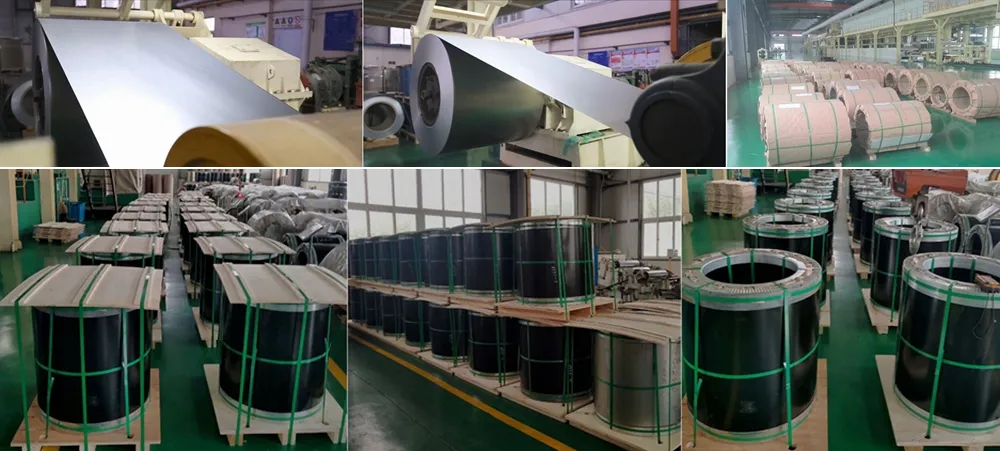

Production & Quality Control

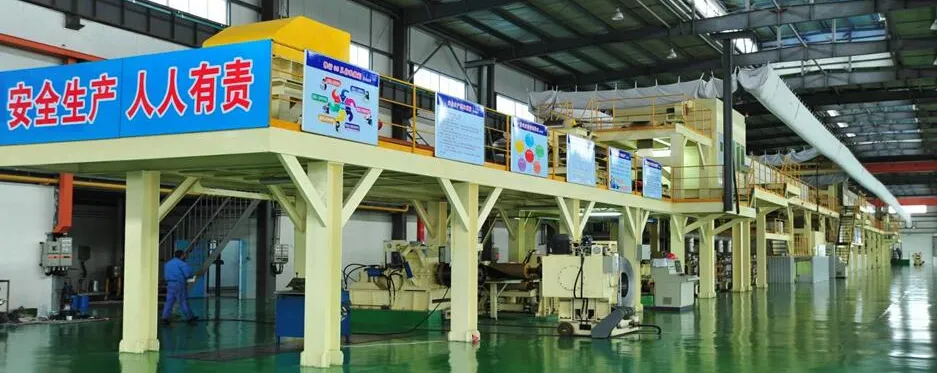

Featuring the first NBR & FKM coating steel coil production line in China with key equipment from France, Germany, and Japan.
| Phase |
Control Measures |
| Pre-control | Marketing research, R&D, Raw material purchase |
| In Process Control | Manufacturing process, Equipment monitoring, Environment control |
| Post-action Control | Finished product inspection, Quality disposal, User feedback |

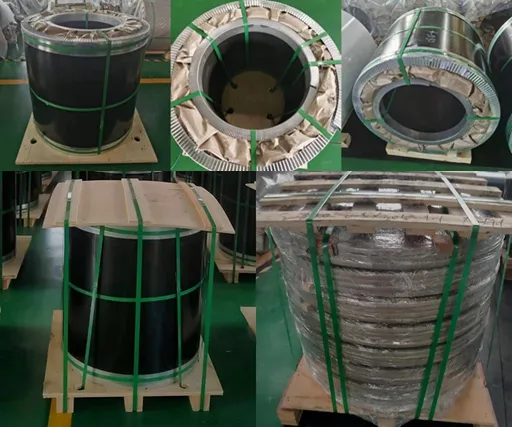

Package and Shipment
Frequently Asked Questions
Q: Can I get samples for testing?
A: Sure. We usually provide existing samples. Sample charges are refundable when the order reaches a certain quantity. Freight fees are typically borne by the buyer.
Q: What is the typical delivery time?
A: Delivery usually takes 20 to 30 days after receiving the T/T prepayment.
Q: Why do you suggest delivery in master coils?
A: To save costs and provide better pricing. Export tax refunds differ for master coils (width >600mm) versus slitted coils. We can provide slitted coils if you lack slitting capacity.
Q: What are the advantages of choosing your products?
A: We use advanced equipment and a rigorous quality inspection process. We provide full test reports and quality certificates for all shipments.
Q: What is the temperature range for these materials?
A: Our rubber coated metal materials have excellent resistance, with a working temperature range between -40ºC and 120ºC.
Q: Do you support global supply?
A: Yes, we are a vertical global supplier of premium NBR & FKM coating steel materials, serving both OE and aftermarket customers worldwide.
