Excellent Sealability Rubber Coated Metal Material FKM & NBR Coating Gasket

1 / 4

Excellent Sealability Rubber Coated Metal Material FKM & NBR Coating Gasket

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

M019

Surface Treatment

Coated

Technique

Cold Rolled

Application

Engine Cylinder Gasket, Accessory Gasket

Steel Thickness

0.2-0.8mm

Rubber Thickness

0.02-0.12mm

Coating Material

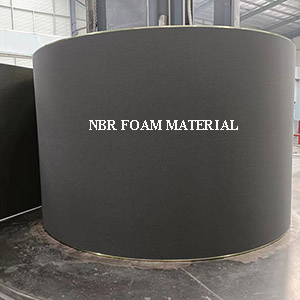

FKM, NBR, NBR Foam

Production Capacity

10000 tons/Month

🔍 Product Description

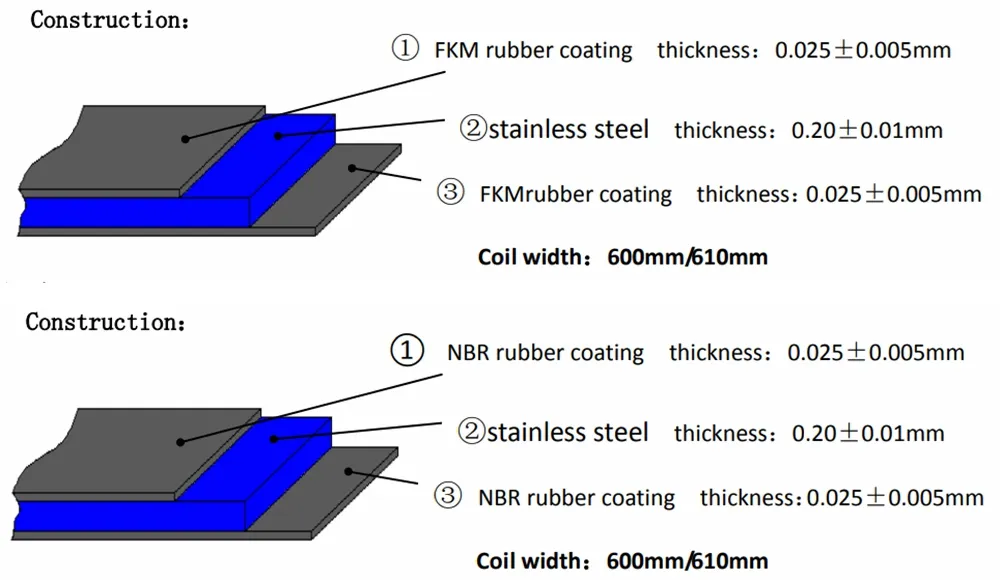

Product Dimension: Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.12mm single and double-side rubber coated metal roll material can meet the requirement of different customers.

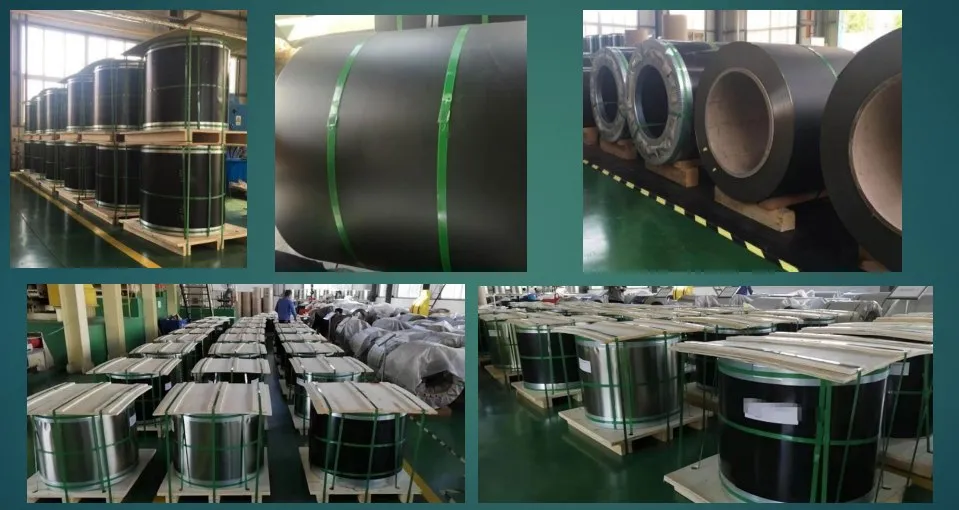

Key Characteristics:

Excellent high and low temperature resistance (-20ºC to 290ºC depending on material)
Superior sealability for both gas and fluids
High mechanical performance with tensile strength up to 100MPa
Good fluid resistance against oil, antifreeze, and coolant
Anti-ageing property and consistent processing quality

🏭 Production & Quality Control

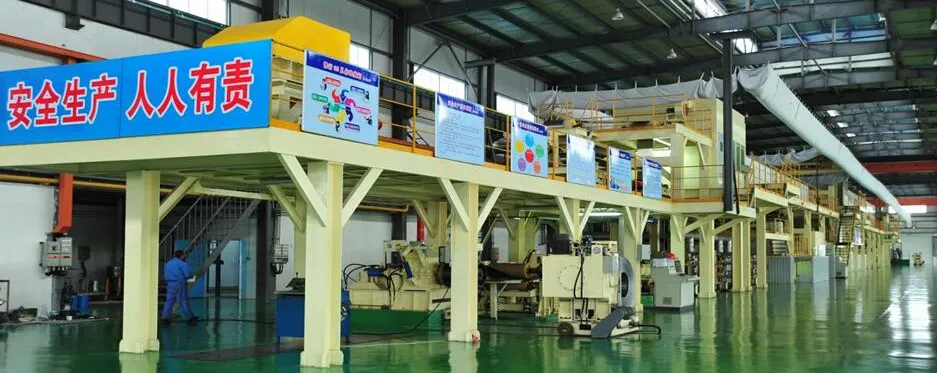

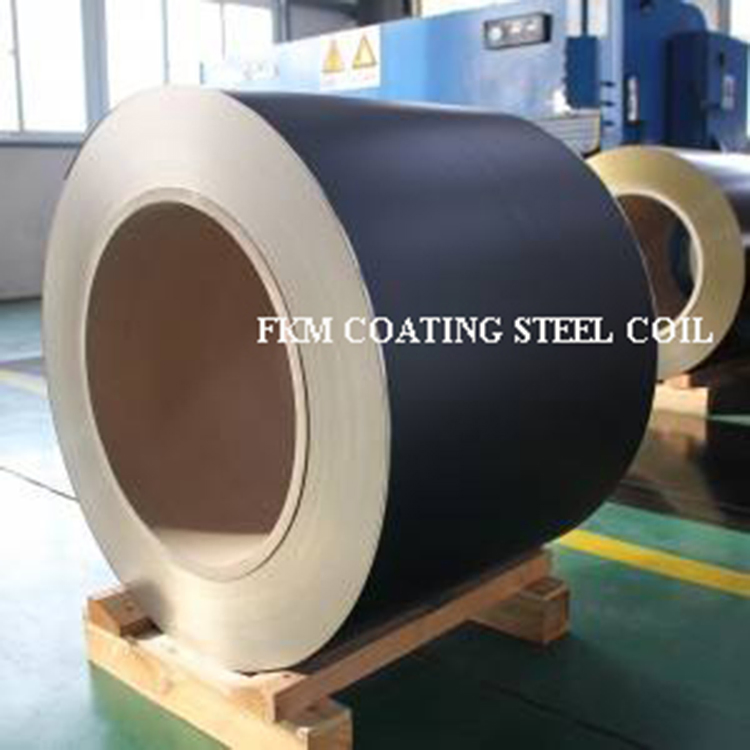

Featuring the first NBR & FKM coating steel coil production line in China with key equipment from France, Germany, and Japan. Automatic production lines assure premium quality and short lead times.

Stage	Control Measures
Pre-control	Market research, R&D, Raw material purchase, Technological preparation
In Process Control	Manufacturing & technological control, Operator control, Equipment monitoring
Post-action Control	Finished product inspection, Quality problem disposal, User feedback

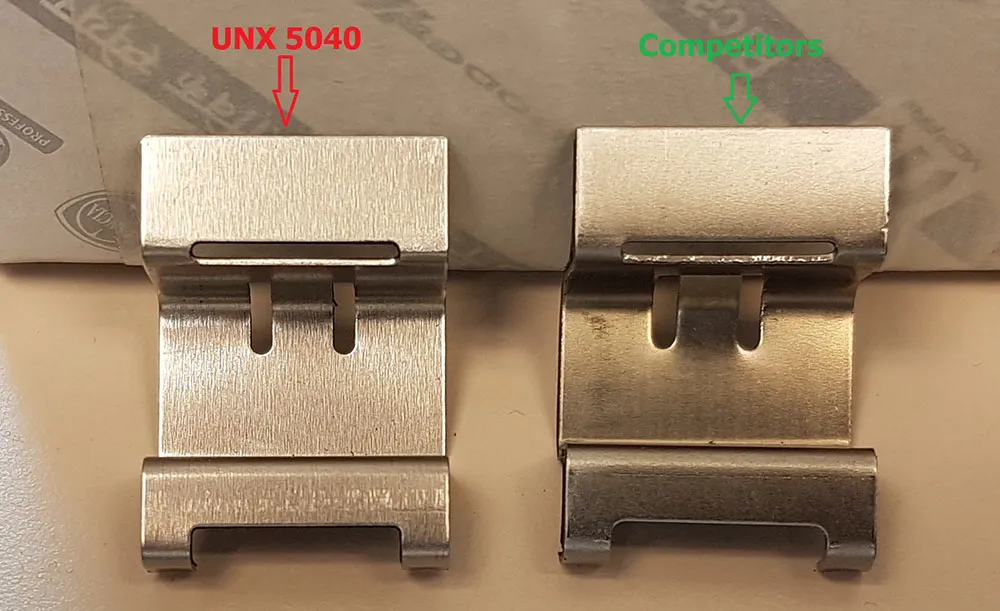

📦 Comparison & Logistics

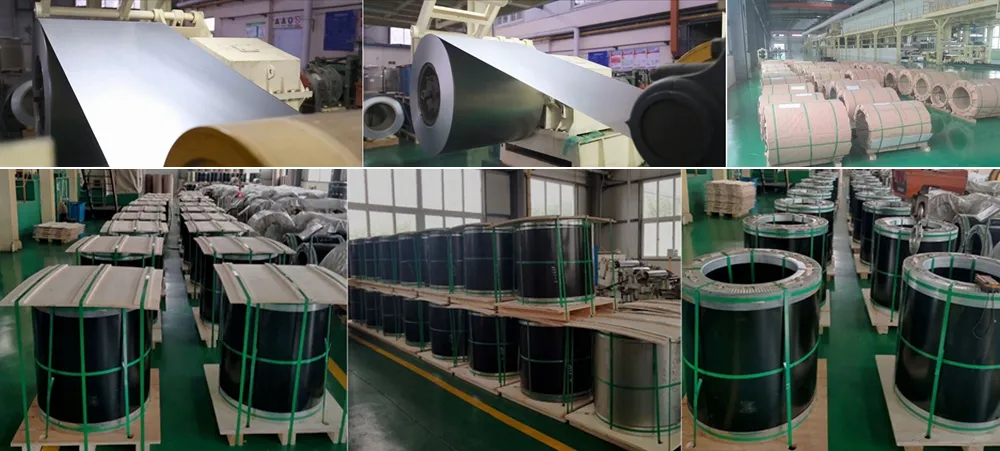

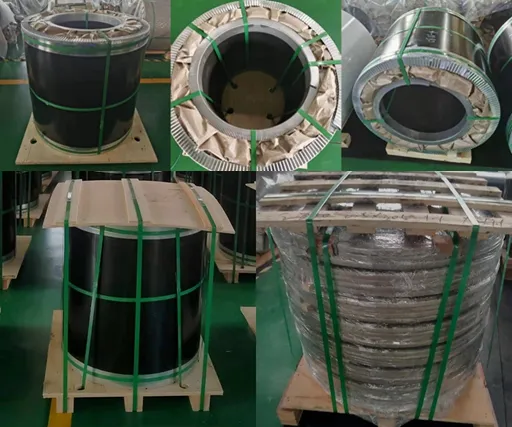

Packaging Standards:

Internal and external corner protectors with steel collars
Radial steel strapping at 90° intervals
Palletized on fumigated wood
Coil Weight: 900 - 1000 KG | External Diameter: 800 - 900 mm

❓ Frequently Asked Questions

Can I get samples?

Sure. We usually provide existing samples. Sample charge is refundable when order reaches a certain quantity. Usually, the freight fee is borne by the buyer.

What is the delivery time?

Approximately 20~30 days after T/T prepayment.

Why is the delivery status in master coil?

To save costs and provide better pricing, we suggest delivering in master coils (width > 600mm) due to export tax refund differences. Slitting capacity can be provided if needed.

Why choose our materials?

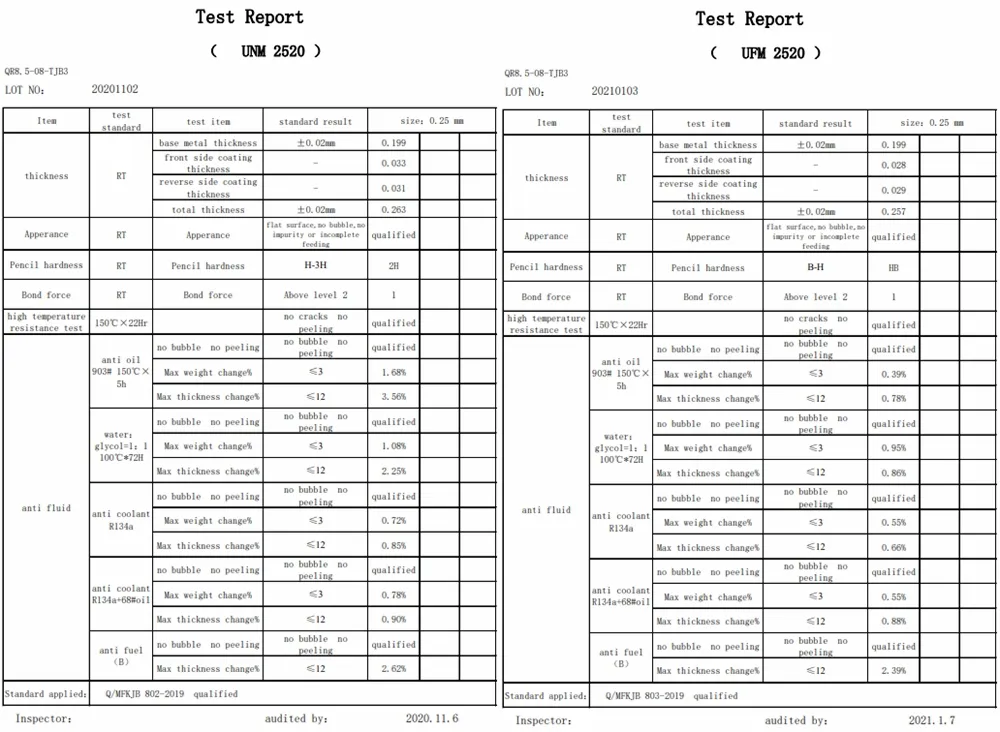

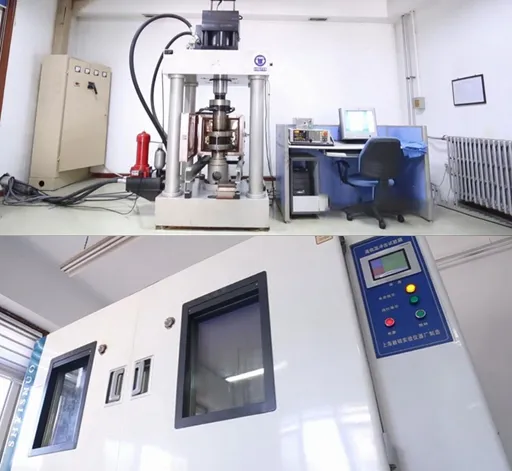

We use advanced equipment and rigorous quality inspection processes, providing full test reports and quality certificates for all sealing products.

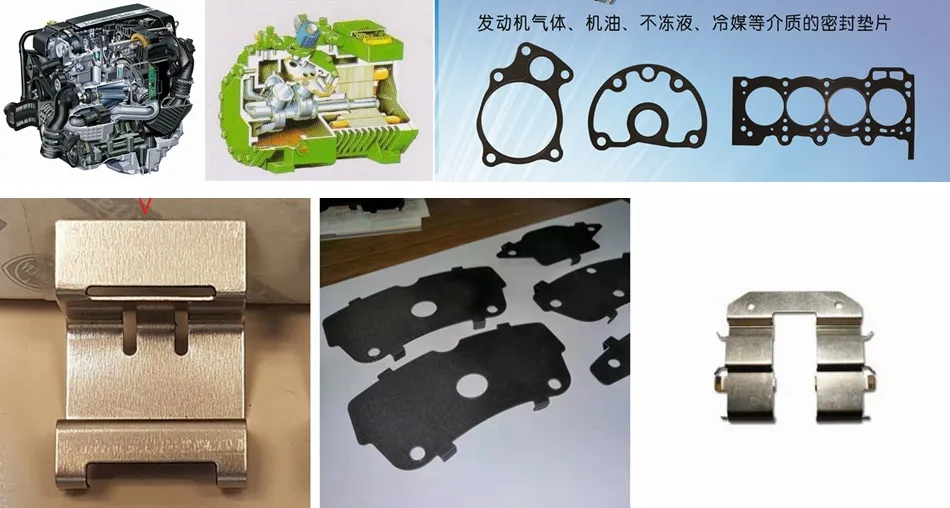

What applications are these materials suitable for?

They are ideal for automobile and motorcycle cylinder head gaskets, accessory gaskets, and refrigeration or compressor gaskets.

What is the production capability?

We have a production capacity of 10,000 tons per month, ensuring short lead times for both OE and aftermarket global supplies.
