Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
1 / 4
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router
Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router

Cost Effective 11ax 1800Mbps Ceiling Wireless Ap Wireless Router WiFi Router

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.AX820
WiFi Antenna TypeBuilt-in
Transmission Rate1800Mbps
Voltage12V
Antenna Gain4dBi
ColorWhite
CertificationISO9001, CE
Working ModeAp, Gateway
ControllerController Managed
RoamingSeamless Roaming
Band SteeringSupport
Production Capacity4000PCS/Week
📦

Packaging & Delivery

Package Size25.00cm * 25.00cm * 11.00cm
Gross Weight1.500kg
📝

Product Description

Cost Effective 11ax 1800Mbps Ceiling Wireless AP

AX820 is an economic 11ax Wi-Fi standard Ceiling Wireless Access Point based on MTK platform for home and hotel applications. It combines 1800Mbps Wi-Fi speed over dual radios: 2.4GHz (600Mbps 11ax 2*2) and 5GHz (1200Mbps 2*2).

Equipped with Gigabit WAN & LAN ports, it supports MU-MIMO, DL/UL-OFDMA modulation, Wave2.0, and Seamless Roaming. It is designed for high-density environments such as university campuses, concert venues, and gymnasiums, providing improved stability and data processing efficiency.

Main Features:

  • Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data Rate
  • Advanced MTK chipset with Flash: SPI NOR 16MB + NAND 256MB for superior performance
  • 1*10/100/1000Mbps WAN Port and 1*10/100/1000Mbps LAN Port
  • Support active IEEE 802.3af/at 48V PoE standard
  • IEEE 802.3az compliant with RF power adjustment and frequency analyzer
  • Support Seamless Roaming, OFDMA, and 1024-QAM technology
⚙️

Hardware Specifications

Hardware Details
ChipsetMT7621A+MT7905N+MT7975DN
Standard802.11ax/ac/b/g/n
Memory256MB RAM + 16MB SPI NOR Flash
2.4G Frequency2.4GHz - 2.484GHz (600Mbps)
5.8G Frequency5150~5850MHz (1200Mbps)
Interface1*Gigabit WAN, 1*Gigabit LAN, 1*Reset Button
AntennaBuilt-in 4dBi MIMO Antenna
Max User Access120+ Users
Power InputDC 12V/1.5A or 48V PoE (802.3af/at)
Dimensions168mm x 168mm x 32mm
EnvironmentOperating: -20~45 ºC; Storage: -40~70 ºC
🖼️

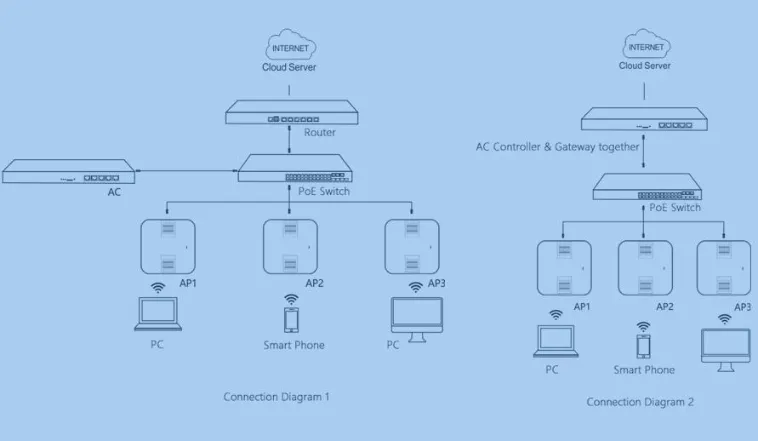

Working Diagram

Working Diagram AX820 1800Mbps Ceiling Wireless AP
❓

Frequently Asked Questions

Q1: What is the maximum wireless speed of the AX820? A: The AX820 provides a combined dual-band speed of 1800Mbps, with 600Mbps on the 2.4GHz band and 1200Mbps on the 5GHz band.
Q2: Does this device support Power over Ethernet (PoE)? A: Yes, it supports the standard IEEE 802.3af/at 48V PoE, allowing for easy installation via Ethernet cable.
Q3: How many concurrent users can the AX820 handle? A: It is designed to support more than 120 concurrent end users, making it ideal for high-density environments.
Q4: Does it support seamless roaming? A: Yes, it supports seamless roaming, ensuring users stay connected without interruption while moving between different access points.
Q5: Is the AX820 compatible with older WiFi standards? A: Yes, it is fully backward compatible with IEEE 802.11ac/b/g/n standards alongside the latest 802.11ax (Wi-Fi 6).
Q6: What is the primary use case for this access point? A: It is an economic and powerful solution specifically designed for indoor high-density areas like hotels, schools, campuses, and large office spaces.
