Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
1 / 5
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing

Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing

Customization: Available
Scale: Middle Bridge
Usage: Footbridge, Highway Bridge, Over Water Bridge, Railway Bridge, Viaduct
Send Inquiry

Product Description

Overview - Basic Information
Structural Form
Through-Type Steel Truss Structure
Standard Unit Dimensions
3048mm (Length) × 2134mm (Height)
Maximum Designed Clear Span
69 Meters
Surface Protection Method
Galvanizing or Anti-Corrosion Paint Treatment
Design Feature
Modularization, Standardized Prefabricated Components
Production Capacity
100,000 tons
HS Code
7308100000
Product Introduction

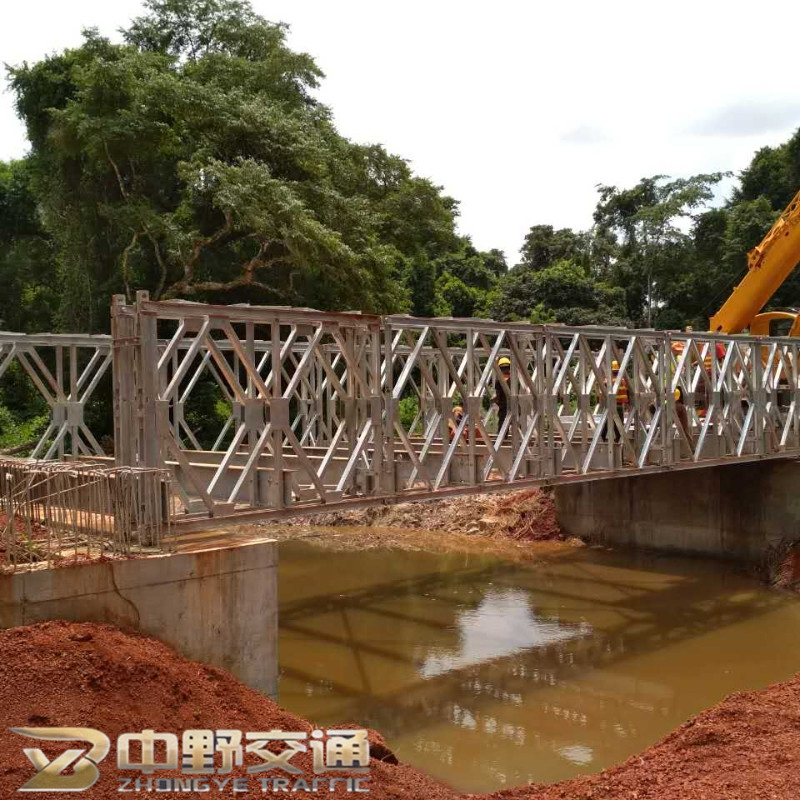

Heavy Load Bailey Steel Structure

The Model 200 bridge adopts a through-type steel truss structure, with the main truss units featuring a Warren configuration. The top and bottom chords, vertical members, and diagonal members are all fabricated from channel steel, pre-welded in a factory setting, eliminating the need for on-site welding.

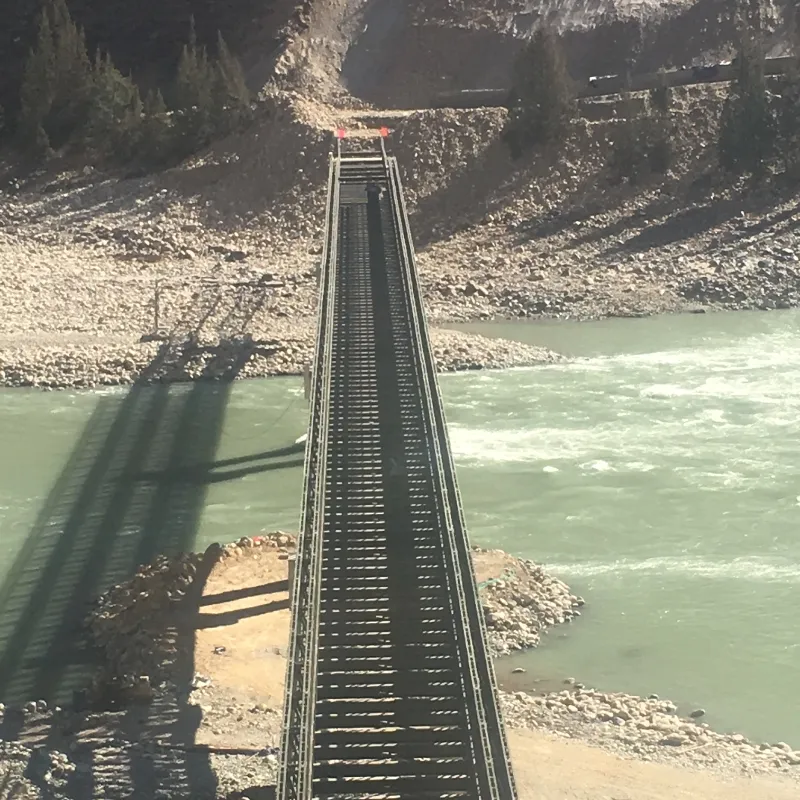

Truss Unit

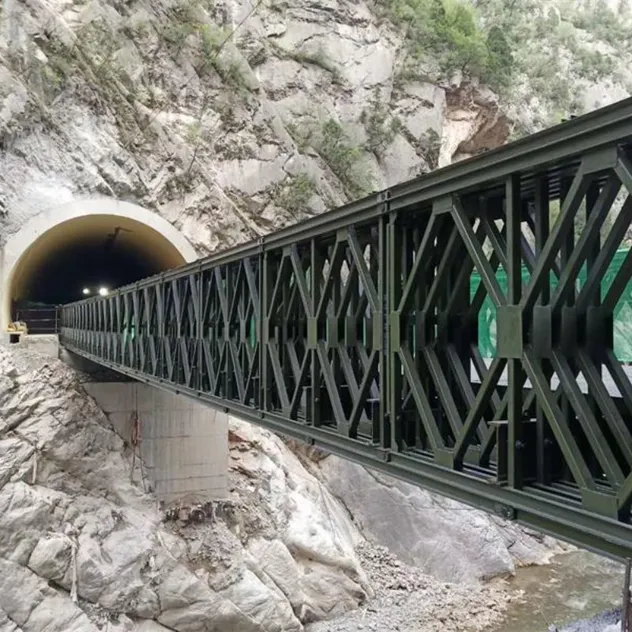

Structural Detail
Core Advantages
✓ Modular Design: Flexible combination and expansion.
✓ Rapid Deployment: Quick response for emergency scenarios.
✓ High Efficiency: Significantly shortens construction cycles.
✓ Relocatability: Disassembled, transported, and reused.
✓ High Strength: Exceptional load-bearing capacity.
✓ Long Service Life: Minimal maintenance required.
Technical Specifications
Item NameParameters and Instructions
Product Name200-type Prefabricated Highway Steel Bridge (Bailey Steel Bridge)
Truss Segment Size3048 (L) * 2134 (H) * 176 (W) mm
Carriageway Width4.2m (Single) / 7.56m (Double) / Customized
Maximum SpanUp to 60.96m (Single Span)
Load GradeAASHTO HS20, HL93, BS5400, Highway-I, Trailer-80, and more
Manufacturing & Facility

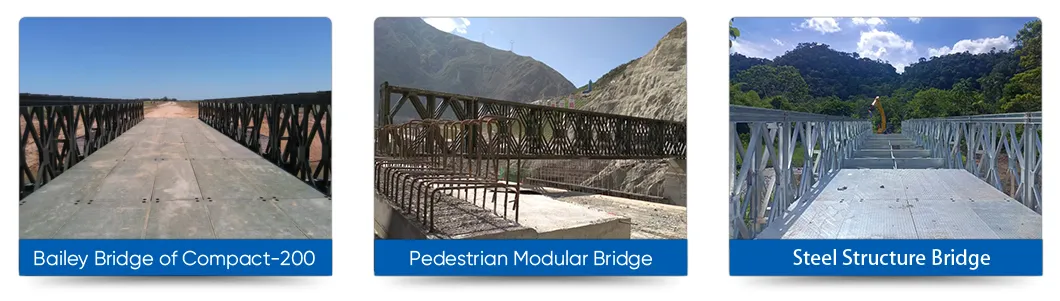

Main Product

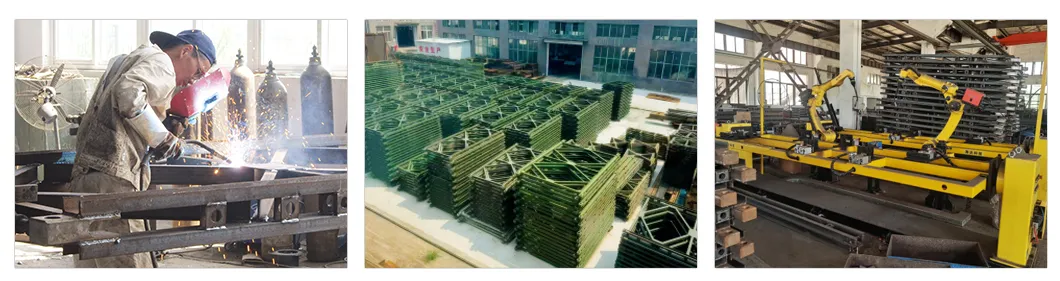

Our Factory
Certificates
Global Exhibition & Transportation
Exhibition

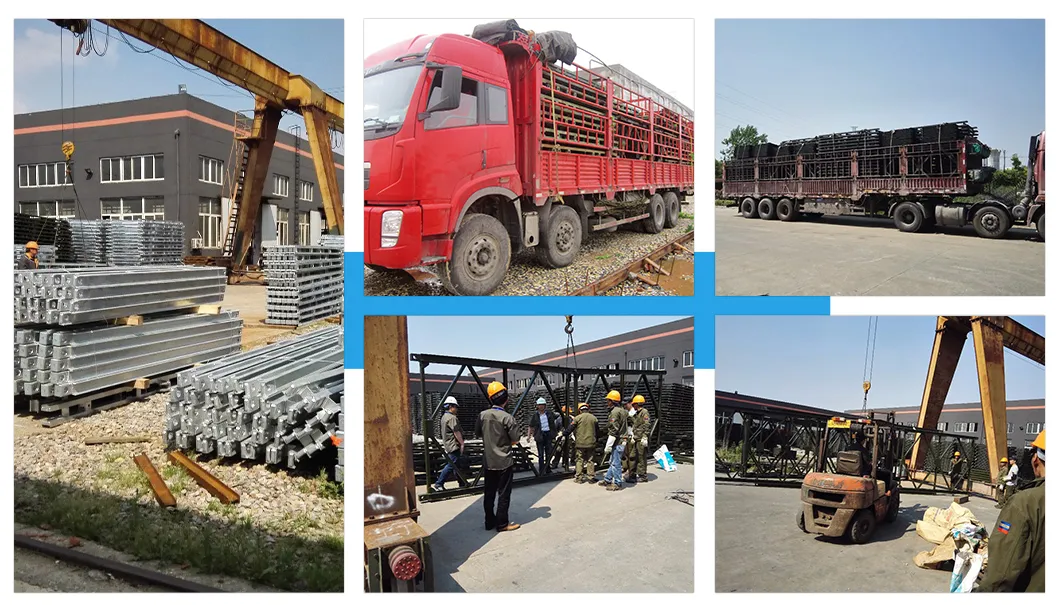

Packaging
Frequently Asked Questions
Q1: Which countries do you export to?
A: Our products have been exported to over 30 countries, including Malaysia, Ecuador, Congo, Pakistan, and more.
Q2: Are you a manufacturer or a trading company?
A: We are a manufacturer with 20 years of export experience. Our production base covers 40,000+ square meters with an annual capacity of nearly 40,000 tons.
Q3: Do you accept custom processing for special projects?
A: Yes, we support non-standard customization for special spans, loads, and complex terrain adaptations like mountainous areas or rivers.
Q4: How soon can I get a reply after an inquiry?
A: A preliminary proposal and quotation can be provided within 2 hours at the earliest, and definitely within 24 hours.
Q5: What is the minimum order quantity (MOQ)?
A: For standard products, the MOQ starts from 1 set. For custom engineering projects, we quote based on specific requirements.
Q6: What surface protection do you provide?
A: We offer galvanization or anti-corrosion paint treatment, suitable for coastal or chemical zones requiring high durability.
