Fastlink Premium Energy Saving Industrial PU High Efficiency Automatic Sliding Alloy Insulation Sectional Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1year

📊

Basic Specifications

Model NO.

SSD-IAS

Material

Aluminum / Steel Alloy

Type

Sliding Sectional

Open Style

Sliding

Opening Type

Electric/Manual

Special Function

Insulation, Wind Resistance

Color

Ral9002/Ral9006/Ral7040/Ral7045

Certification

CE, CPR, UL

Door Panel

PU Sandwich Panel, 42mm

Wind Resistance

700pa (Grade 1)

Thermal Property

K=1.1W/(M².K)

Max Size

W11500mm * H6000mm

🖼️

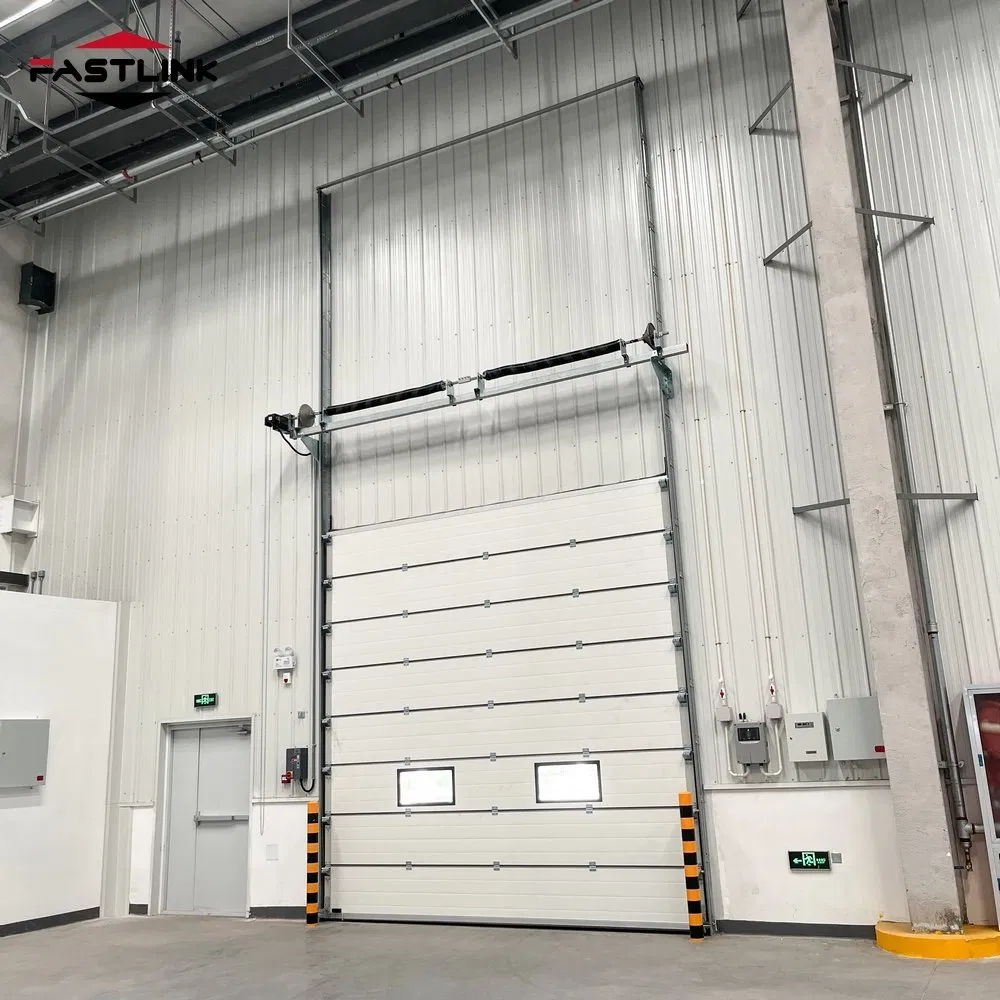

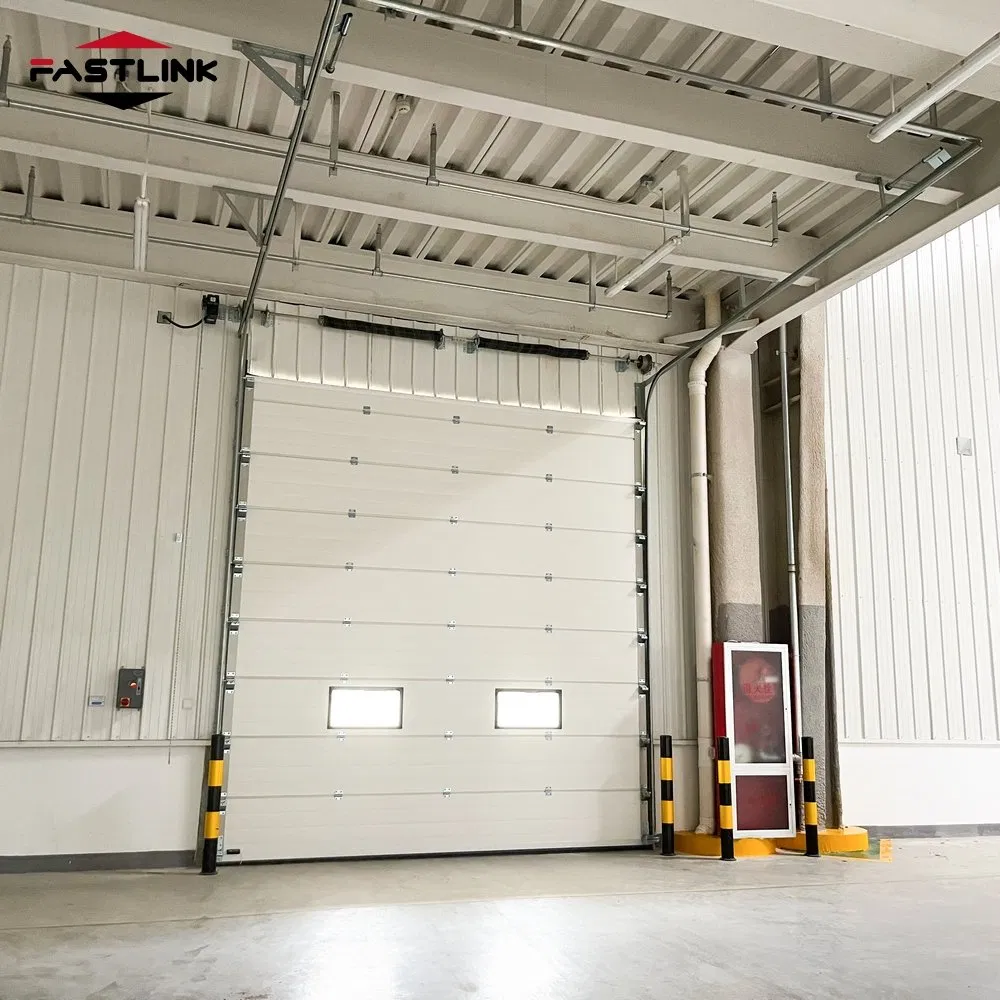

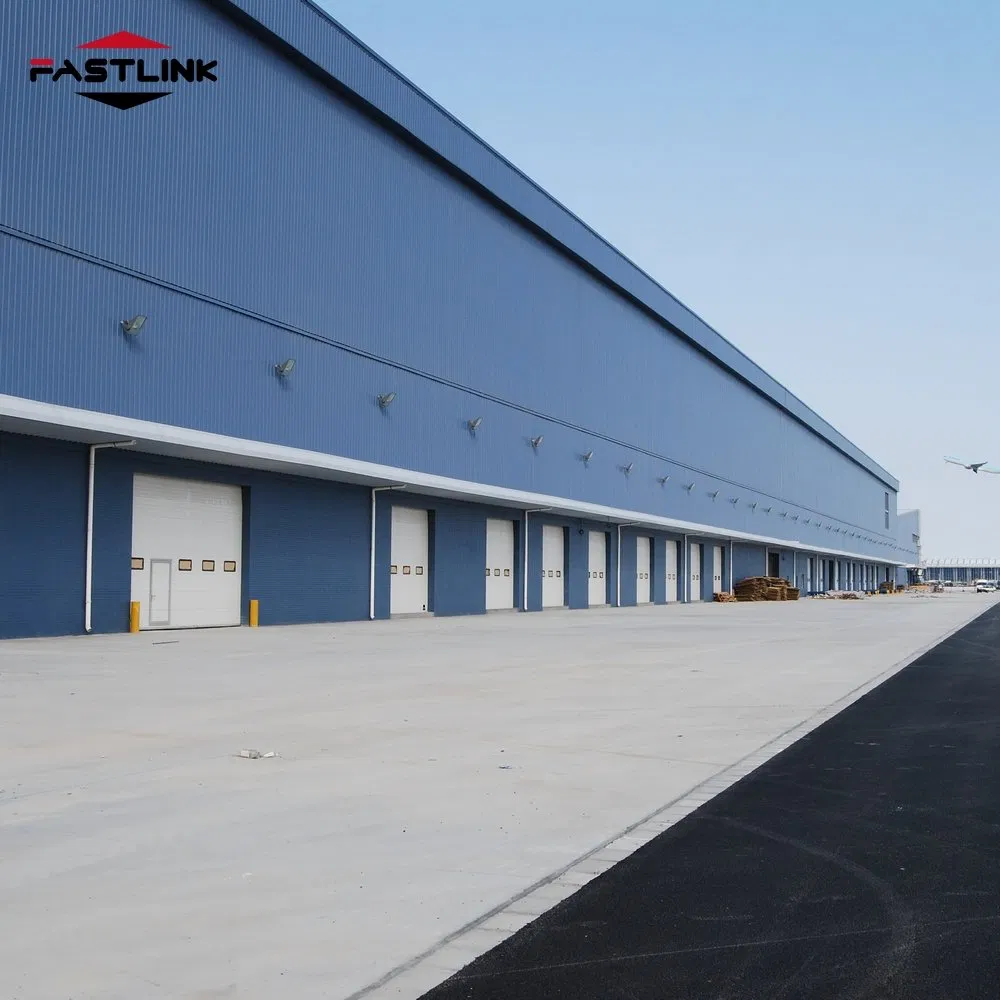

Product Gallery

🛠️

Technical Details & Features

Core Attributes

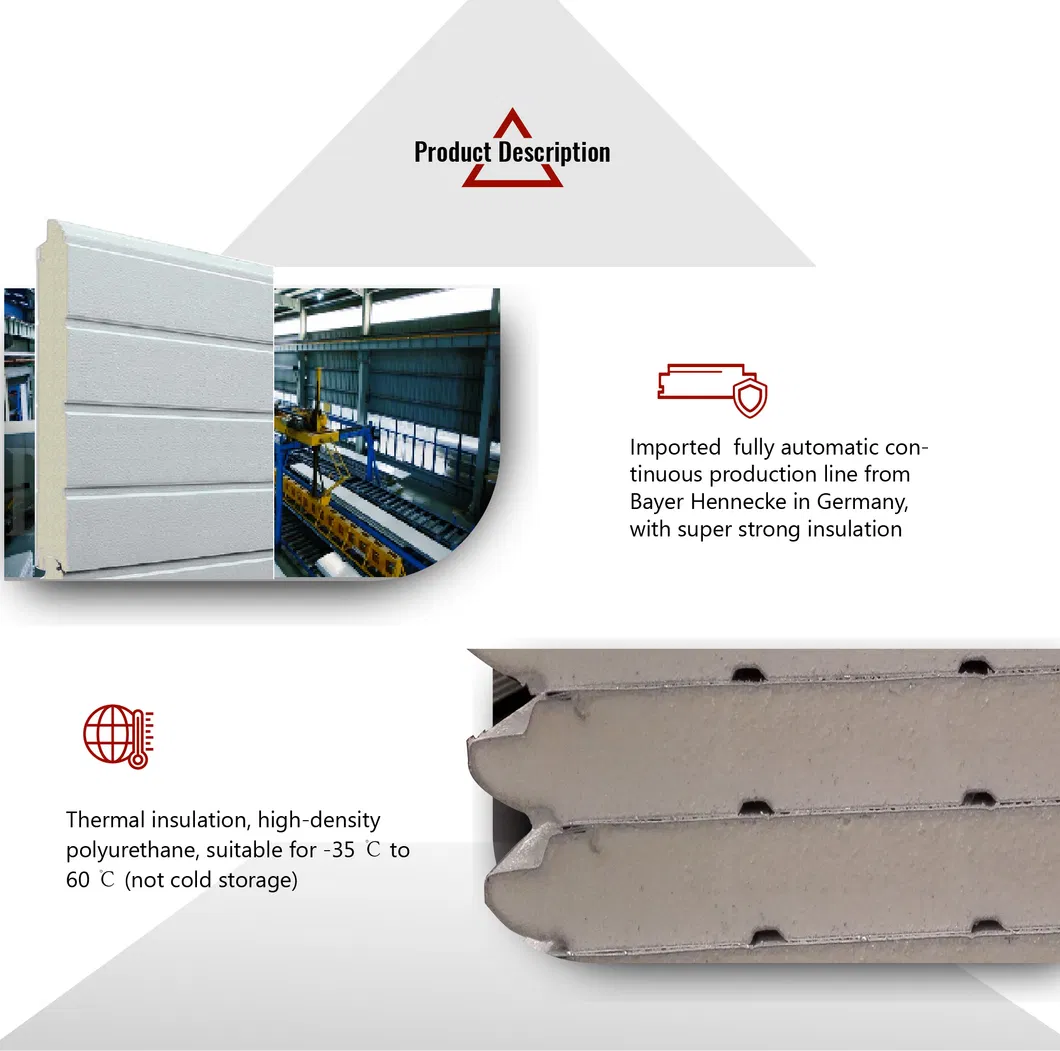

Polyurethane	Huntsman brand, freon-free, density: 48kg/m³, closed-cell rate > 95%

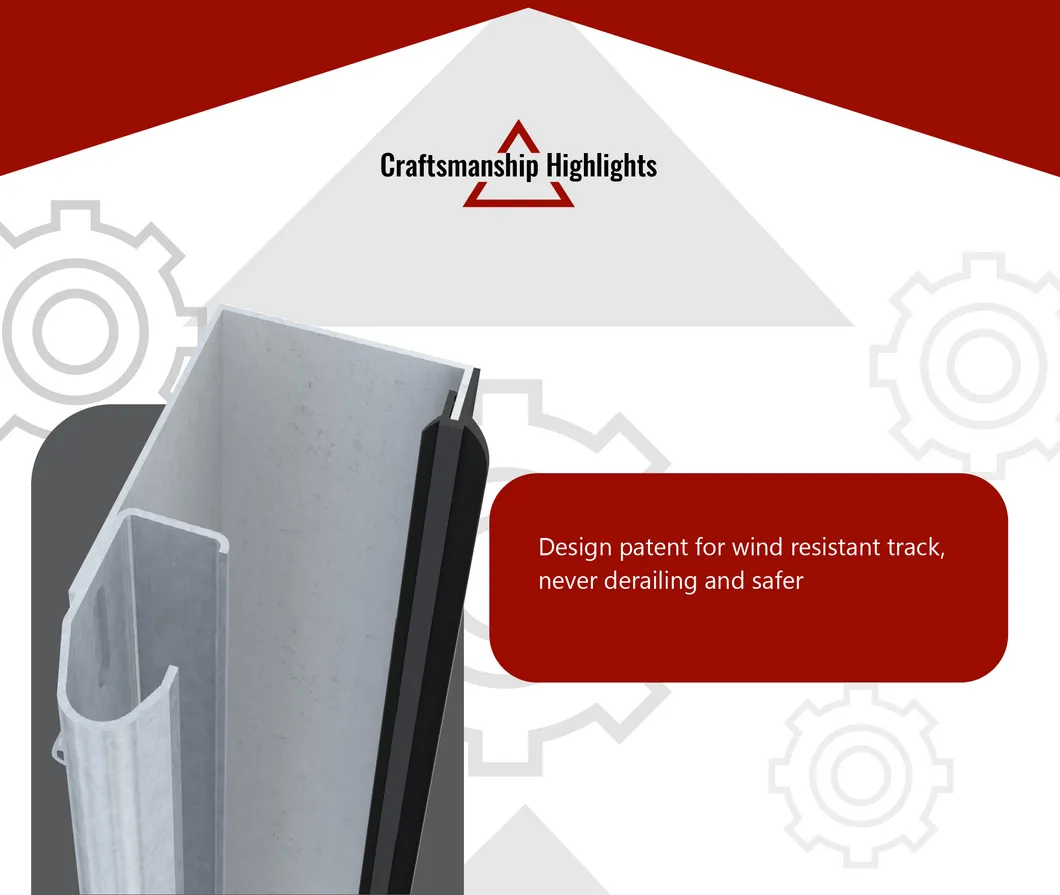

Rail System	Patented wind-resistant track design with Bolted connection

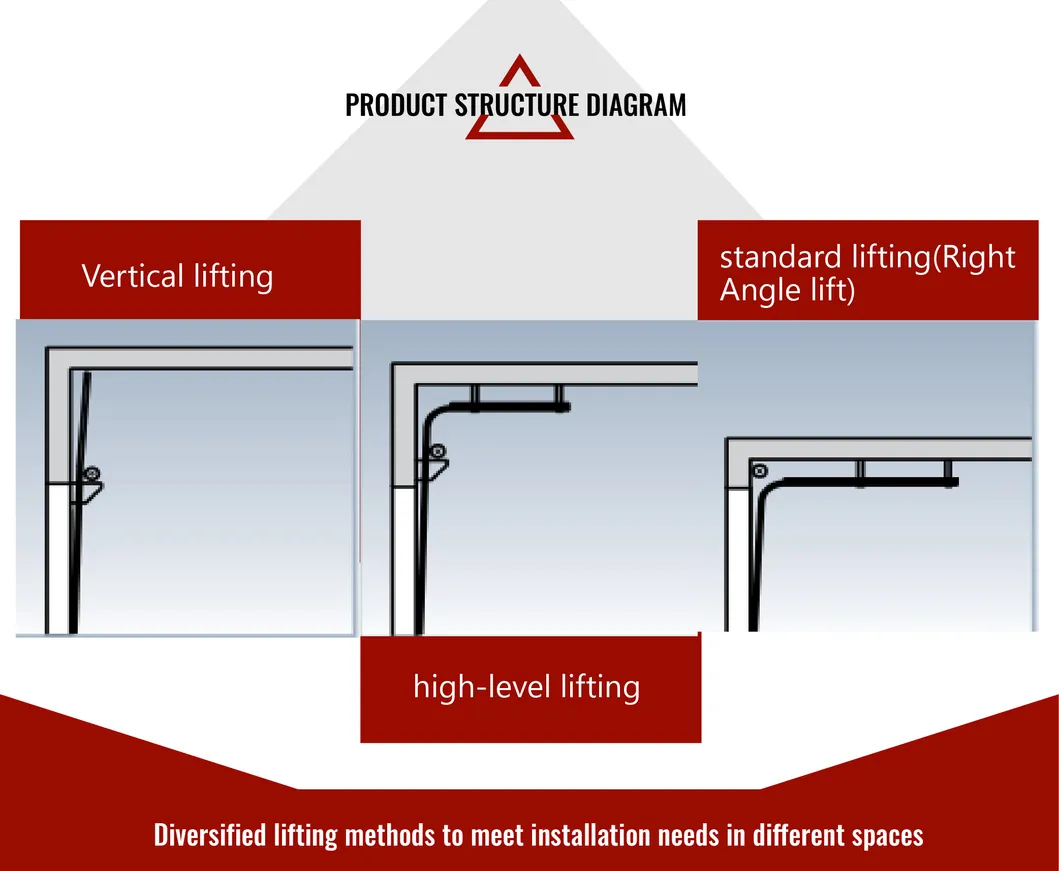

Lifting Mode	Vertical Lift / High Lift / Standard Lift

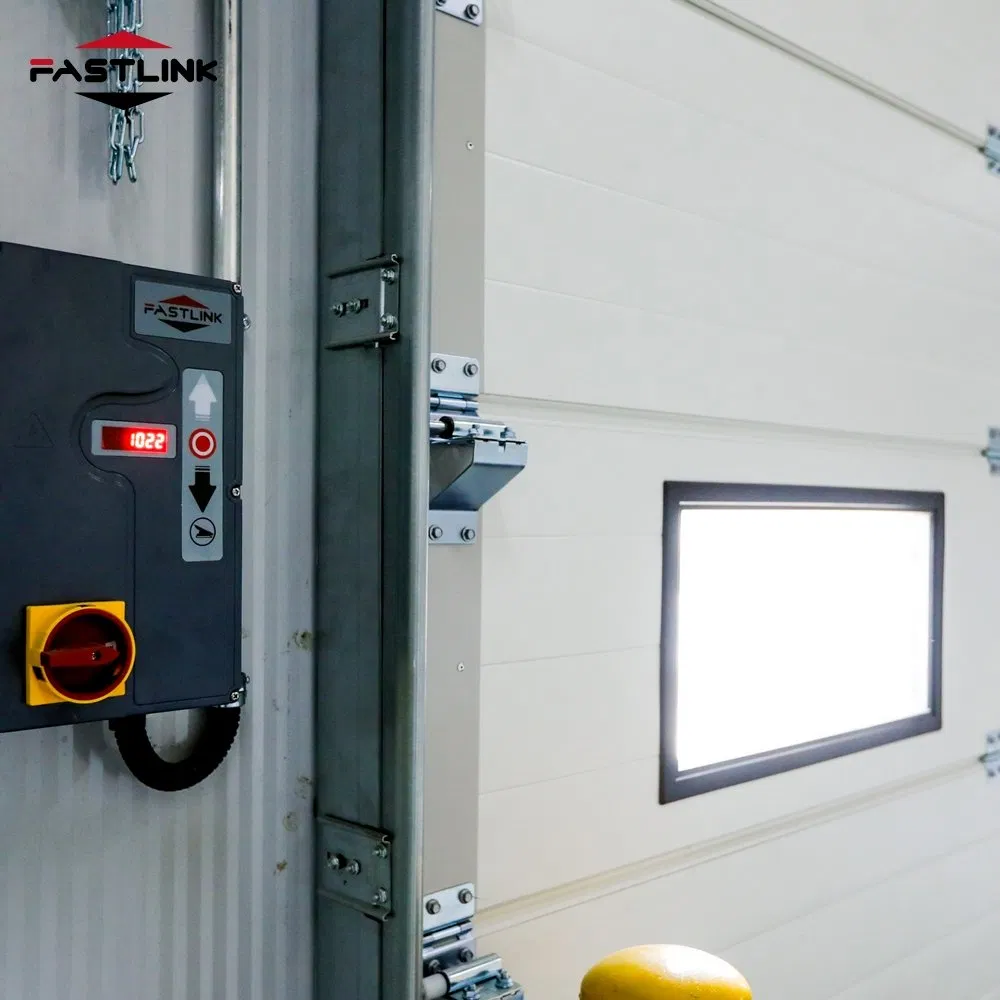

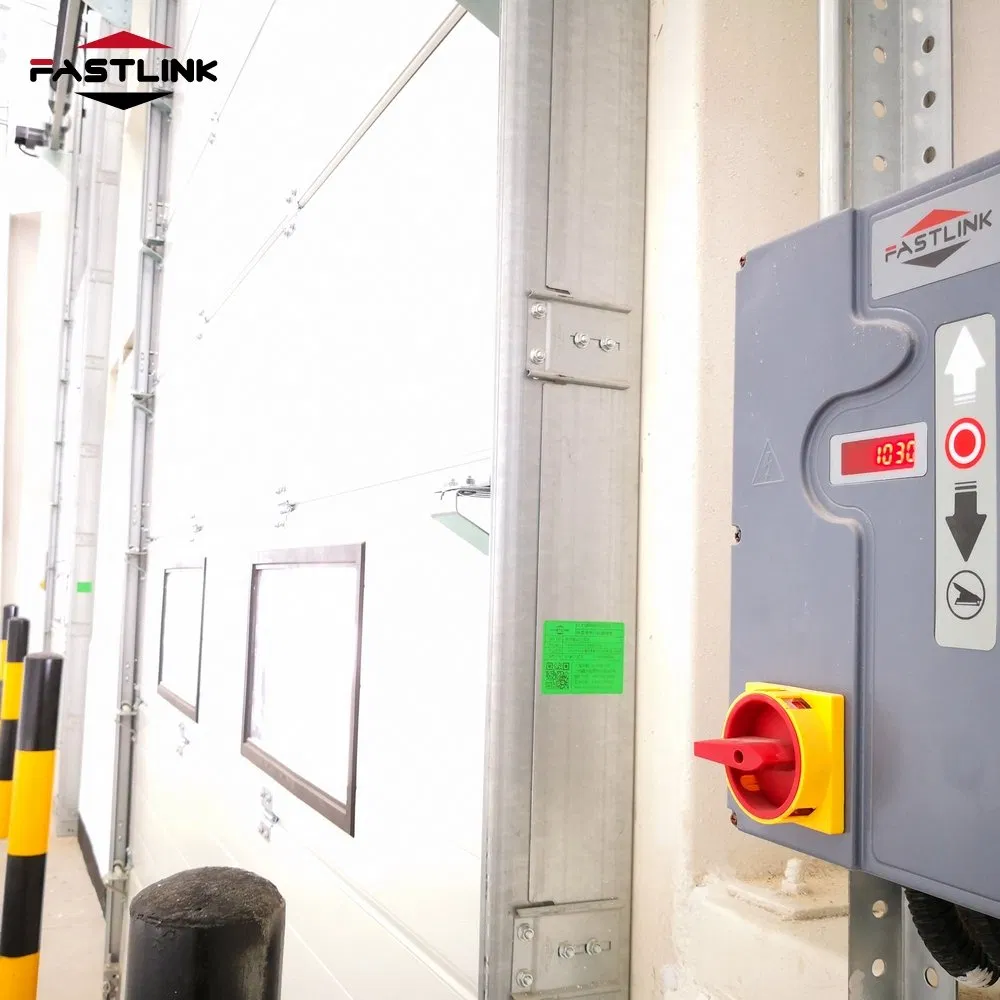

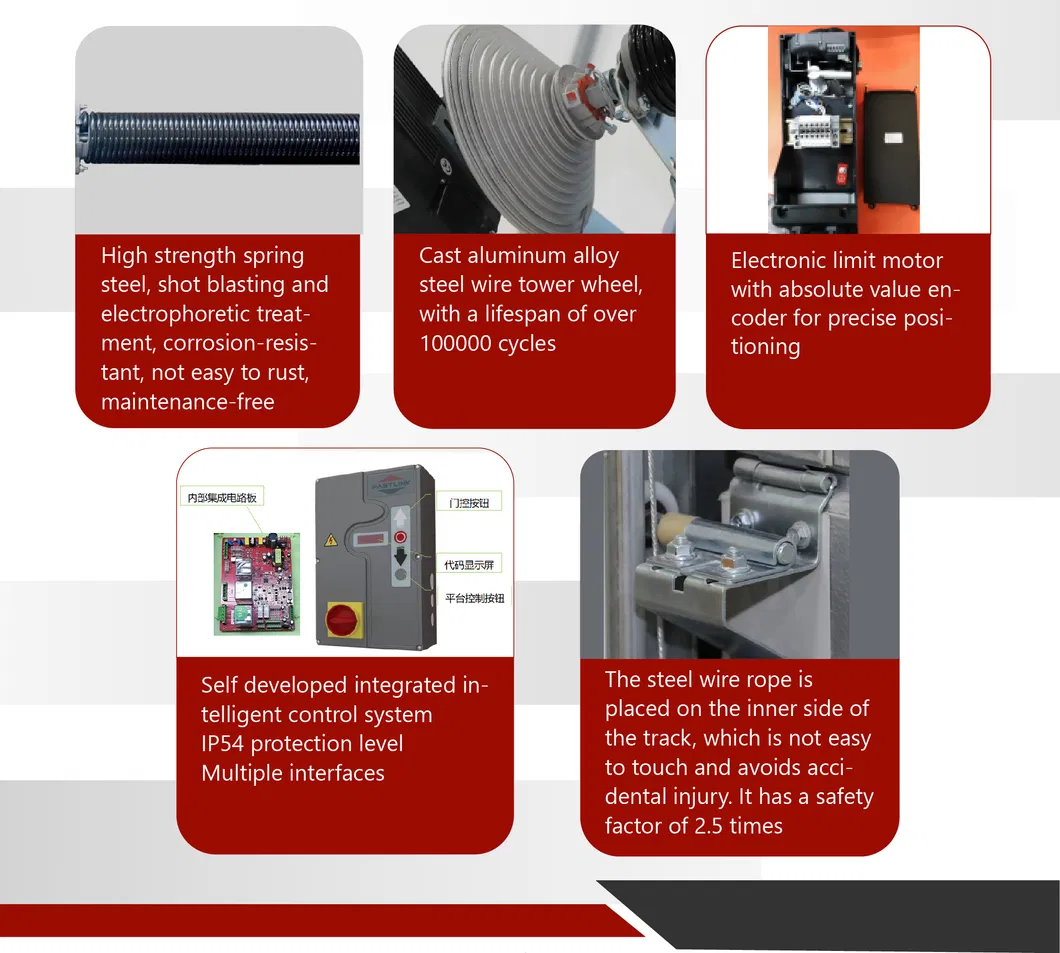

Motor	Electronic limit motor with absolute encoder for precise positioning
Intelligent Control	Fault code display, fire linkage, interlock function, self-safety protection
Security Configuration
Safety Devices	Wireless bottom safety device, Wire rope anti-breaking, Spring anti-breakage
Panel Design	Anti-pinch hand design with built-in safety wire rope

📦

Packaging & Delivery

Package Size

406.40cm * 66.40cm * 97.10cm

Gross Weight

190.000kg

Package Type

Wooden Box

Lead Time

30 Days

❓

Frequently Asked Questions

Is the Insulated Sectional Door safe to use?

Yes. It has passed CE certification and includes safety features like rebounding bottom panels, anti-breakage wire rope protection, and anti-pinch designs for the panels.

How much installation space is needed above the door opening?

A minimum headroom space of 500mm is required for standard installation.

Can these sectional doors be used in residential garages?

Yes, as long as the installation space is sufficient, it can be utilized effectively as a vehicle access door for garages.

What is the expected service life of the door?

With normal maintenance, these doors are designed to be used for more than 10 years. Regular upkeep helps further extend the service life.

What materials are used for the insulation?

The panels use PU sandwich construction with Huntsman brand polyurethane, which is freon-free and provides excellent thermal insulation (K=1.1W/m².K).

What is the wind resistance rating?

The door is rated at 700pa according to GB/T 7106-2008 standards, ensuring high durability in windy environments.
