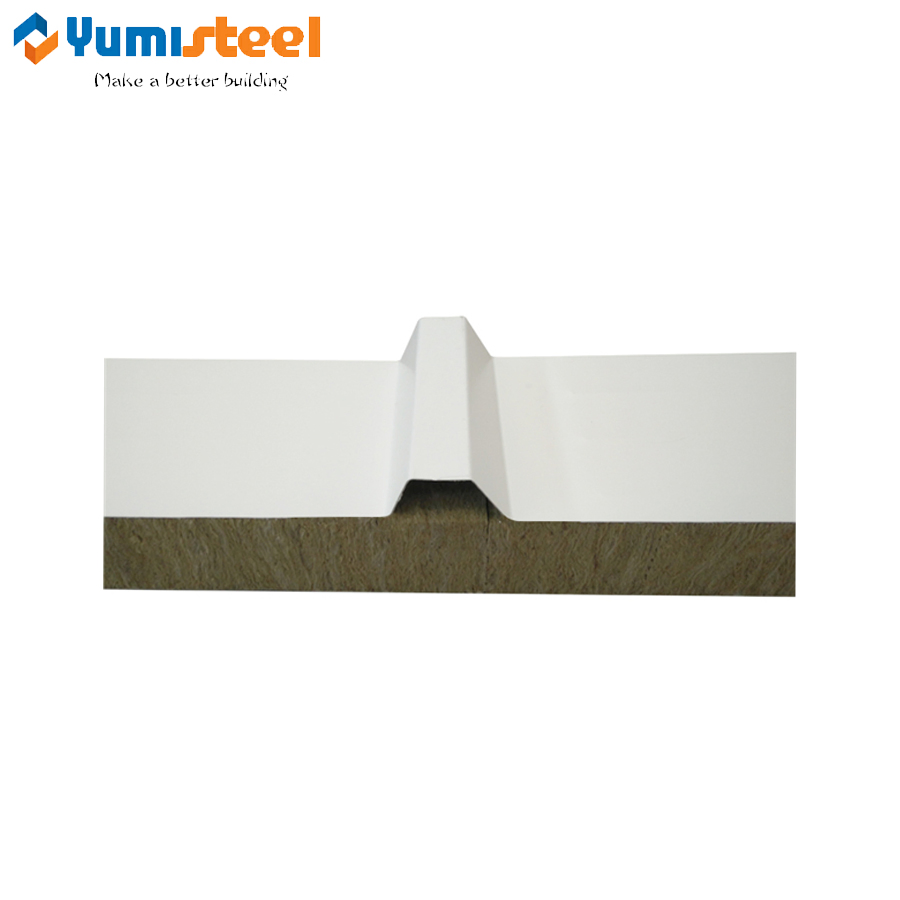

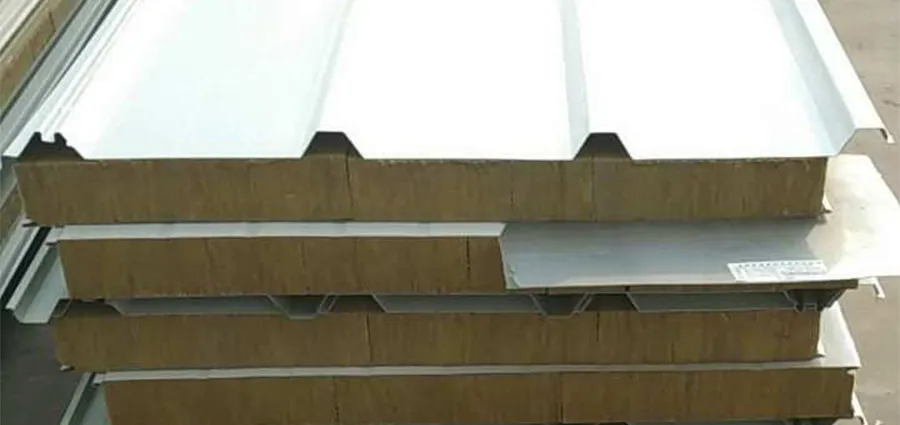

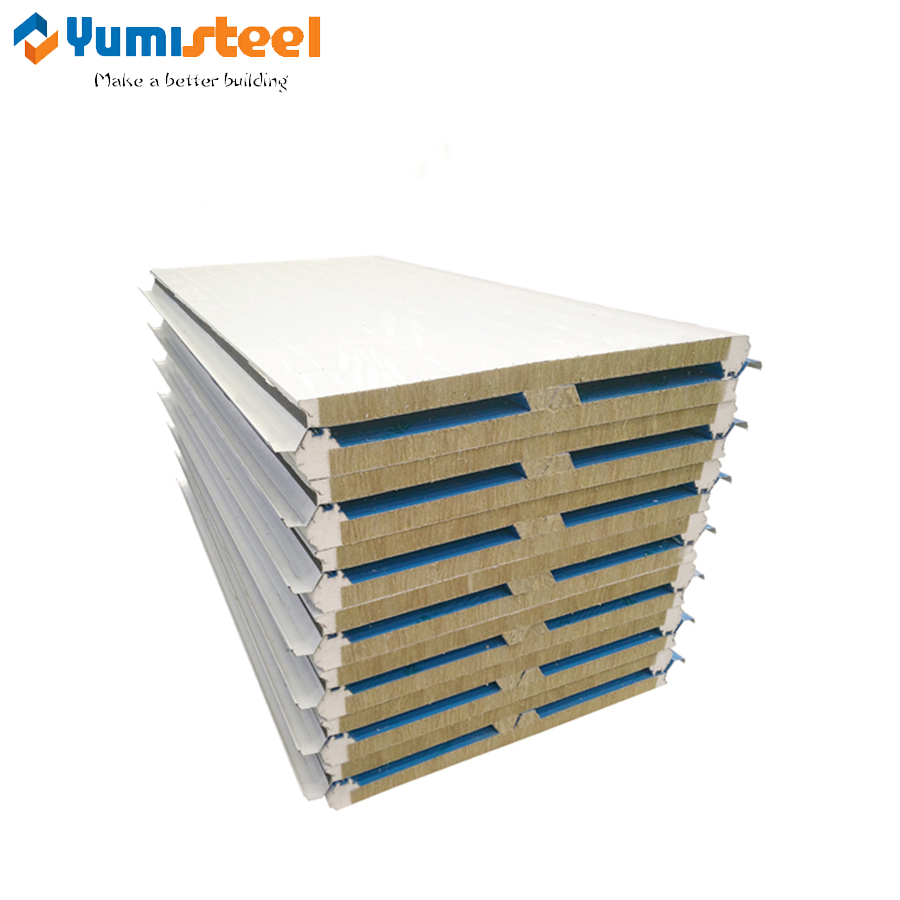

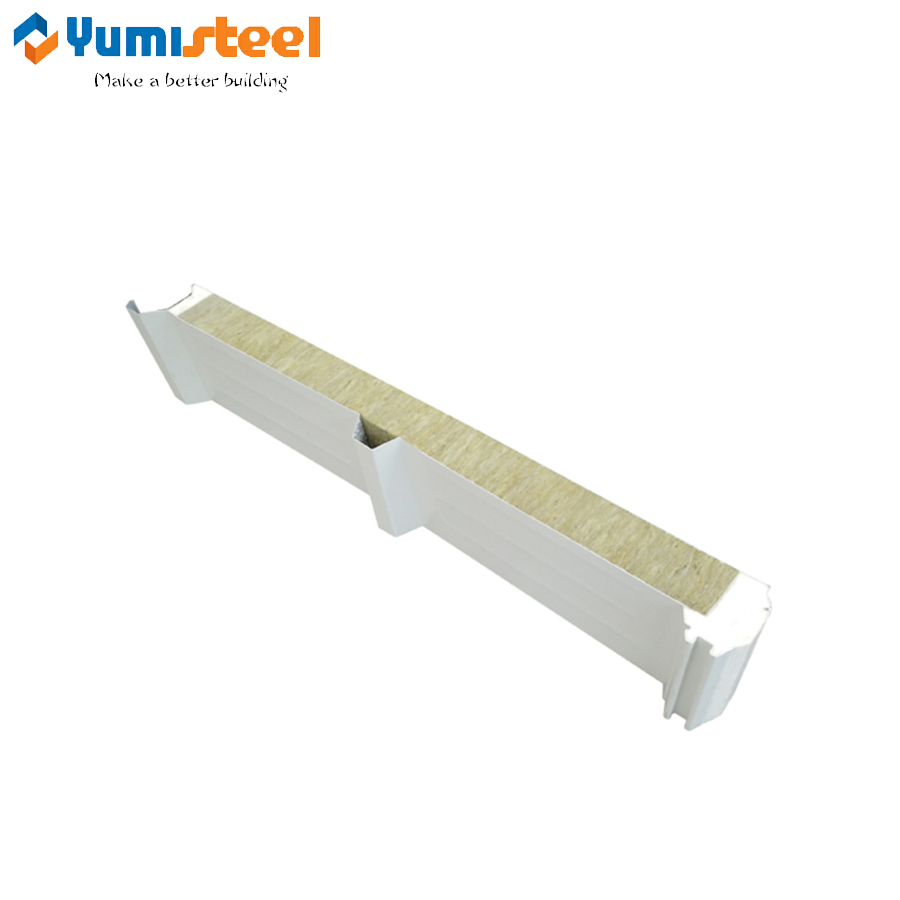

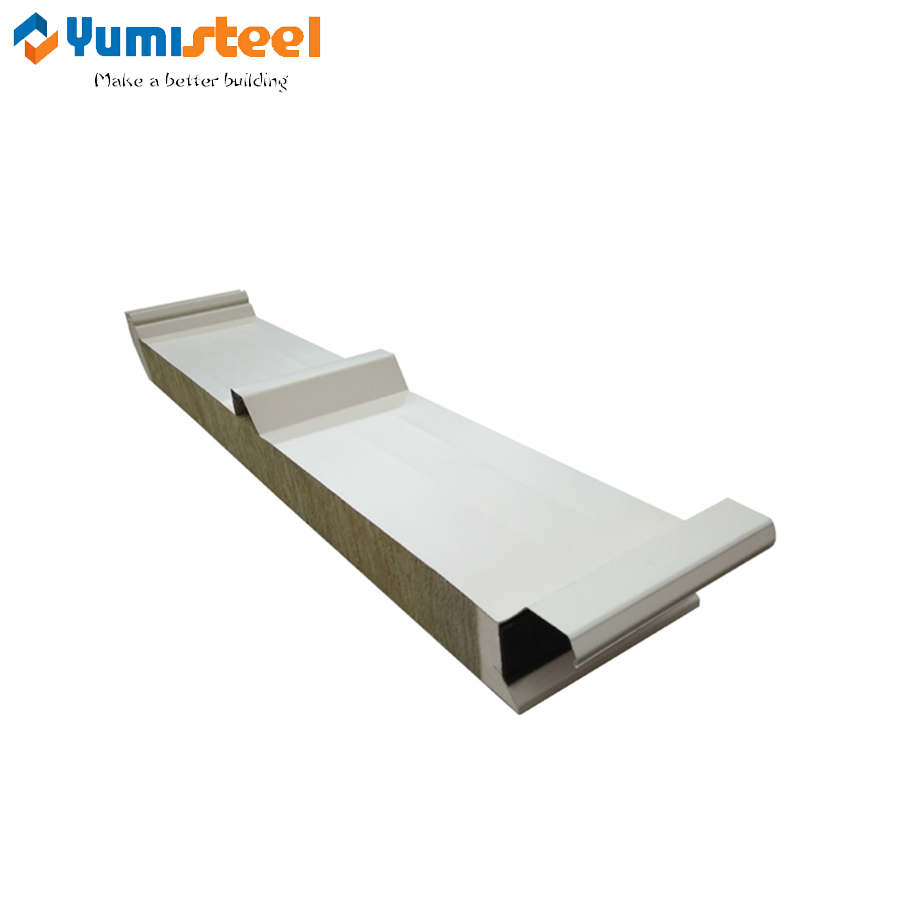

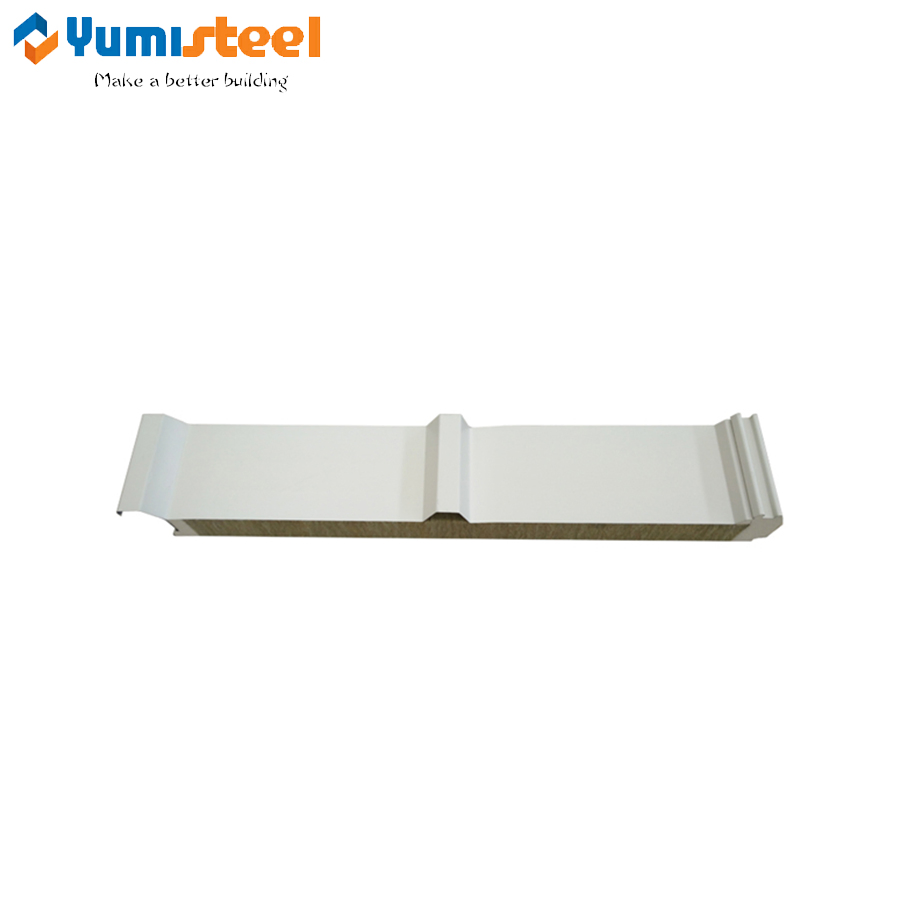

Rockwool Sandwich Panel: The rockwool sandwich panel features a non-combustible mineral wool core bonded between two steel facings. This robust composition creates an excellent building material that provides superior fire resistance, effective thermal insulation, and sound absorption. Its integrated structure makes it a durable and efficient solution for modern construction walls and roofs.
| Product thickness | 0.12-0.80mm |
| Zinc or Al-Zn clad layer | Zinc:30-275g/m² Al-Zn:30-100g/m² |
| Steel standard | Q235 / 345 (China GB standards) |
| Coating thickness of Top sheet | 10-25/35μm |
| Coating thickness of Bottom sheet | 7-10μm |
| Coating type | PE, PVDF, HDP, SMP, etc. |
| Regular color | White/Sea blue/DK grey/Sliver grey/White silver grey/Iron grey |
| Model type | 950/1150mm |
| Steel plate thickness | 0.3-0.7mm choosable |
| Core material thickness | 50-200mm choosable |
The dense rockwool core provides excellent thermal resistance, significantly reducing energy transfer and lowering heating and cooling costs.
Featuring a non-combustible A1 fire-rated mineral wool core, this panel offers outstanding fire resistance and effectively contains flame spread.
The white decorative surface offers a clean finish. It reflects sunlight to keep interiors cooler while ensuring a weatherproof layer.
Prefabricated design ensures structural strength. Lightweight nature allows for quick installation, reducing labor costs.

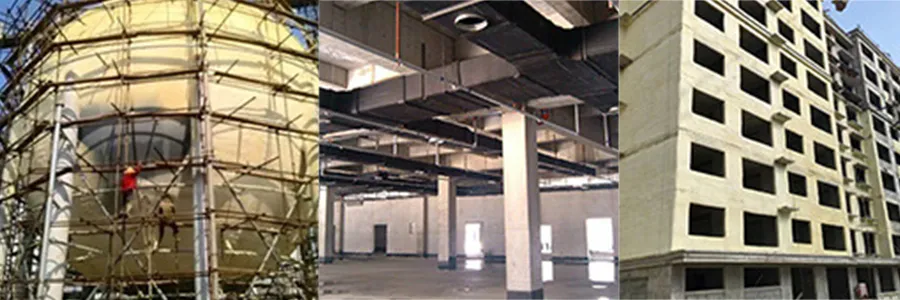

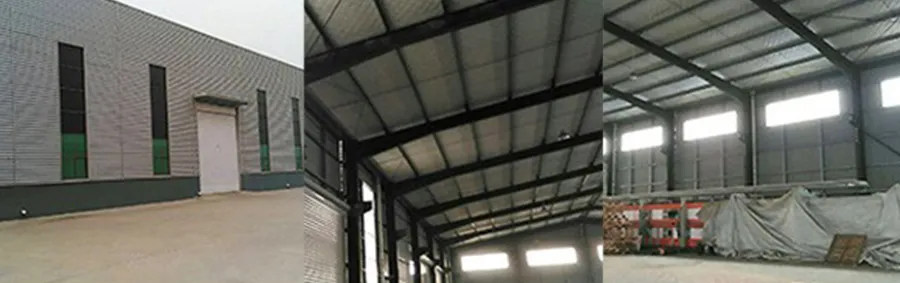

These thermal insulation fireproof rockwool sandwich panels are ideally applied as roofing systems for industrial buildings, commercial warehouses, and large retail facilities. Their white decorative finish is perfect for projects requiring a clean aesthetic alongside critical fire safety and energy efficiency performance.

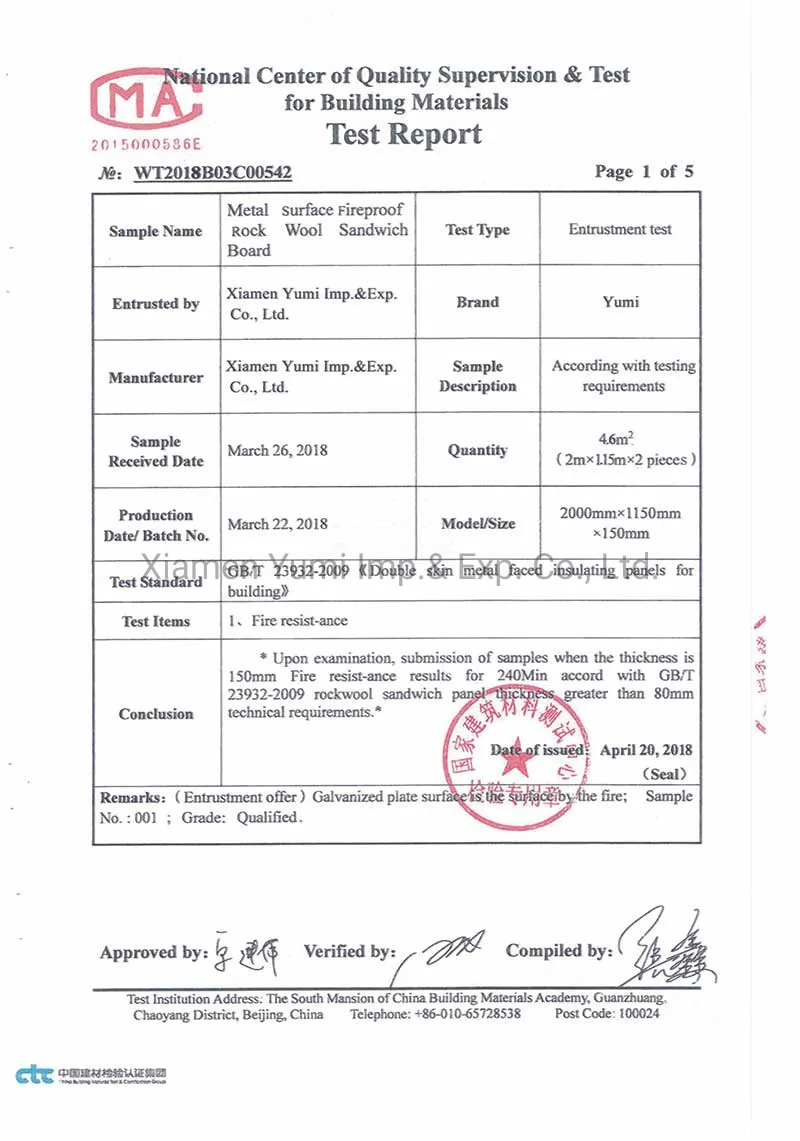

Panel Test Report
Certificates
