Aura Mesh Window
Aura Mesh Window

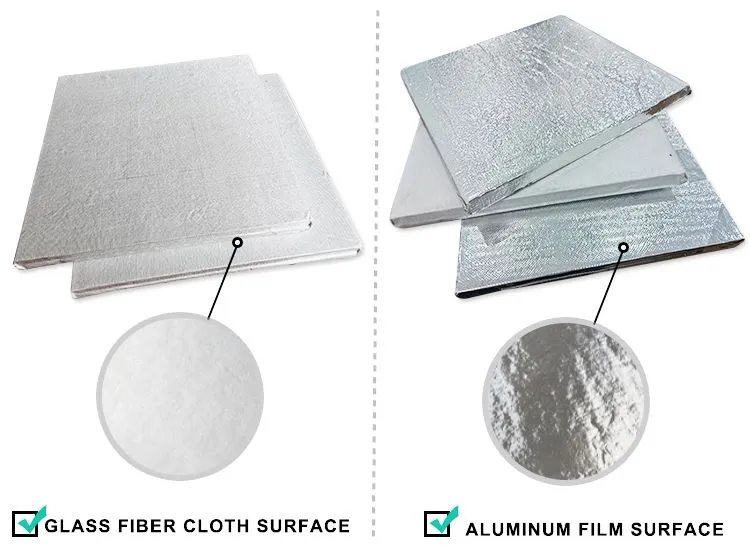

| Model NO. | QY3BV-FL | Core Material | Fumed Silica + Fiberglass |
| Density | 200 kg/m³ | Fire Rating | Class A |
| Max. Operating Temp | 100℃ | Thermal Conductivity | ≤0.0045 |
| Thickness | 5mm-50mm | HS Code | 7019909000 |
| Structure | Aluminum Foil / Fiberglass / Aluminum Foil |

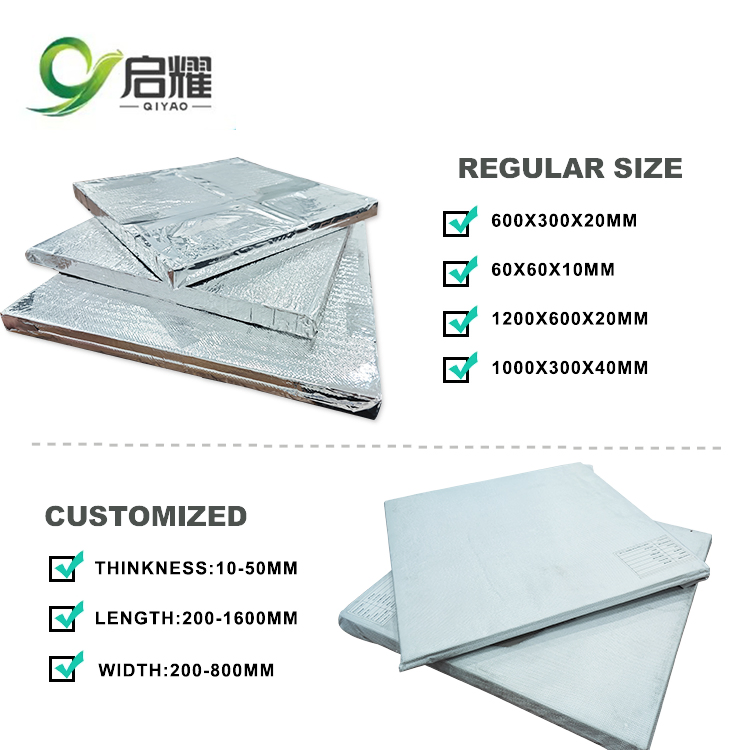

| Standard Sizes | 600x400 / 600x300 / 300x300cm (Customizable) |
| Thermal Conductivity | <0.0035 W/(m.K) at 25ºC |
| Type | Folded / Not Folded |

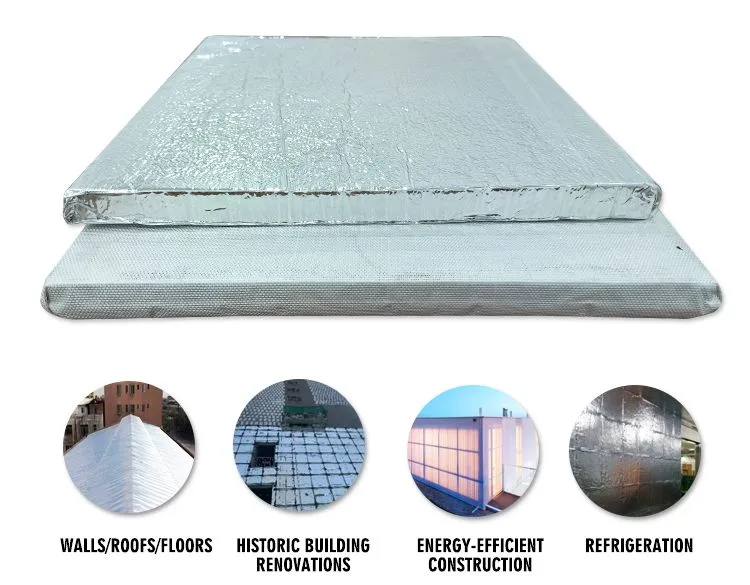

VIP insulation offers significant advantages for designers and specifiers. It allows for minimal construction thickness while maintaining high U-values, reducing overall construction costs and increasing design flexibility in both new builds and renovations.
By removing air molecules, we eliminate conduction and convection. In a vacuum, there are far fewer molecules to transfer kinetic energy, resulting in significantly lower heat flow.
No. The gas-tight foil must remain intact. If punctured, air enters and the thermal conductivity rises. Panels must be ordered to size or integrated into constructions using specific covers.
While the core can withstand up to 900°C, the outer plastic film is limited to 80°C. Permanent exposure above 50°C may increase vapor penetration, affecting the panel's lifespan.
Short-term exposure is fine, but long-term exposure to high humidity and high temperatures should be avoided. Humidity barriers are recommended for dry installation.

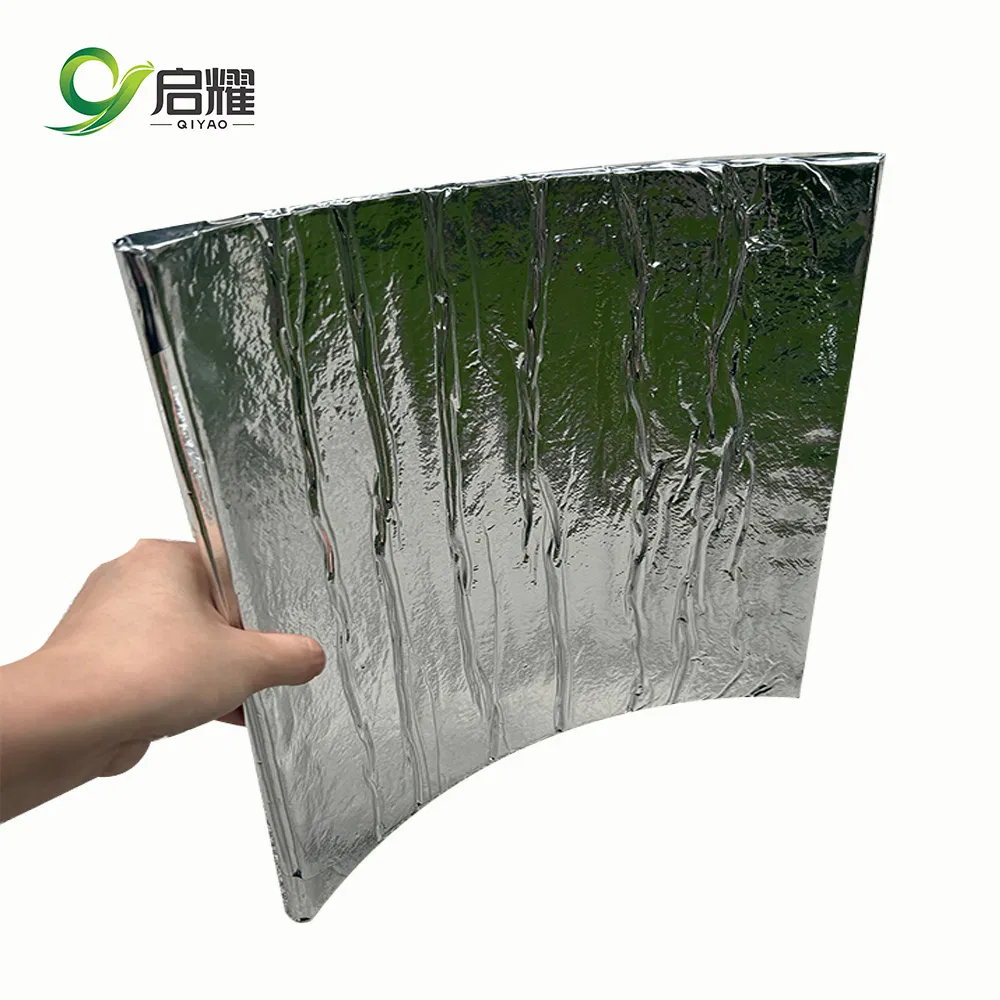

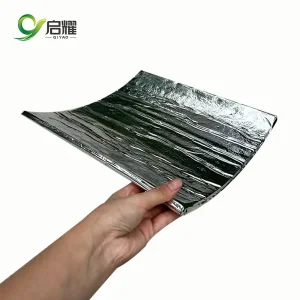

Thin panels can be bent into cylindrical forms. Complex 2D curvatures are more difficult, but new technologies allow for more complex shapes and even panels with holes.
The standard MOQ is 500sqm. Delivery typically takes 5-10 days for stock items and 15-30 days for custom production depending on quantity.
