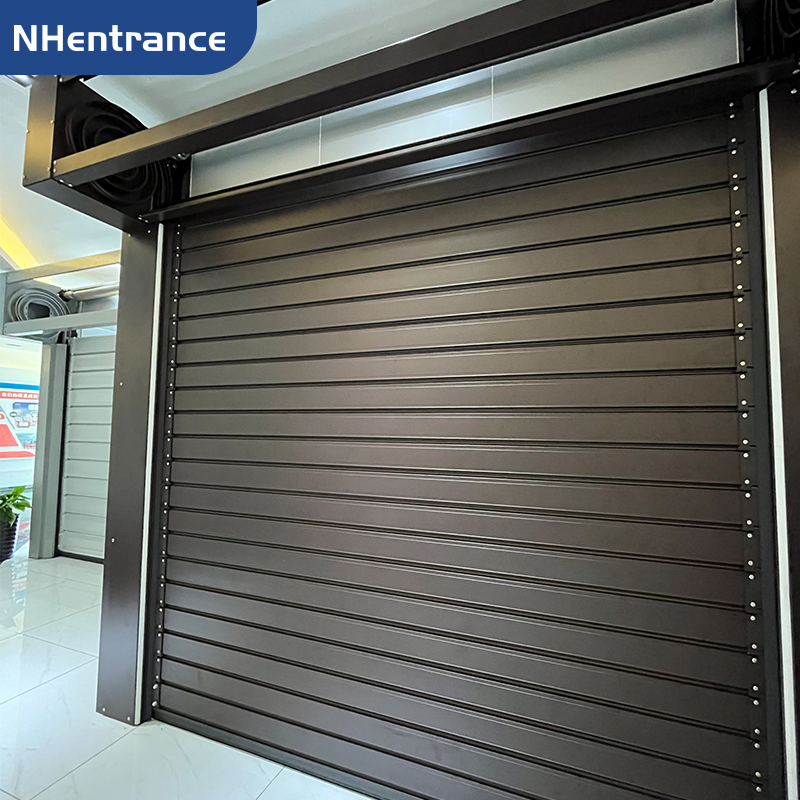

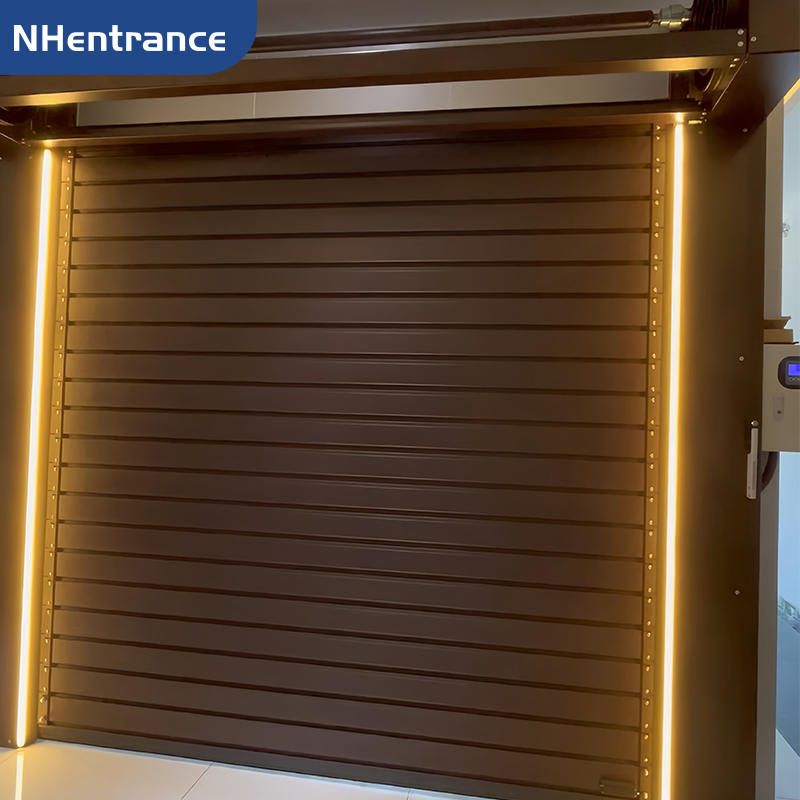

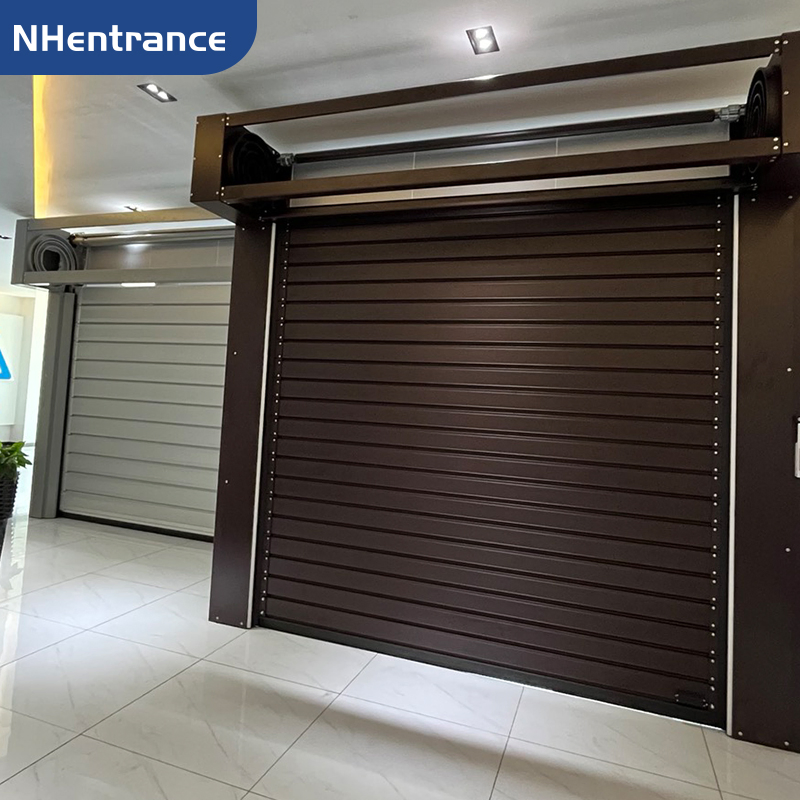

Aura Mesh Window
Aura Mesh Window

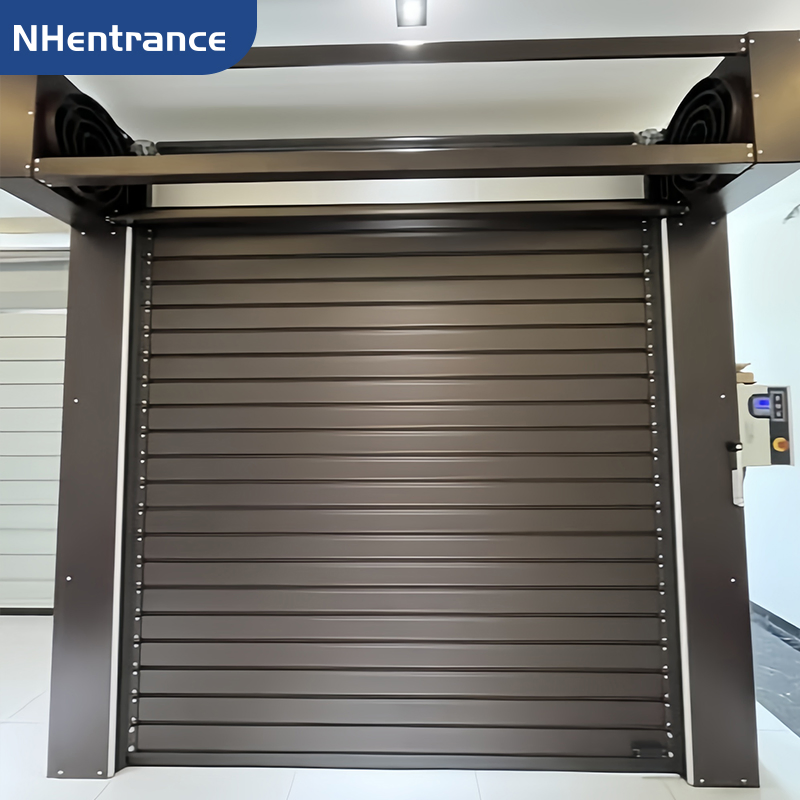

Set fast, energy-saving, sealed, wind-resistant, environmentally friendly in one of the new metal industrial doors, has a high degree of reliability and practicality. Its operating speed is more than 6 times that of the industrial sliding door. The door plate is produced by a large-scale assembly line with polyurethane industrial heat preservation material inside, and the bridge-breaking design isolates temperature loss.
| Speed | Up to 2.5m/s (98.43 inches/second) with servo drive. |
| Size Range | Min: 1000mm x 1000mm | Max: 8000mm x 9000mm |
| Panel Material | 0.7mm thick aluminum plate; 45kg/m3 foaming density; 43mm/80mm thickness. |
| Drive System | Servo-motor (0.75KW to 2.2KW) with gearbox and brake. |

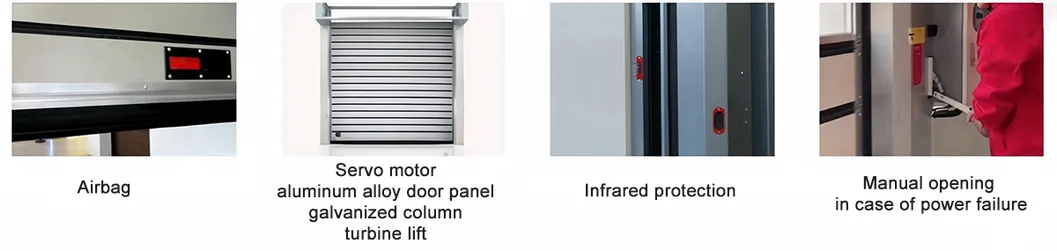

| Safety Features | Photoelectric sensors and wireless airbags; optional light curtain. |
| Warranty | 13 months after delivery; up to 150,000 cycles. |

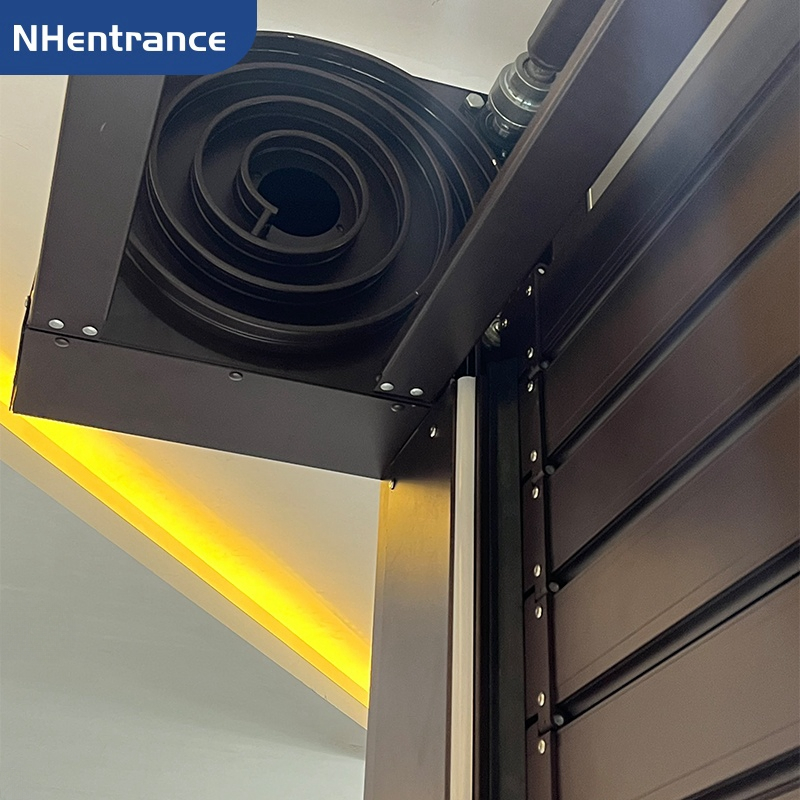

Opening speed 0.8m/s ~ 2m/s (adjustable). Archimedean spiral principle reduces friction for smoother high-speed operation.
Patented broken bridge design for superior heat preservation. Resistant to 12 winds (National Standard Level 3).
Multiple intelligent opening methods: Radar, geomagnetism, remote control, Bluetooth, and APP linkage.
Specializing in high-performance industrial doors and loading dock systems with over two decades of expertise. Products adhere to stringent European industry standards including EU CE mark, SGS, and ISO9001 certifications. Serving global markets across industries such as manufacturing, logistics, and food processing.
