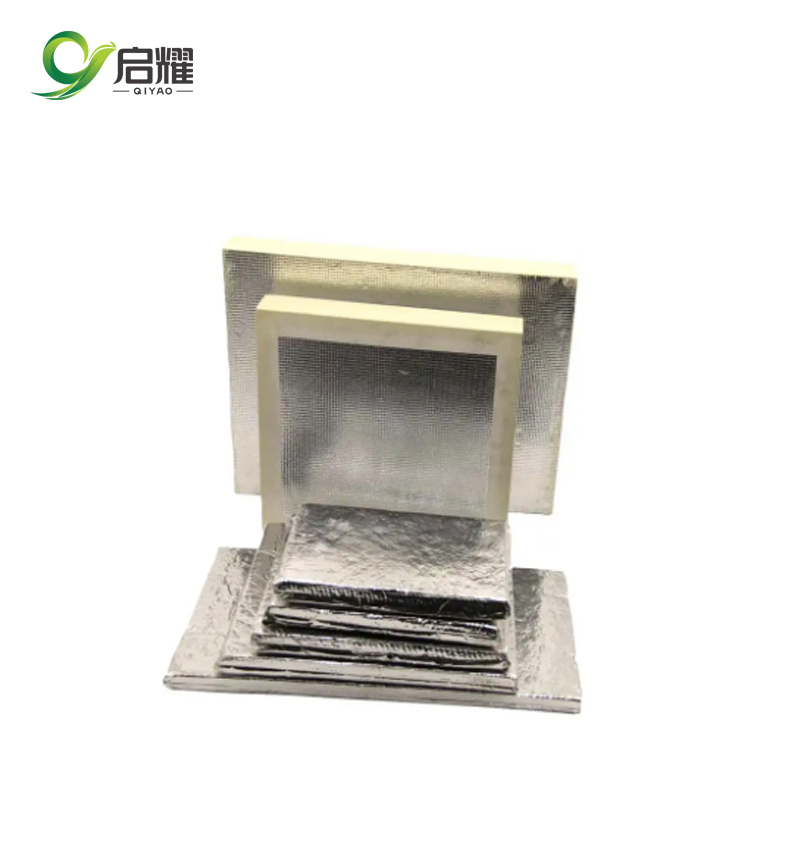

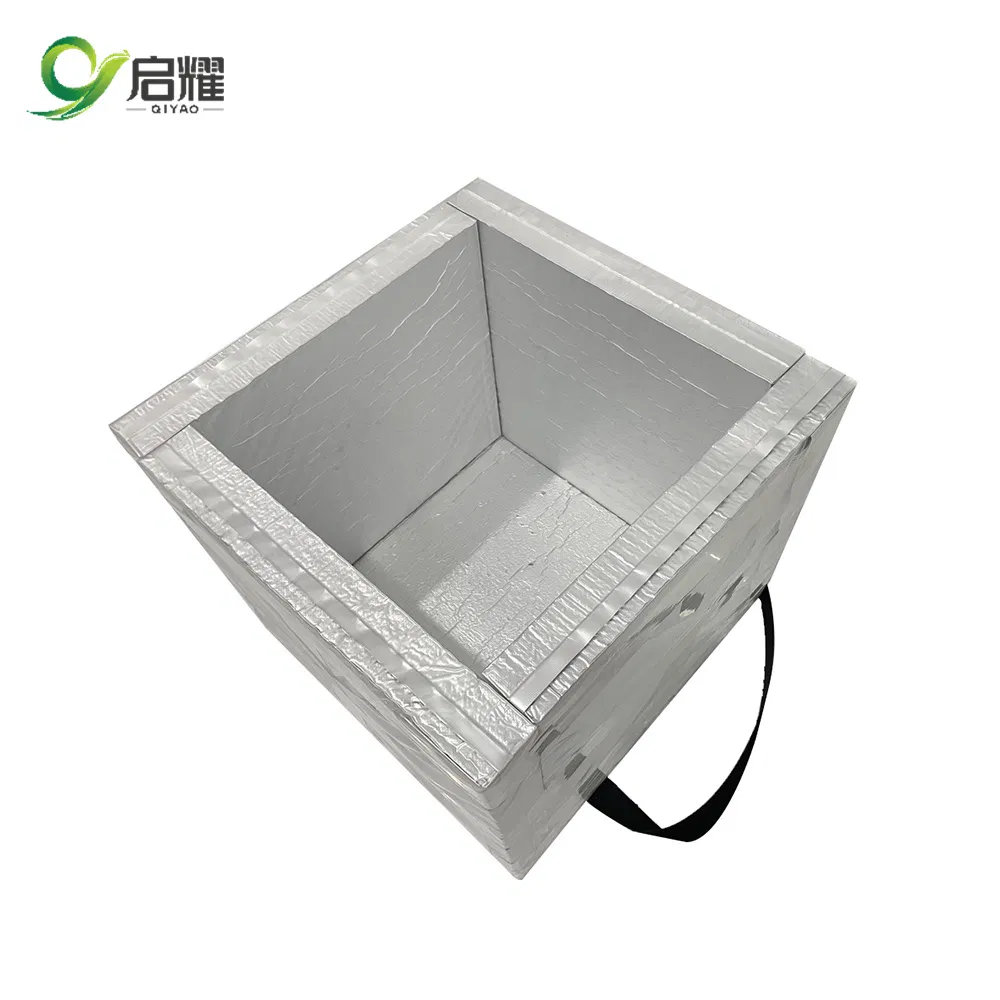

Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
1 / 5
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box
Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box

Lowest Conductivity Insulated Box Vacuum Insulation Panel for Vaccine, Medical Cooler Box

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
QY3BV FL
Conductivity
0.0038
Refractoriness
200-450°C
Diameter
5-15mm
Warranty
1 Year
Material
Vacuum Insulation Panel, PU Foam
Apparent Density
240-280kgs/M3
Usage
Cold Chain Transport
Capacity
50,000 Units
HS Code
7019909000
🔍

Product Introduction

VIPs (Vacuum Insulated Panels) are thin pieces of insulation uniquely designed to take up very little space. Built with layers of porous core materials encased in a gas-tight foil, these panels create thermal resistance that is up to 20x more effective than traditional insulation. At only 1" thick, they provide high R-values, making them ideal for space-restricted environments, offering superior comfort and sound dampening.

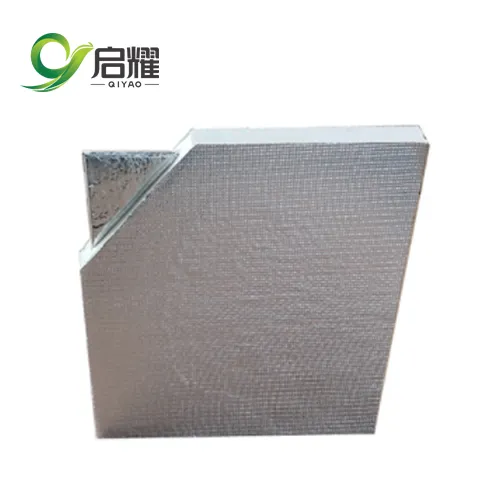

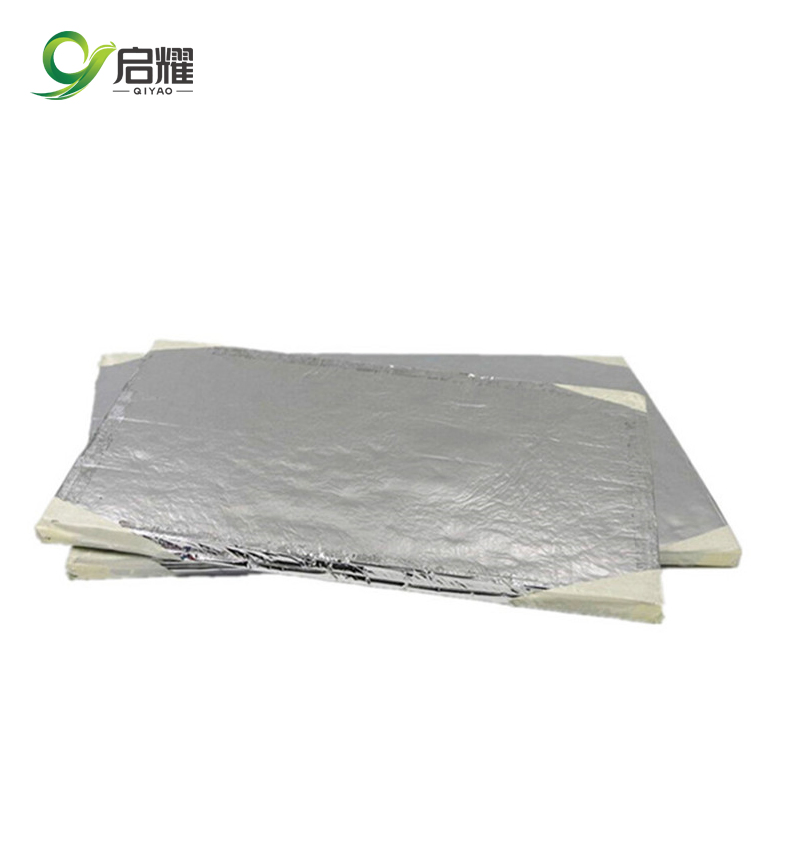

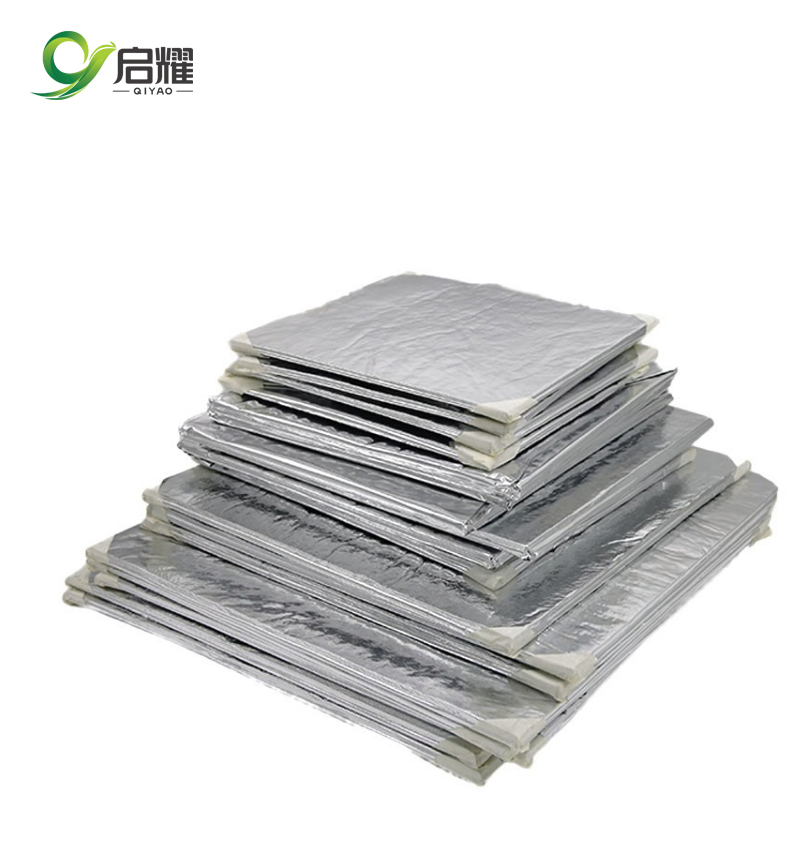

Vacuum Insulation Panel

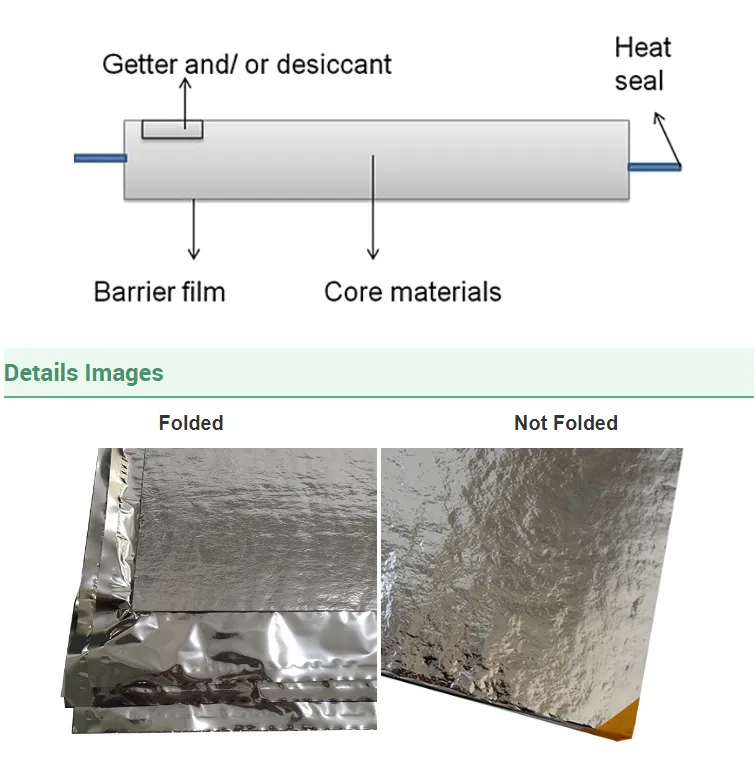

VIP Specification
Technical Specifications
StructureAluminum Foil / Fiberglass / Aluminum Foil
Size600x400 / 600x300 / 300x300cm or Customized
Thermal Conductivity<0.0035W/(m.k) at 25ºC
PackingStandard Carton Packaging
MOQ500 Square Meters
⭐

Key Benefits & Features

Design Flexibility: VIP insulation allows designers to achieve performance targets within thinner construction build-ups compared to traditional methods, reducing construction costs.

Performance Comparison (Lambda Values):

  • Fibreglass: 0.040 W/mK
  • EPS: 0.038 W/mK
  • PIR: 0.022 W/mK
  • VIP: 0.006 W/mK (Core only)

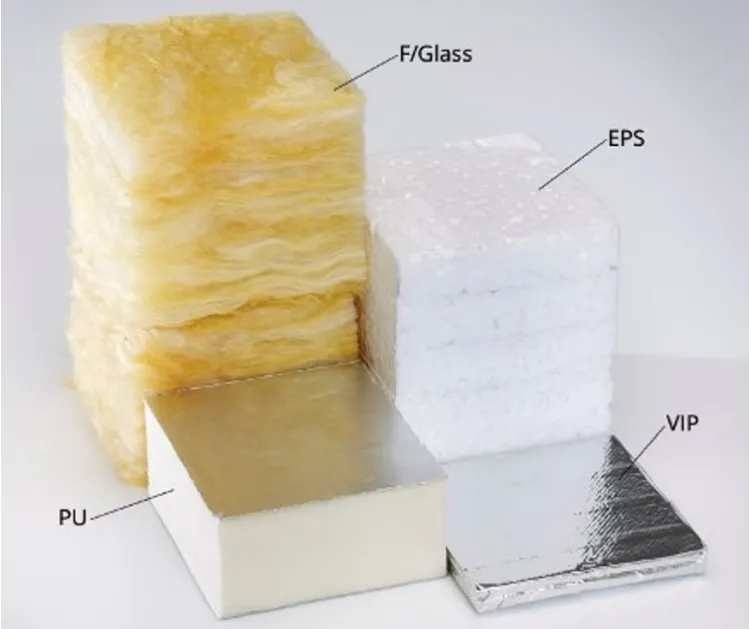

Insulation comparison

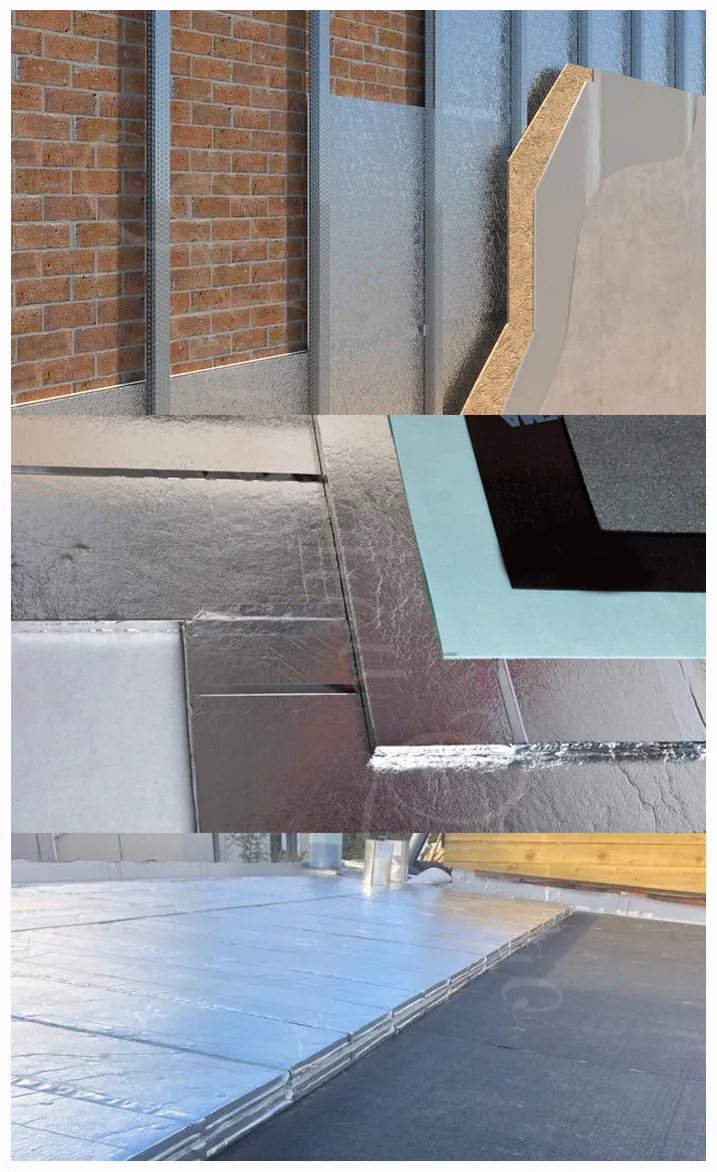

Product Application

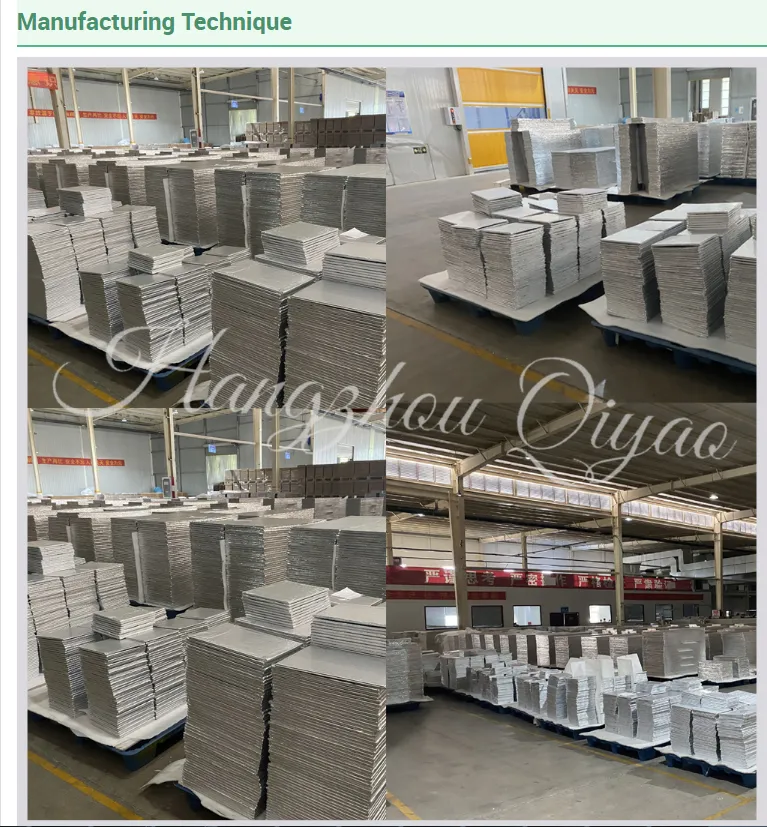

Manufacturing Detail
✅

Manufacturing Excellence

We are a diversified manufacturing and distribution entity with high-speed automatic laminating machines and strict quality control lines. We support product development across four distinct sectors including roof waterproof materials, reflective insulation, and cold chain logistics systems.
Factory Control

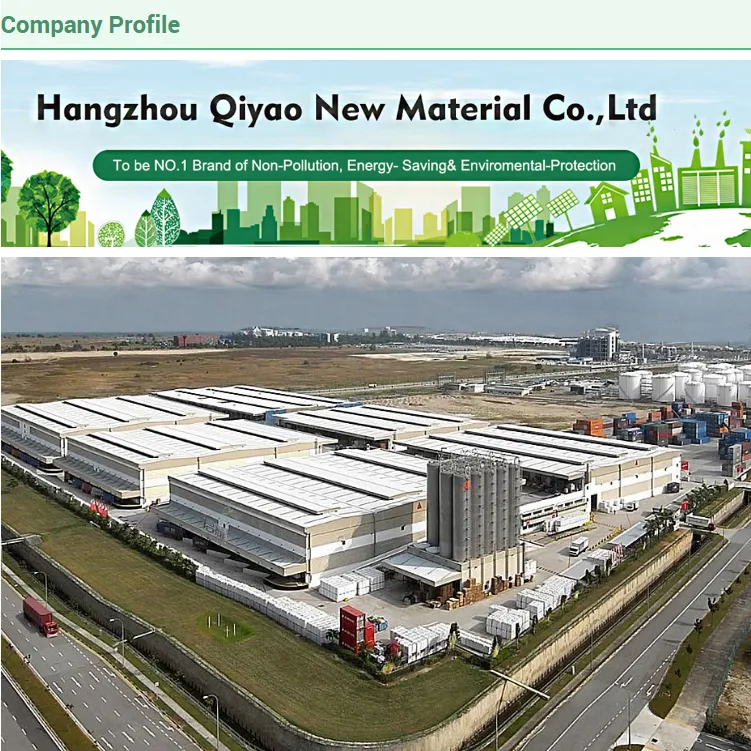

Quality Assurance
❓

Frequently Asked Questions

How does a vacuum slow down heat transfer?
By removing air molecules, we eliminate conduction and convection. In a vacuum, there are far fewer molecules to transfer kinetic energy, making heat flow significantly slower.
Can VIPs be cut or punctured during installation?
No. The high barrier film must remain intact. If punctured, air flows in and thermal conductivity rises to 0.020 W/mK. Panels must be ordered to size.
What are the temperature limits for VIPs?
While the core can sustain 900°C, the outer plastic film is rated for up to 80°C. For long-term performance, temperatures should be kept below 40°C-50°C.
Are vacuum panels sensitive to humidity?
Short-term exposure is fine, but long-term high humidity (especially with heat) should be avoided. It is recommended to install humidity barriers.
What is the Minimum Order Quantity (MOQ)?
Our standard MOQ for vacuum insulation panels is 500 square meters.
Can you produce curved or complex shapes?
Thin panels can be bent into cylindrical forms. Complex 2D curvatures are difficult, but new technologies allow for panels with holes or specific shapes upon request.
