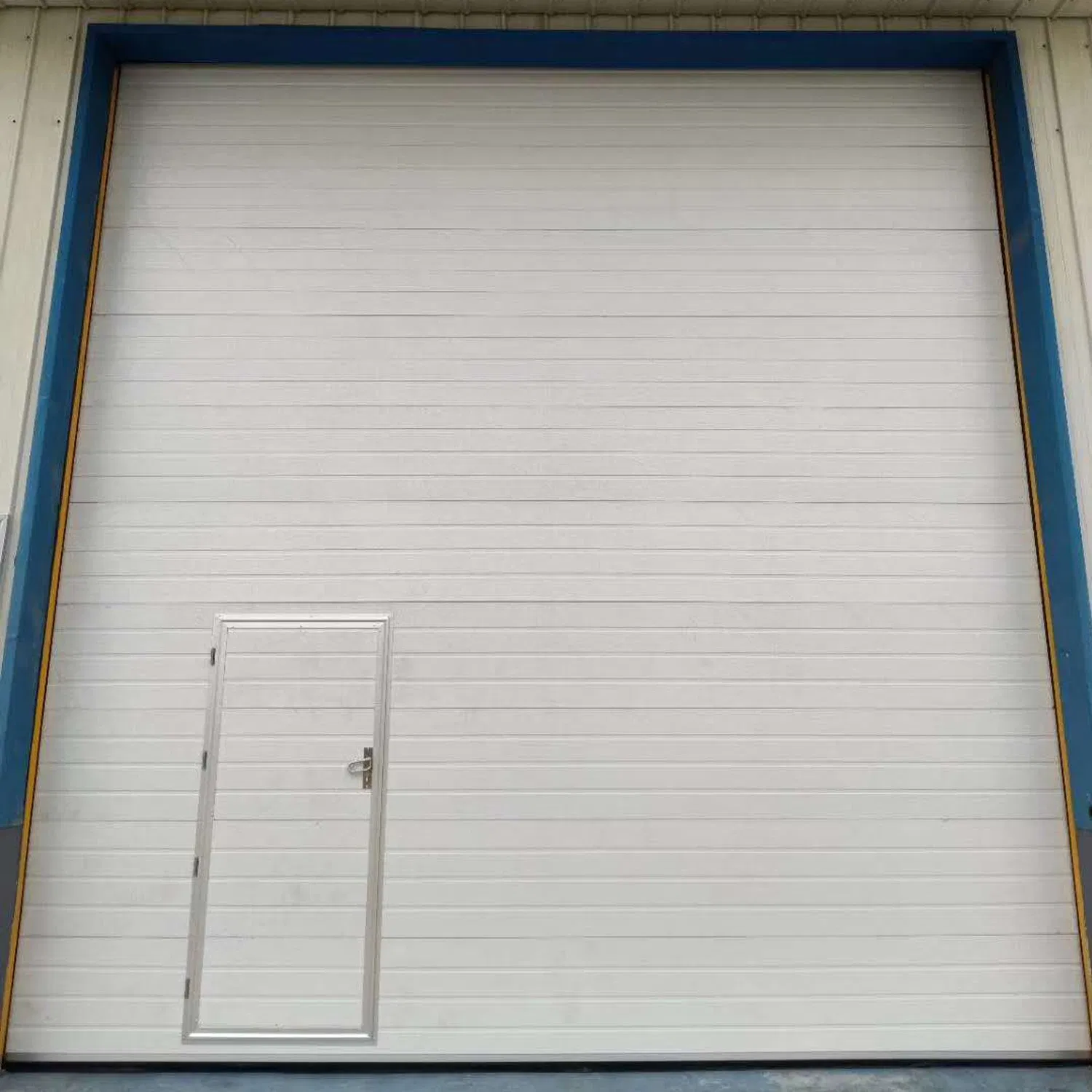

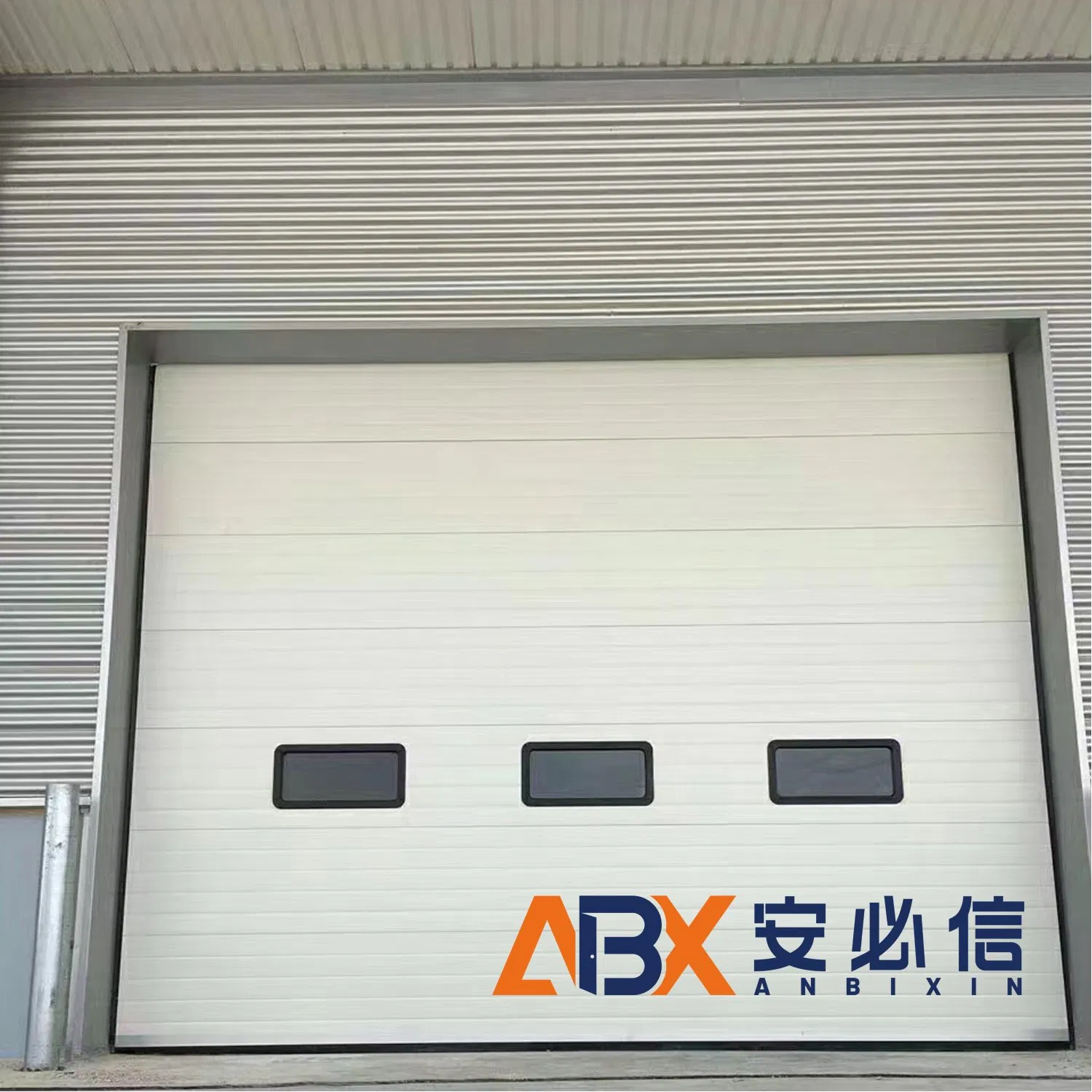

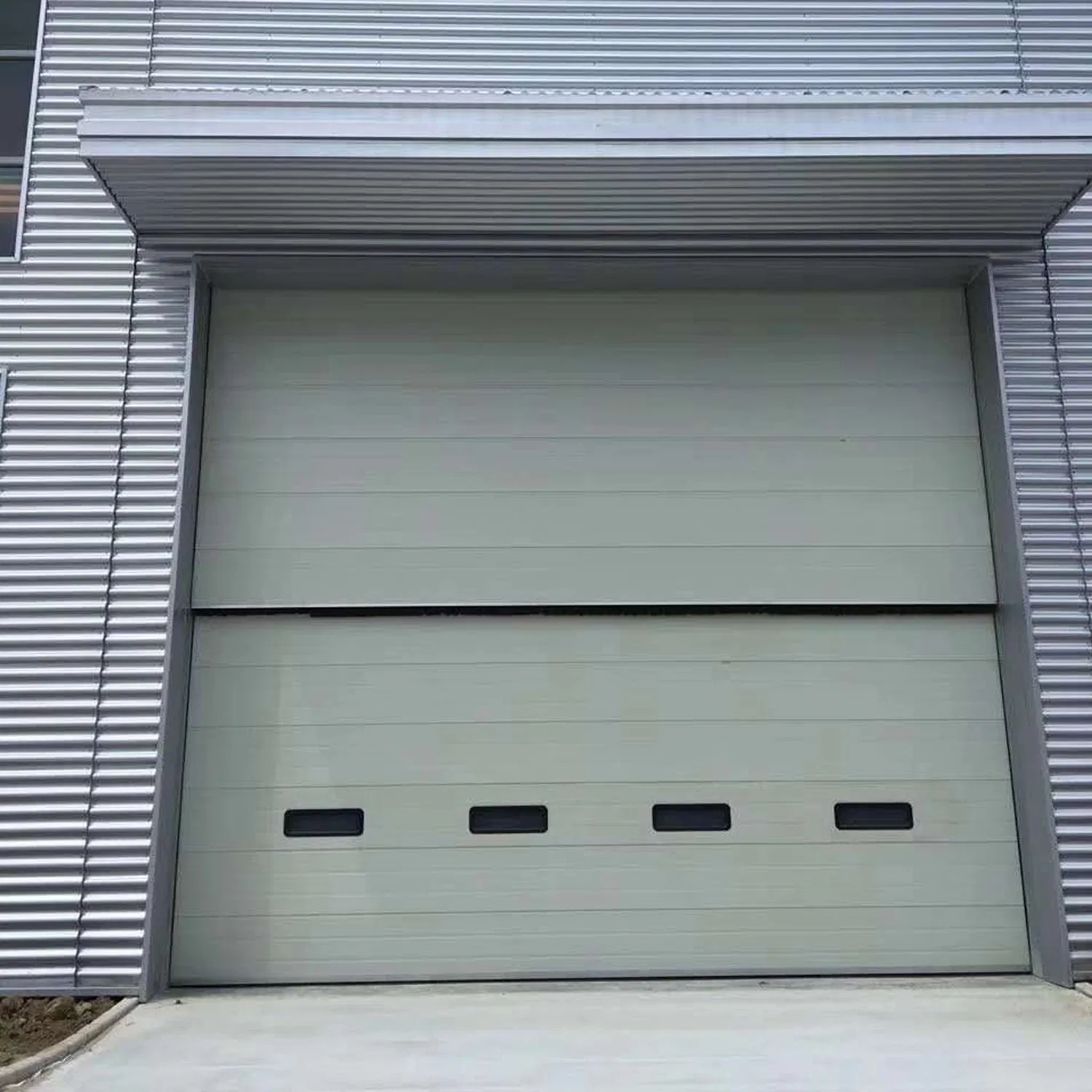

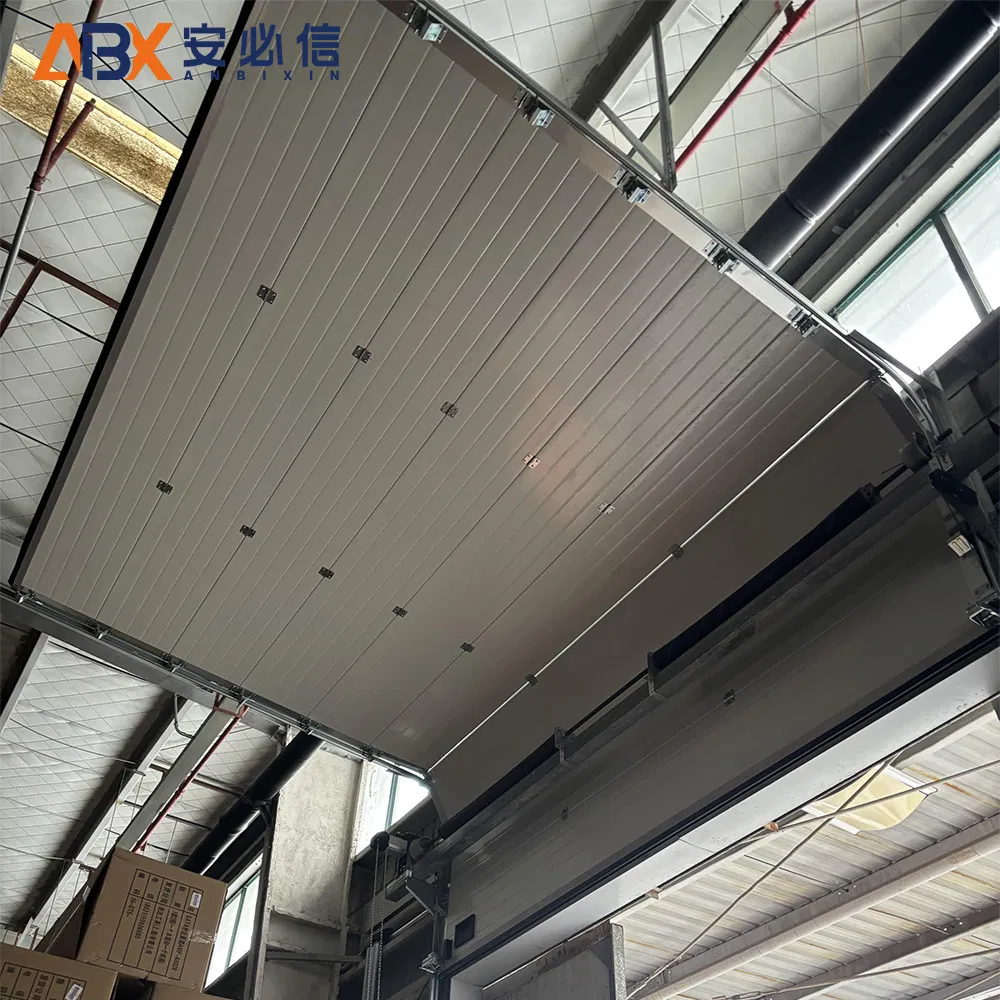

Industrial lifting door is a professional industrial exterior door. It can meet the requirements of insulation, sealing, high-frequency switching, service life, professional control, and safe use. At present, it is increasingly adopted by industrial and logistics projects.

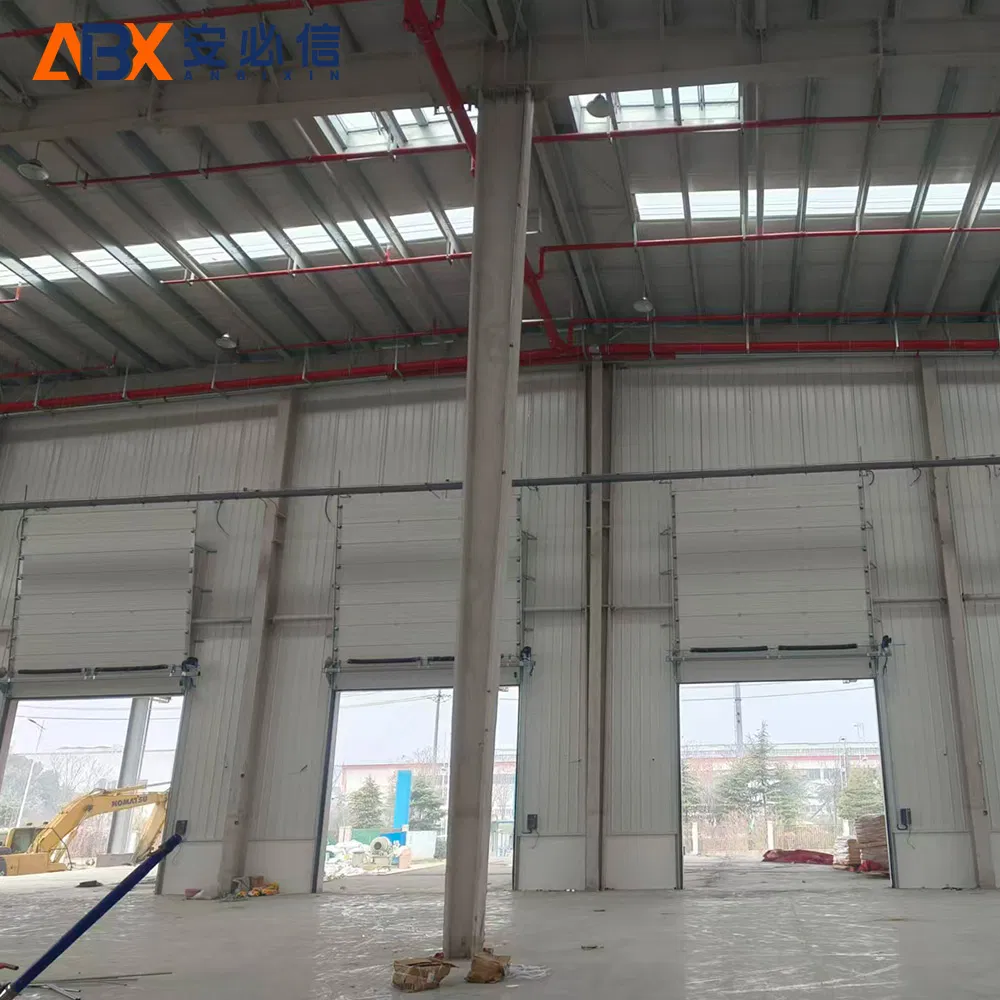

The lifting methods of industrial doors are divided into three types: standard lifting, segmented vertical lifting, and high-position lifting. Among them, industrial doors with standard lifting are also called industrial sliding doors. Industrial doors with segmented vertical lifting and high-position lifting are called industrial lifting doors.
Industrial lifting doors are composed of door bodies, balance systems, drive and control systems, safety devices, tracks, seals, and other options.
| Speed | 0.2-0.3m / s |
| Door panel | 42mm |
| Safety protection | Anti-wire rope break device, bottom airbag device, torsion spring anti-break function. |
| Torsion spring | ≥30,000 times |

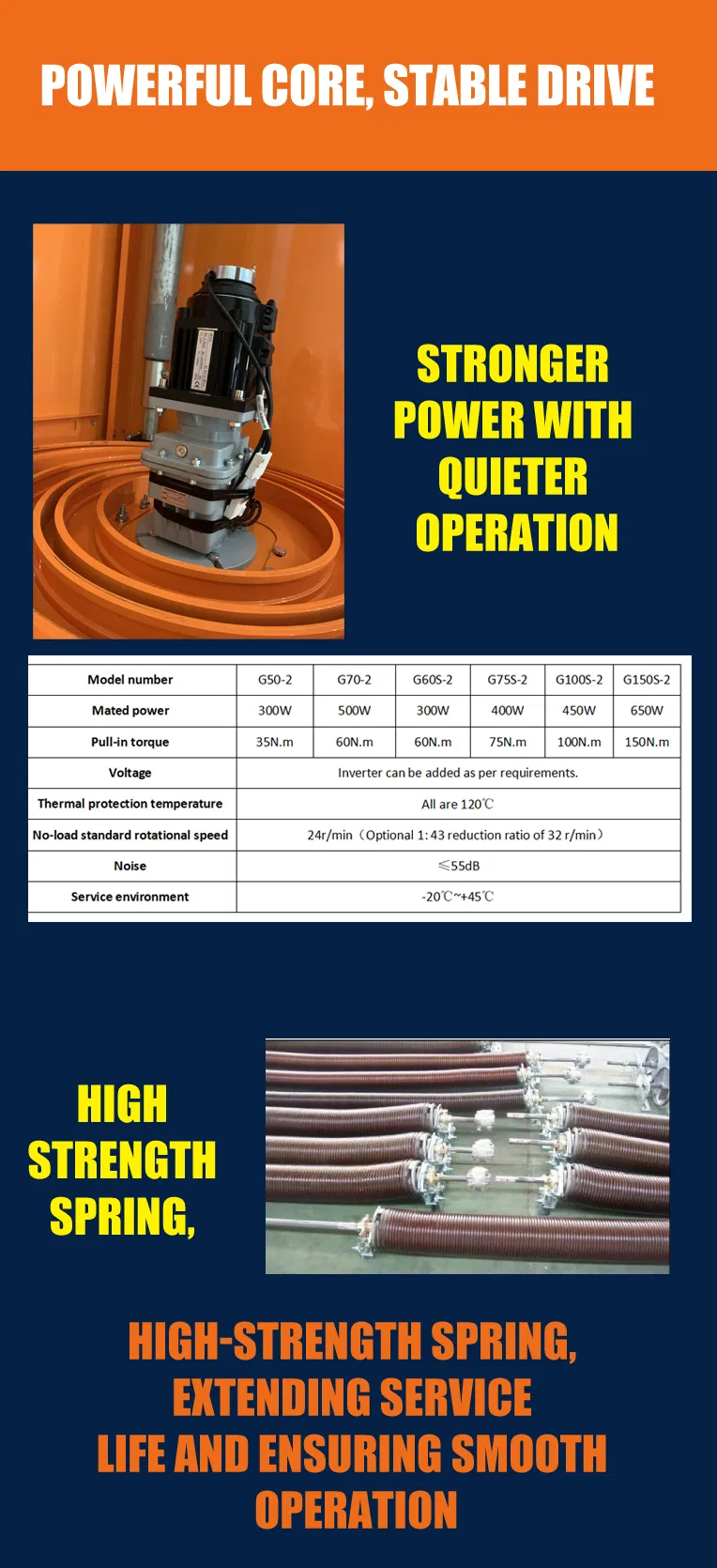

| Motor | German FROG PUPIL human-machine interface intelligent control system |
| Watertight | Level 3 (water pressure 30Pa) |
| Foam material | High-density polyurethane foaming material (48kg ± 2kg / m³) |
| Manual operation | Manual electric interchangeable |
| Wind loading rating | 4*4 Newton 700 / m2 |
| Sound insulation | 24dB |
| Airtight | Level 2 2.0 m3 / m2 / h (under 50Pa pressure) |
| Fire rating | Class B fire retardant |
Frequently Asked Questions
What are the different lifting methods available for these industrial doors?
There are three main types: standard lifting (sliding doors), segmented vertical lifting, and high-position lifting, depending on your facility's ceiling height and structural requirements.
How does the door ensure safety during operation?
The doors are equipped with multiple safety devices including an anti-wire rope break device, a bottom airbag sensor system, and a torsion spring anti-break function.
Is it possible to operate the door manually in case of power failure?
Yes, the system is designed to be manual-electric interchangeable, allowing for easy manual operation if electricity is unavailable.
What is the thermal insulation performance of the door panels?
The 42mm door panels are filled with high-density polyurethane foam (48kg/m³), providing excellent insulation and energy efficiency for industrial workshops.
What certifications do these industrial doors hold?
Our industrial doors are fully certified with ISO9001 and CE standards, ensuring they meet international quality and safety requirements.
Can these doors withstand high wind loads?
Yes, they feature a patented wind-resistant track design and are rated for wind loading of up to 700 N/m², making them suitable for demanding industrial environments.
